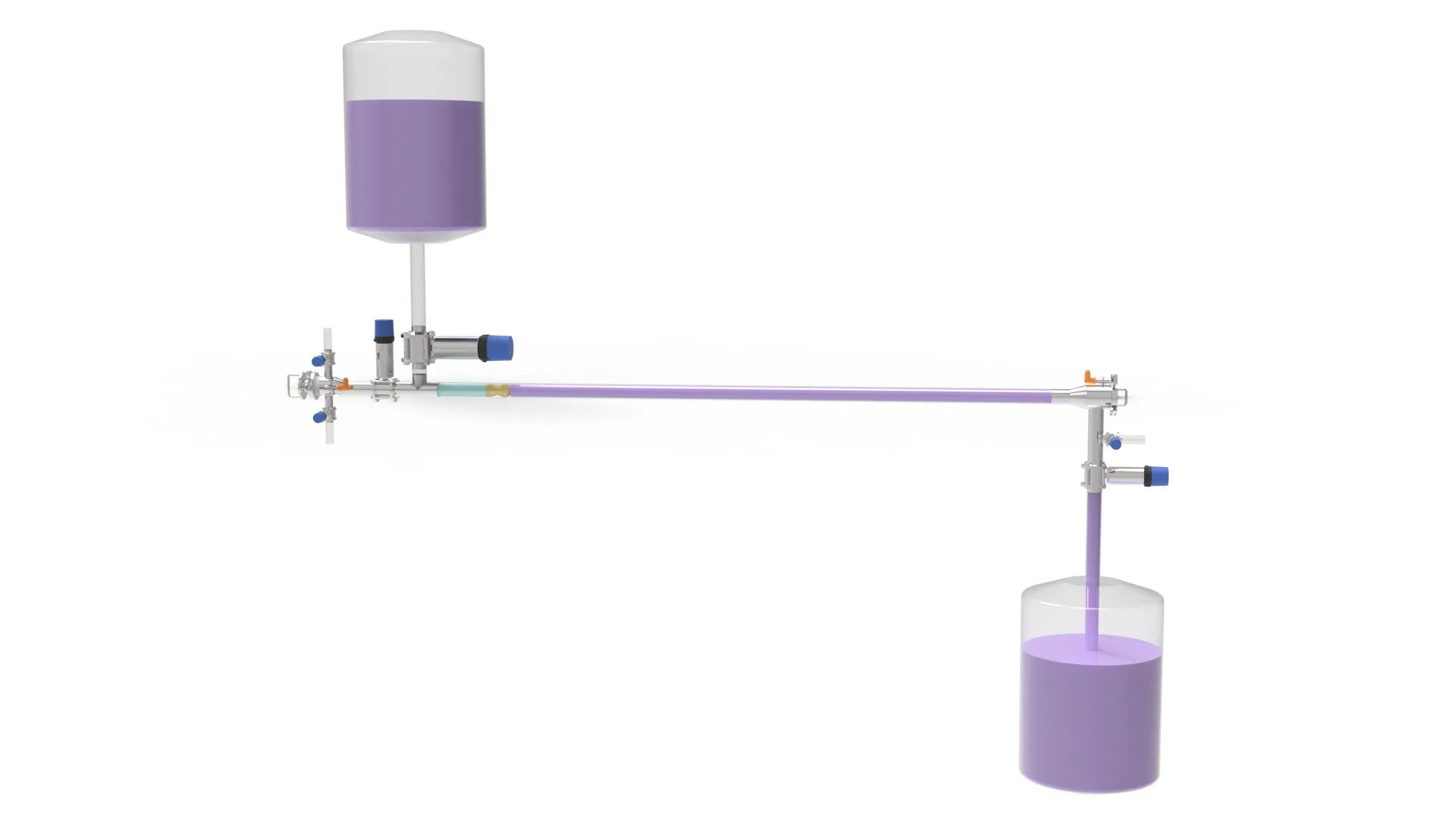

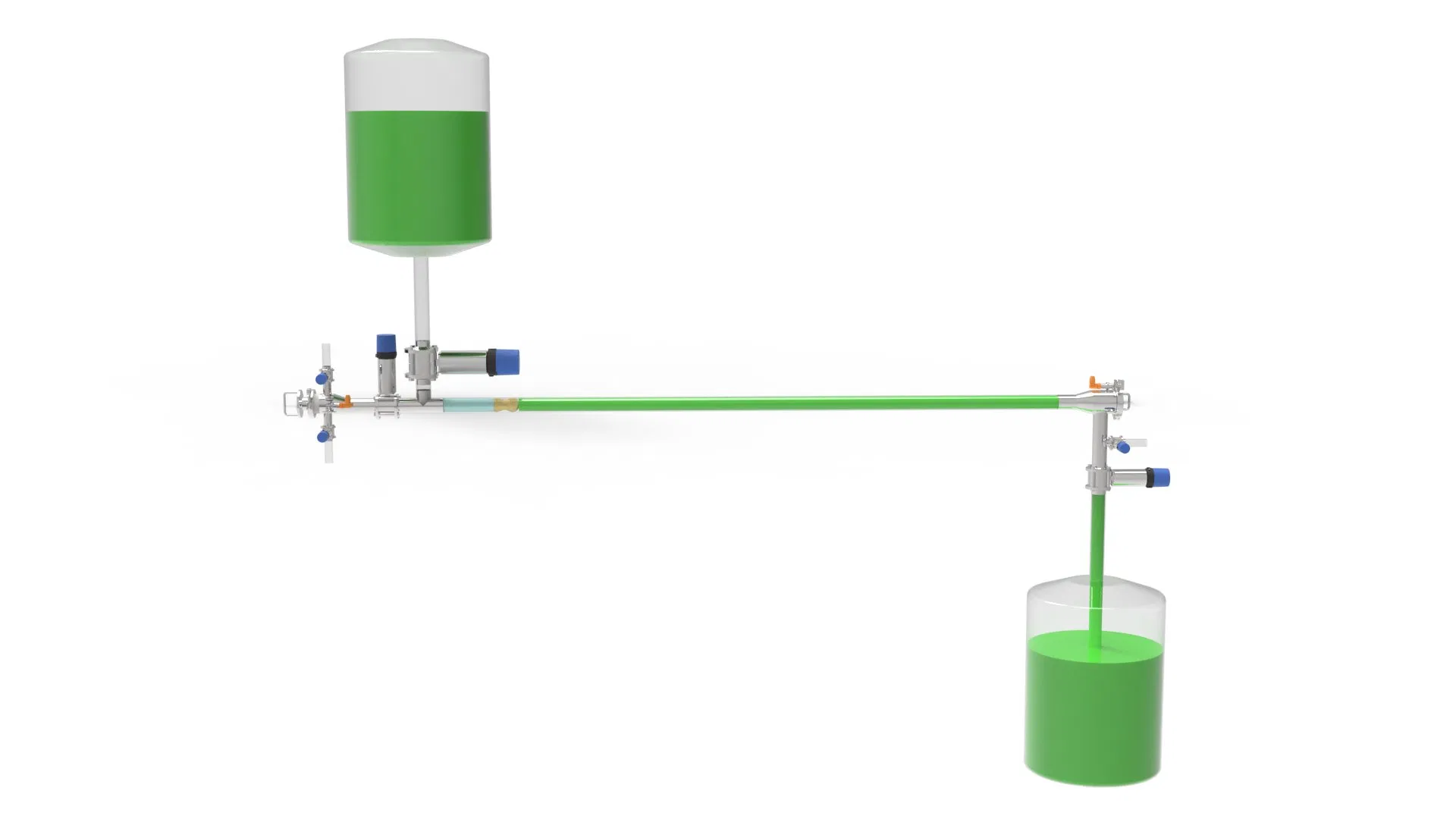

The economical (manual) pigging system mainly consists of a launching station, a receiving station, and a pig. There are two types of manual pigging systems: the manual system where the pig is manually removed from the receiving station, and the semi-automatic system where the pig can be sent back to the launching station by driving force upon reaching the receiver.

Economical (Manual) Pigging System Benefits:

• Economical and Cost-effective
• Fast return on investment, normally 3-6 months
• Suitable for simple applications in liquid food, pet food, detergent, chemicals, lithium battery, and other industries
• Effectively reducing material waste and saving costs
• Recover 99.5% plus of the residual product in the pipeline

Key Features:

• Launching and receiving stations can be cleaned together with the pipeline during CIP.
• The pipeline pig is firmly fixed when entering the station.
• Automation components can be further upgraded at any time.
• Low maintenance and operation costs.
• Efficient modular design for easy integration into existing process pipelines.

The following specifications are provided:

DIN 11850 Series II Standard: DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150
ISO Standard: 1", 1.25", 1.5", 2", 2.5", 3", 3.5", 4", 5", 6"

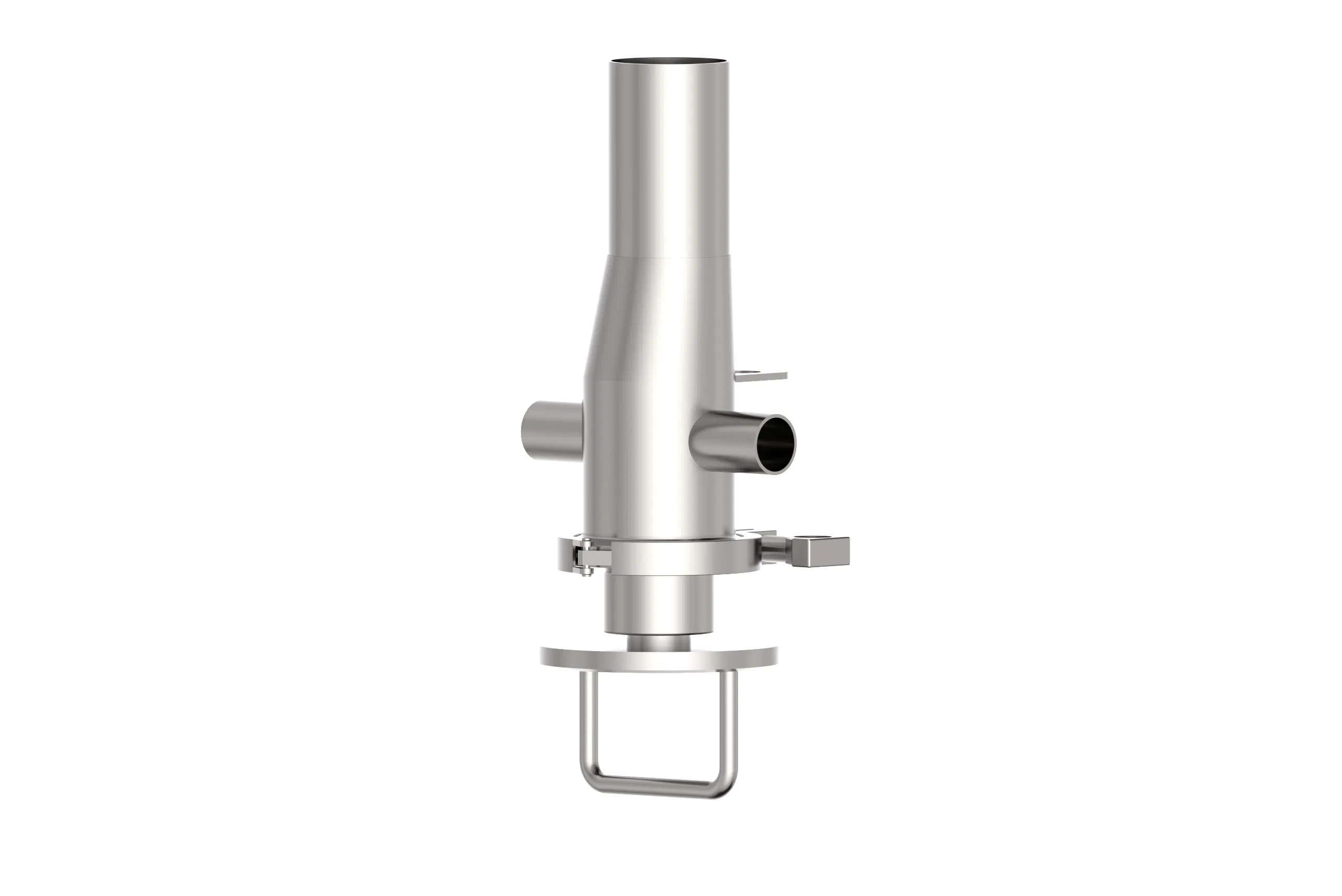

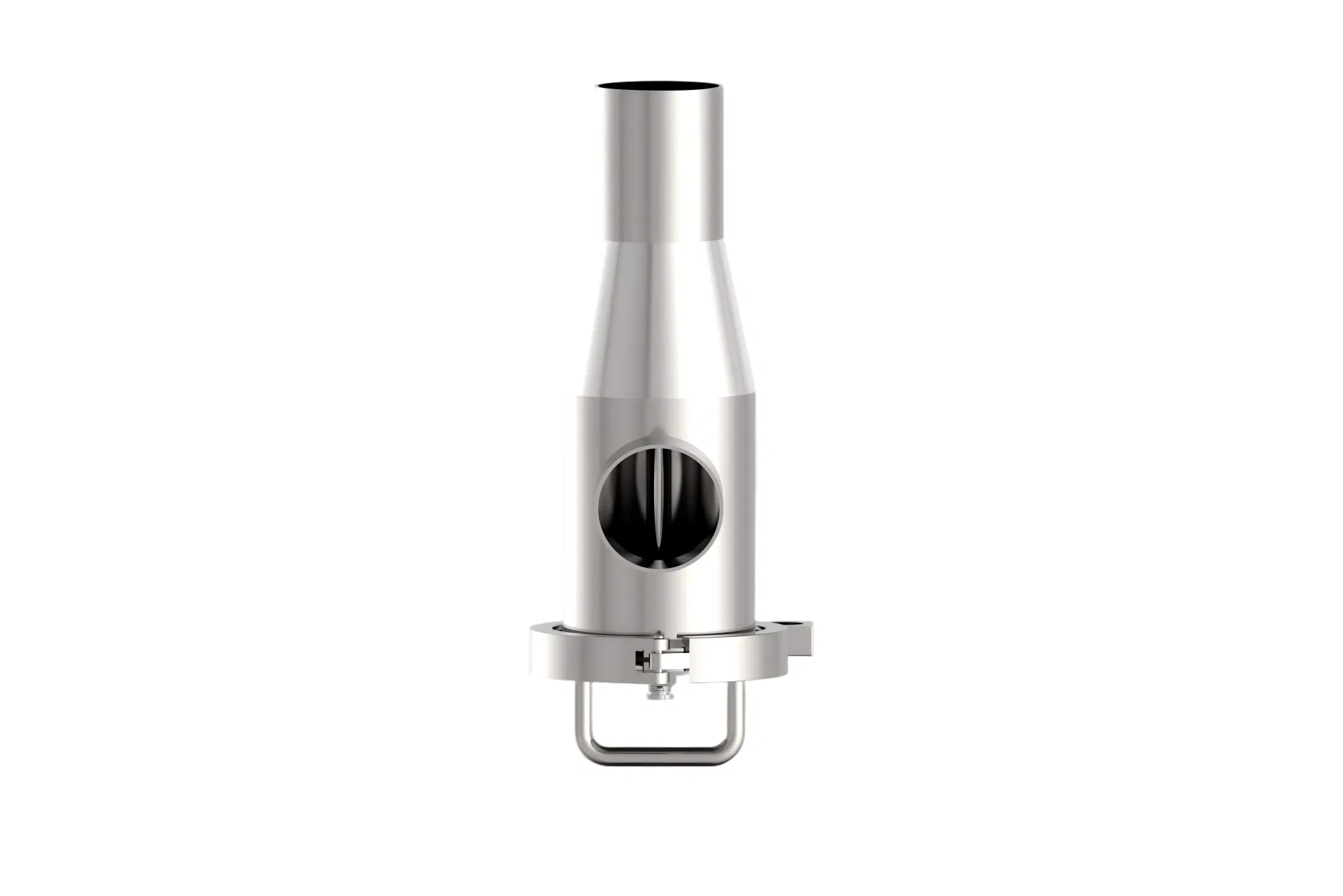

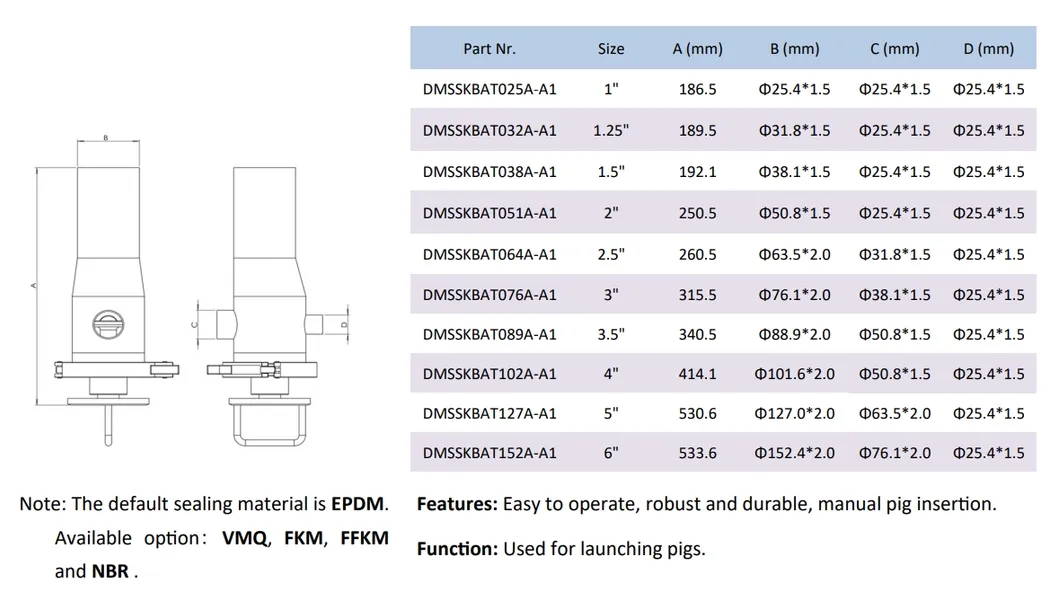

Manual Launcher (SUS316L) - ISO Series

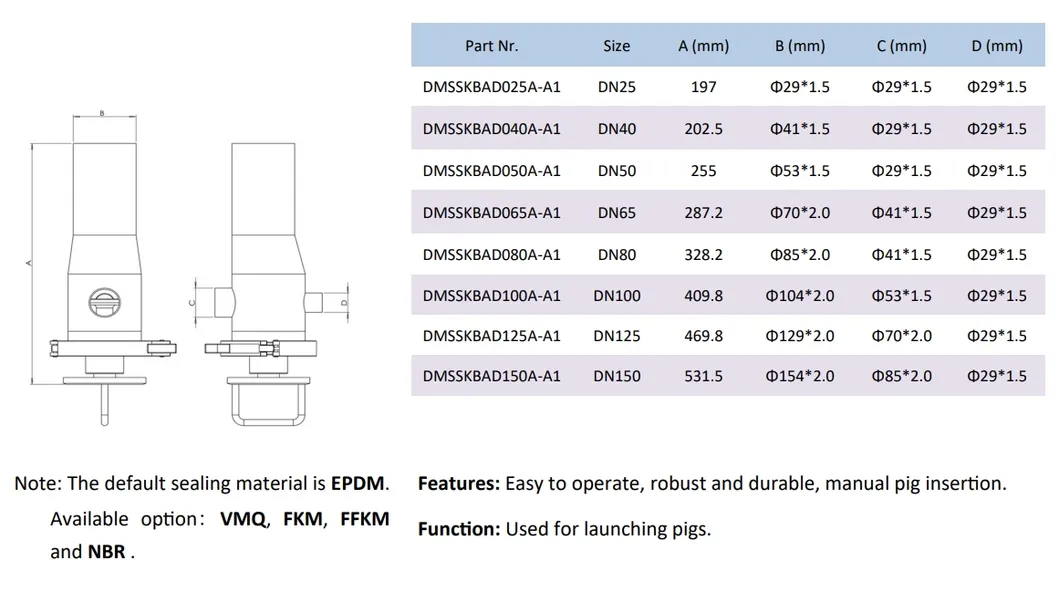

Manual Launcher (SUS316L) - DIN Series

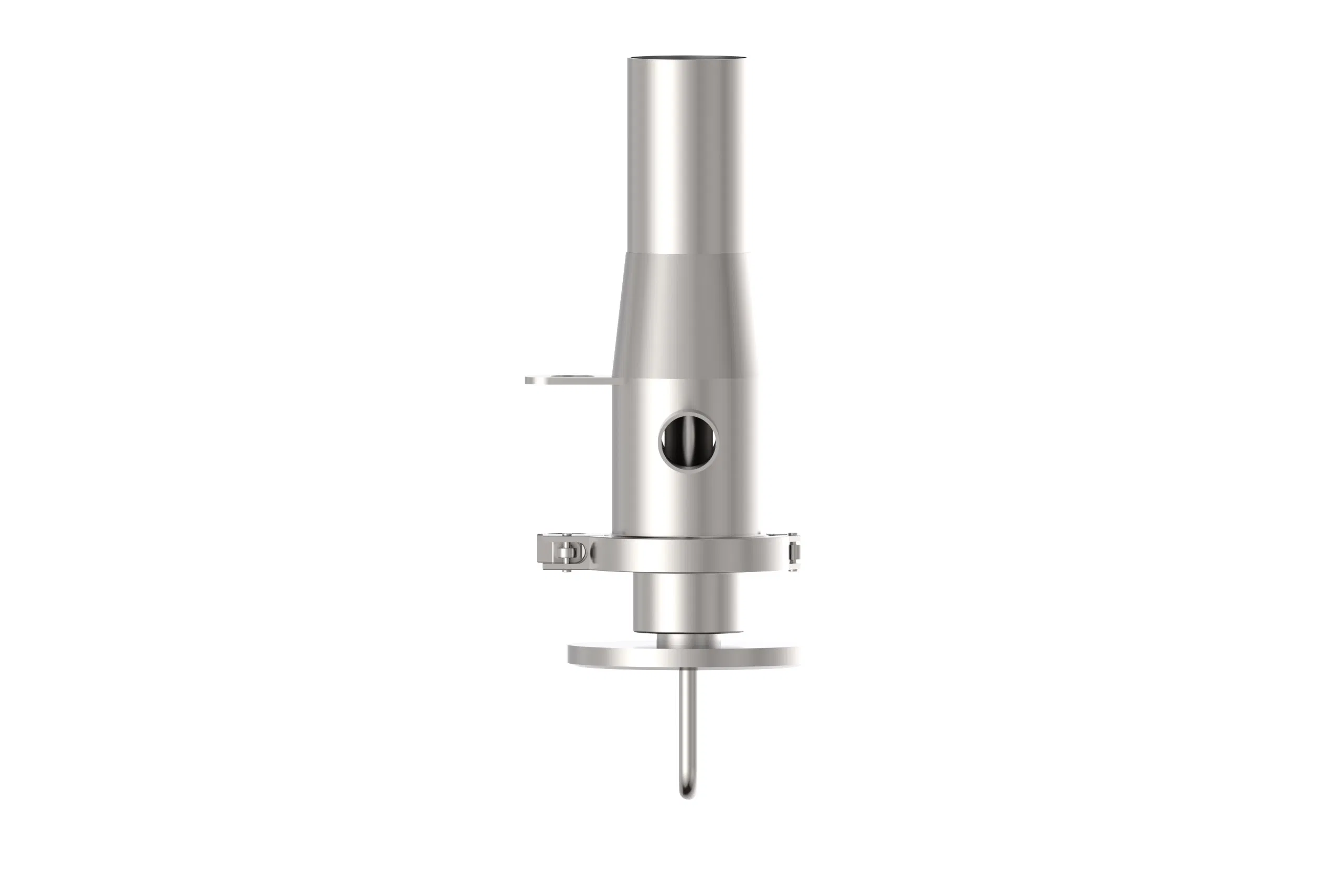

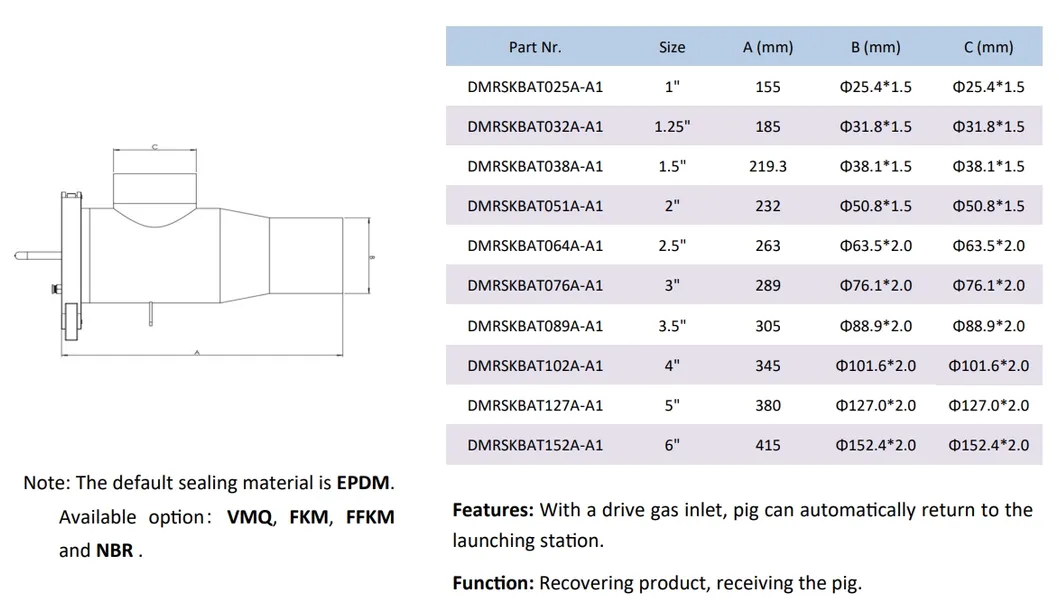

Manual Receiver Type A (SUS316L) - ISO Series

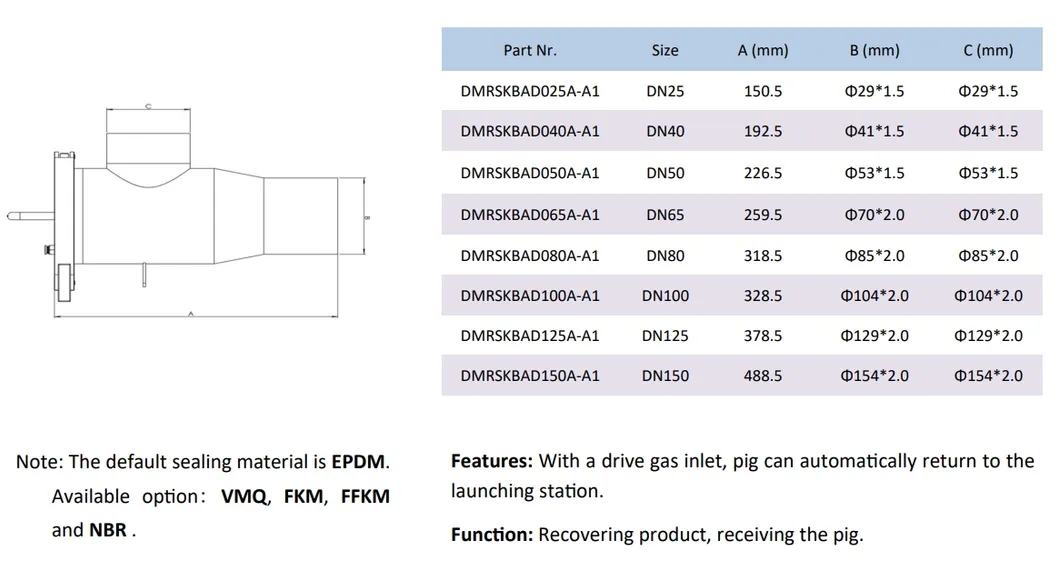

Manual Receiver Type B (SUS316L) - ISO Series

• Extensive experience in pigging system solutions with a professional technical team.
• High-quality, advanced liquid product recovery systems customized for sanitary applications.
• Solutions widely used in food, sauce, dairy, beverage, cosmetics, and chemical industries.
• Comprehensive range of products: pipeline pigs, special valves, detection units, and automated control systems.
• High-quality spare parts provided with expert technical support.
