Dulles Equipment
1 / 5
| Model NO. | ISO 3" |
| Application | Pet Food, Chocolate, Ice Cream, Beverage, Chemicals |
| Customized | Available |
| Certification | ISO9001 |
| Automatic Grade | Semi-Automatic |
| Medium | Liquid or Air |
| Temperature | Above 0-100℃ |
| Pressure | 0-10 Bar |
| ISO Standard | 1"; 1.25"; 1.5"; 2"; 2.5"; 3"; 3.5"; 4"; 5"; 6" |
| DIN Standard | DN25; DN40; DN50; DN65; DN80; DN100; DN125; DN150 |
| Transport Package | Wooden Case |
| Production Capacity | 100 PCS/Year |

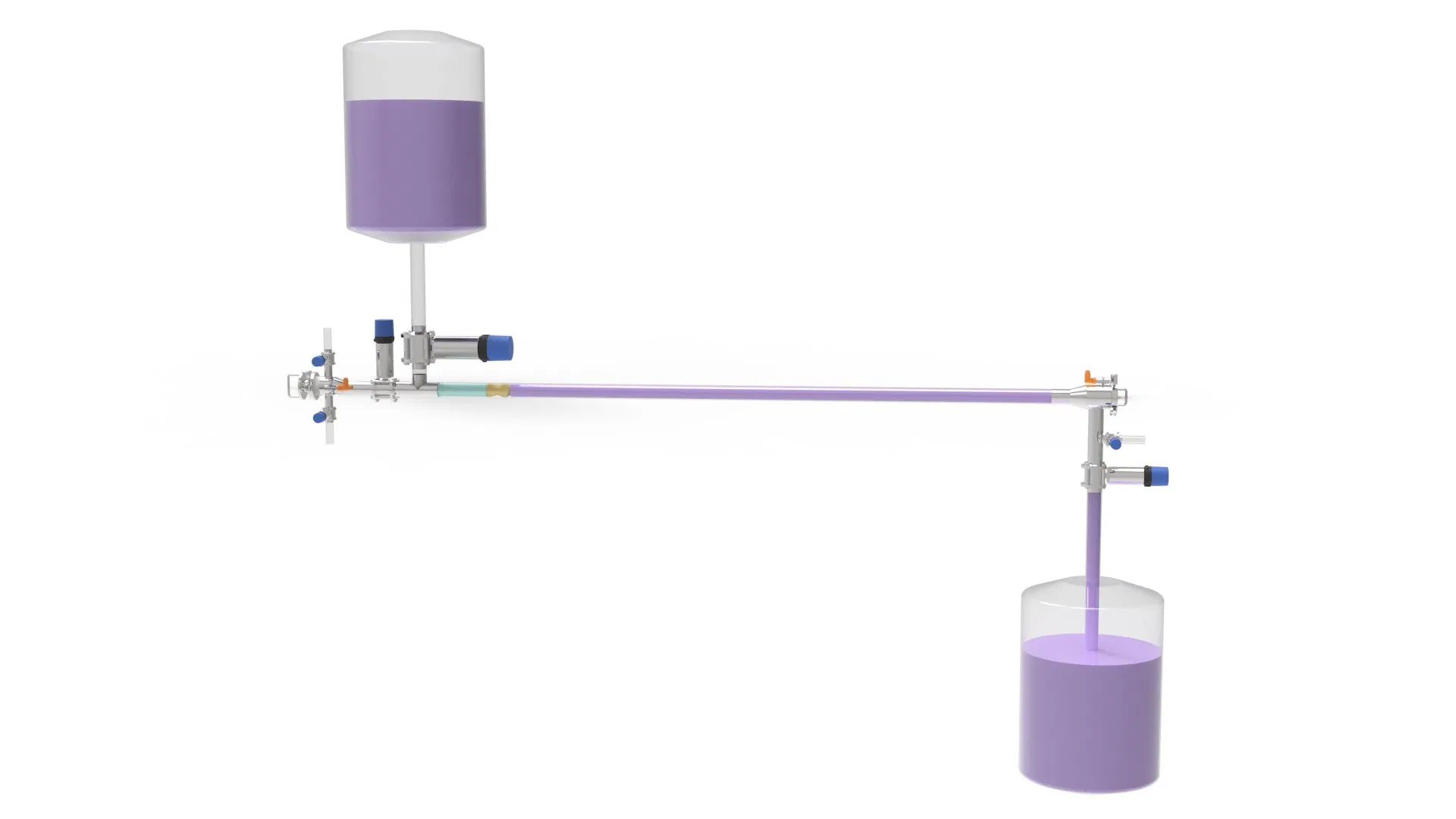

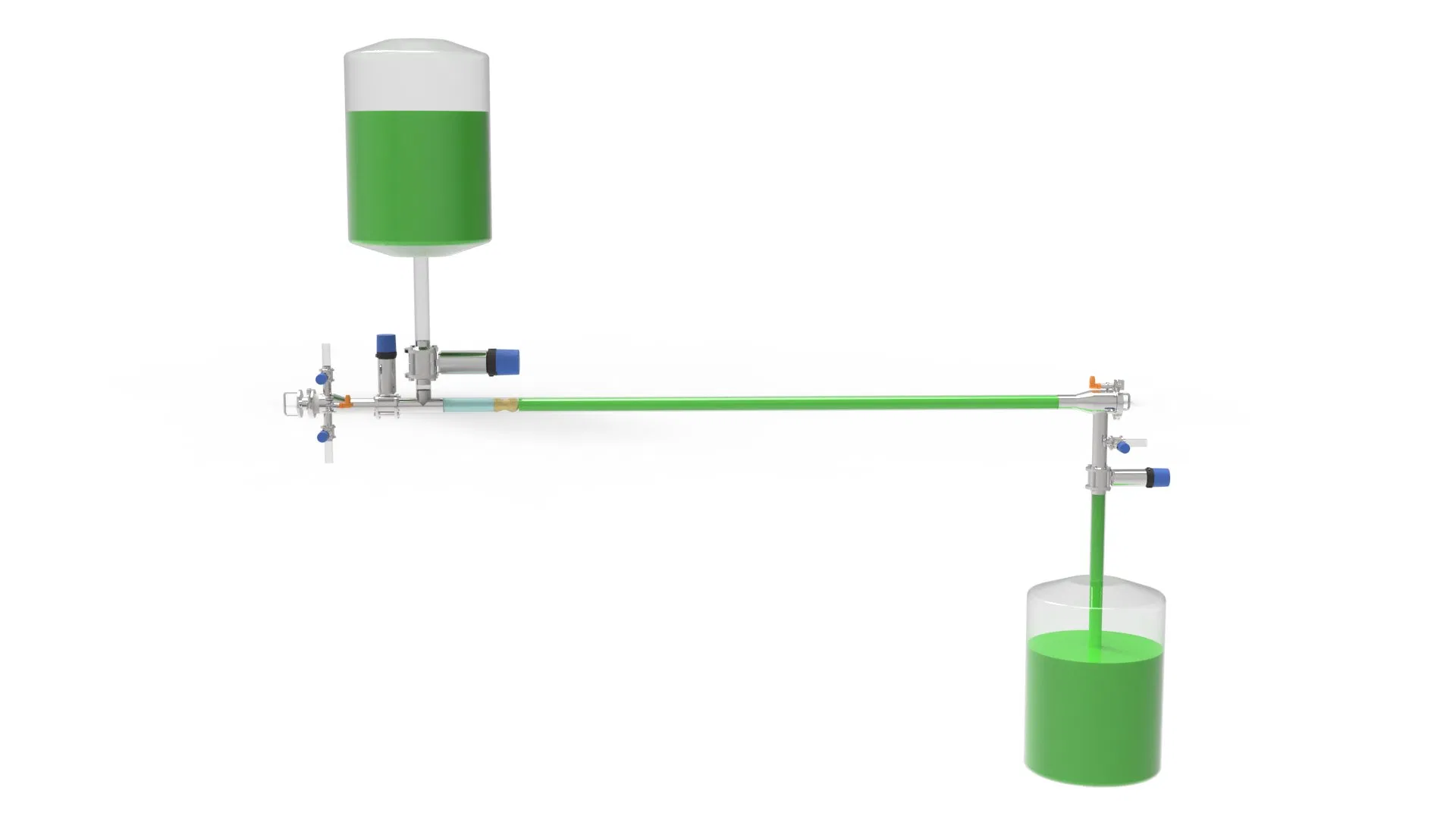

The economical (manual) pigging system mainly consists of a launching station, a receiving station, and a pig. There are two primary configurations:
Key Advantages:
System Features:
Available Specifications:
DIN 11850 Series II Standard: DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150
ISO Standard: 1", 1.25", 1.5", 2", 2.5", 3", 3.5", 4", 5", 6"

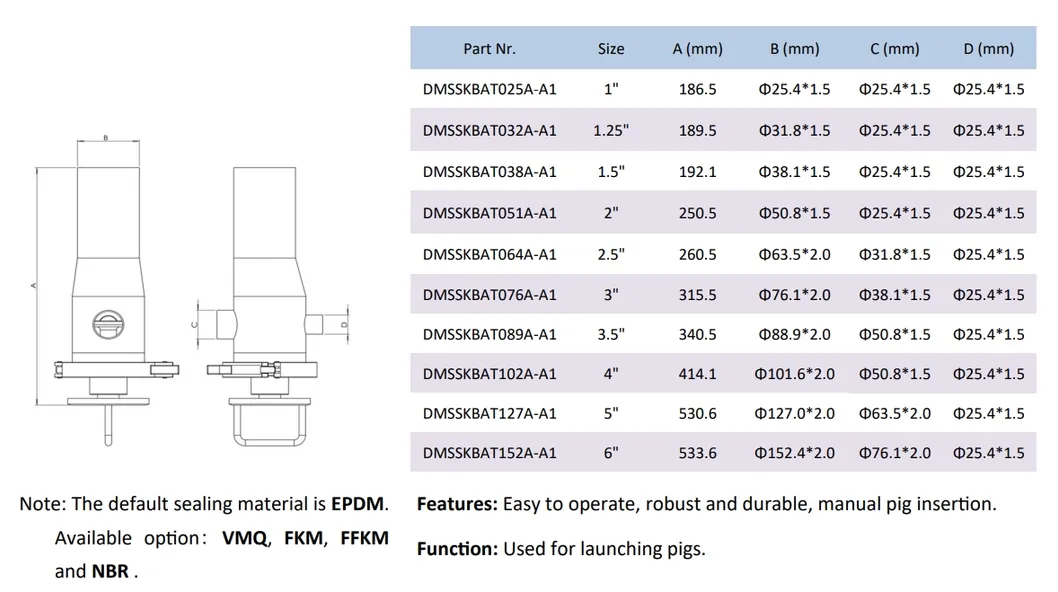

Manual Launcher (SUS316L) - Clamp Type (ISO Series)
Manual Launcher (SUS316L) - Clamp Type (DIN 11850 Series 2)

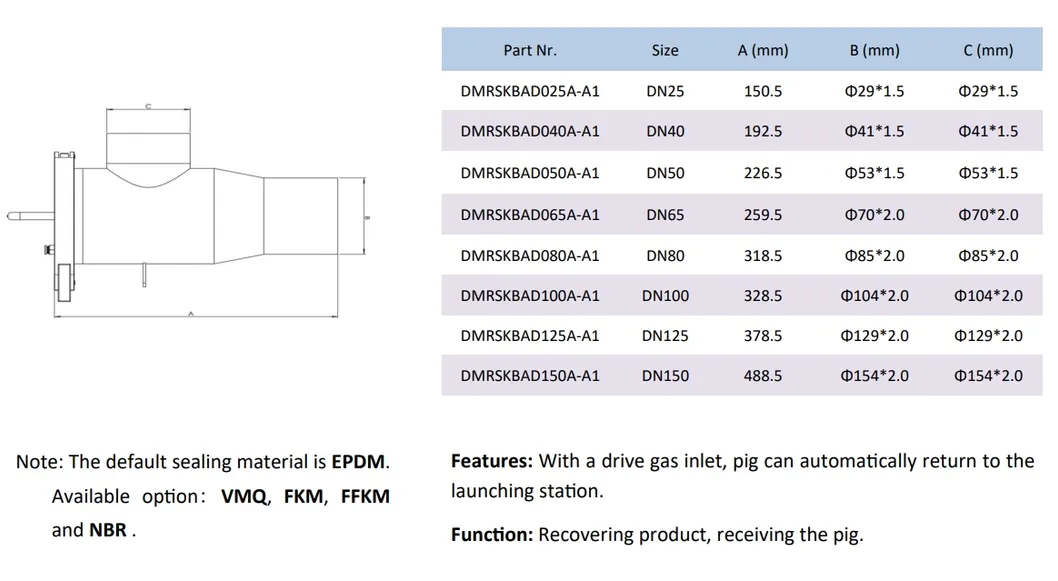

Manual Receiver (Type A) (SUS316L) - Clamp Type (ISO Series)

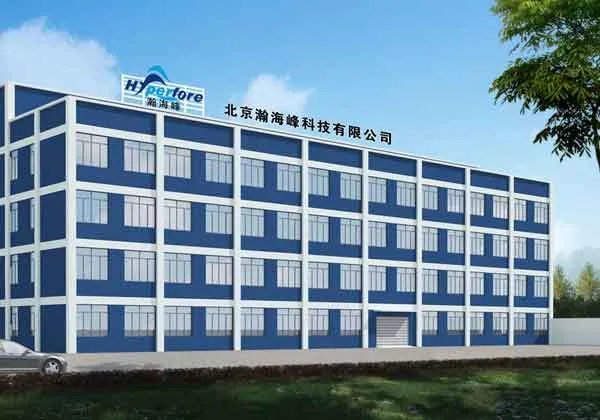

We are a professional supplier of hygienic pigging systems and solutions, established in 2005. Our expertise lies in designing manual, automatic, sanitary, and aseptic product recovery systems for a wide range of global industries.
Our solutions cater to industries including dairy, beverage, edible oil, pharmaceutical, cosmetics, cleaning liquids, hotpot sauce, lithium battery slurry, and paints. Our goal is to increase our clients' competitiveness by protecting their interests and enhancing production efficiency.
Manual pigging systems use manual control to launch and receive the pipeline pig. The pig is manually removed from the receiving station or returned to the launcher for the next process cycle.
A specialized "pig" is inserted into the pipeline and propelled by the product or a separate propellant. As it moves, it cleans the pipeline walls and recovers residual product, improving efficiency.
Key benefits include enhanced product recovery (up to 99.5%), reduced waste, improved operational efficiency, and minimized downtime through effective cleaning.
They are ideal for liquid food, pet food, cleaning detergents, chemicals, pharmaceuticals, cosmetics, and lithium battery manufacturing.
Yes, both the launching and receiving stations are designed to be cleaned together with the main process pipeline during standard CIP (Clean-In-Place) procedures.
The systems are available in both ISO standard sizes (1" to 6") and DIN 11850 Series II standards (DN25 to DN150).
