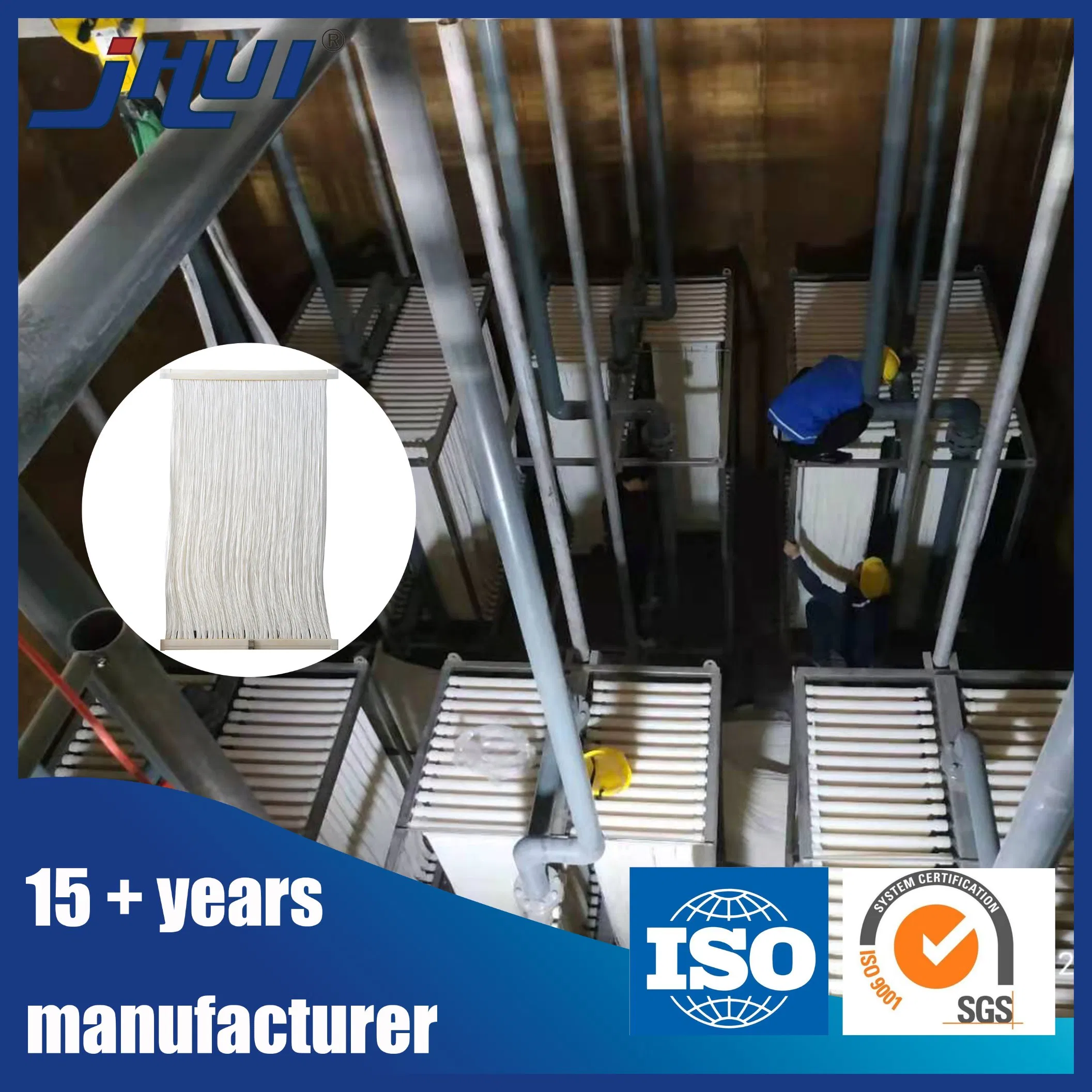

Jhui Membrane Bioreactor Mbr Module PVDF Hollow Fiber Bioreactor Mbr System

1 / 5

Jhui Membrane Bioreactor Mbr Module PVDF Hollow Fiber Bioreactor Mbr System

Customization:	Available
Type:	Membrane Bioreactor System
Method:	Biological Treatment

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.	JHM-MBR02
Usage	Industrial, Home, Agriculture, Hospital, Municipal
Certificates	ISO, SGS
Material	Pes, Pan, PVDF
Membrane Type	Reinforced PVDF Hollow Fiber Membrane
Application	Municipal Wastewater, Reclaimed Water Recycling, Livestock Farm Wastewater Treatment
Construction	Civil Works or Containerized Type
Feature	High Efficiency
Marketing Type	Immersed Mbr Membrane

⚙️

Product Description

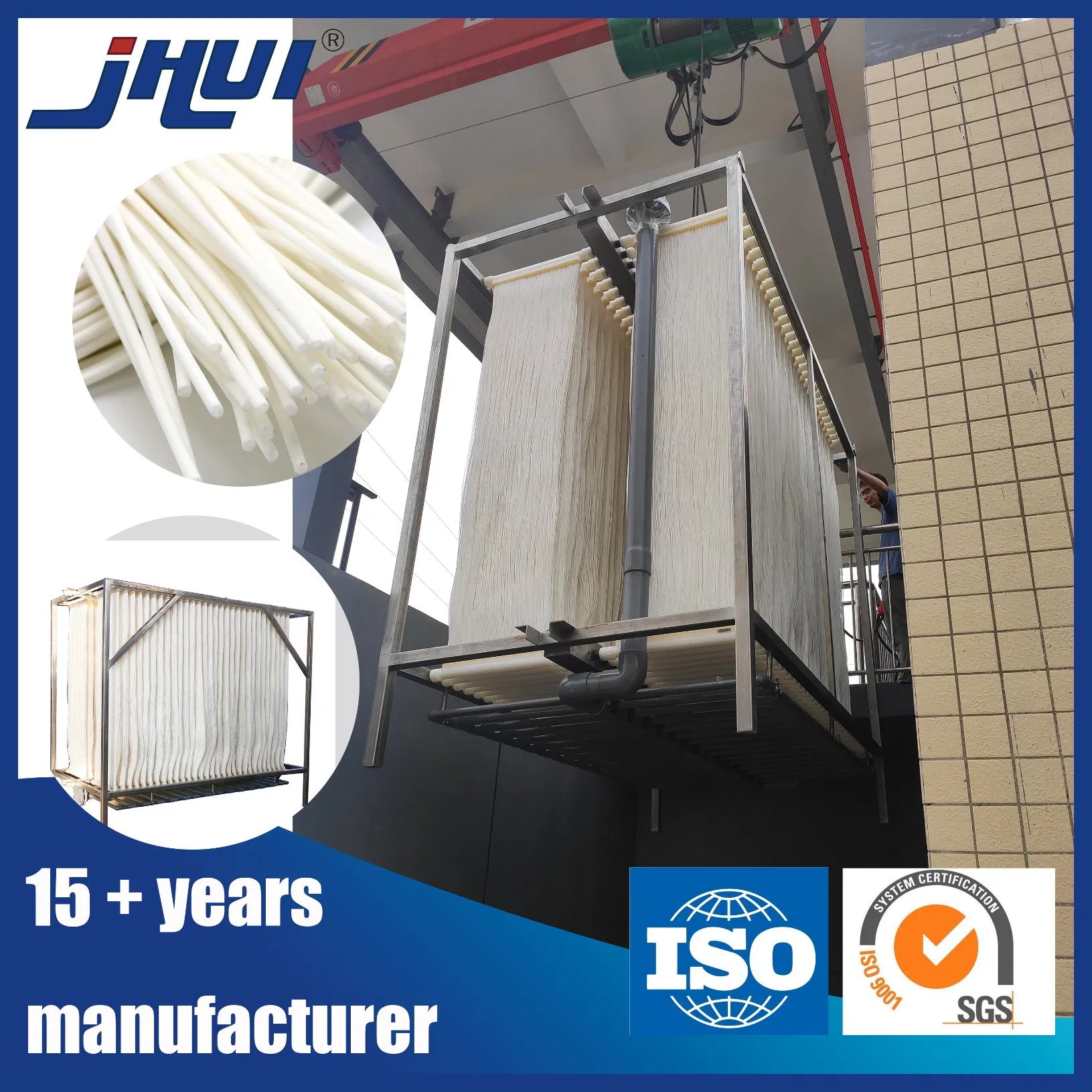

Membrane Bioreactor MBR Module PVDF Hollow Fiber Bioreactor System

The Membrane Bio-Reactor (MBR) is a cutting-edge technology that introduces a membrane unit into traditional biological sewage treatment. By replacing traditional secondary sedimentation pools with membrane separation, it achieves superior removal of organic matter, nitrogen, and phosphorus. It is currently recognized as one of the most advanced and efficient water treatment technologies available.

The MBR system effectively removes organic matter (NH3-H), ammonia nitrogen, total nitrogen (TN), and total phosphorus. Users can combine anaerobic, anoxic, and aerobic processes to meet specific water quality requirements.

📊

Operation Parameters

Model	JHM-MBR-1	JHM-MBR-2
Specification	630x1500x36	630x2000x36
ID/OD (mm)	1.5/2.6 or 1.0/2.2	1.5/2.6 or 1.0/2.2
Effective Area (m2)	15	20
Filtration Precision	0.1um / 0.034um	0.1um / 0.034um
Membrane Material	PVDF & PET supporting tube
PH Range	2-12
Temperature Range	10-45 ºC
Design Flux	10-40 l/m2·h

✅

Key Advantages

High Efficiency

Especially capable in frequent disuse occasions with rapid recovery of performance.

Longer Lifespan

Designed for durability and a significantly longer shelf life compared to standard alternatives.

Anti-Oxidant Surface

Modified membrane surface allows for reliable operation in harsh wastewater environments.

Self-Repairing Function

Fine inner diameter ensures that sludge blocks the pore instantly if a fiber is broken, maintaining water quality.

🌐

System Applications

🔹 Food & Beverage: Process water and sewage treatment.

🔹 Pharmaceutical: Preparation of aseptic and injection water.

🔹 Chemical Industry: Wastewater treatment and water reuse.

🔹 Power Industry: Boiler recharge and cooling water.

🔹 Electronics: Ultrapure water for semiconductors.

🔹 Desalination: Production of domestic water for islands and ships.

📦

Our Product Solutions

• UF Ultrafiltration Membranes
• MBR Hollow Fiber Systems
• RO Reverse Osmosis Systems

• Integrated Equipment (AO, AAO, MBBR)
• Moving Bed Biofilm Reactors (MBBR)
• Disc and Tube Air Diffusers

🌍

Global Presence

Our technology has been showcased at major international water exhibitions including Russia, Malaysia, Vietnam, Thailand, Pakistan, Indonesia, and India.

❓

Frequently Asked Questions

What is MBR technology and how does it work?

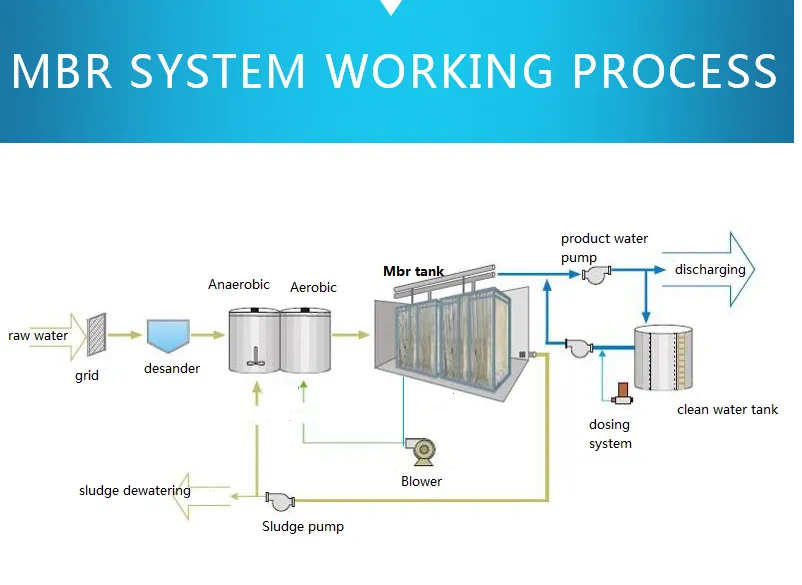

MBR (Membrane Bio-Reactor) combines biological treatment with membrane filtration. It uses membranes instead of secondary sedimentation tanks to separate solids from liquids, resulting in high-quality treated water.

What are the benefits of using PVDF hollow fiber membranes?

PVDF membranes offer excellent chemical resistance, high mechanical strength, and superior antioxidant properties, making them ideal for treating harsh industrial wastewater.

Does the system require special protection if a fiber breaks?

Our membranes feature a self-repairing function. Due to the fine inner diameter, sludge instantly blocks the pore if a fiber is accidentally broken, preventing any significant impact on the outflow water quality.

What industries can benefit from this MBR system?

It is widely used in food and beverage, pharmaceuticals, chemical manufacturing, power generation, electronics, and municipal wastewater treatment or recycling.

Can the system be customized for specific project needs?

Yes, we provide fully customized solutions. Our technical department designs MBR modules and integrated systems based on your specific water quality requirements and site conditions.

What is the expected operating life of the membrane?

Our membranes are designed with reinforced structures and anti-oxidant modifications, providing a significantly longer service life than standard industry alternatives.
