Basic Information
Composition
CIP Cleaning Machine
Processing Material
Chemical
Heating/Cooling
Steam/Hot Water/Electric
Tank Layer
Single Layer/Double Layer
Key Selling Point
High Effective Automatic Washing
Jacket Type
Dimple/Limpet Coil/Single Full
⚙️

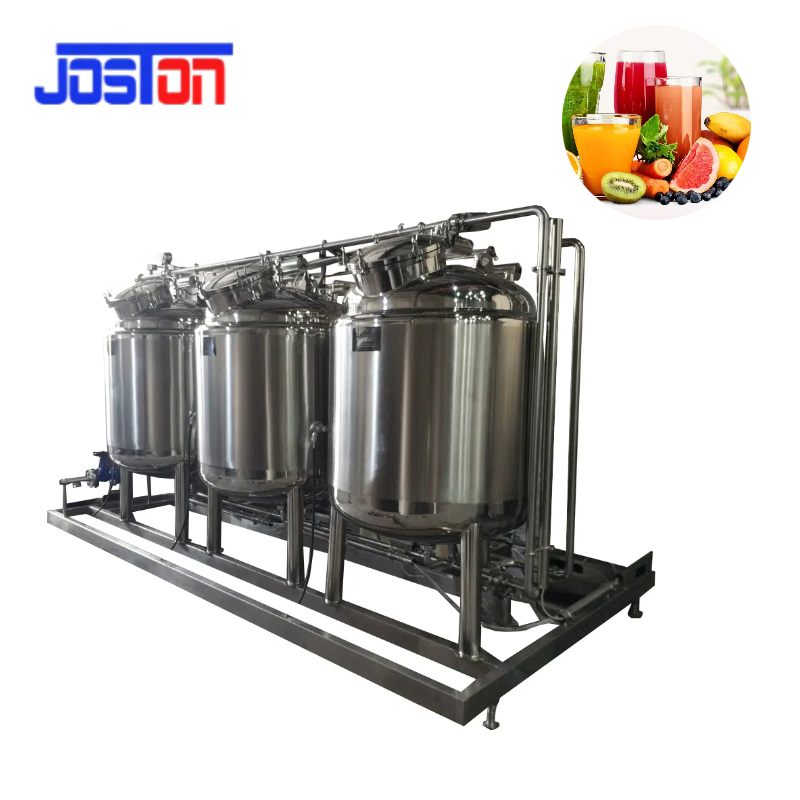

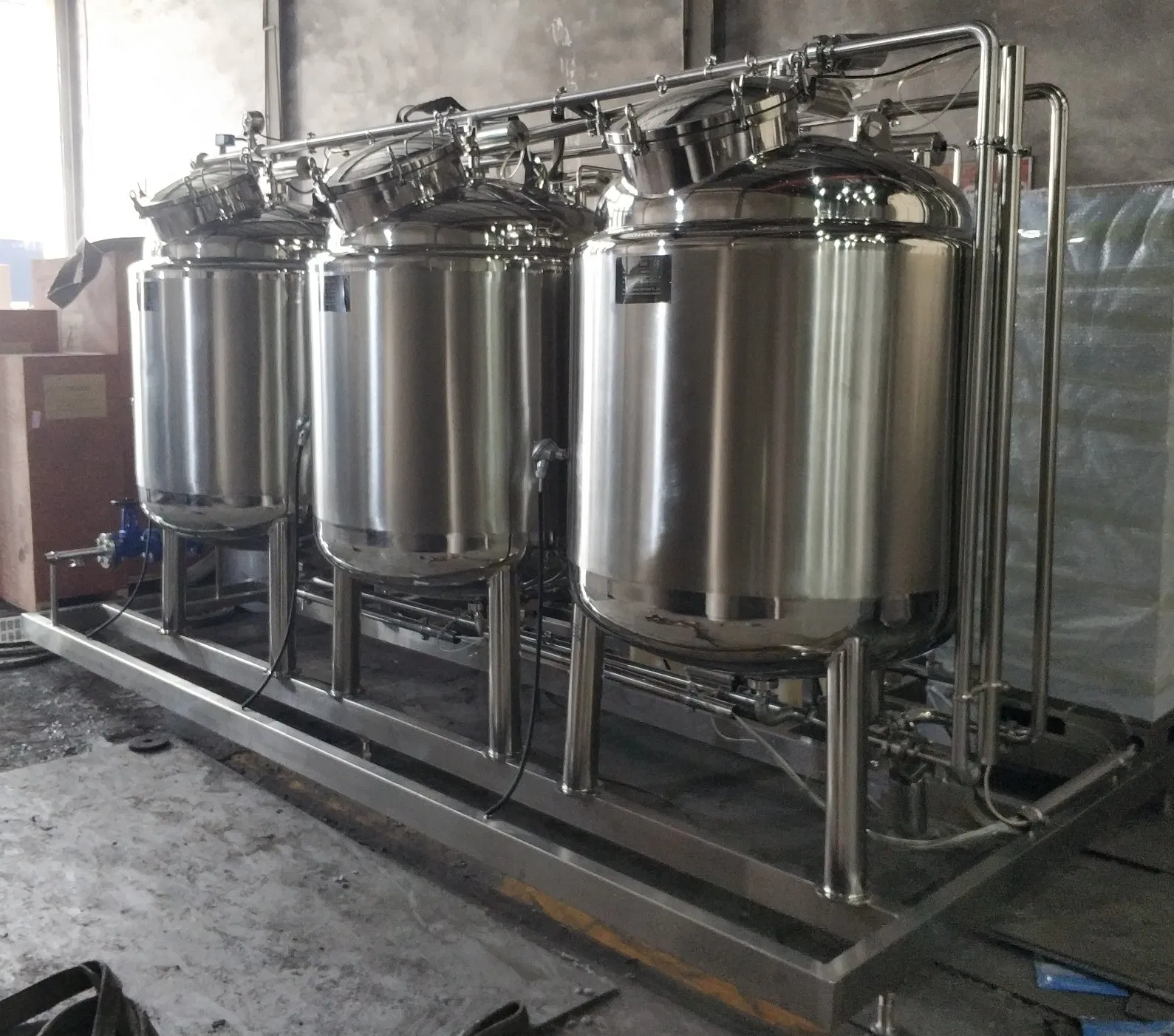

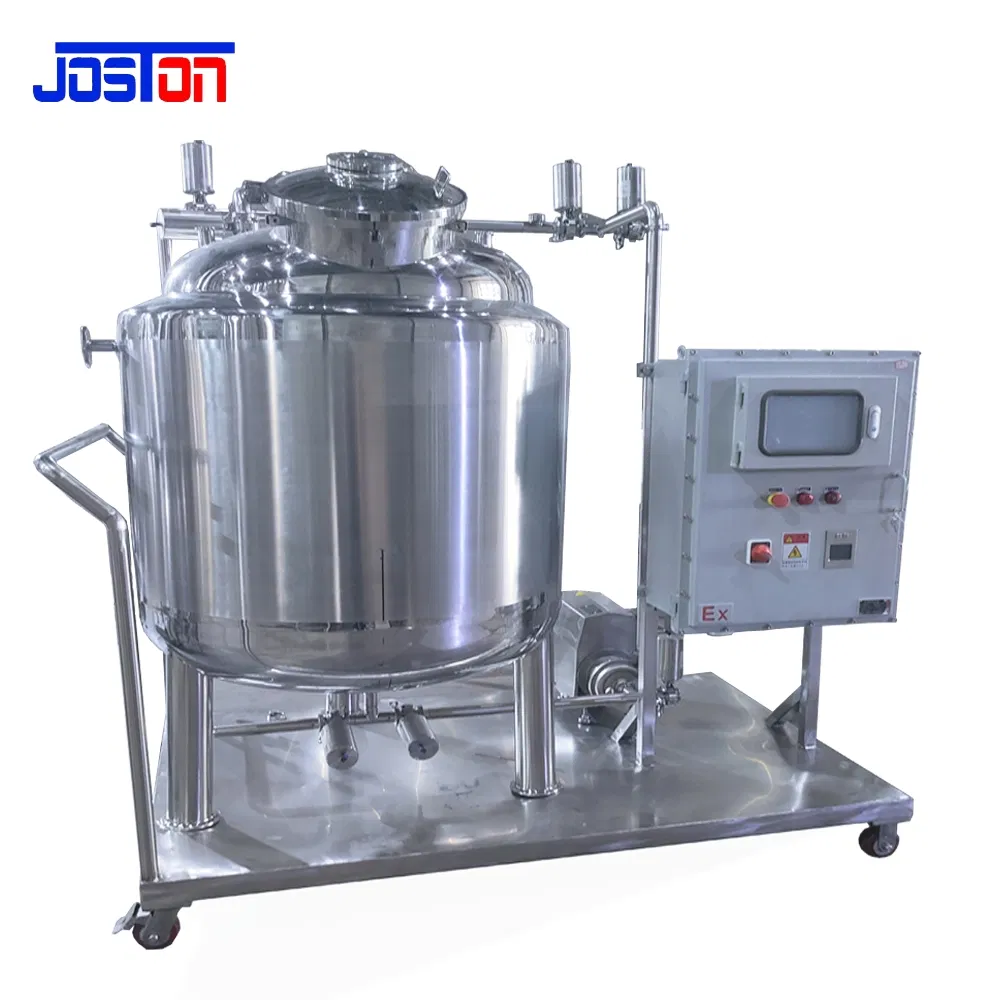

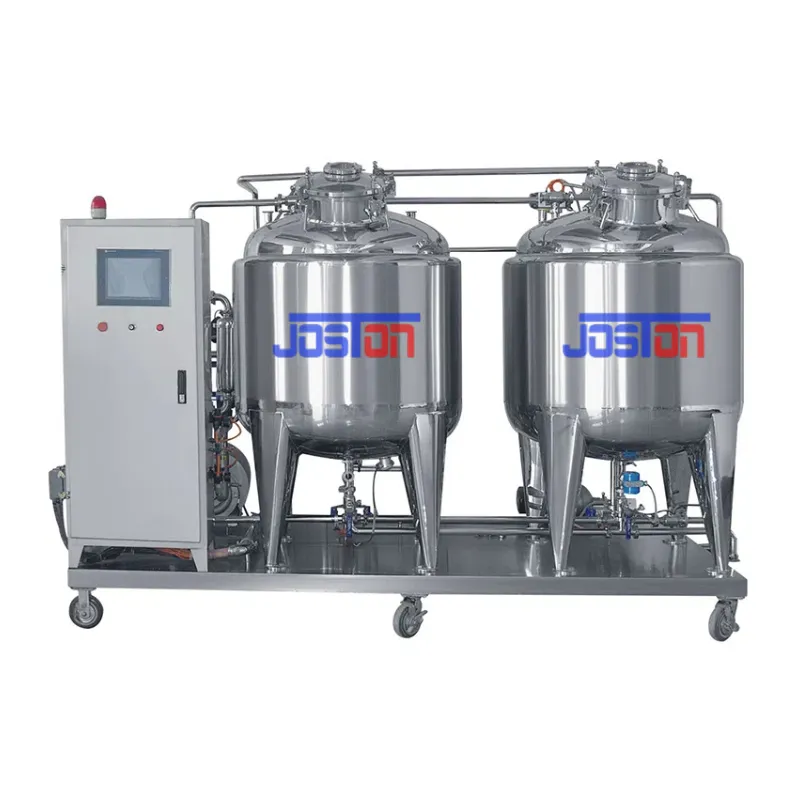

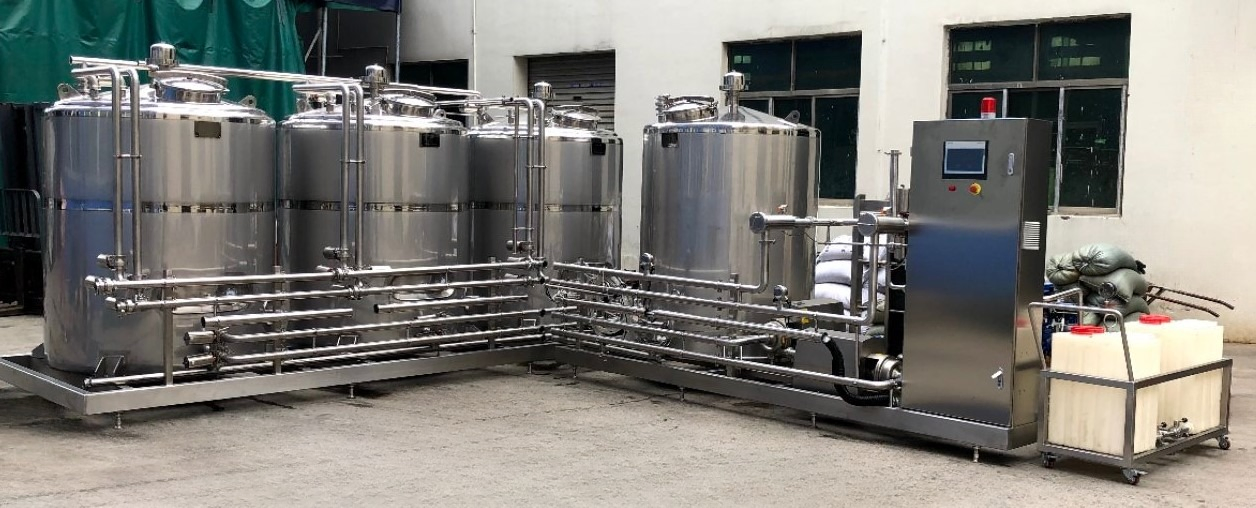

Industrial-scale CIP Cleaning System
Clean-in-place (CIP) is an automated method of cleaning the interior surfaces of pipes, vessels, equipment, filters and associated fittings, without major disassembly. CIP is commonly used for equipment such as piping, tanks, and fillers. CIP employs turbulent flow through piping, and/or spray balls for tanks or vessels. In some cases, CIP can also be accomplished with fill, soak and agitate.
💡
Working Principle
The CIP system working principle is to control the washing solution temperature by steam or electrical heater. It manages the washing solution temperature, washing time, and PH data to ensure high-efficiency cleaning cycles.
🛠️

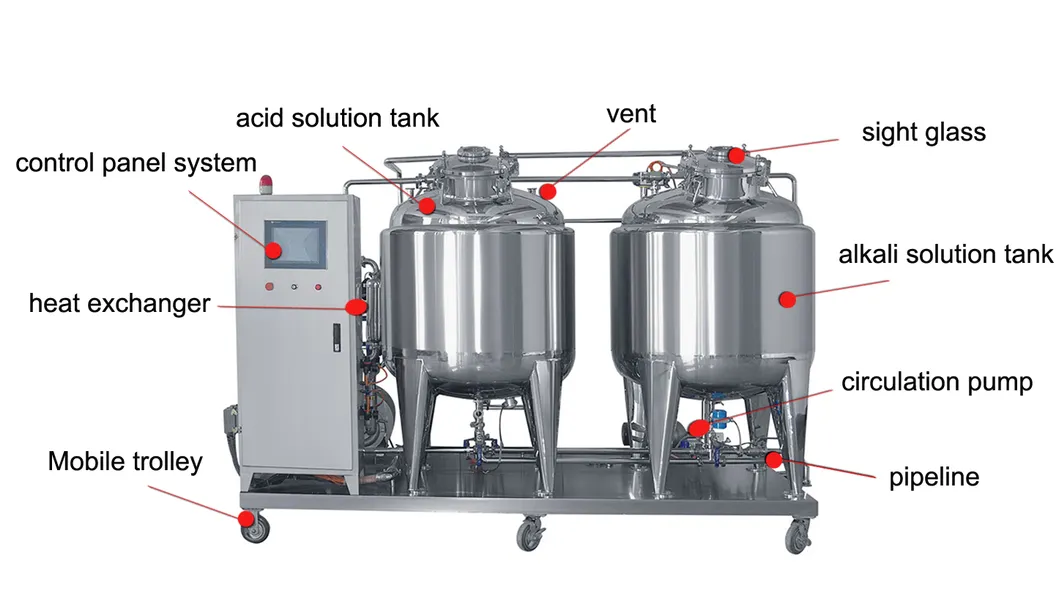

Machine Components
- ✔ 1) CIP washing tank (Single/Double/Multi-tank groups)
- ✔ 2) CIP heating system (Steam or Electrical)
- ✔ 3) CIP washing pump
- ✔ 4) CIP back pump
- ✔ 5) Control instruments (PH, Temp, Pressure, Flow sensors)
- ✔ 6) Control panel system
- ✔ 7) Pipeline and valves
🔄
CIP System Washing Procedure
The overall control process involves water filling, PH adjustment, heating, and sequential washing cycles.
| NO |
Item |
Time (Min) |
Temperature |
Remark |
| 1 | Pre-wash | 10 | Room temp or 50°C | Tap/Pure water |
| 2 | Alkali solution | 10-30 | 60-80°C | 2-4% NaOH solution |
| 3 | Hot water | 10-20 | 60-80°C | Tap/Pure water |
| 4 | Acid solution | 10-30 | 60-80°C | 2% HNO3 solution |
| 5 | Final wash | 15 | 60-80°C | Pure water |
🖼️
Equipment & Site Display

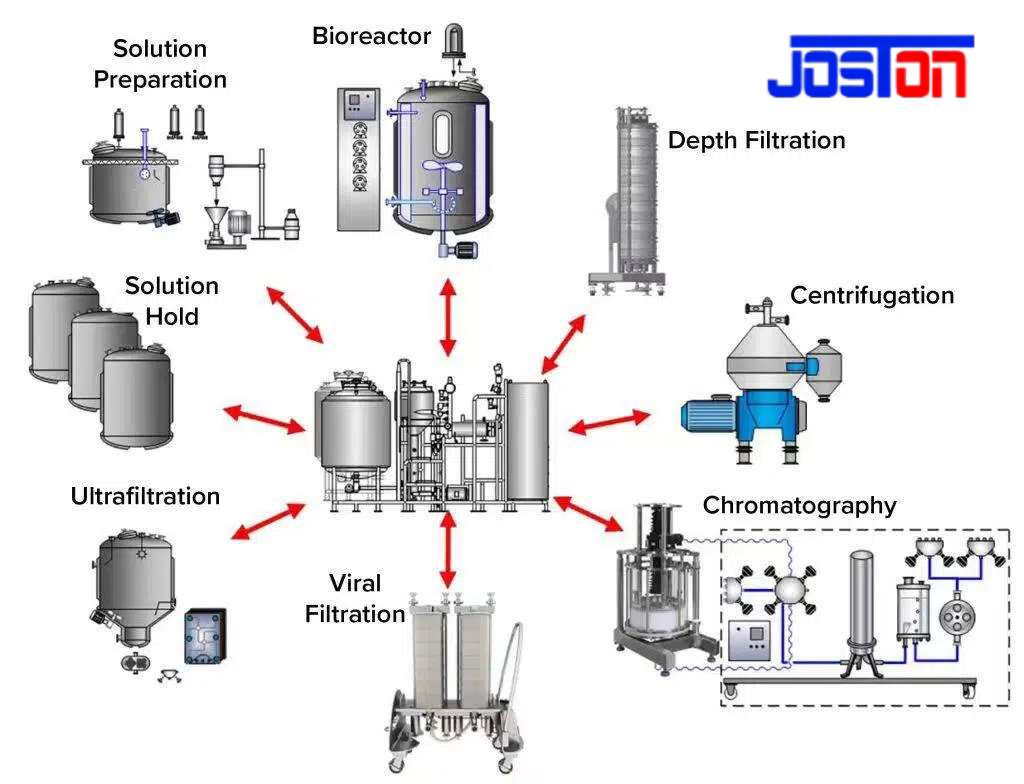

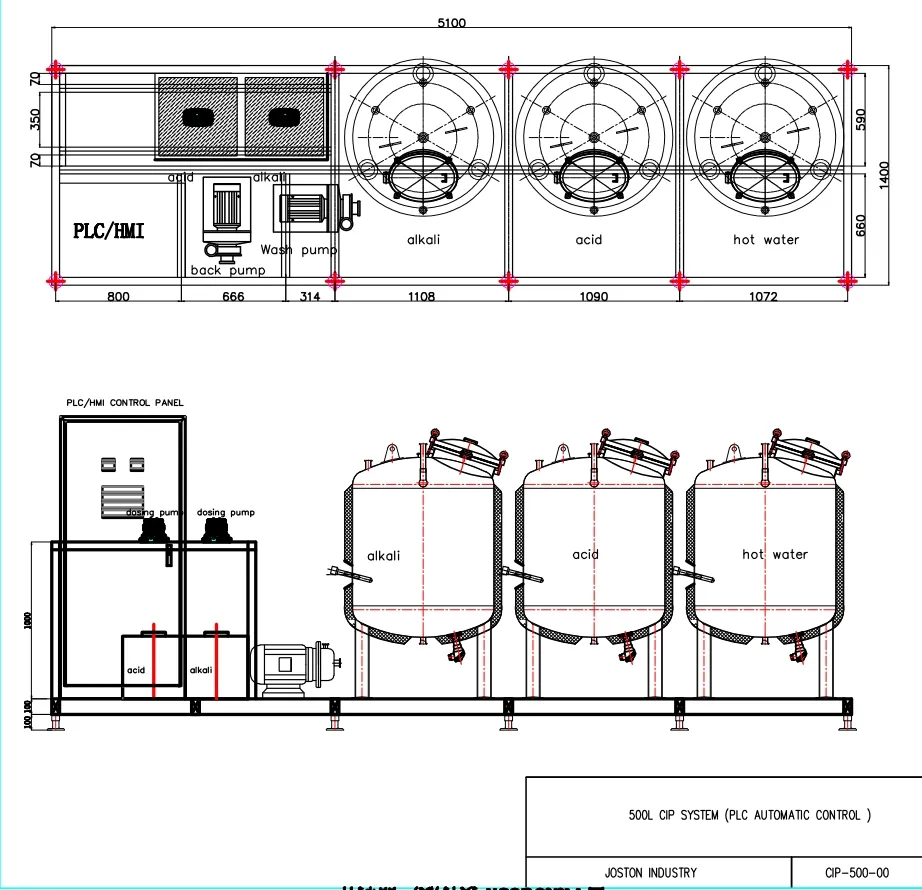

Washable Equipment & Product Drawings:

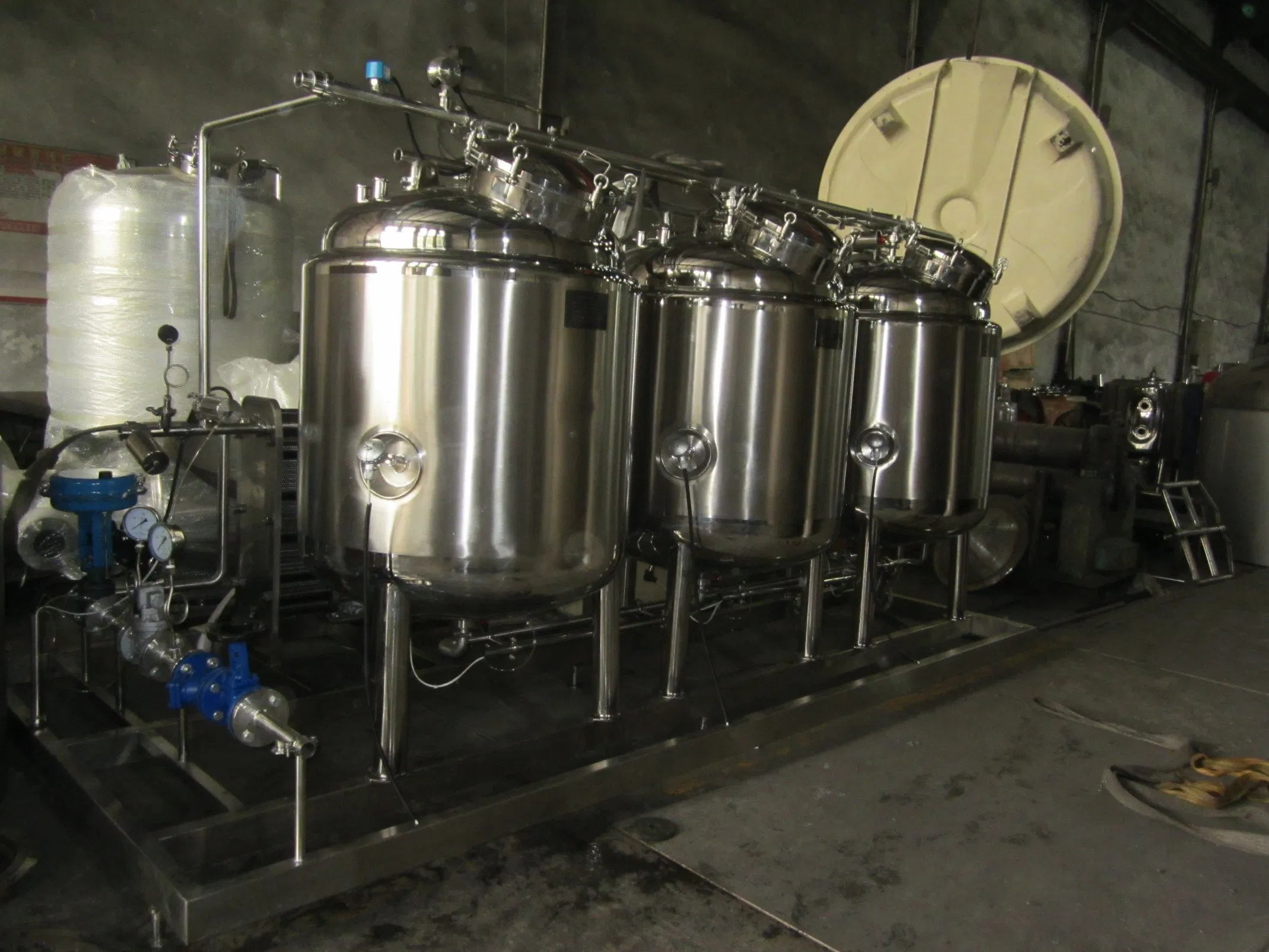

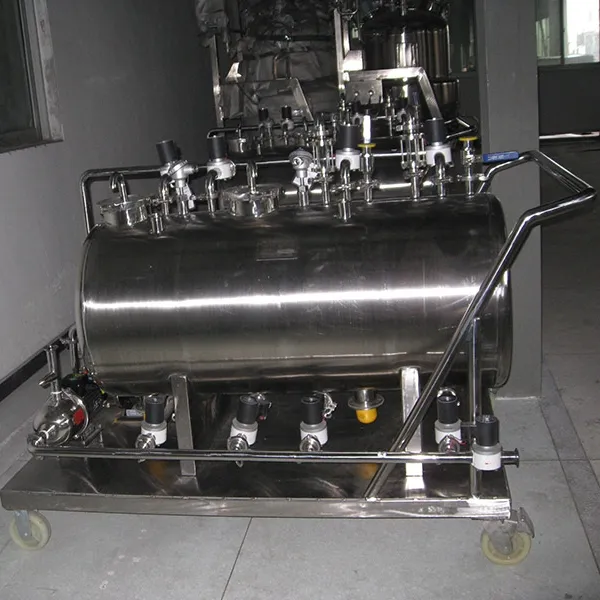

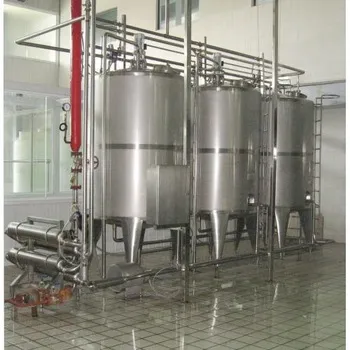

Installed Working Site:
🛡️
After Sales Service
- Standard Warranty: 12 months or 2,000 operating hours.
- Extended Warranty: Optional coverage up to 36 months.
- Global Support: 24/7 technical assistance and spare parts supply.
- Training: On-site or remote operation/maintenance training.
🏢
Company Profile & Certifications
As a leading manufacturer of stainless steel equipment with over 20 years of expertise, we are certified with ISO 9001, CE, and PED. We export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
❓
Frequently Asked Questions
1. How is equipment quality controlled?
We have a qualified expert team that inspects every production stage. All machines are rigorously tested in our plant before shipment.
2. What is the standard warranty period?
We provide a 1-year warranty for machine operation and offer lifelong technical support and service for all our equipment.
3. Do you provide overseas installation?
Yes, if required, we can dispatch our engineers to your facility to assist with installation, commissioning, and staff training.
4. How can we track the production status of our order?
We provide weekly updates including photos or videos during the manufacturing process. A final detailed inspection is conducted before shipment.
5. What services are offered before placing an order?
We provide custom design drawings based on your specific User Requirement Specifications (URS) and detailed quotations upon drawing approval.
6. Why choose our cleaning systems?
Our systems are designed to enhance reliability, extend working life, and decrease operational consumption costs through leading-edge technology.
