Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
1 / 5
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System
Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System

Low-Residue Multi-Source Multi-Destination Pigging System ISO 3"/Pipeline Cleaning System

Customization: Available
Application: Chemical Industry, Cosmetic Industry, Food Industry, Pharmaceutical Industry
Certification: ISO
Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.
ISO 3"
Control System
Fully Automatic
Material
Stainless Steel
ISO Standard
1; 1.25; 1.5; 2; 2.5; 3; 3.5; 4; 5; 6
DIN Standard
DN25-DN150
Medium
Liquid and Air
Temperature
Above 0°C-100°C
Pressure
Pn10
Production Capacity
30set/Year
⚙

Product Description

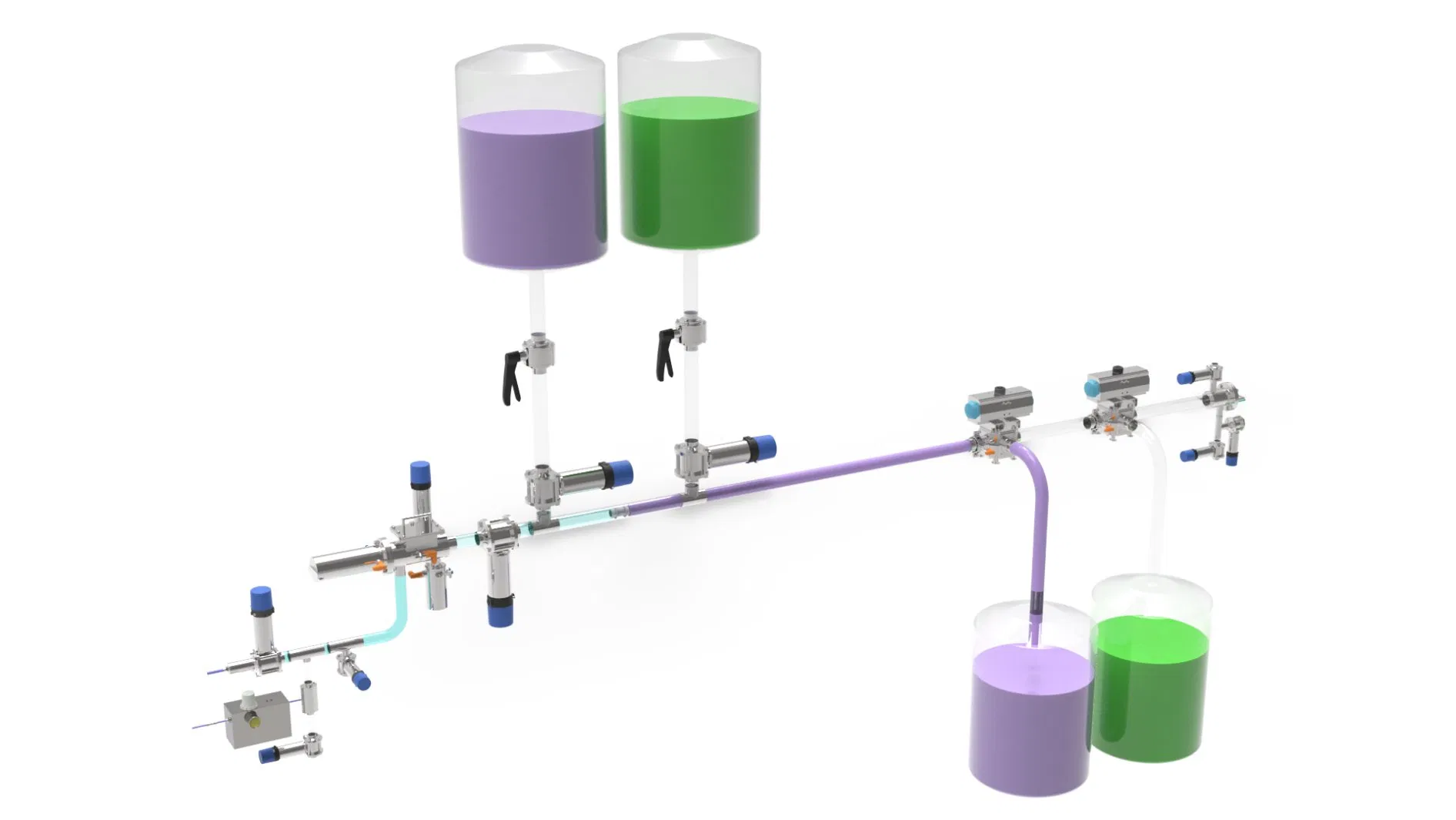

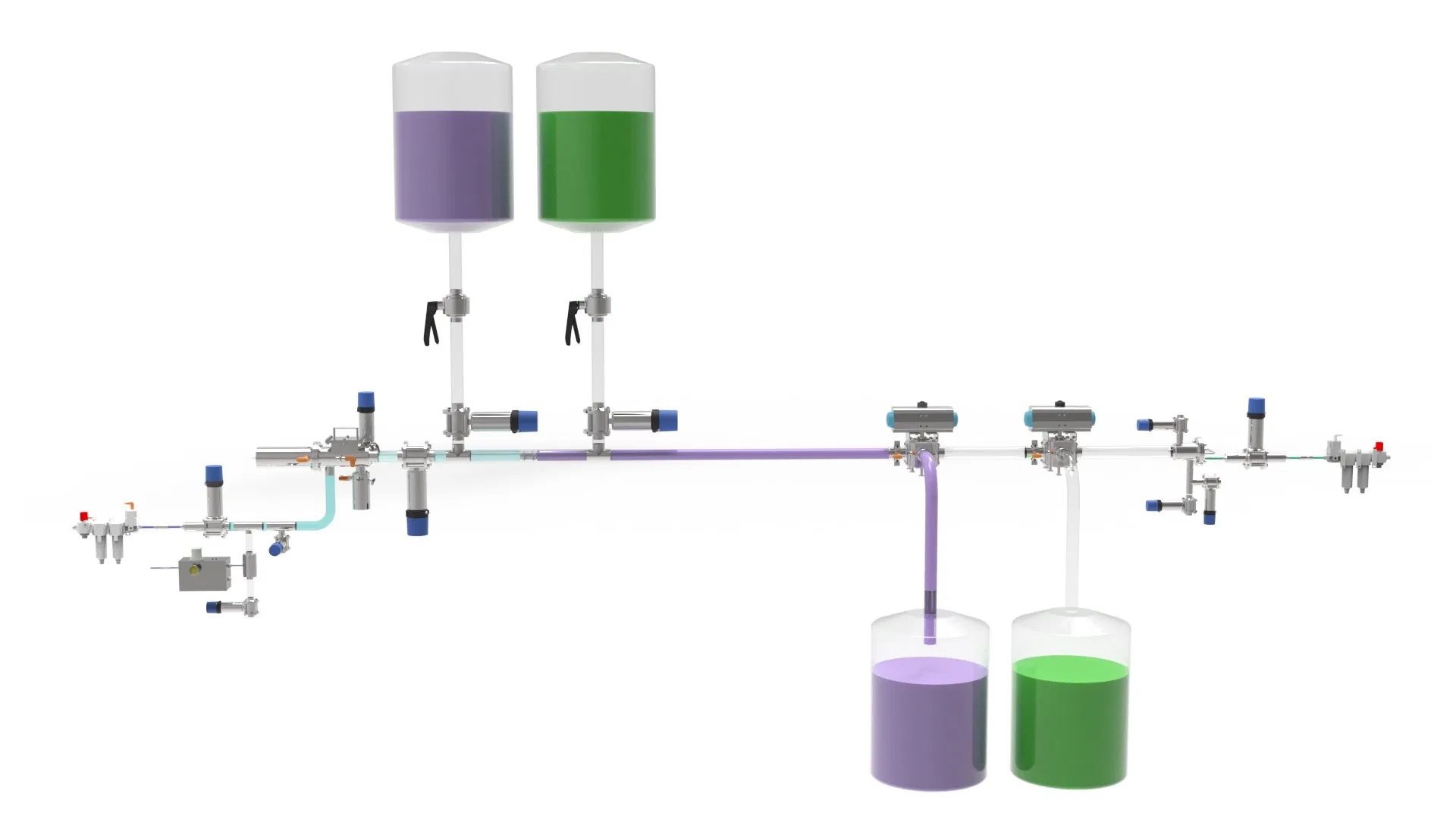

Low-Residue Multi-Source Multi-Destination Pigging System

This system is suitable for industry applications with high low-residual rate requirements. It consists of an automatic launching station, receiving station, pig, and low-residual valves with fully automated control.

Key Features:

Equipped with a cleaning agent inlet, the internal structure has no cleaning dead zones and connects directly to CIP cleaning pipelines. This design minimizes residual material (as low as a few grams per meter), reducing waste, increasing product conversion rates, and eliminating cross-contamination.

Technical Data:

  • Working pressure range: 0 - 10 bar
  • Temperature range: 0°C - 100°C
  • Main body material: SS304, SS316L
  • Sealing material: EPDM (default), VMQ, FKM, FFKM, NBR
  • Surface roughness: Ra≤0.8μm
📊

Product Parameters & Details

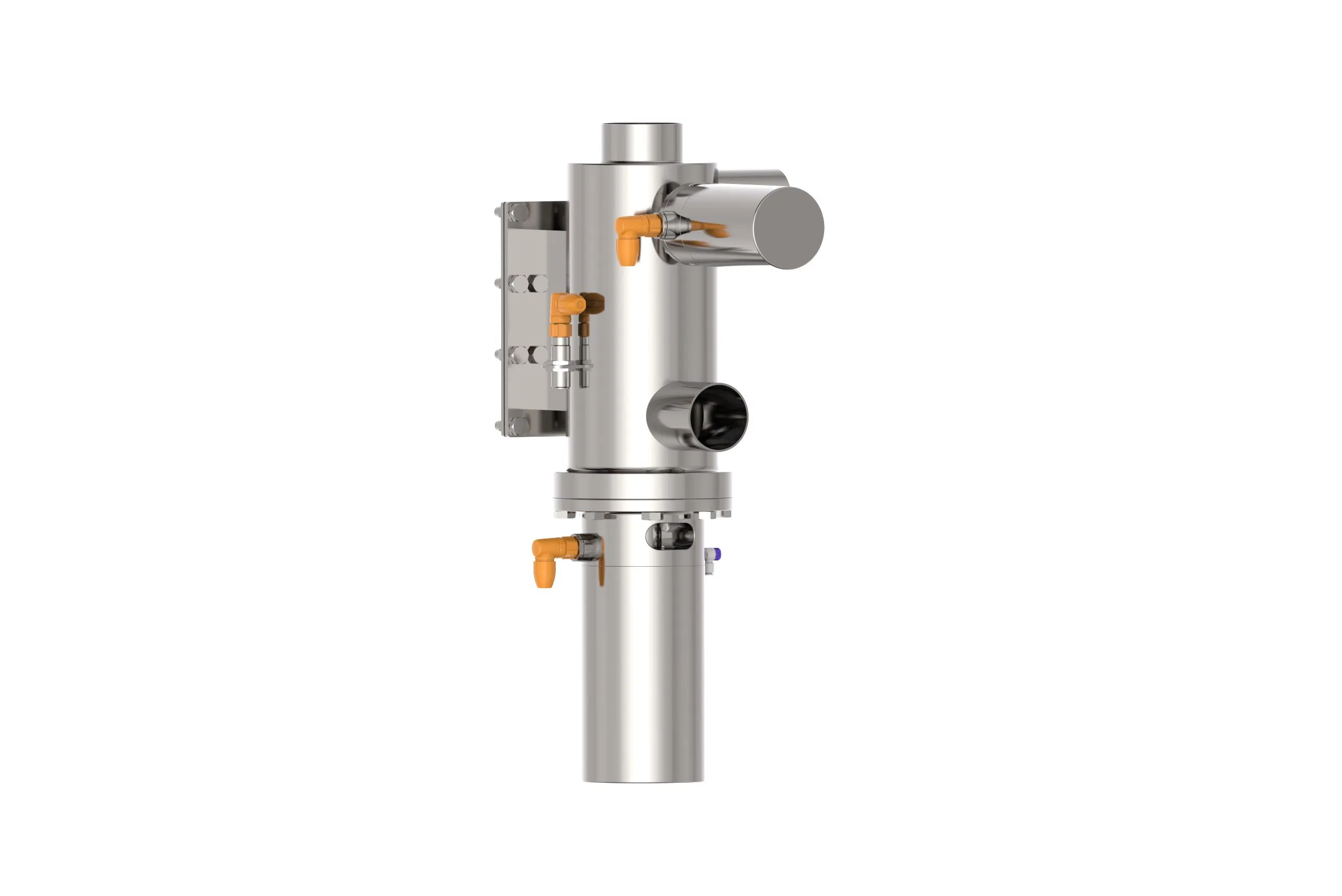

Micro-residue launcher (SUS316L) - ISO & DIN Series

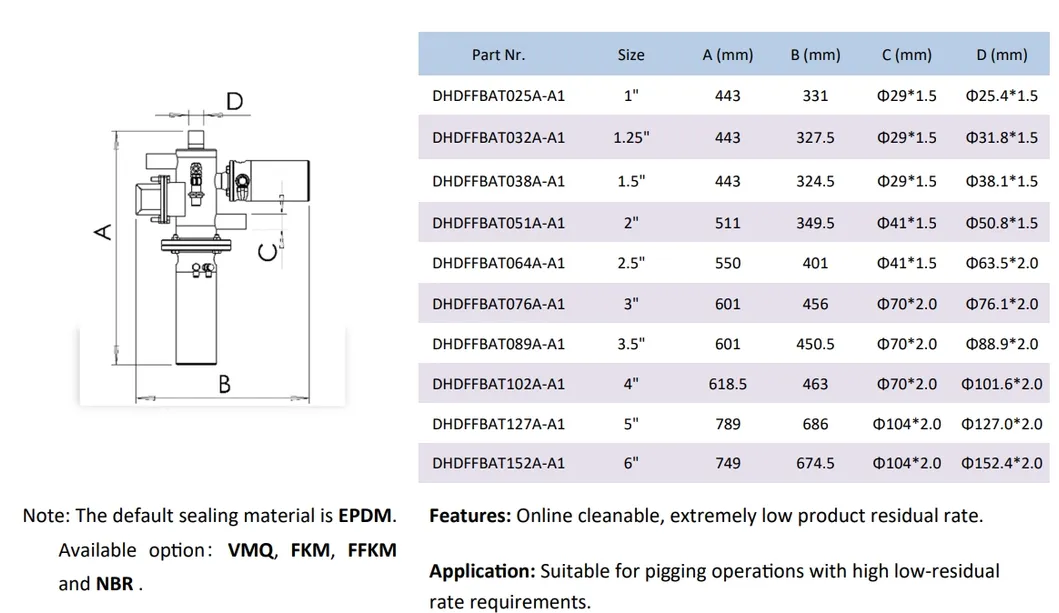

ISO Series Launcher
DIN Series Launcher

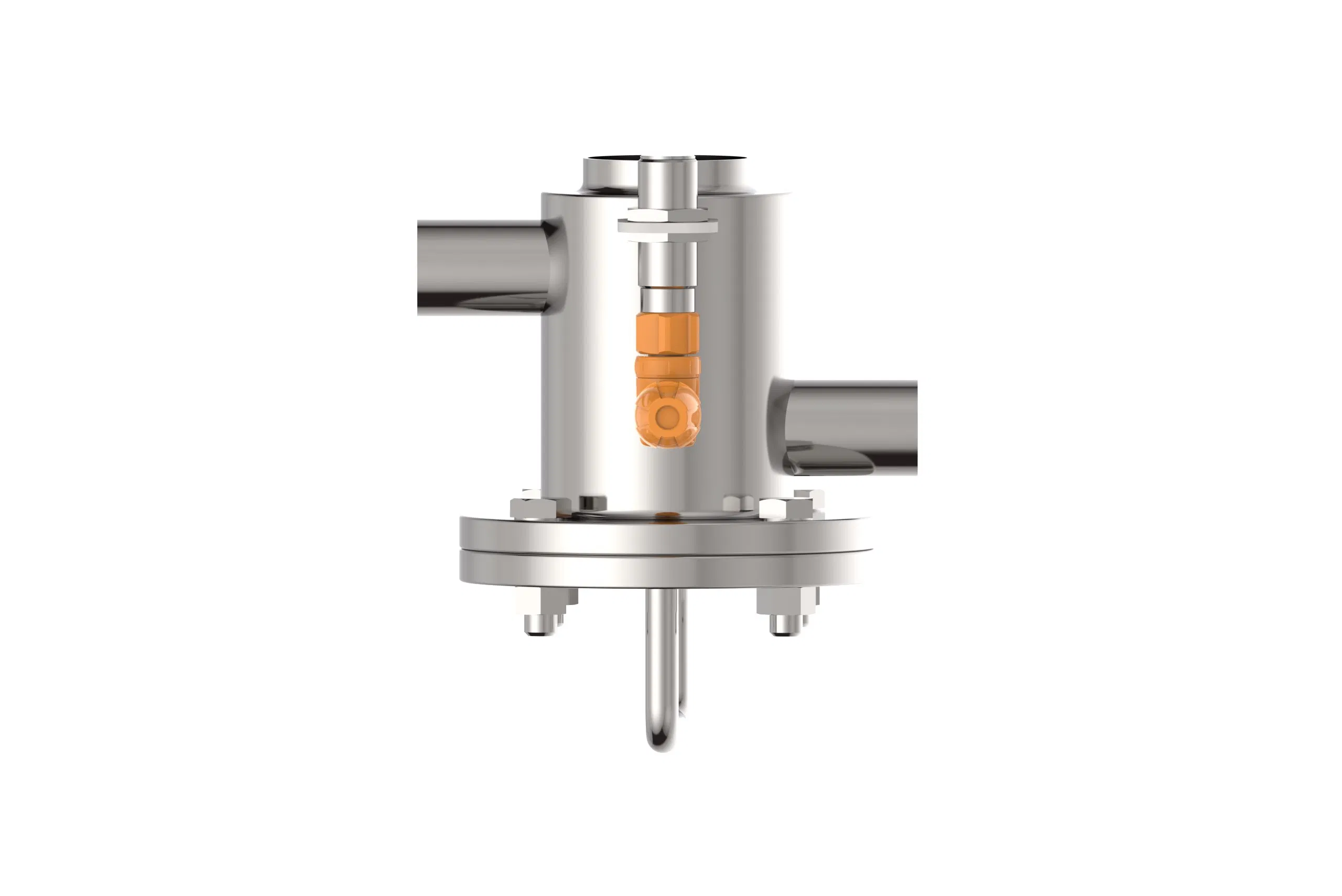

Micro-residue receiver (SUS316L) - ISO & DIN Series

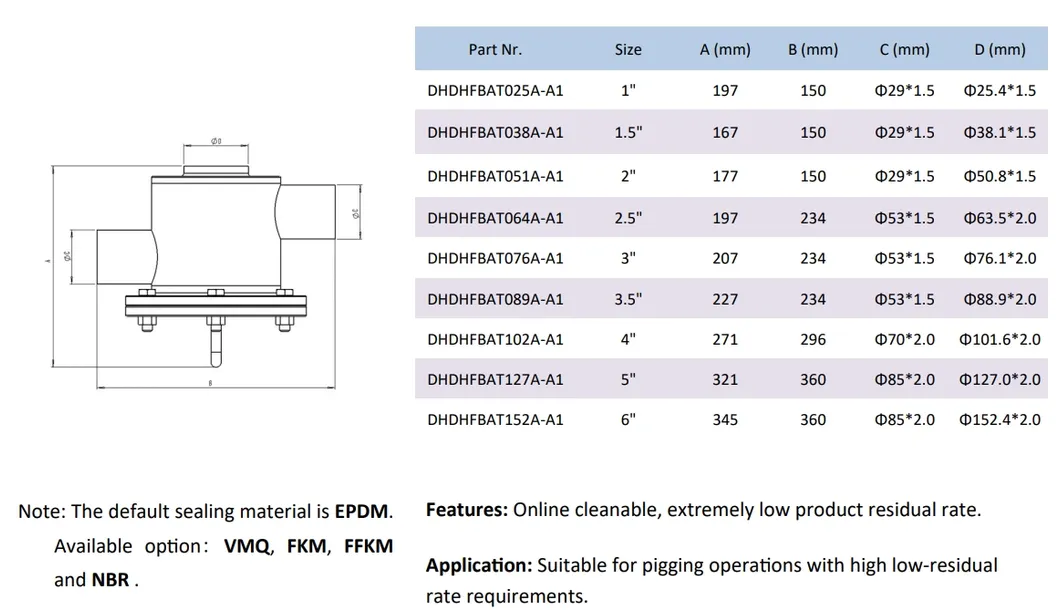

ISO Series Receiver

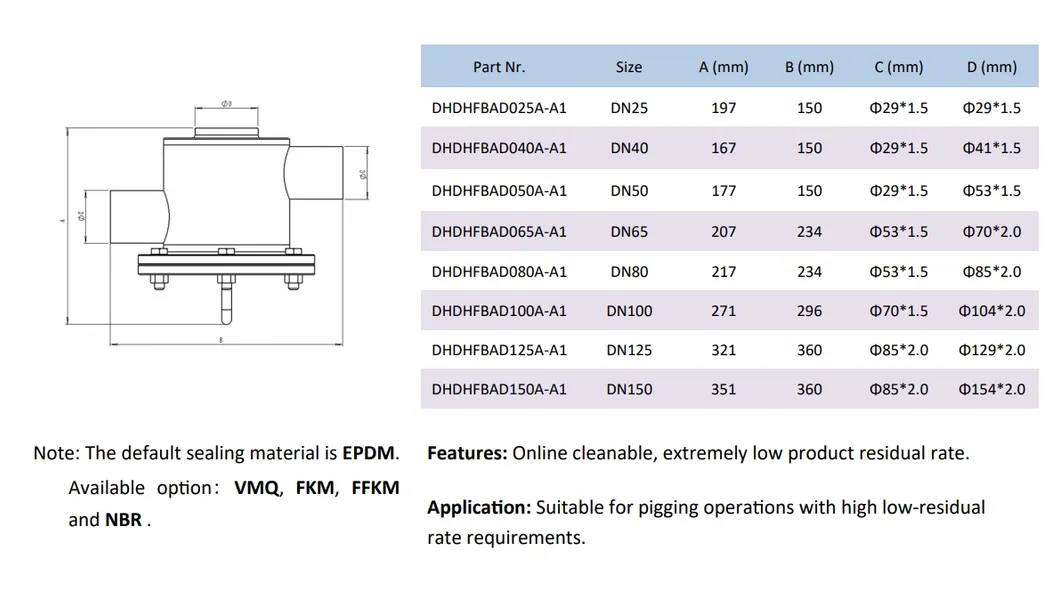

DIN Series Receiver

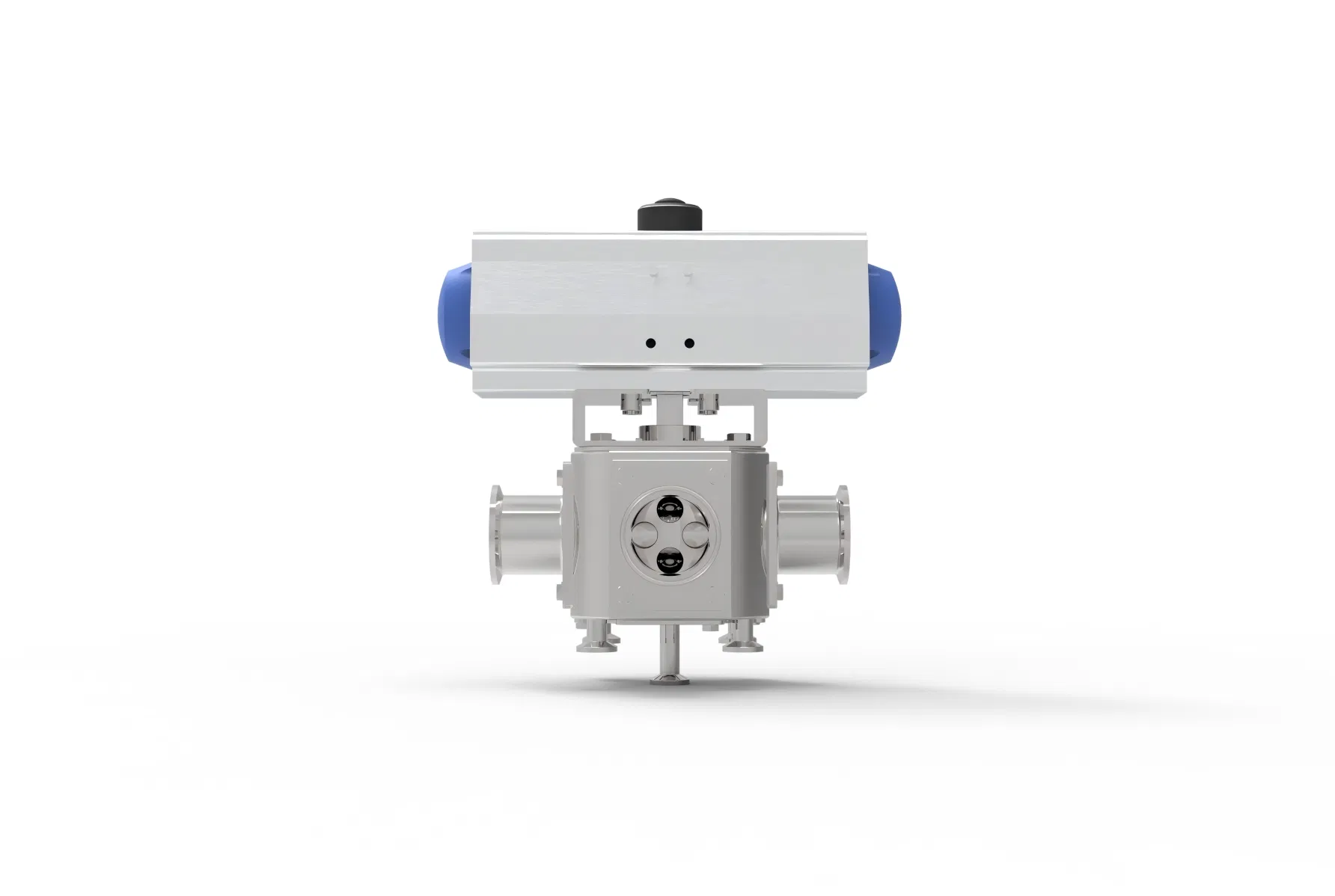

Piggable 90° Three-way Diverter Valves

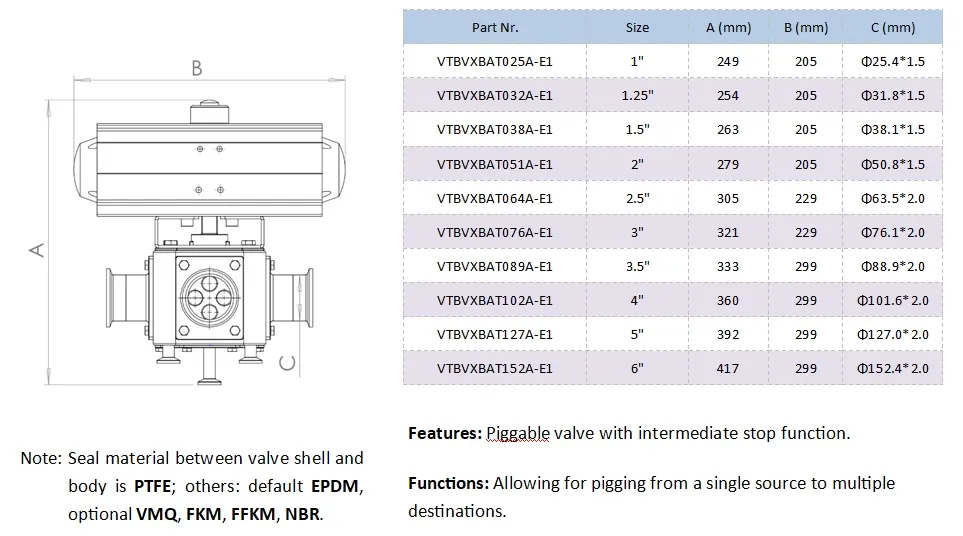

ISO Series Valve

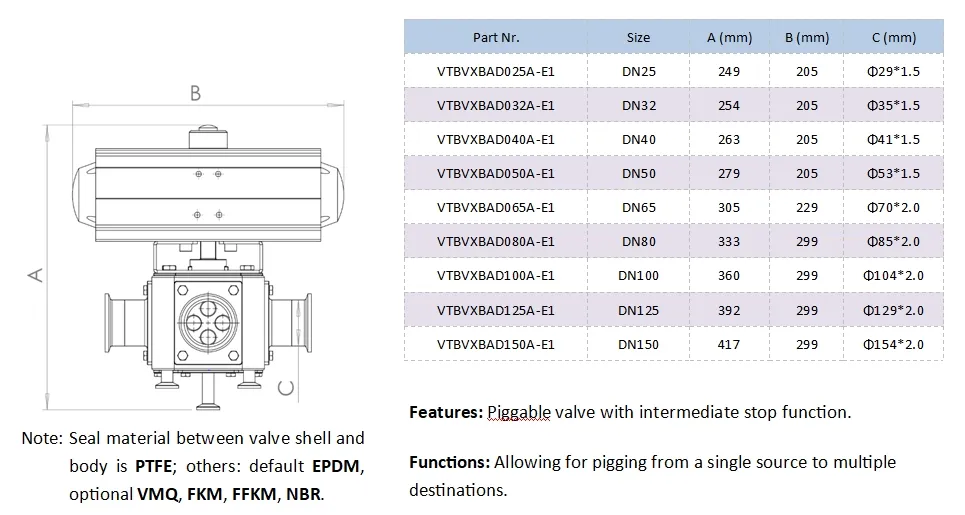

DIN Series Valve

Detailed Component Views

Detailed Component View
Factory Installation View
⭐

Advantages & Support

Our solutions are widely used in hygienic applications such as food, sauce, dairy, beverage, cosmetics, pharmaceuticals, and chemicals.

  • Professional technical team and extensive pigging system experience.
  • Advanced liquid product recovery products (pigs, special valves, detection units).
  • On-site maintenance and remote technical guidance.
  • Full technical support, training, and spare parts availability.
📦

Packaging & Logistics

Packaging Detail 1

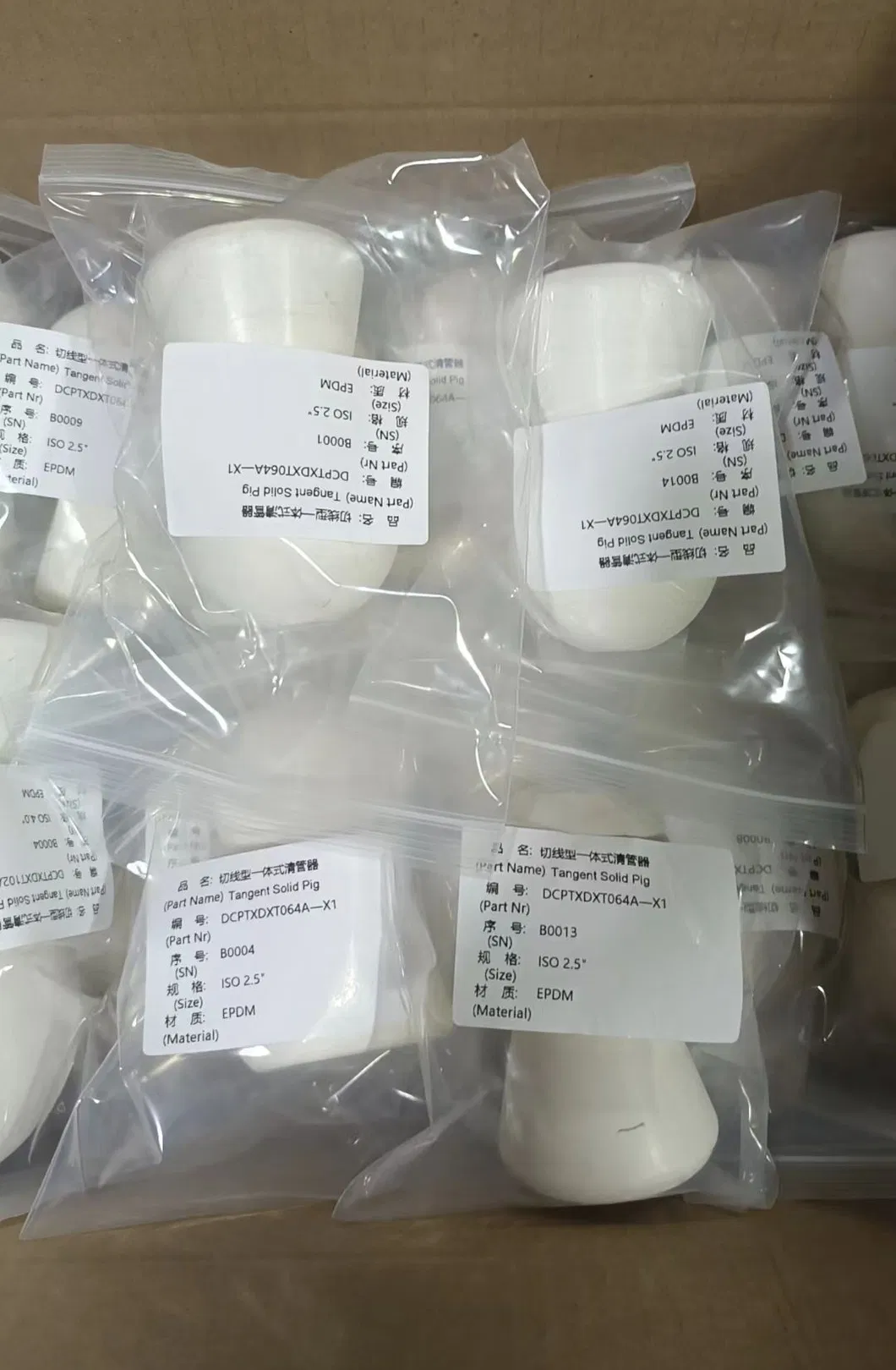

Packaging Detail 2

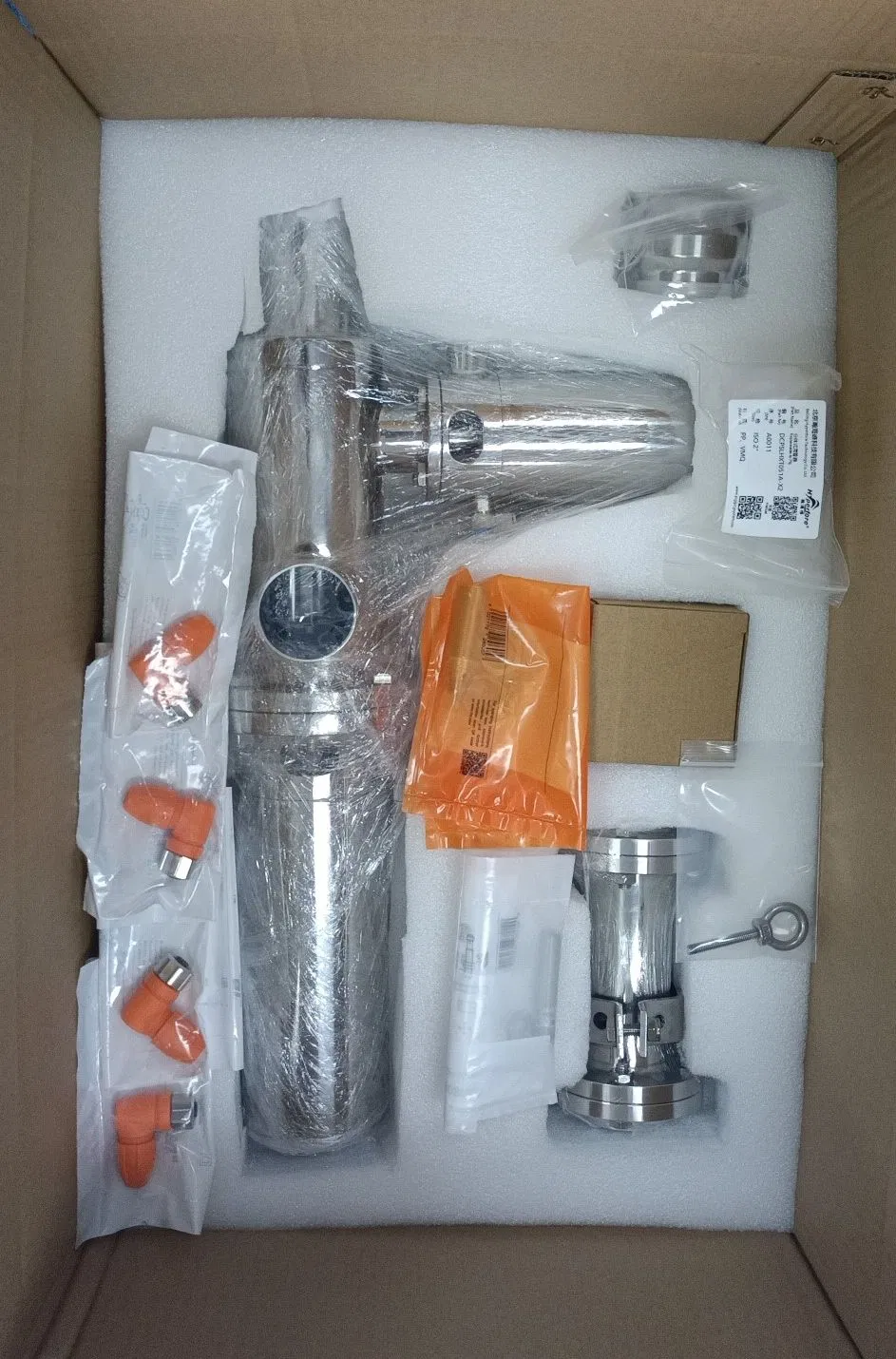

Packaging Detail 3
❓

Frequently Asked Questions

What are the advantages of an automatic pigging system?
The system reduces product waste, improves yield, lowers water and chemical usage, and recovers up to 99% of residual product while ensuring sanitary compliance.
Why is the process called "pigging"?
While "PIG" is sometimes considered an acronym for Pipeline Inspection Gadget, it also refers to the squeaky sound original cleaning pigs made when traveling through pipes.
How do I choose the right pipeline pig?
Selection depends on your industry and product. Options include replaceable lip pigs, lithium battery pigs, PTFE pigs, and double-sphere solid pigs.
What materials are the systems constructed from?
The main body is typically constructed from high-grade Stainless Steel (SS304 or SS316L) to ensure hygiene and durability.
What is the typical operating temperature range?
Our standard pigging systems are designed to operate efficiently at temperatures ranging from above 0°C to 100°C.
Is the system compatible with CIP (Clean-In-Place)?
Yes, the system is designed without cleaning dead zones and can be fully integrated with factory CIP pipelines for automated cleaning.
