Newly Upgraded M400 Hydroelectric Dual Tethered Unmanned Aerial Vehicle System, Specifically Designed for Cleaning High-Rise Buildings

Customization: Available
Usage: Drone
Output Type: DC

Product Description

Technical Overview & Basic Information
ModelG70-M400 55m
CertificationTUV, RoHS, ISO9001, CCC
ColorChampagne Gold
TypeODM
Internal StructureOn-Off Type
Power SourceHalf-Bridge Type
ConnectionPlug In
Input Voltage190~240VAC
Output Voltage600~850VAC
Net Weight16.8kg
Production Capacity3000 Units/Year
OriginChina
Product Highlights
Continuous Operation: Support flight duration ≥24h with constant voltage stabilization.
✈️
Flight Altitude: Support altitude from 110m to 220m with reserved safety length.
⚙️
Automation: Intelligent automatic take-up and pay-off during the entire drone take-off and landing process.
📦
Portable Design: Small size, lightweight, and backpack storage for easy transportation to job sites.
🛡️
Safety Protection: IP54 protection class with automatic fault protection and self-recovery features.

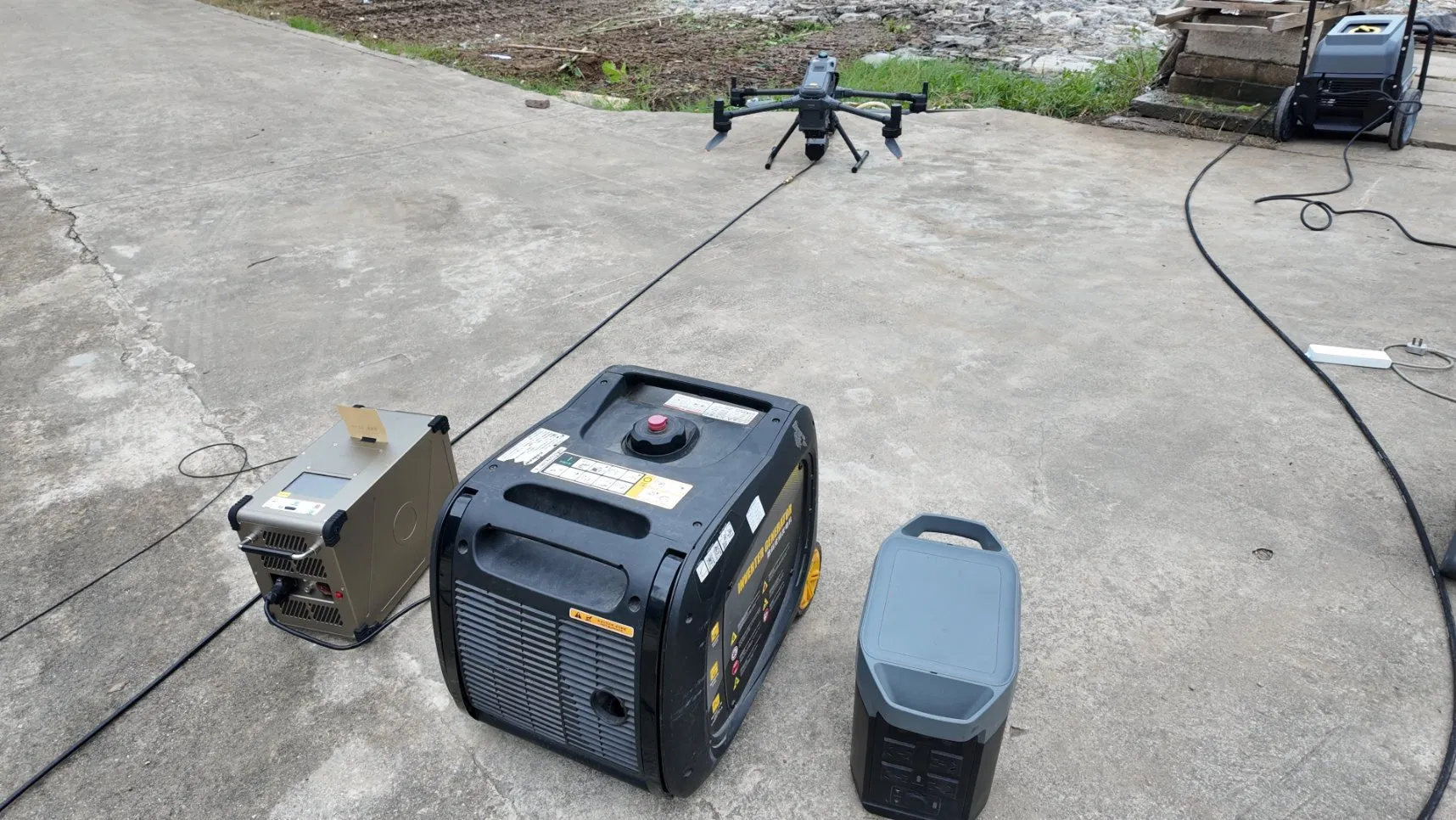

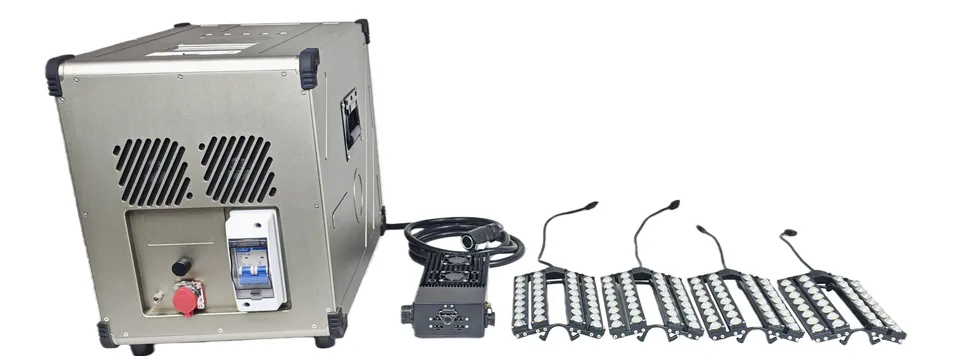

Tethered Drone System

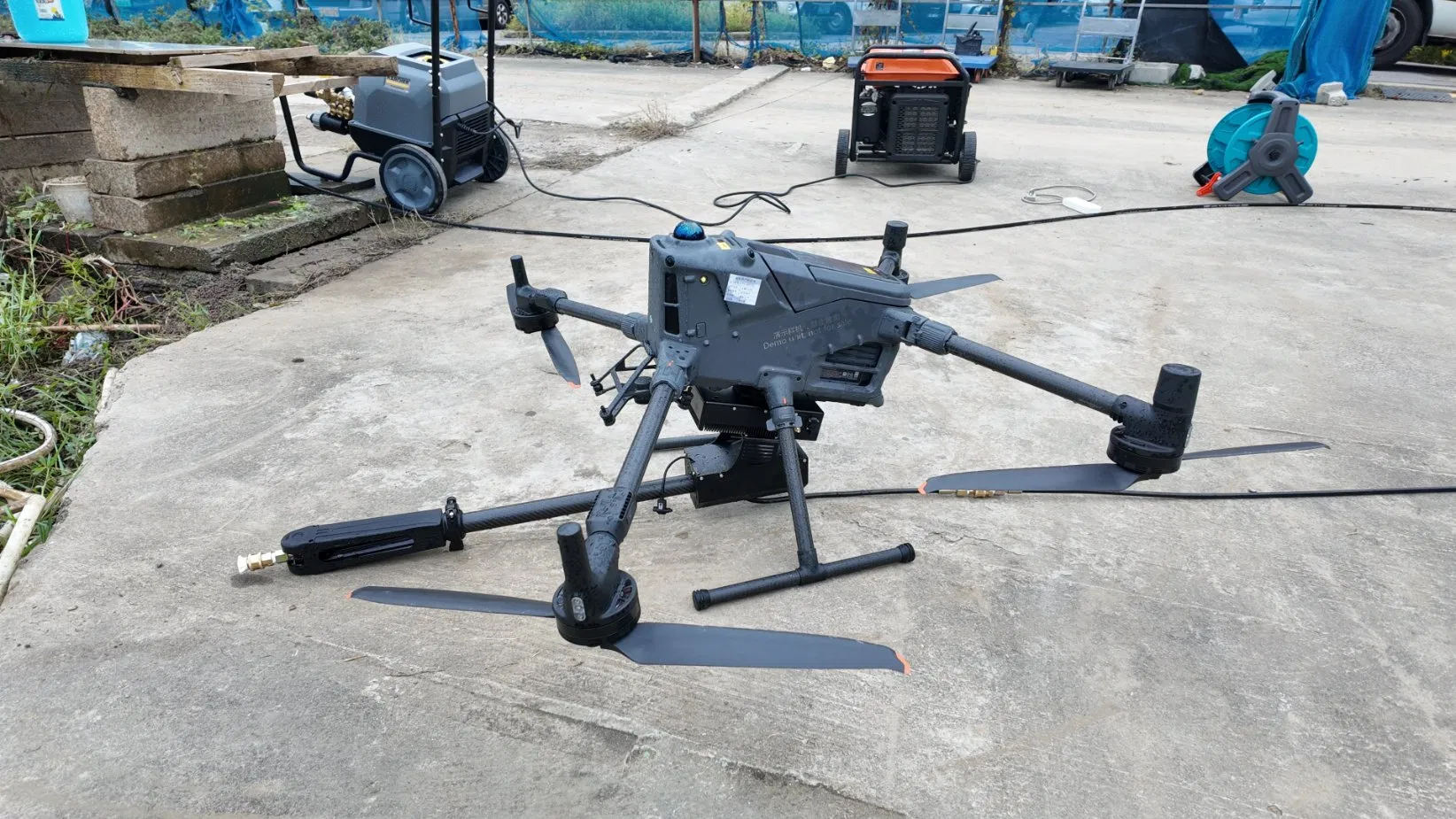

Drone Operation
Detailed Specifications
🔹 General Specifications
Compatible ModelsDJI Matrice 400
Support Flight Altitude100m or 200m (Cable: 110m or 220m)
Environmental RangeWorking: -20~45℃ | Storage: -40~65℃
Protection ClassAir module IP54, Ground module IPx4
Packing CaseTrolley case (D720×W500×H580mm, 18kg)
Power System

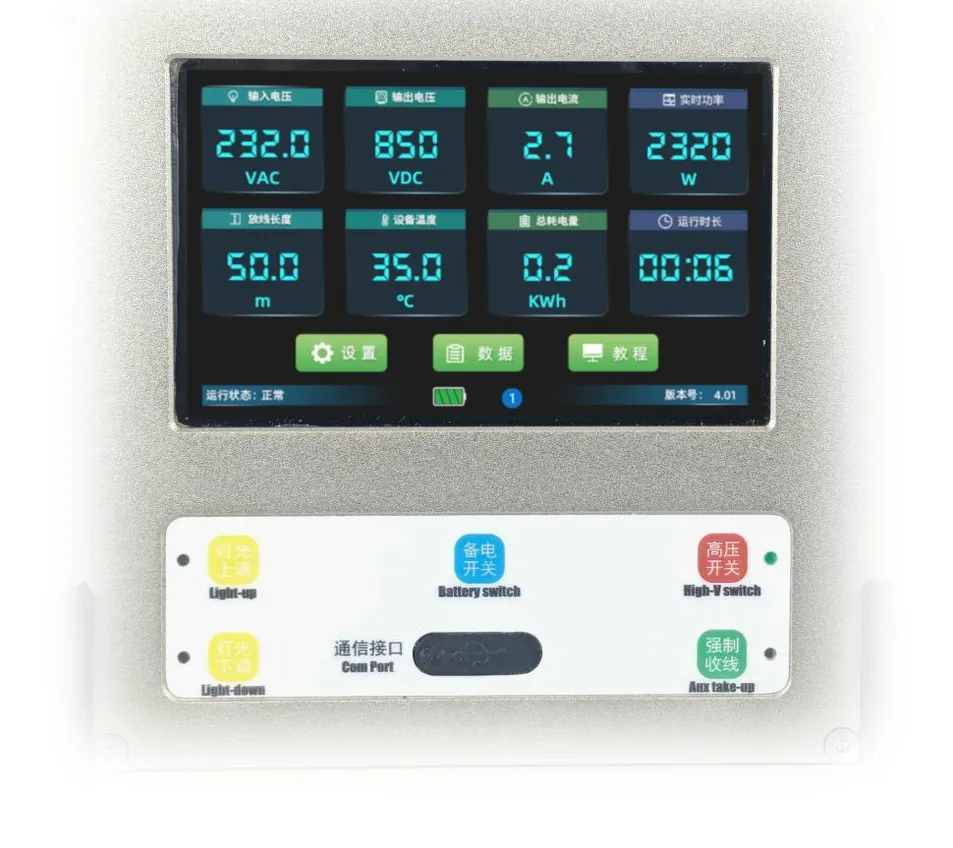

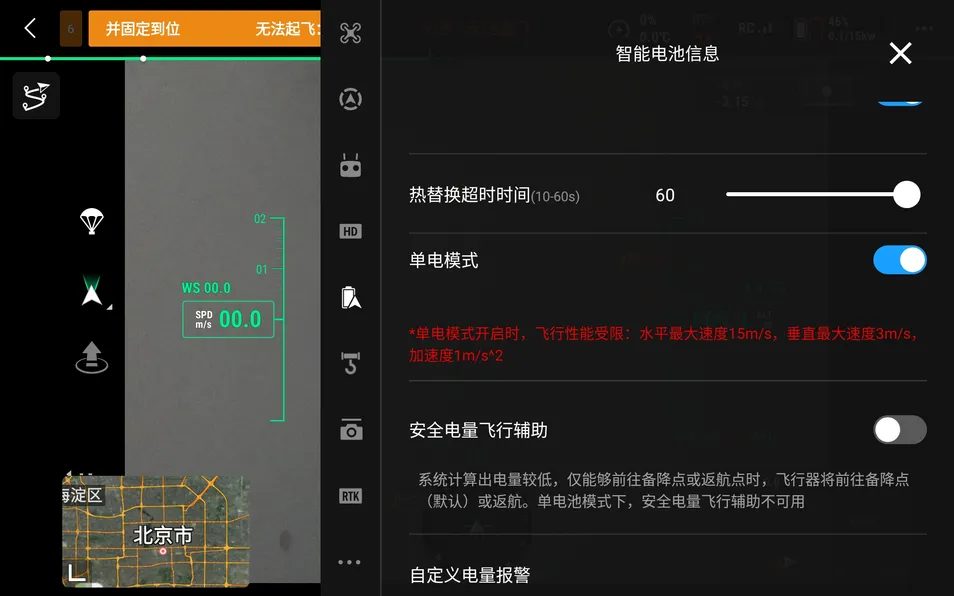

Controller Display

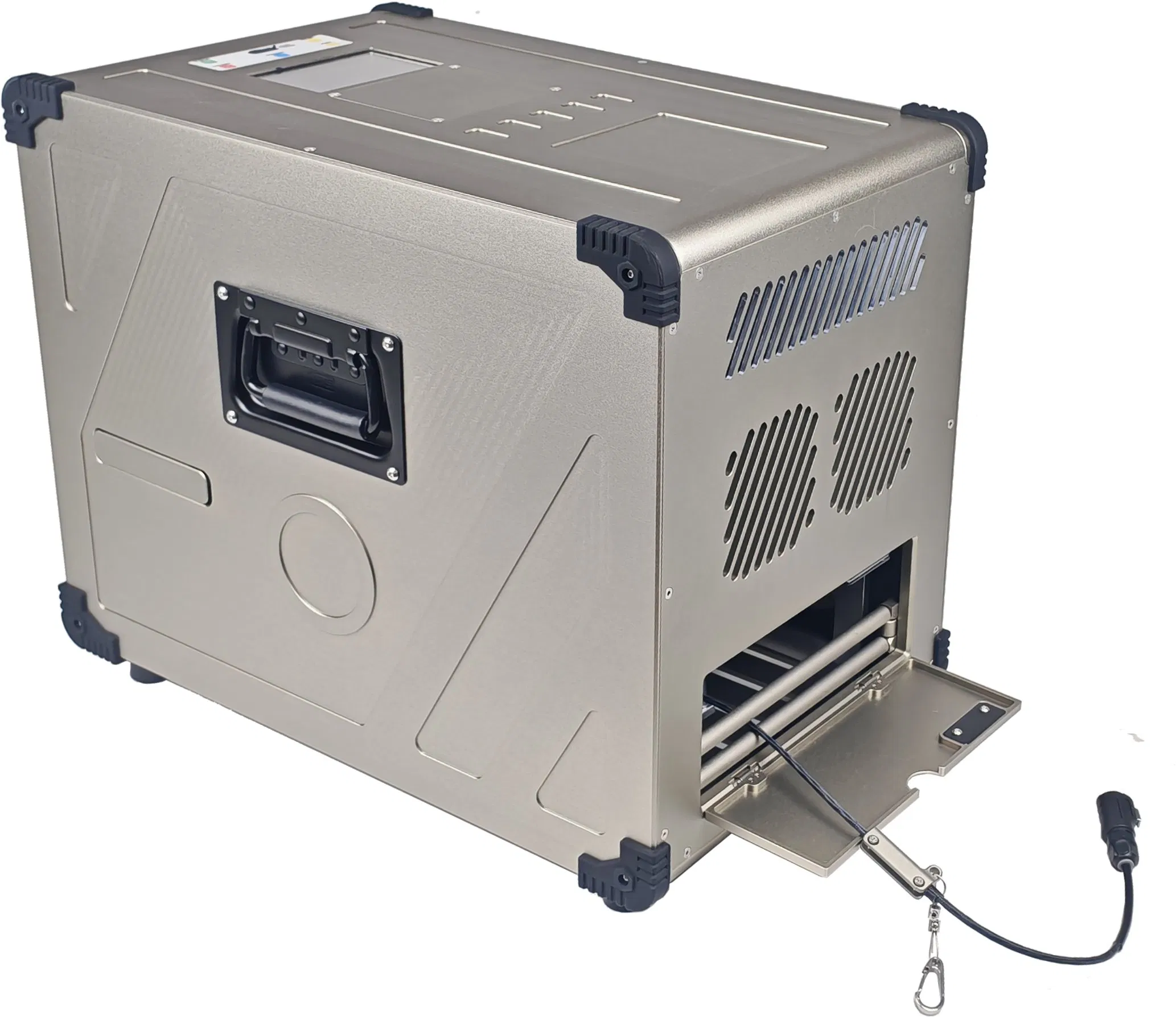

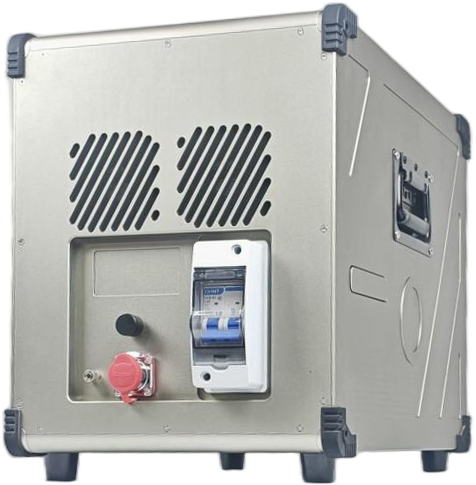

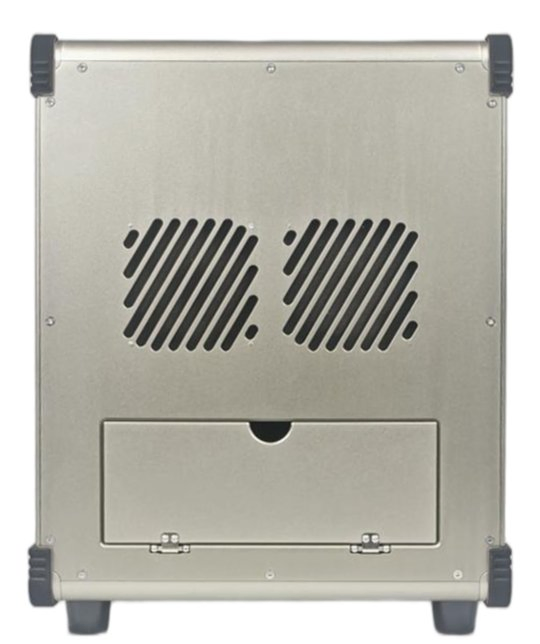

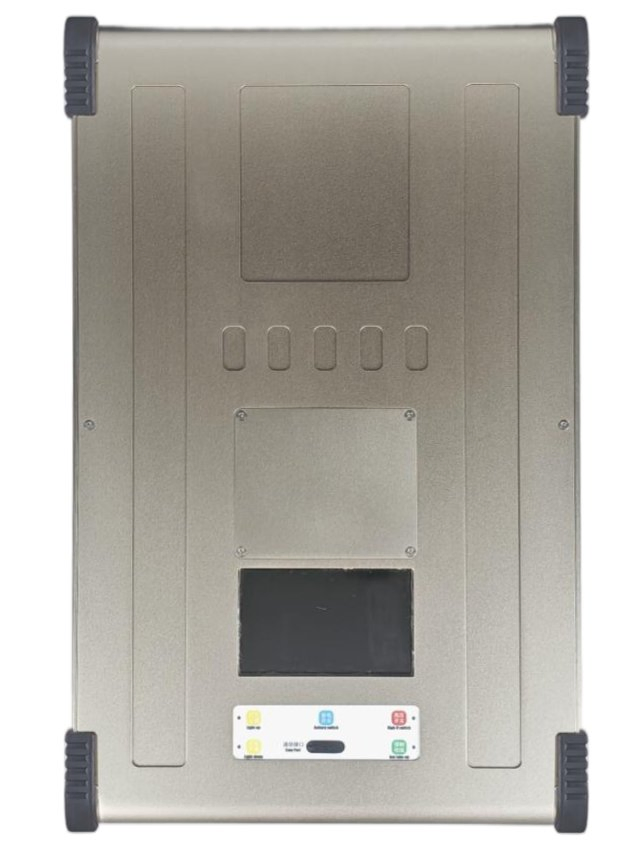

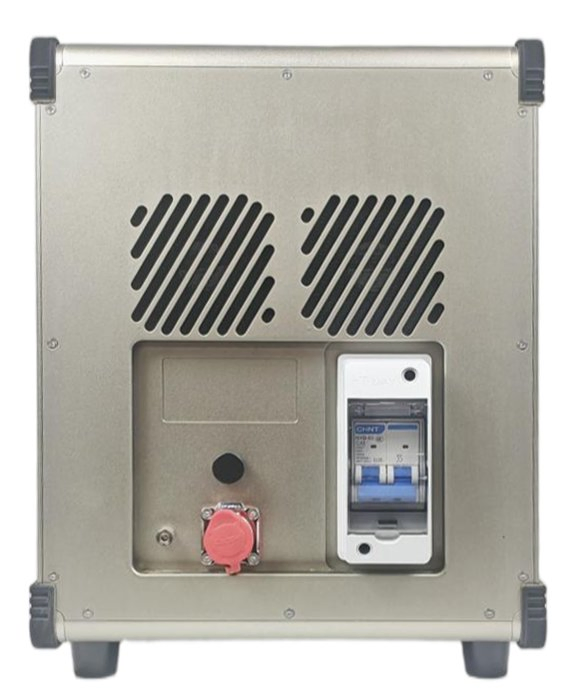

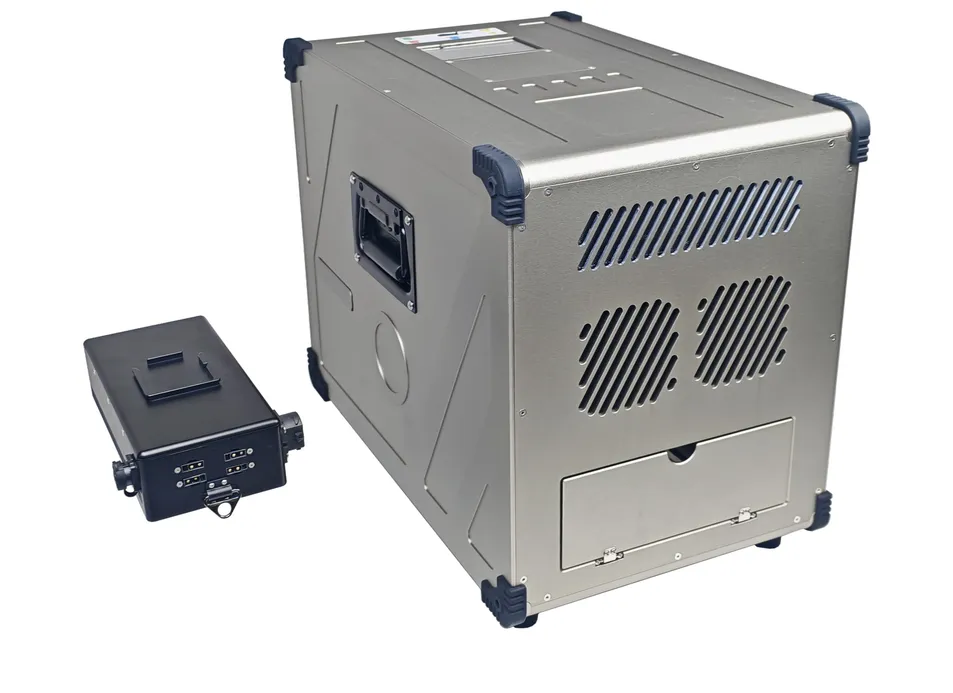

🔹 Tethered Box (Ground Module)
Input Voltage190~240VAC, Single-phase 220VAC@50/60Hz
Output Power7000W (Rated) / 8000W (Peak)
Reel Speed0~5m/s Intelligent dynamic adjustment
Control ModesButton, App, HMI, and Drone controller
DimensionsD450×W280×H345mm

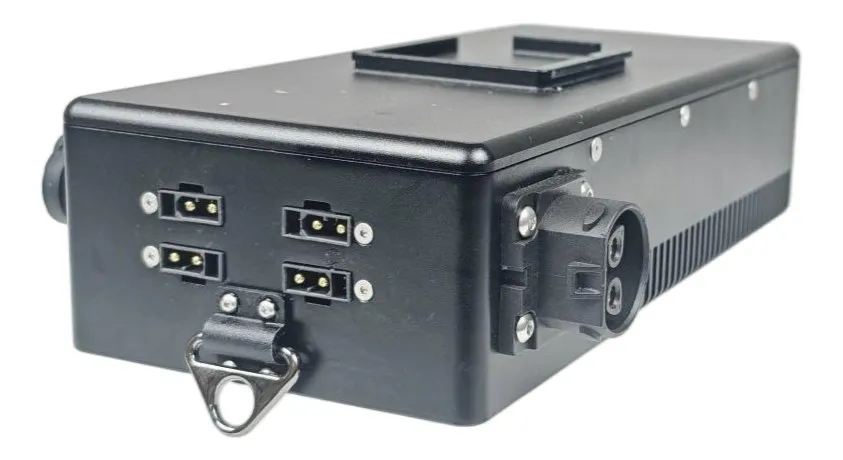

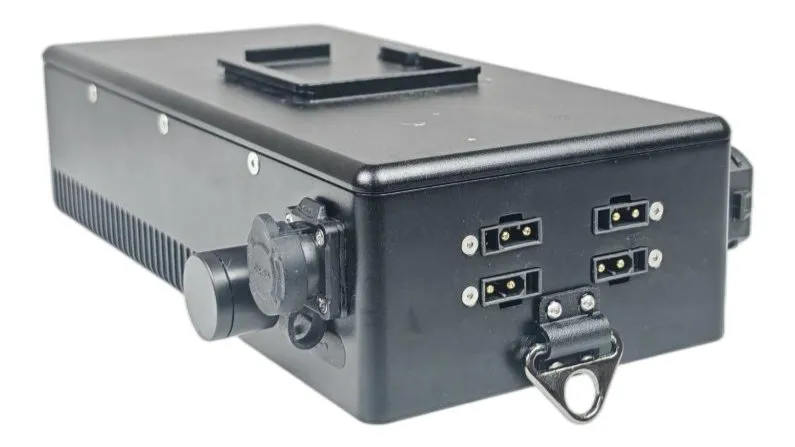

🔹 Aircraft-Mounted Power (Air Module)
Output Voltage51.5VDC, Stable voltage output
Output Power3000W (Rated) / 3500W (Peak)
Weight800g
InstallationSliding quick installation
Expansion & Payload Options
💡 L12 Floodlight Module
Light Power1200W (Super Bright Mode 2400W)
Luminous Flux200000 lm
Lighting AreaUp to 10000m² @ 100m altitude
ControlAutomatic sync with drone altitude

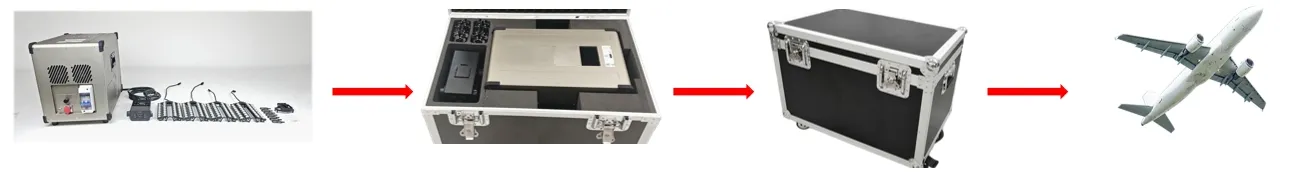

Packing & Delivery

Standard Export Package: We utilize reinforced export-grade packaging to ensure safe transit.

OEM Services: Full customization and branding services are available upon request.

Certifications
Frequently Asked Questions
Q1: Are you a factory or a trading company? A: We are a professional manufacturing factory with over 10 years of experience in intelligent equipment and tethered drone systems.
Q2: How do I place an order? A: Contact us with your specific requirements and usage scenarios. We will provide product design recommendations, discuss details, confirm samples, and proceed with production after contract signing.
Q3: What are the available transportation methods? A: We support express delivery, air freight, and sea freight. Our team will help you choose the most efficient method based on your location and urgency.
Q4: What is the typical production and shipping lead time? A: The lead time generally ranges from 15 to 20 working days, depending on the order quantity and customization requirements.
Q5: What should I do if items are missing from my package? A: Please contact our support team immediately. We will verify your order through package tracking data and arrange for a compensation delivery as quickly as possible.
Q6: What payment methods do you accept? A: We primarily accept Telegraphic Transfer (T/T). Other payment methods can be discussed and confirmed with our sales team prior to payment.
