| Model NO. | IDS-32-1500 | Operation Type | Automatic |
| Medium Material | Metal Fiber | Dust Collecting Method | Dry |
| Type | Filter Cartridge Dust Collector | ||
| Model | Mc-IDC | Airflow | 2,400~80,000CMH/Customize |
| Cleaning Way | Pulse Jet | Filter Efficiency | F7~H13 |
| Dust Collector Design | Modular Design | Working Principle | Automatic Pulse Cleaning |
| Certificate | CE | Voltage | 380V, 50Hz, 3pH |
Dust collector systems are renowned for exceptional filtration technology. Comprehensive solutions include meticulous program design, superior equipment configuration, seamless installation, effective implementation, and robust operation and maintenance.

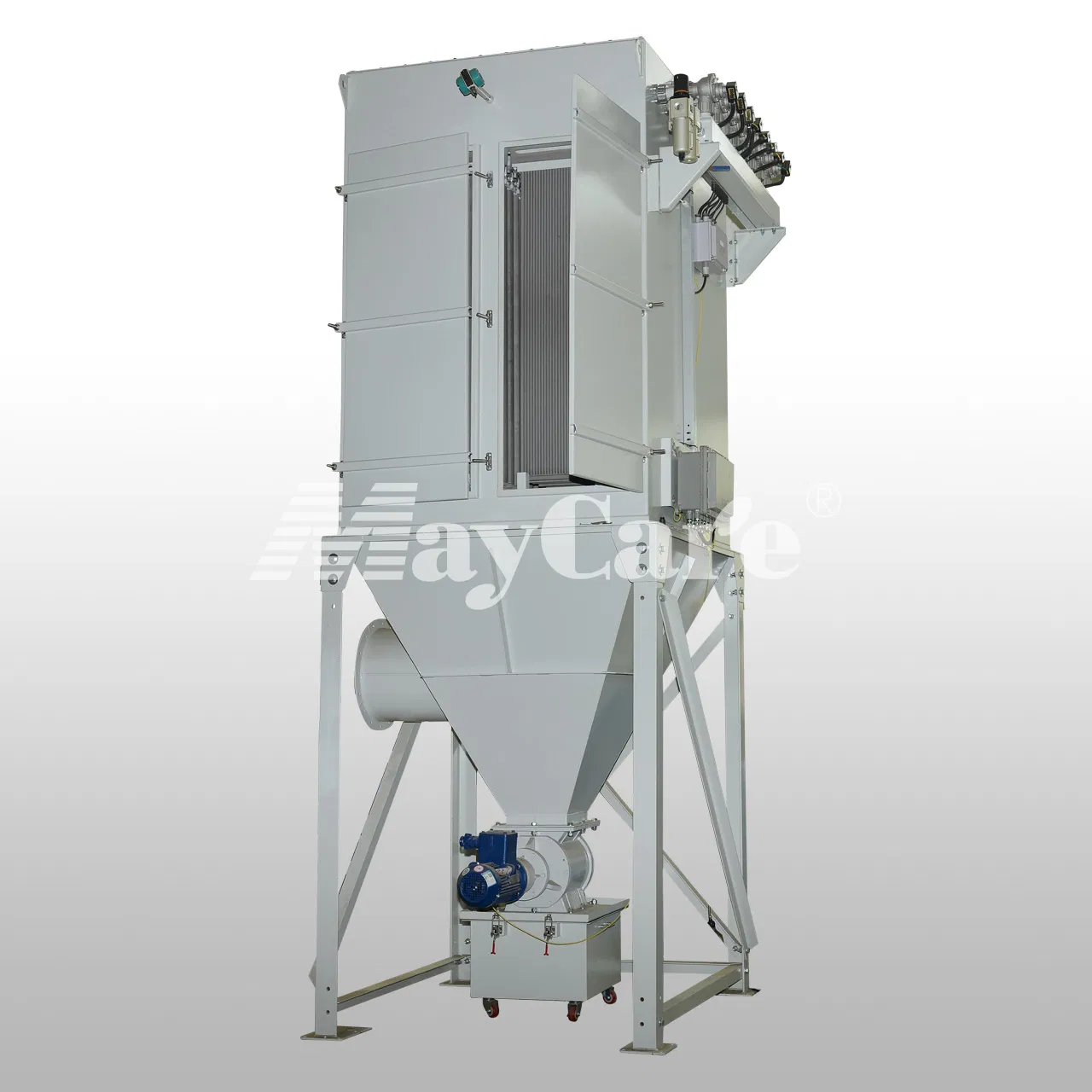

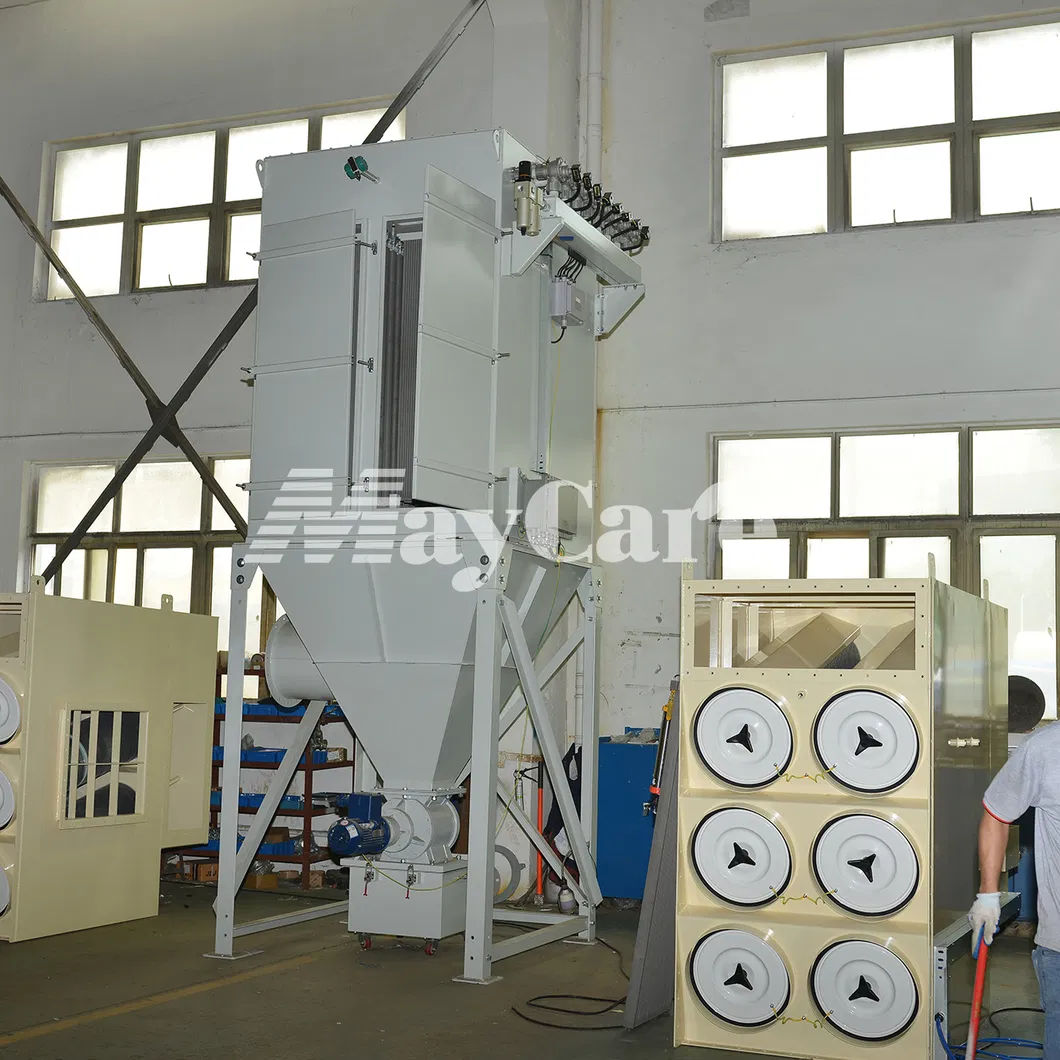

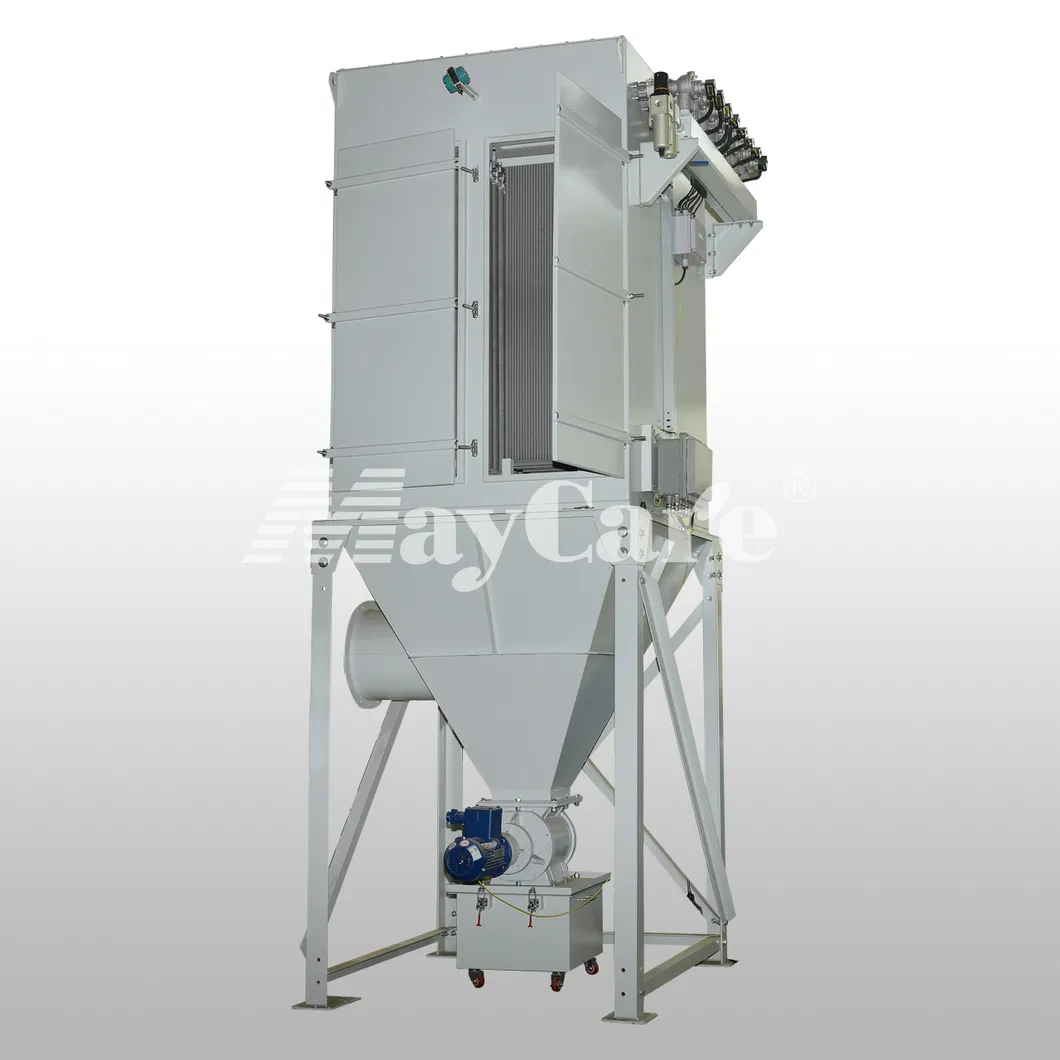

The IDC series dust collector is ingeniously designed to utilize gravity and downward airflow for efficient self-cleaning. Dust-laden air enters from the top and exits from another top side, adhering to the 'inertial settling' principle to direct dust downward effectively.

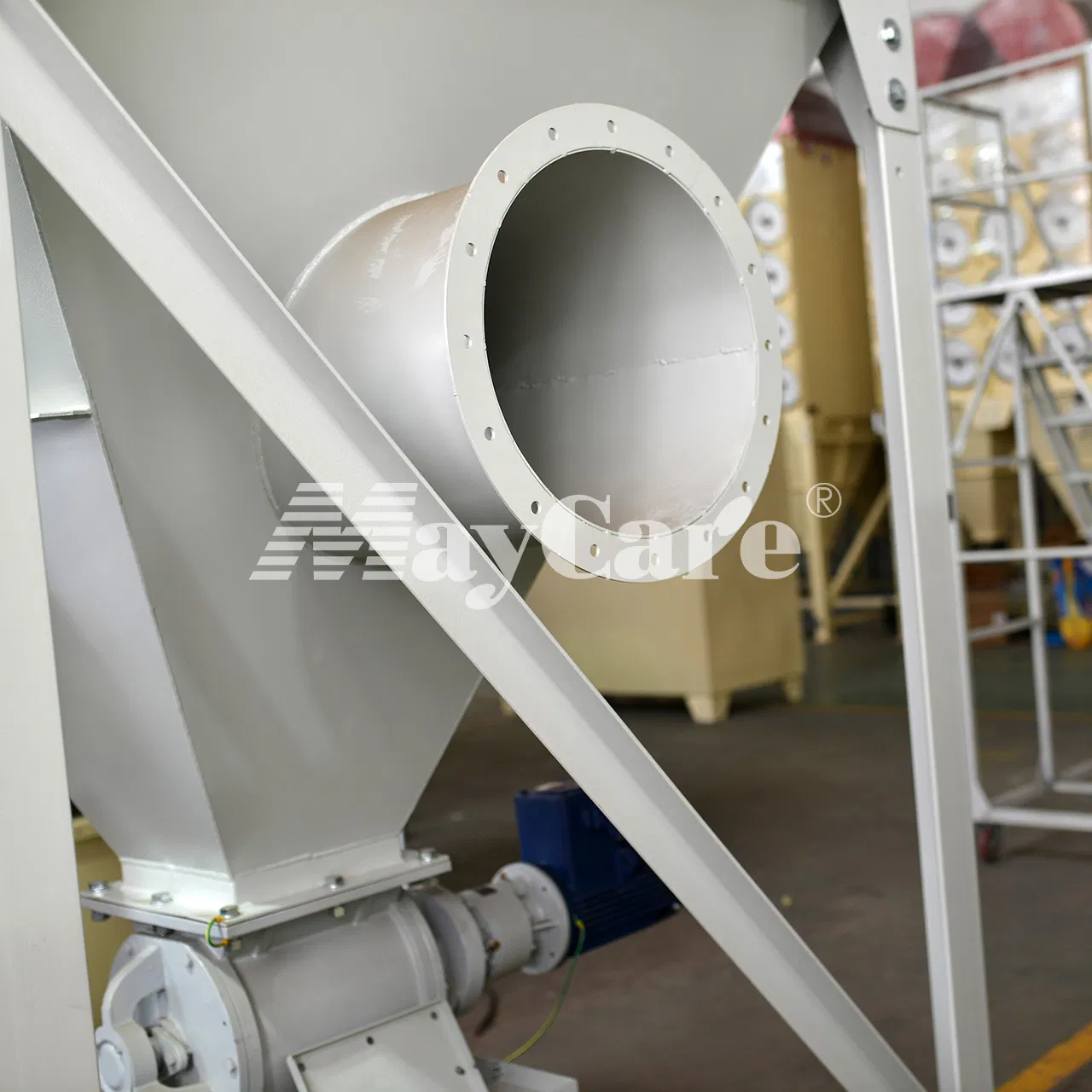

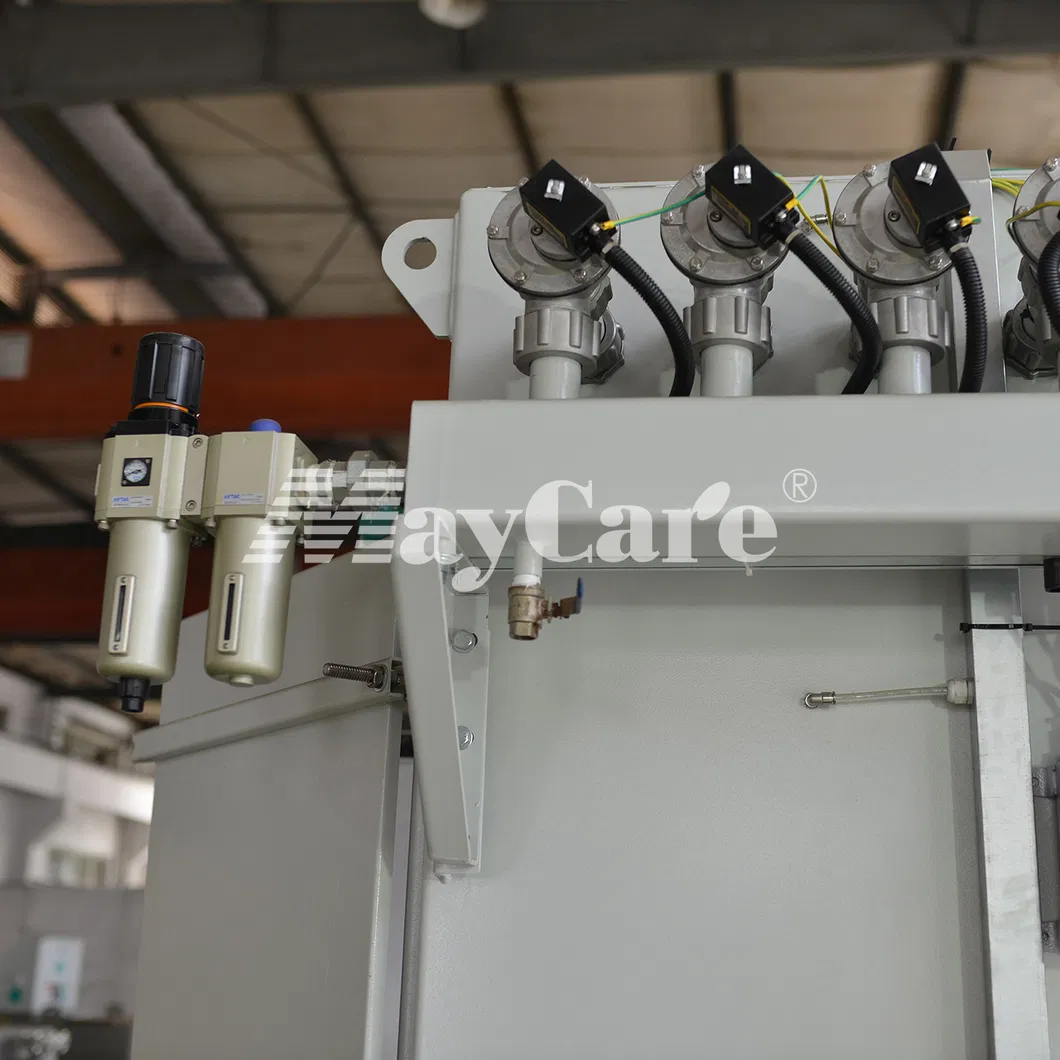

During its operation, dust-laden air is introduced through the top inlet, where it passes through the cartridge, ensuring dust is effectively captured on the outer surface. Purified air is released centrally through the cartridge into the clean air chamber. A sophisticated solid control timer maintains optimal performance via high-pressure compressed air cleaning.
| Model | W x L x H Size (mm) | No. of Filters | Filter Area (m2) | Airflow (CMH) |
|---|---|---|---|---|
| IDC2-4 | 1023x1618x2295 | 4 | 80 | 2400~3200 |
| IDC2-8 | 1023x2140x2820 | 8 | 160 | 4800~6400 |
| IDC2-12 | 1532x2140x2820 | 12 | 240 | 7200~9600 |
| IDC3-6 | 1023x1618x2768 | 6 | 120 | 3600~4800 |
| IDC3-12 | 1023x2140x3294 | 12 | 240 | 7200~9600 |
| IDC3-18 | 1532x2140x3294 | 18 | 360 | 10800~14400 |
| IDC4-16 | 1023x2140x3767 | 16 | 320 | 9600~12800 |
| IDC4-24 | 1532x2140x3294 | 24 | 480 | 14400~19200 |
| IDC3-36 | 3055x2140x3294 | 36 | 720 | 21600~28800 |
| IDC4-48 | 3060x2140x3767 | 48 | 960 | 28800~38400 |
State-of-the-art dust control solutions are crafted to cater to an extensive array of industries including:
Our pioneering products are meticulously engineered to manage dust within your facility, fostering a pristine and secure working environment, where productivity and efficiency are the new norm.
