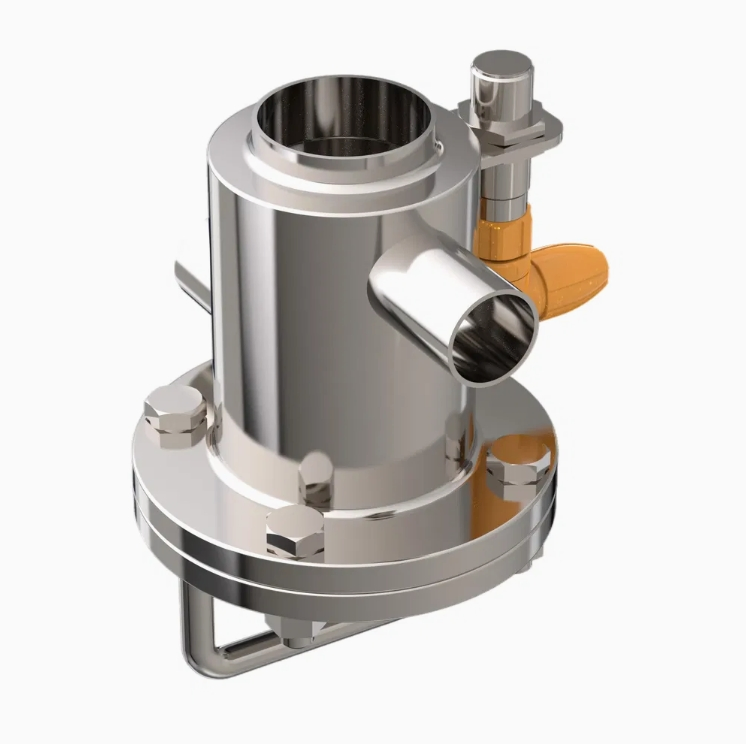

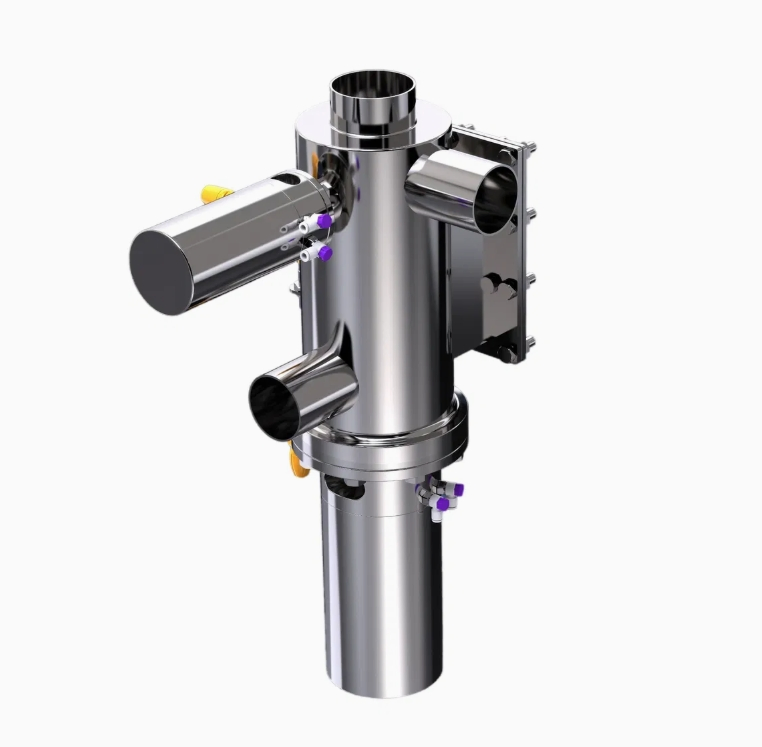

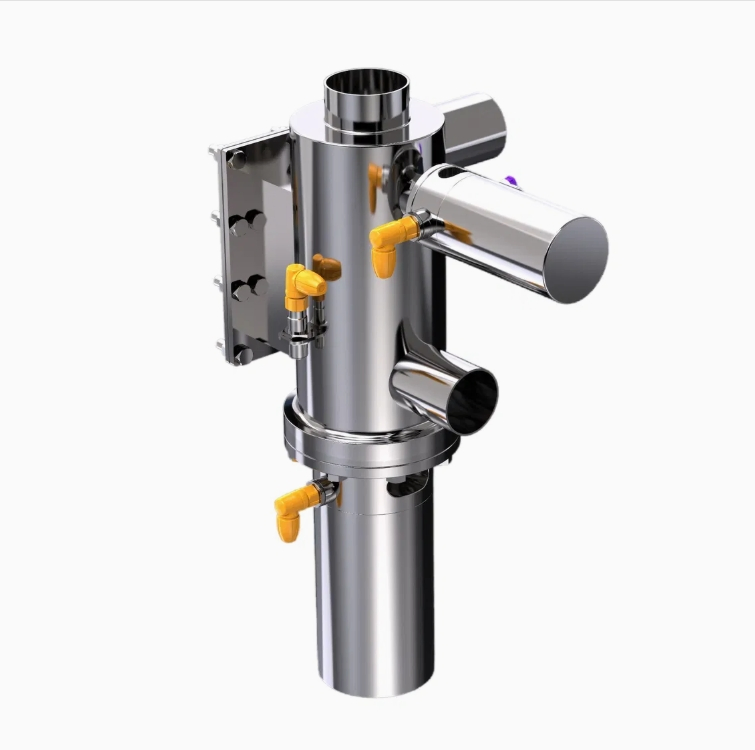

Micro-residue Pigging System

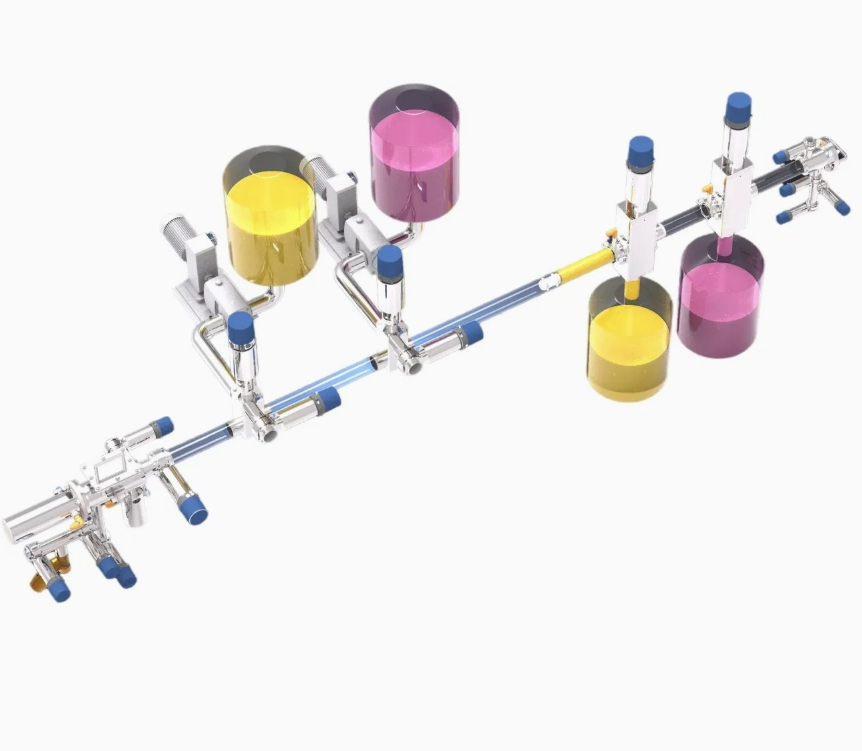

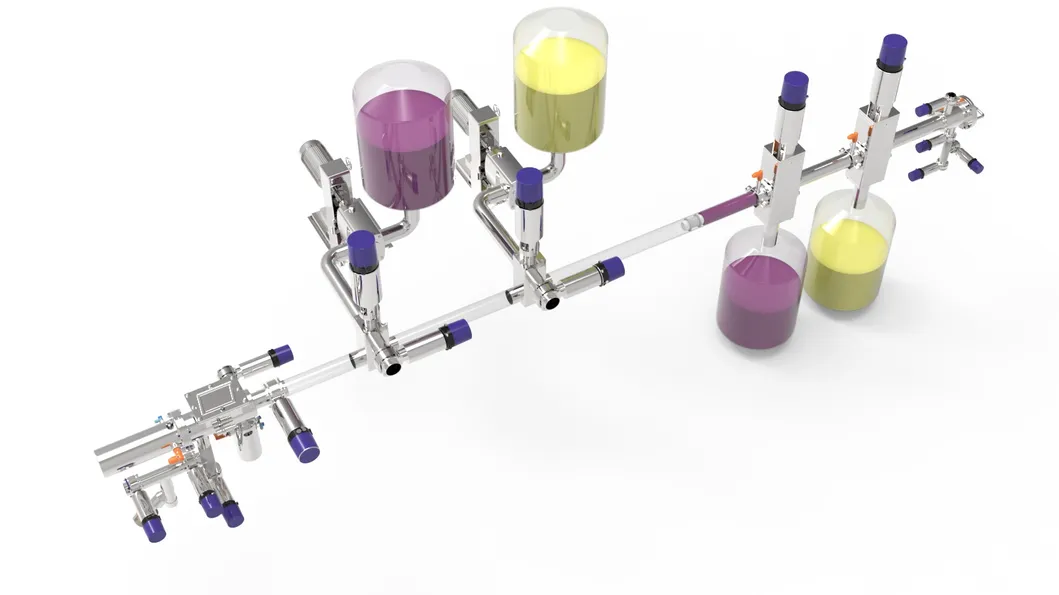

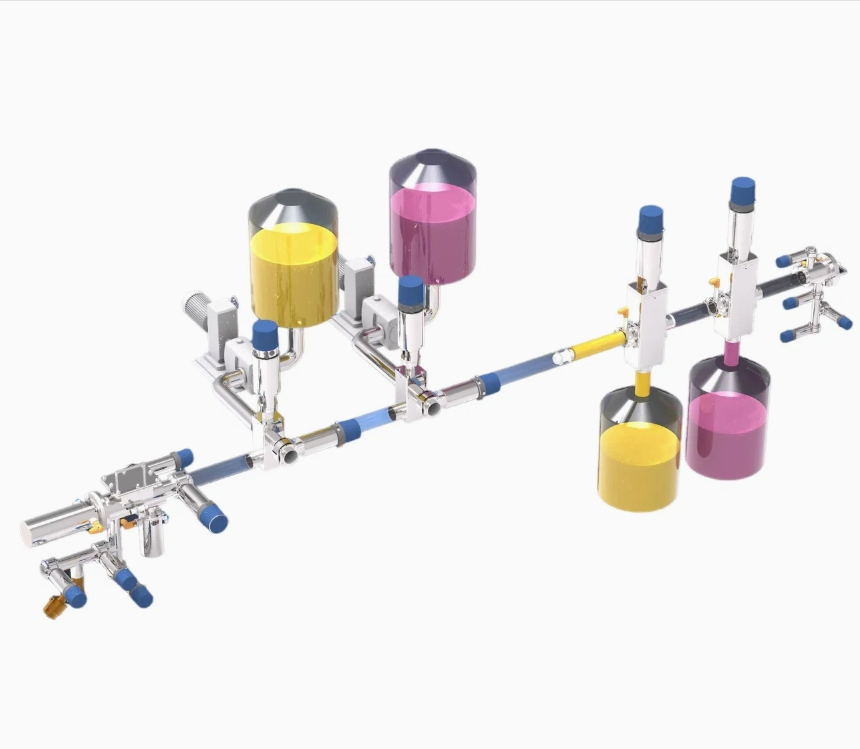

Suitable for industry applications with high low-residual rate requirements. The system consists of an automatic launching station, receiving station, pig, special valves, and other piggable components with fully automated control. The internal structures have no cleaning dead corners, ensuring nearly zero material residue after operation.

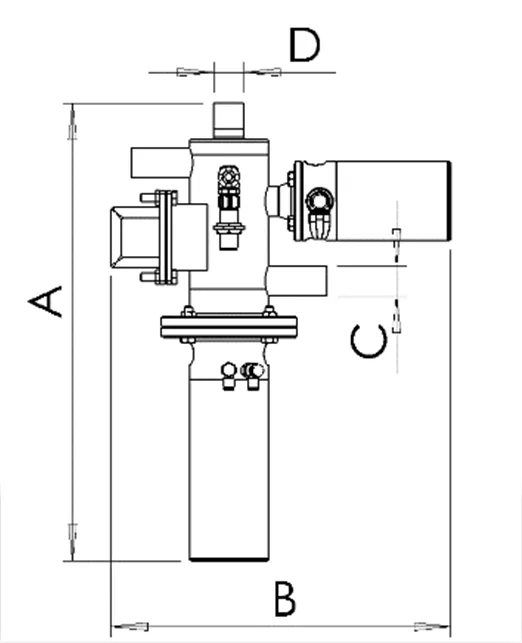

| Size | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 1" | 443 | 331 | Φ29*1.5 | Φ25.4*1.5 |
| 1.5" | 443 | 324.5 | Φ29*1.5 | Φ38.1*1.5 |
| 2" | 511 | 349.5 | Φ41*1.5 | Φ50.8*1.5 |
| 3" | 601 | 456 | Φ70*2.0 | Φ76.1*2.0 |
| 4" | 618.5 | 463 | Φ70*2.0 | Φ101.6*2.0 |

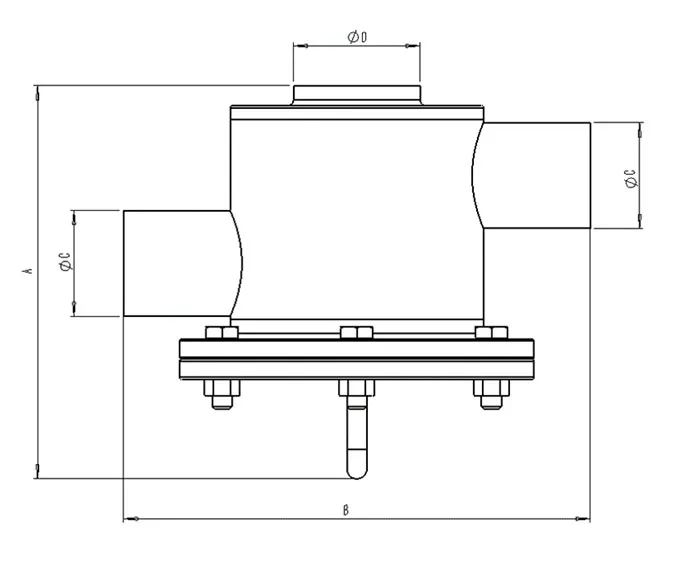

| Size | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 1" | 197 | 150 | Φ29*1.5 | Φ25.4*1.5 |
| 2" | 177 | 150 | Φ29*1.5 | Φ50.8*1.5 |
| 3" | 207 | 234 | Φ53*1.5 | Φ76.1*2.0 |
| 4" | 271 | 296 | Φ70*2.0 | Φ101.6*2.0 |
We are an experienced manufacturer of hygienic pigging systems, established in 2005. We provide manual, automatic, sanitary, and aseptic product recovery systems for various industries including dairy, beverage, edible oil, pharmaceutical, cosmetics, and chemicals. Our focus is on high-quality R&D to provide cost-effective solutions that meet special client requirements globally.
