Mongolian Factory Price Touchless Automatic Car Washing Machine Automatic Equipment

Customization: Available
After-sales Service: Global Warranty
Warranty: 3year

Product Description

Basic Specifications
Model NO.
s360
Type
Self-Service
Application
Basement Parking
Fuel
Diesel
Cleaning Process
Cold Water Cleaning
Certification
CE
Feature
Residue Free
Material
Glass/Ceramic
Main Market
Southeast Asia
Output Power
>1500W
Size
7000mm*3600mm*3000mm
Moving Speed
10.5 Meter/Min
Air Pressure
0.75-0.9MPa
Consumption
7ml Shampoo / 12ml Wax
Product Overview & Features

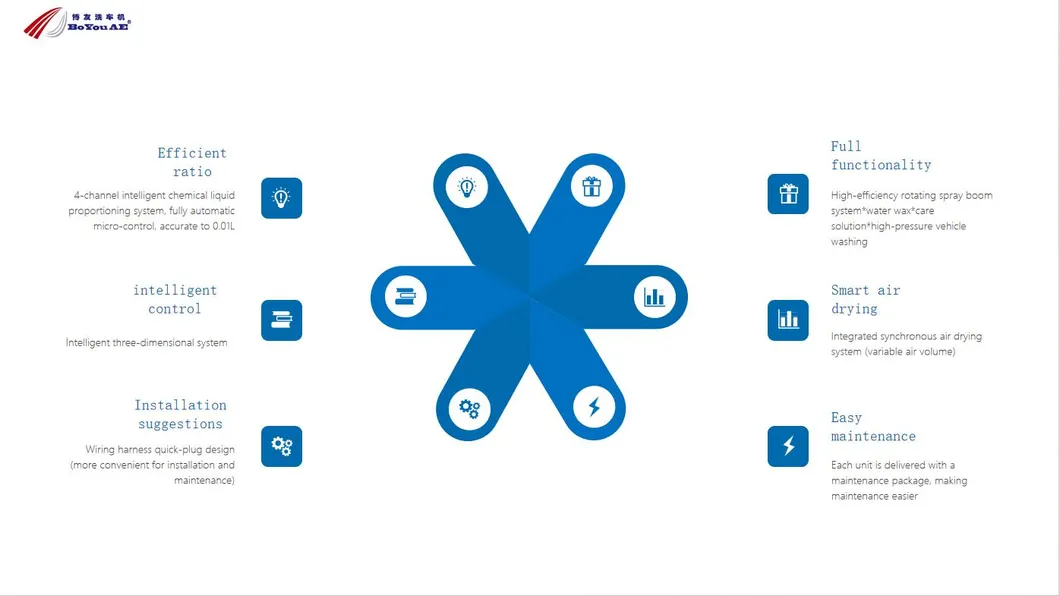

Main Features
  • Intelligent unmanned system & self-service card payment

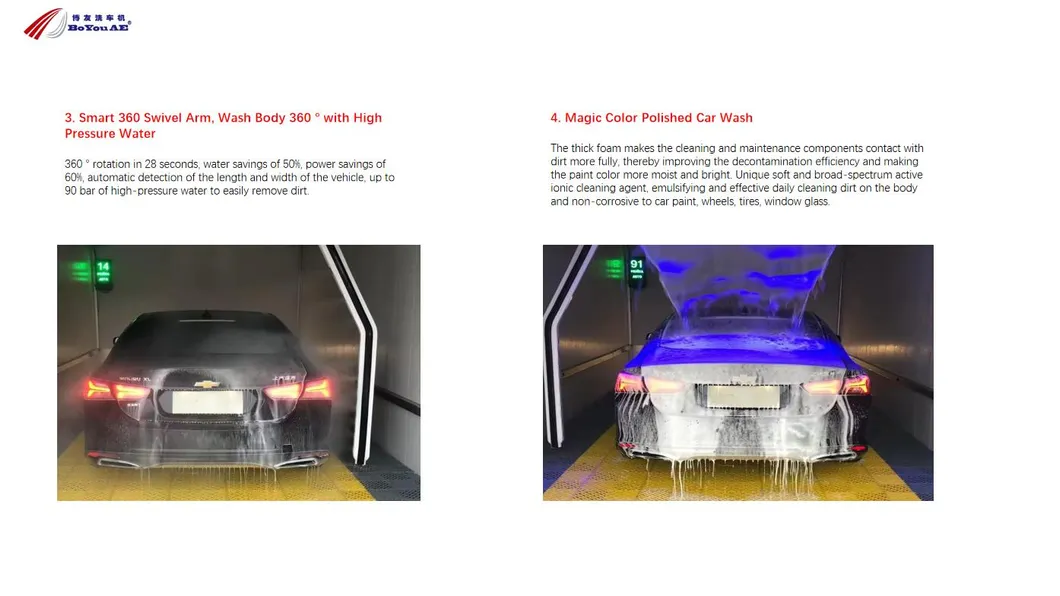

  • Smart 360 Technology for complete coverage
  • Intelligent chemical dosing system
  • Innovative Suspension System Drag Free Guide

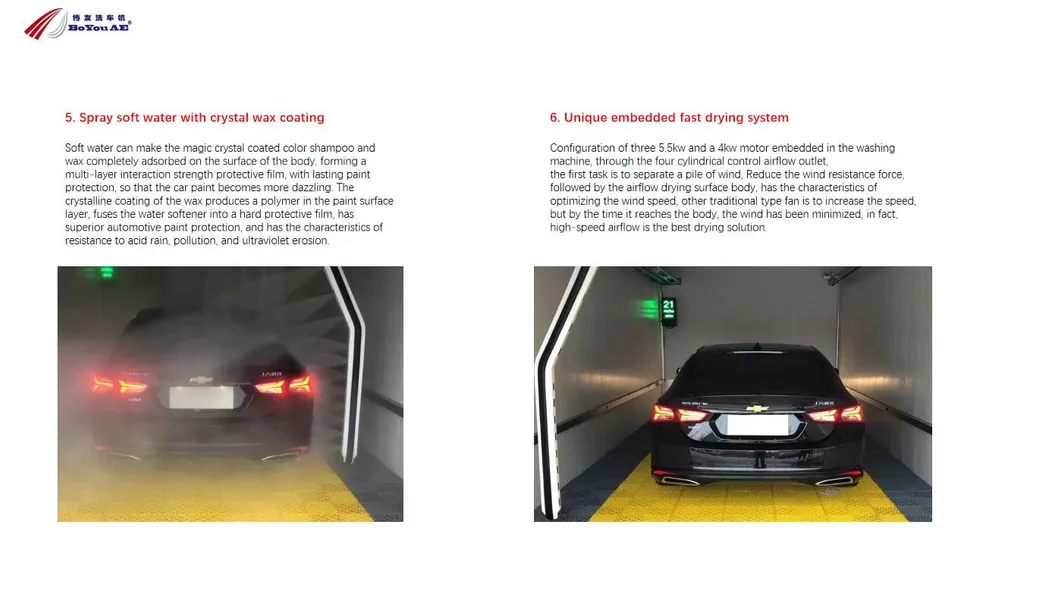

  • Unique embedded fast drying system
  • Digital voice security alarm & Fault self-test
  • Own Antifreeze System
Technical Description

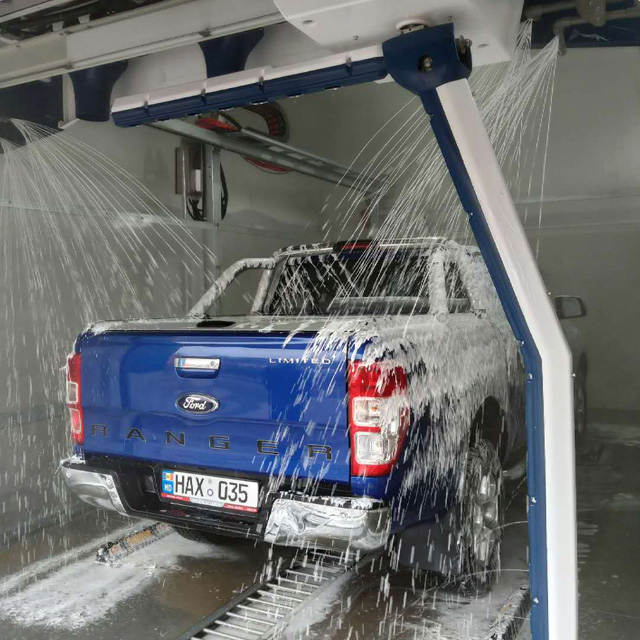

  • Touch-free cleaning prevents scratches and surface damage

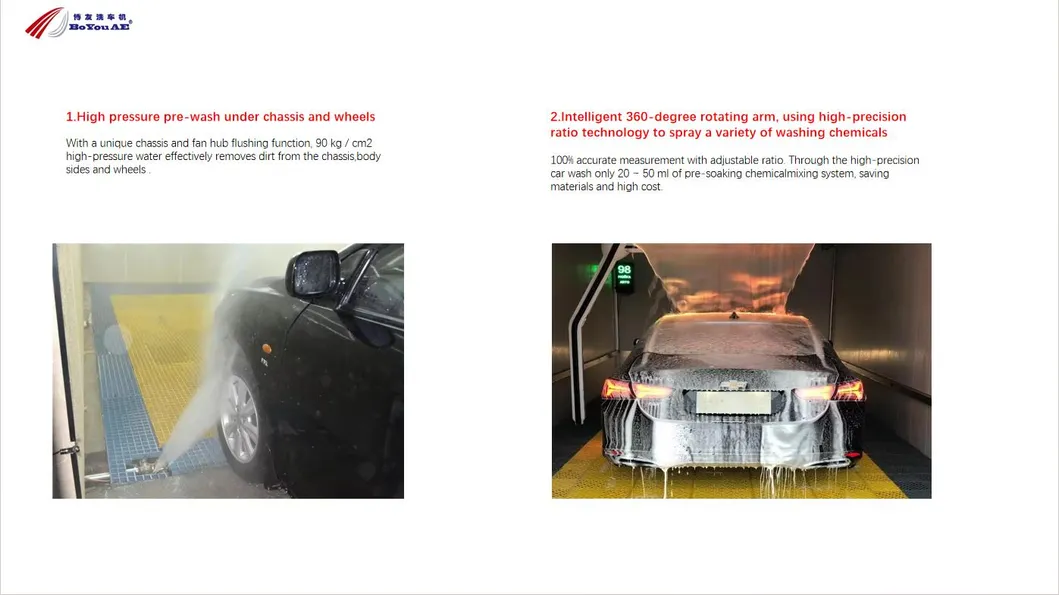

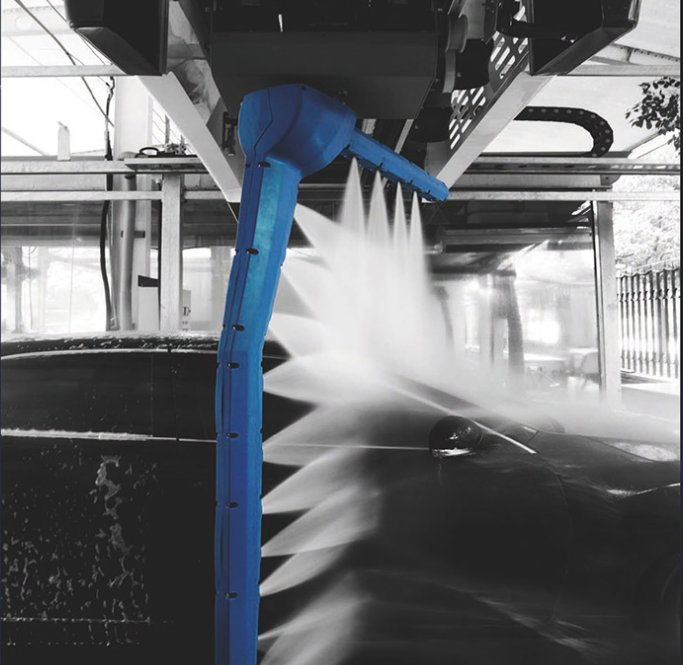

  • 360° rotary nozzle with 90 kg/cm² high pressure washing
  • Ultrasonic testing and PLC touch screen operation
  • Space-saving structure with stable performance
  • High-quality stainless steel for corrosion resistance
Product Performance Display
Basic Equipment Parameters
Project Description Basic Parameters Mode Configuration Standard/Optional
Frame Mounting Length6500mm~7500mmStandard mode
Frame Mounting Width≥3600mmChassis flush
Frame Mounting Height≥3000mmRotating smart flush
High Pressure Pump Power15kw~22kwTire washing
Car Wash Liquid Pump40WCoated water wax spray
Lateral Servo Motor750WRemote control
Water Consumption100-150L/vehicleSmart card paymentO
Electricity Consumption1.5-1.8 KWH/VehicleAir drying (50S)
Professional Technical Profile

Specializing in manufacturing and development of leading automatic car washing machines, our technology has won global favor with its unique structure, advanced technology, and excellent production quality. Our systems are ISO 9001 certified and incorporate multiple invention patents.

In today's competitive market, we utilize scientific research as a guide and perfect service as a guarantee to provide superior car wash solutions. Our equipment is designed for stability, efficiency, and long-term cost reduction.

Service & Maintenance Guidelines
  • Professional Maintenance: Maintenance must be carried out by professional technicians with power cut off.
  • Dry Environment: Keep control boxes and touch screens in dry environments; never touch with wet hands.
  • Regular Cleaning: Periodically clean the machine surface, remove sensor dirt, and clean the water tank inlet filter.
  • Anti-Freezing: In sub-zero temperatures, use the one-button drainage function to prevent condensate damage.
  • Chemical Management: Add cleaning agents timely to prevent air from entering the hose and impurities from entering the tank.
  • Air Compressor: Install oil-water separators and discharge water every 15 days to ensure clean air supply.
  • Belt & Pump Check: Check motor belts every 30 days and change pump oil every 5000 units.
Frequently Asked Questions
What is the required workshop size for installation?

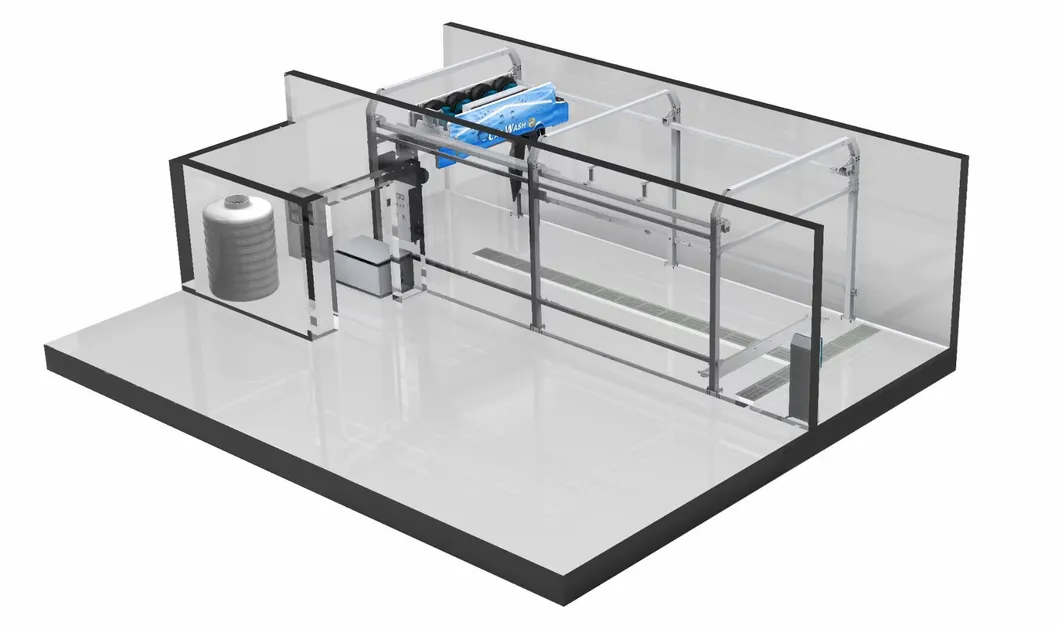

The required size depends on the model: S360 PRO needs 7500×4400×3100mm, while the S360 and S6 models require approximately 7000-7500mm length and 3600mm width.
How long does a complete cleaning cycle take?
A full cycle including high-pressure spray, wax, foam, and air drying takes about 5 minutes. A single circle run takes roughly 28 seconds.
What is the effectiveness of the air drying system?
Designed with air fluid mechanics, the high-pressure cylinders achieve a 90% drying effect with better safety and stability than traditional brush profile drying.
What are the estimated operating costs per car?
The average cost is approximately $0.45 (USD) per car, which includes water, electricity, and chemical consumption.
What type of power supply is required?
The system requires a three-phase industrial power supply. Standard configuration is 380V/50Hz, but custom voltage/frequency motors can be provided.
What is the warranty coverage for the equipment?
We offer a 3-year extended warranty on the complete machine, including all spare parts. Failed parts are replaced for free during the warranty period.
