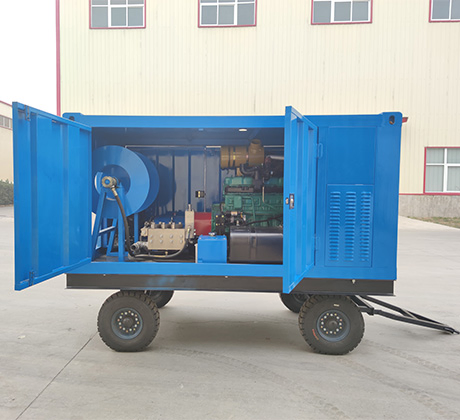

Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
1 / 5
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System
Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System

Municipal Sewer Drain Cleaning Machine 170L/Min High Pressure Cold Water Sewer Cleaning System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i
Basic Information
Model NO.
XY17024
Type
Cold Water High Pressure Cleaner
Drive
Diesel
Flow Rate
220L/Min
Diesel Engine
145kw, 6-Cylinder
Application
Industrial / Sewer Cleaning
Certification
CE
Cleaning Pipe Dia.
100mm to 1500mm
P
Product Overview
Sewer Drain Cleaning Machine

High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning to unclog the blocked pipe.

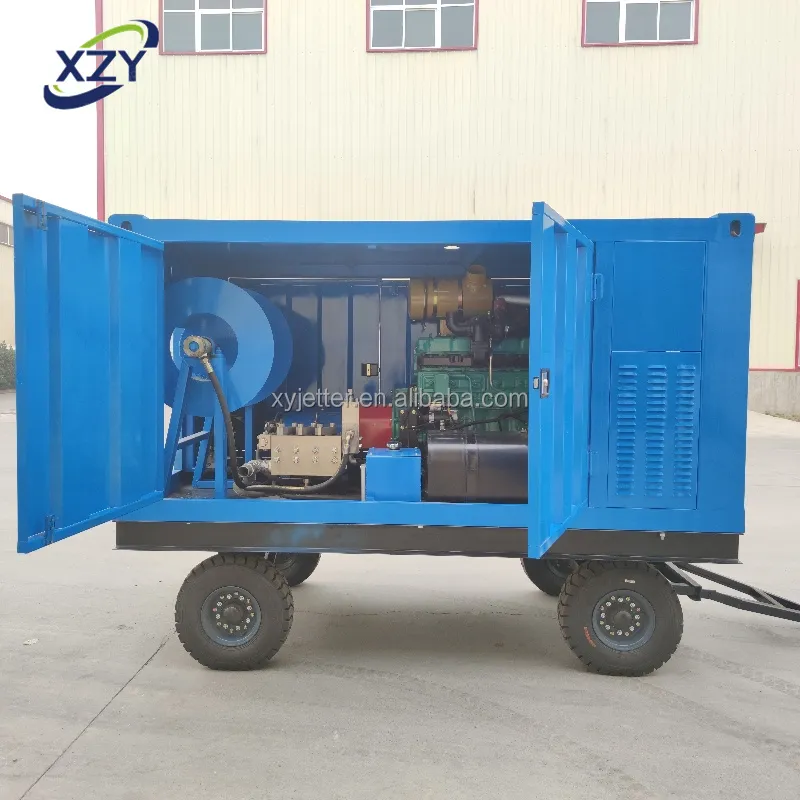

Equipment Detail 1

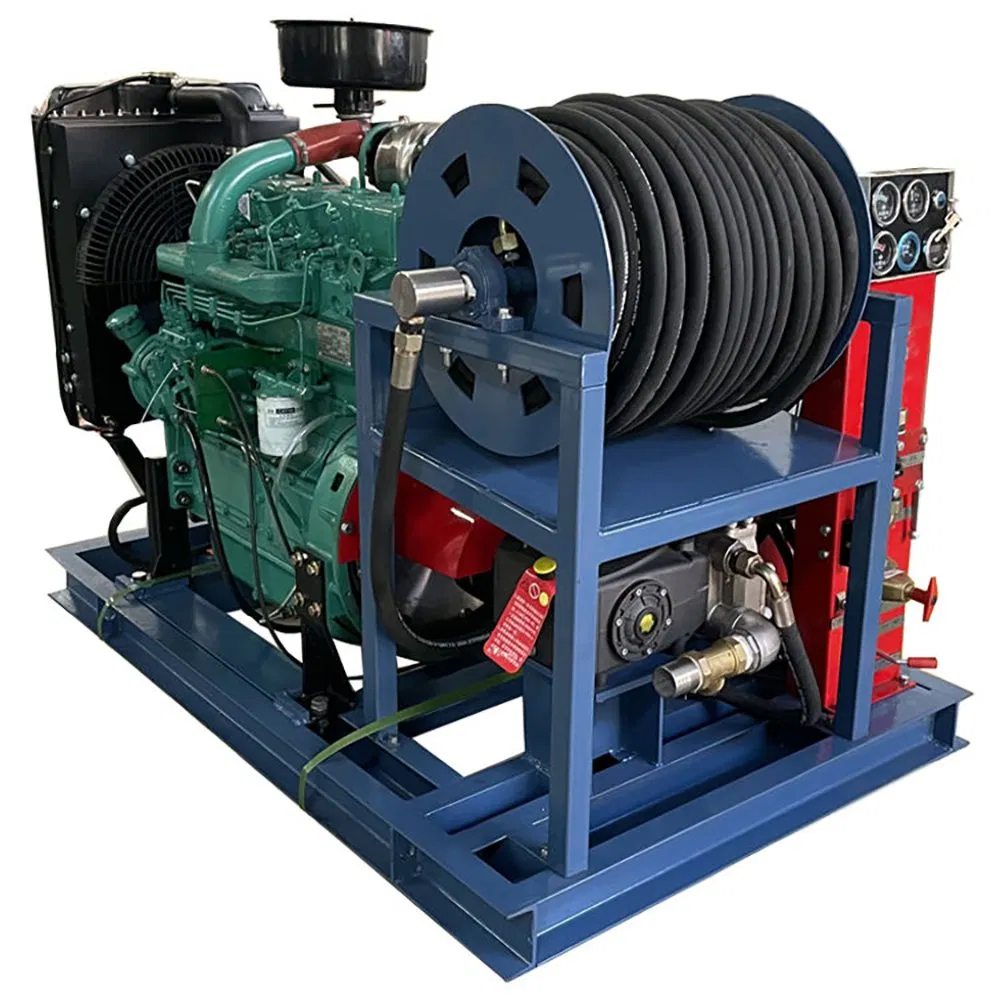

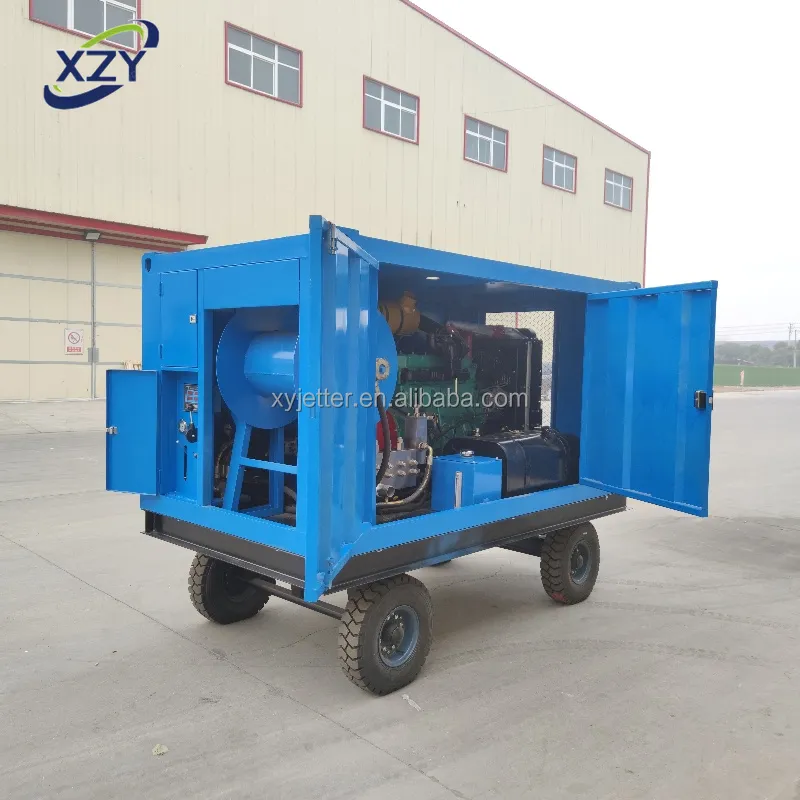

Equipment Detail 2
T
Technical Specifications
Model Rate Pressure Water Flow Engine / Power Cleaning Pipe Dia.
XY45345 24MPa / 240bar 170 L/min Electric 90kw / Diesel 145kw 100 ~ 1500mm
XY22300 20Mpa / 200bar 85 L/min Electric 30kw / Diesel 41kw 50 ~ 800mm
XY13300 20Mpa / 200bar 50 L/min Electric 15kw / Diesel 28 HP 50 ~ 400mm
C
Key Components
High Pressure Plunger Pump: 24Mpa/240bar, 170 L/min, Pump speed 405rpm, plunger diameter 40 mm. Equipped with pressure gauge and safety valve for 100-1200mm sewer drain pipe cleaning.

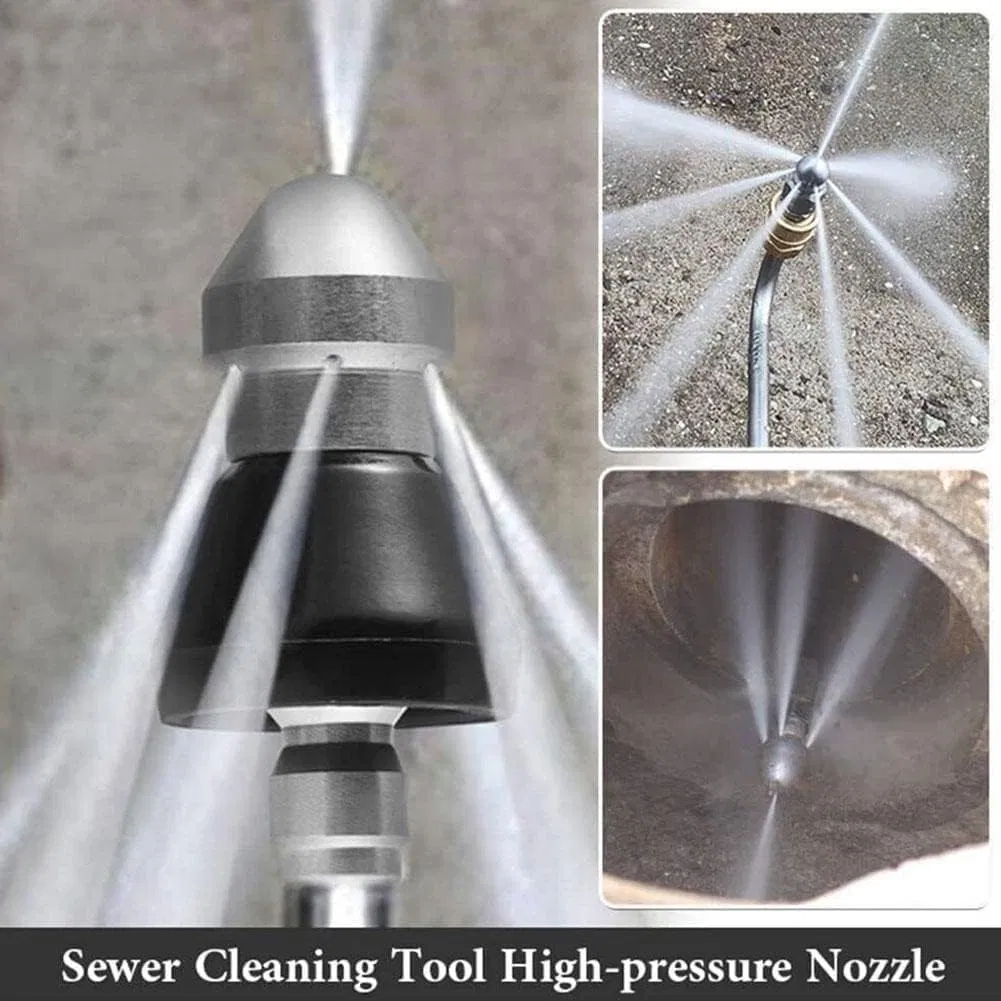

Rotary Pipe Nozzle

Rotary Pipe Cleaning Nozzle

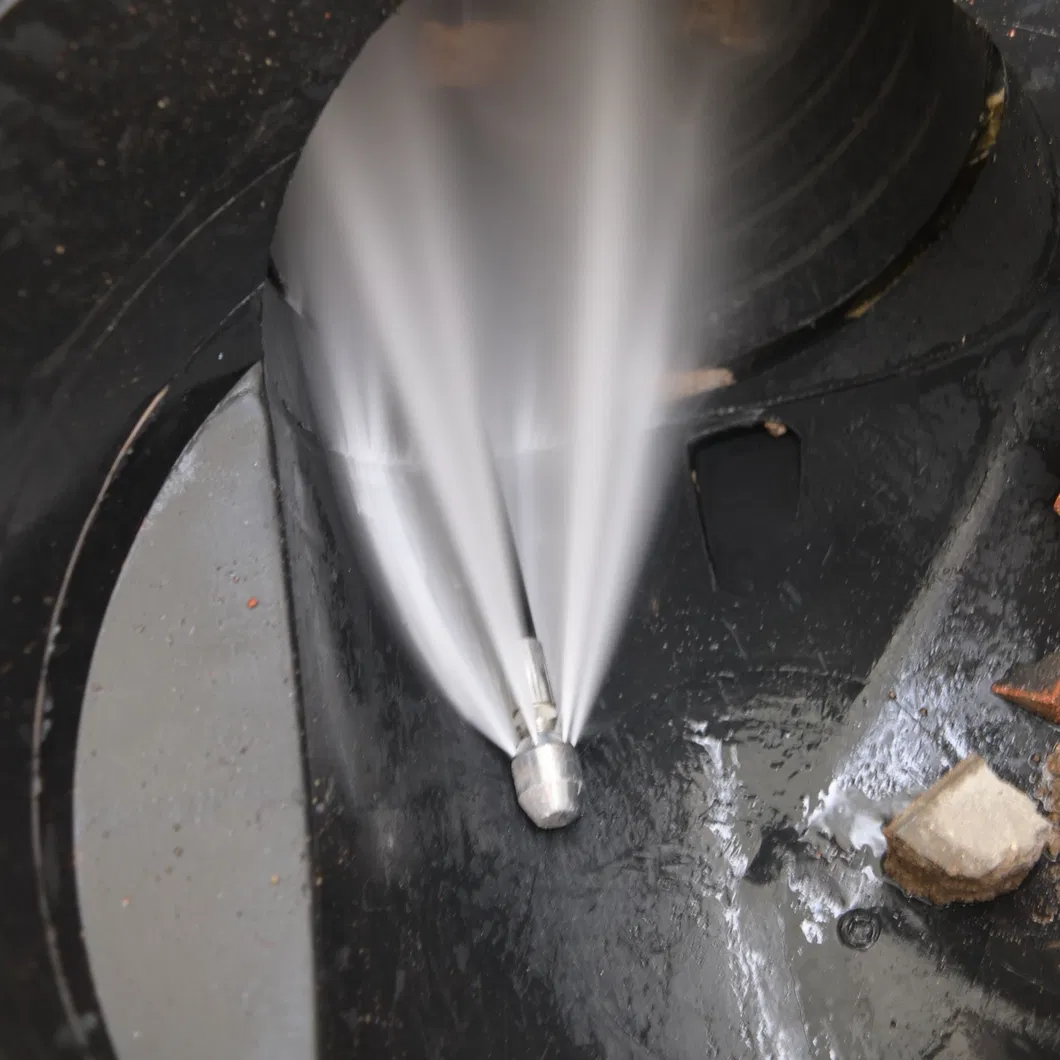

Large Pipe Nozzle

Large Pipe Cleaning Nozzle

A

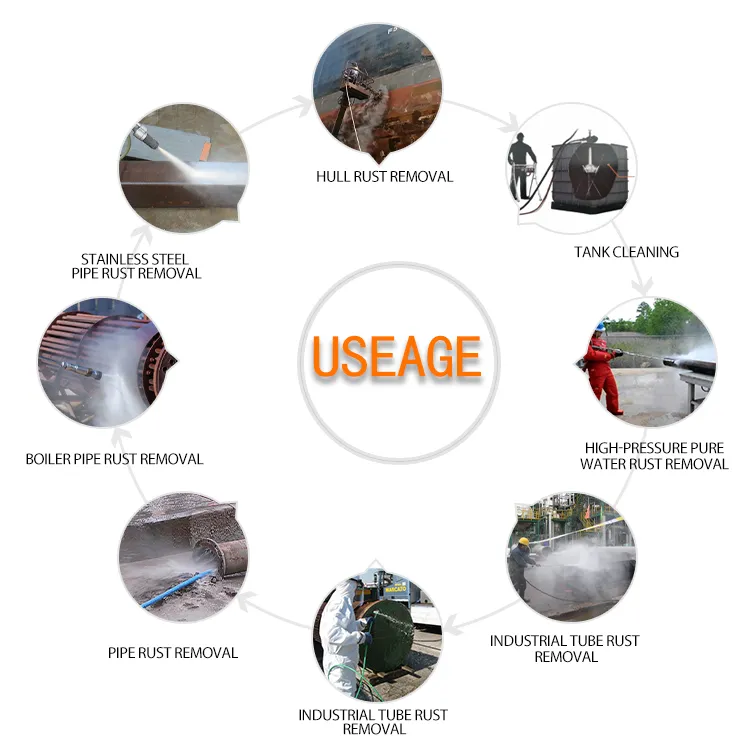

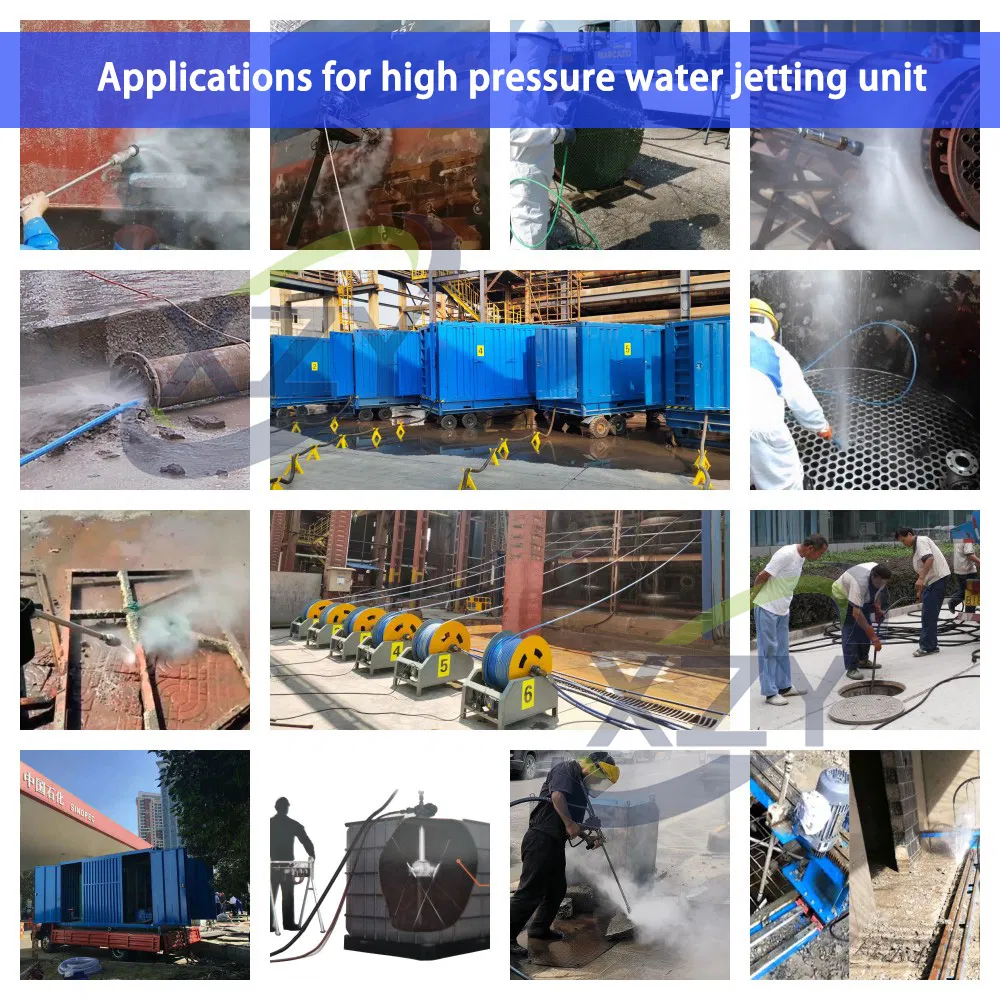

Applications

These units are widely used for pipe cleaning, pressure testing, shipyard rust removal, paint removal, building surface cleaning, and concrete cutting in various industries such as power plants, starch factories, and municipal maintenance.

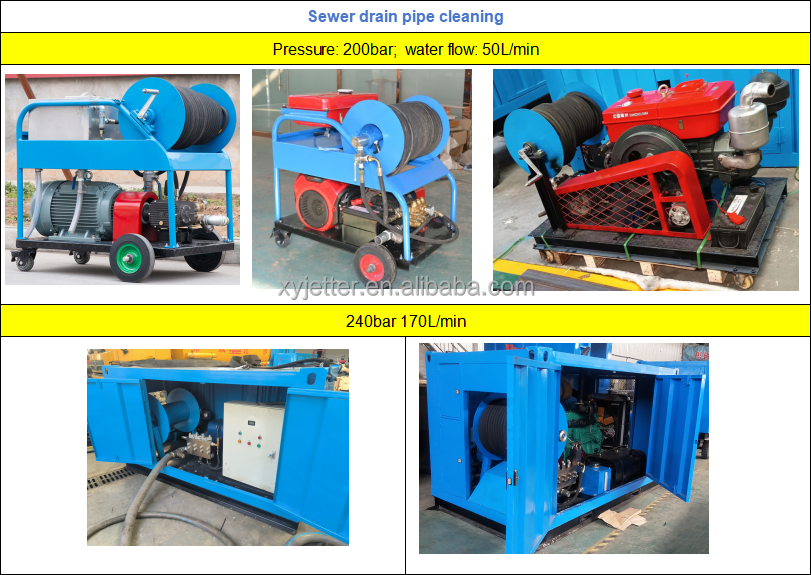

Application 1
Application 2
Application 3
M
Manufacturing & Expertise

With more than 15 years of experience in high-pressure engineering solutions, our systems utilize advanced plunger pumps and units ranging from 100bar to 3000bar. We provide solutions for construction, chemical, energy, oil & gas, maritime, steel, and cement industries.

Manufacturing Site
?
Frequently Asked Questions
What pressures and flow are suitable for sewer drain pipe cleaning?
Pressure normally suggests 200bar~500bar; flow rates suggest 50-500L/min. Large water flow is essential for large pipe cleaning.
What is the cleaning type for sewer drain pipe cleaning?
a: Use multi-hole jetting nozzles that go inside the pipe itself for inner cleaning. b: Use rotating nozzles for better water jetting effects.
What type of water should be used in these machines?
Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the high-pressure pump.
What are the power options for high-pressure water jetting machines?
Diesel engine drives are convenient for road and outdoor work; electric drives are suitable for indoor use and quieter operation.
Can I customize a high-pressure water jetting machine for specific needs?
Yes, customization options are available to tailor the machine's pressure, flow, and drive system for specific applications or requirements.
How long is the typical delivery time?
Normal delivery takes 3-10 days; customized orders need to be confirmed based on specific production requirements.
