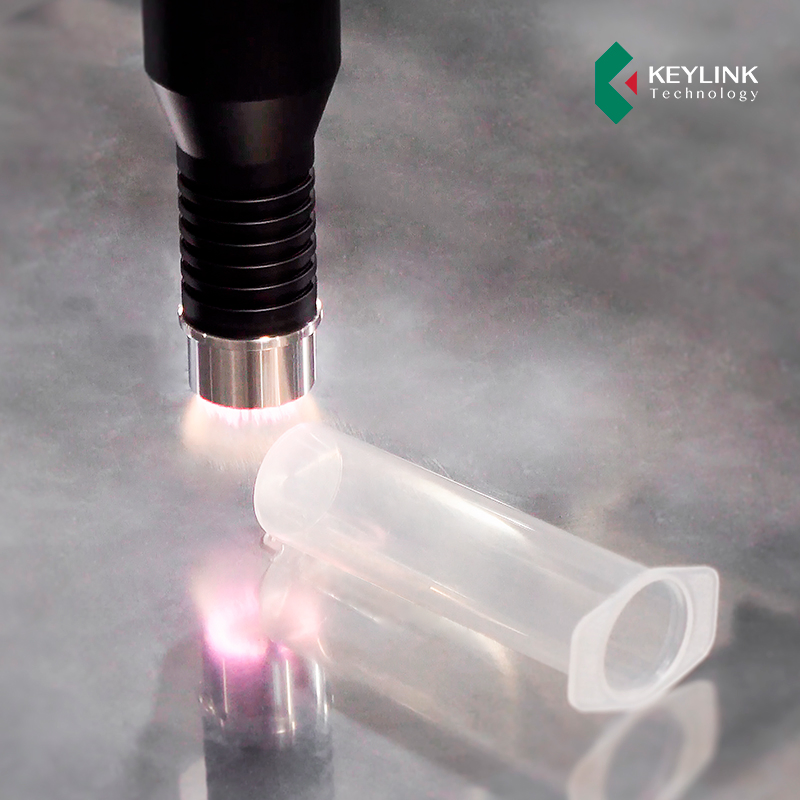

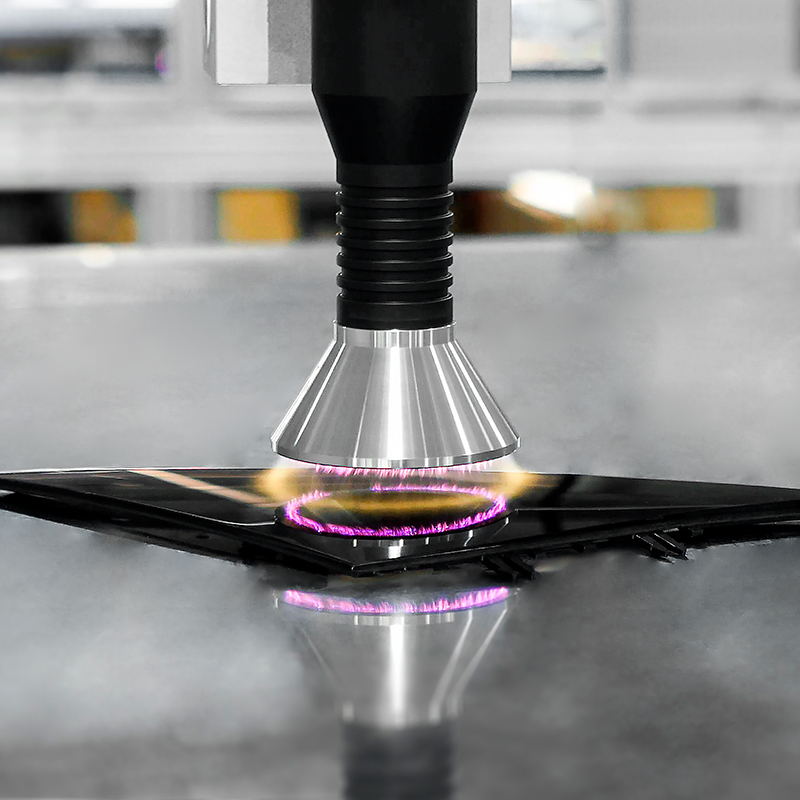

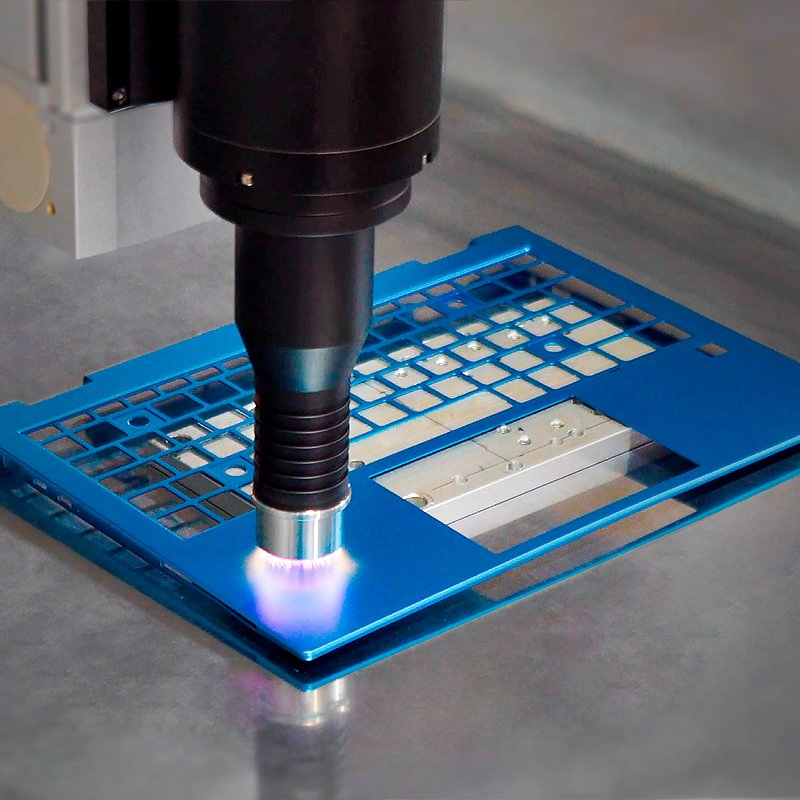

Pl-5050p Plasma Treatment System for Plastic Surface Cleaning

1 / 5

Pl-5050p Plasma Treatment System for Plastic Surface Cleaning

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

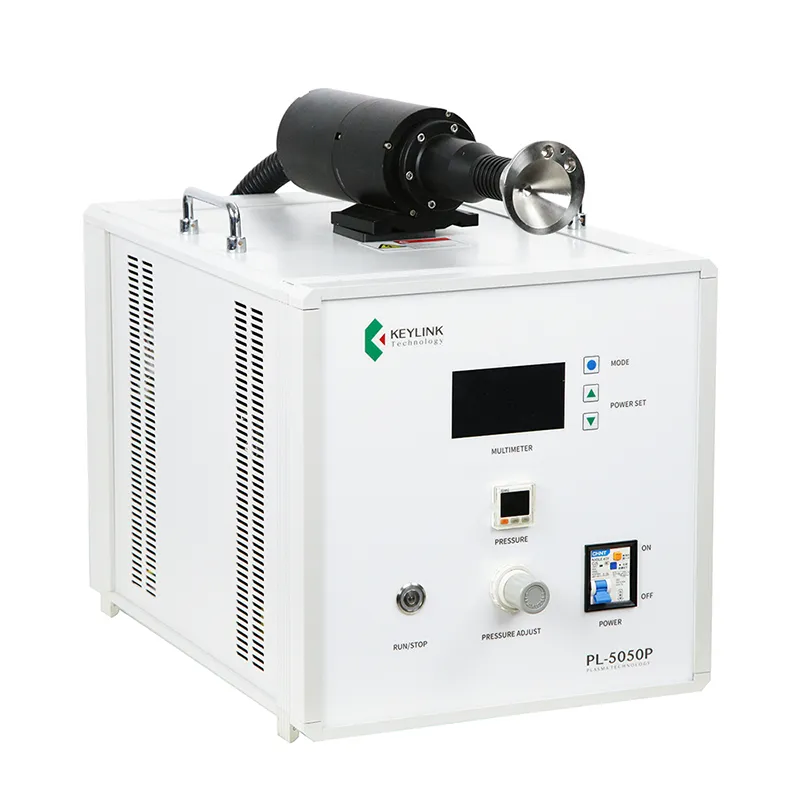

Model NO.

PL-5050P LCD screen model

Rated Supply Voltage

AC220V(±10%)

Plasma Output Power

750-1500W

Input Current

4.0-8.0A

Supply Frequency

17.3-30kHz

Air Source Requirement

External Air Source (60L/Min)

Operating Pressure

0.1-0.3MPa

Cleaning Height

5-15mm

Treatment Width

≤110mm

Net Weight

28kg

Origin

China

HS Code

8479899990

Technical Specifications

System Specification		Nozzle Options
Feature	Detail	Nozzle Model	Area	Code
Interface	4.3-inch LCD screen	R17 Rotate	16mm	PL-JX-022-1
Output Power	750-1500W	R03 Rotary	20mm	PL-JX-004-1
Supply Voltage	AC220V ±10%	R04 Rotary	30mm	PL-JX-006-1
Storage Temp	-25ºC to +55ºC	R21 Rotary	40mm	PL-JX-008-1
Humidity	<93%	R05 Rotary	50mm	PL-JX-010-1
Detection	Pressure, Temp, Speed, Fault	R23 Rotate	75mm	PL-JX-014-1
Alarms	Undercurrent, Overcurrent, Pressure, Motor Speed	R19 Rotary	85mm	PL-JX-016-1
Alarms	Undercurrent, Overcurrent, Pressure, Motor Speed	R20 Rotary	110mm	PL-JX-018-1

What is Plasma?

Plasma is a high-energy unstable state of matter. By injecting energy, materials transform from solid or liquid to gas, and finally into a plasma state through discharge. This process breaks chemical bonds to form free electrons, ions, and molecules, often referred to as the fourth state of matter.

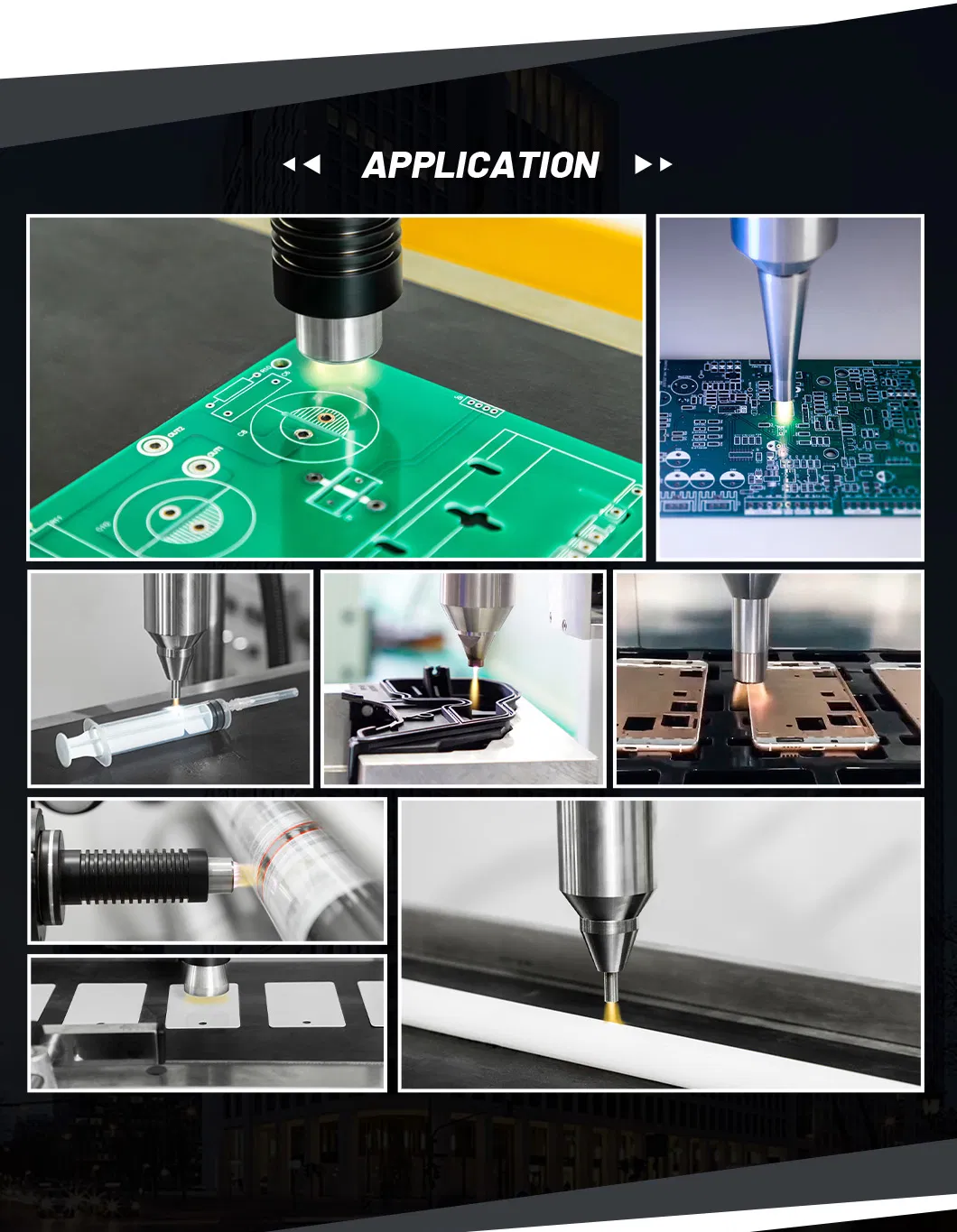

Product Application

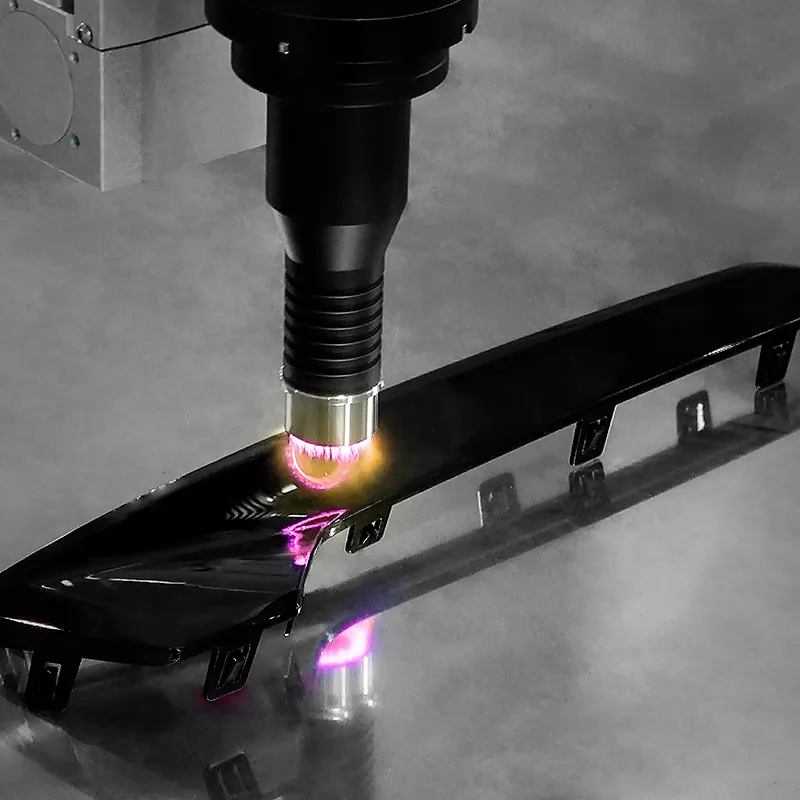

Automotive & Aerospace

Headlights & EPDM profiles
Control devices & Tyres
Motor pump housing
Aircraft components

Electronics & Display

Mobile phones & Flat screens
Displays & Discs
Microphones & Loudspeakers
Computers

Packaging & Supermarket

Cardboard packaging
Bottle caps & Can lids
Tamper evident seals
Plastic films

Medical & Leisure

Infant oxygenators
Cardiac catheters & Pacemakers
Sports equipment (Golf balls/clubs)
Textile fibres & Shoes

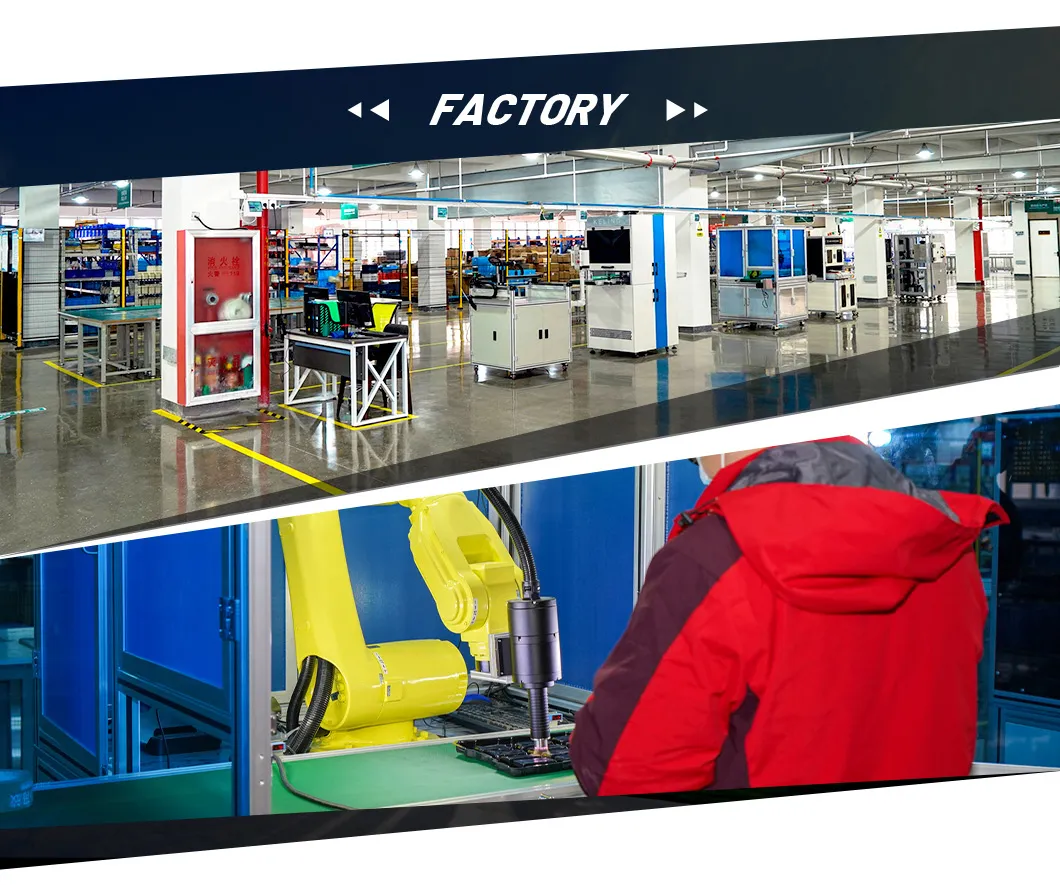

Profile & Certifications

Packaging & Shipping

Frequently Asked Questions

What is the production lead time?

For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production for tight deadlines whenever possible.

Can I customize my order with specific configurations?

Yes, customization is available. We can tailor machine configurations, spare parts, and accessories like nozzle types or cable lengths based on your requirements.

What are the standard payment terms?

We typically require a 50% deposit upon order confirmation, with the remaining balance due before shipment via SWIFT transfer.

What kind of after-sales support is provided?

We offer comprehensive support including technical assistance via video calls, quick access to spare parts, and detailed maintenance documentation.

What safety detection functions does the system have?

The system includes air pressure detection, over-temperature detection, motor speed monitoring, and driver fault detection with automatic alarms.

How is the product packaged for international shipping?

Products are securely packed in professional wooden cases to ensure maximum protection during global transit.
