Portable Pulse Laser Cleaning System for Surface Cleaning

1 / 5

Portable Pulse Laser Cleaning System for Surface Cleaning

Customization:	Available
After-sales Service:	Online Services
Power:	200w

Send Inquiry

Product Description

✓

Overview - Basic Info

Model NO.

HS-LC200/HS-LC300

Control Type

Handheld

Laser Source Type

Pulse

Laser Power

300W

Laser Source

Jpt Brand Laser Source

Pulse Frequency Range

1-3000 kHz

Maximum Pulse Energy

2mj/ 5mj/ 15mj(Optional)

Pulse Width

13-500ns

Cooling Method

Air Cooling

Supply Voltage

100-240V

Machine Size

520*431*237mm

Origin

China

⚙

Product Description

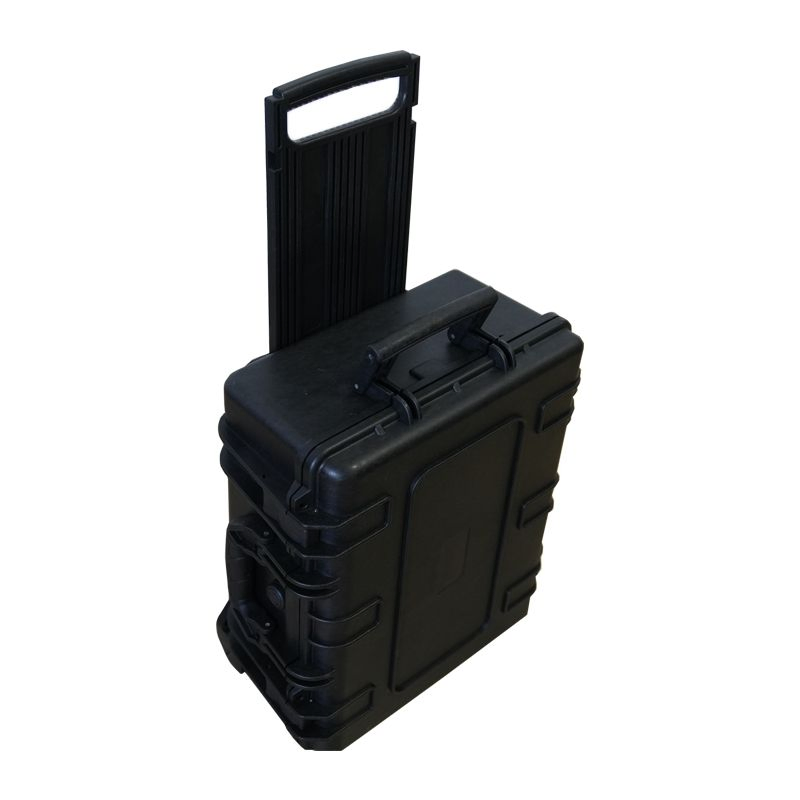

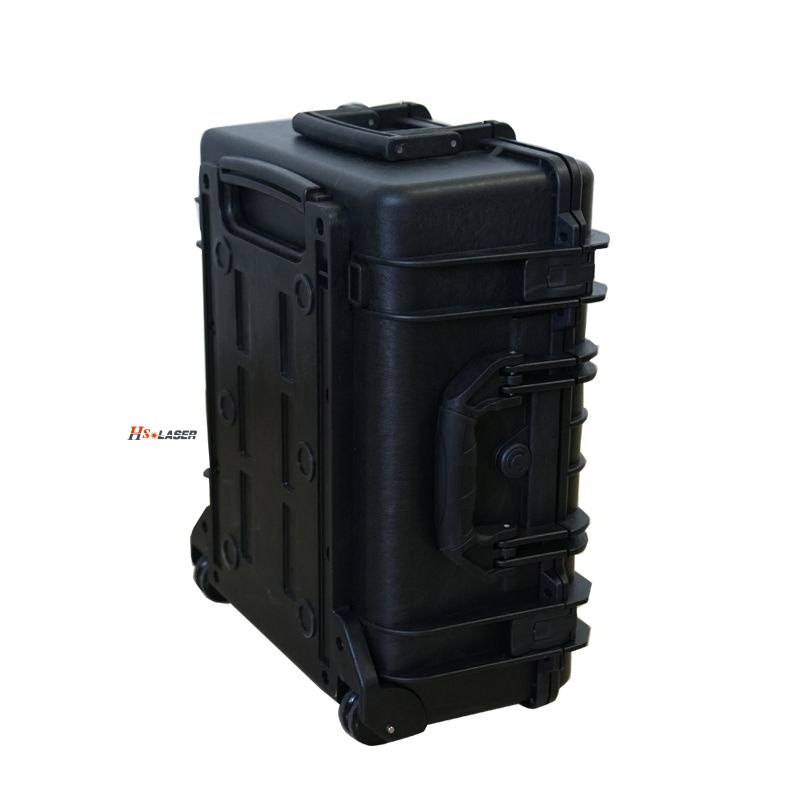

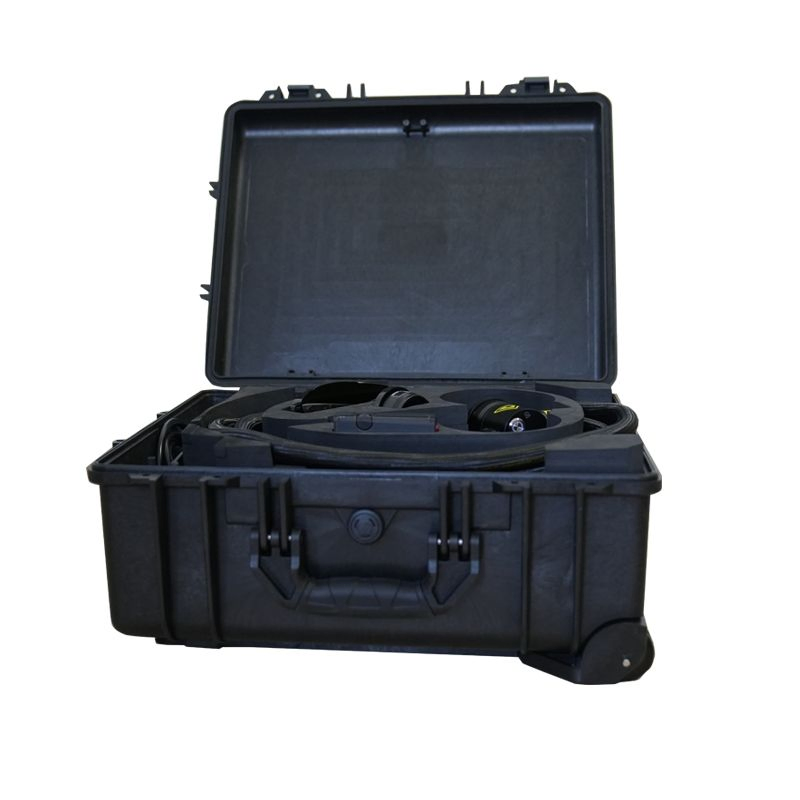

New Type 300W Trolley Case Pulse Laser Cleaning Machine

This is an industrial-grade laser cleaning device designed for portable needs. It adopts a suitcase-style integrated design, which is easy to carry and move. Equipped with 300W pulse laser technology, it combines efficient cleaning with fine processing capabilities.

It is suitable for a variety of scenarios such as metal rust removal, coating stripping, and cultural relic restoration. It is especially suitable for outdoor operations or users who need to frequently change work sites.

📷

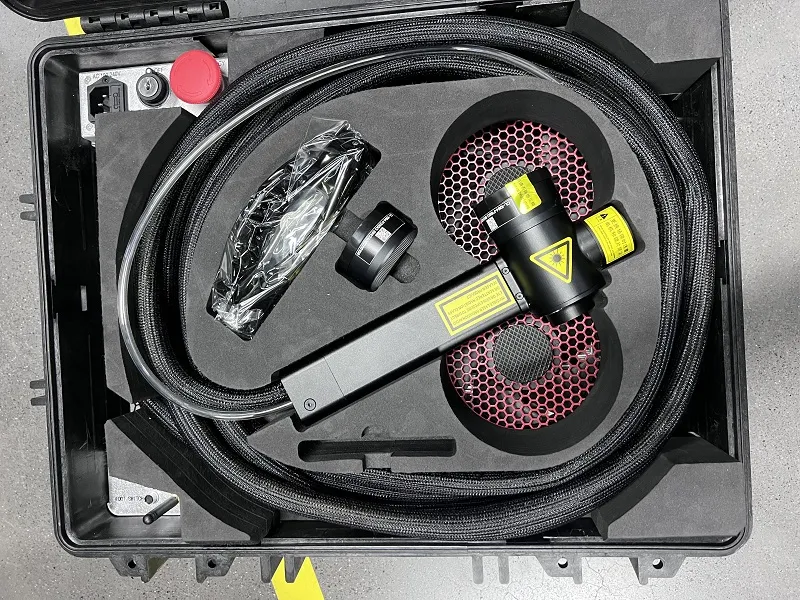

Detailed Photos

📊

Product Parameters

Machine model	HS-LC300
Laser source type	Pulse
Laser power	300W
Laser source	JPT brand laser source
Pulse Frequency Range	1-3000 kHz
Maximum Pulse Energy	2mJ/ 5mJ/ 15mJ(Optional)
Pulse Width	13-500ns
Delivery Cable Length	5 m
Laser wavelength	1064nm
Output power instability	<5%
Cooling method	Air cooling
Machine weight	20.5kg
Package weight	35kg
Laser head weight	750g

★

Our Advantages

Can work offline, and can be cleaned when powered on.

Laser collimated output (6mm spot).

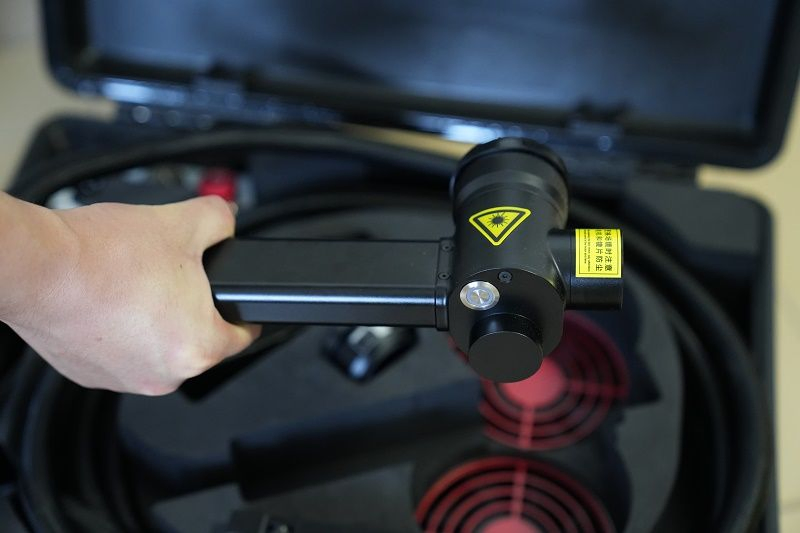

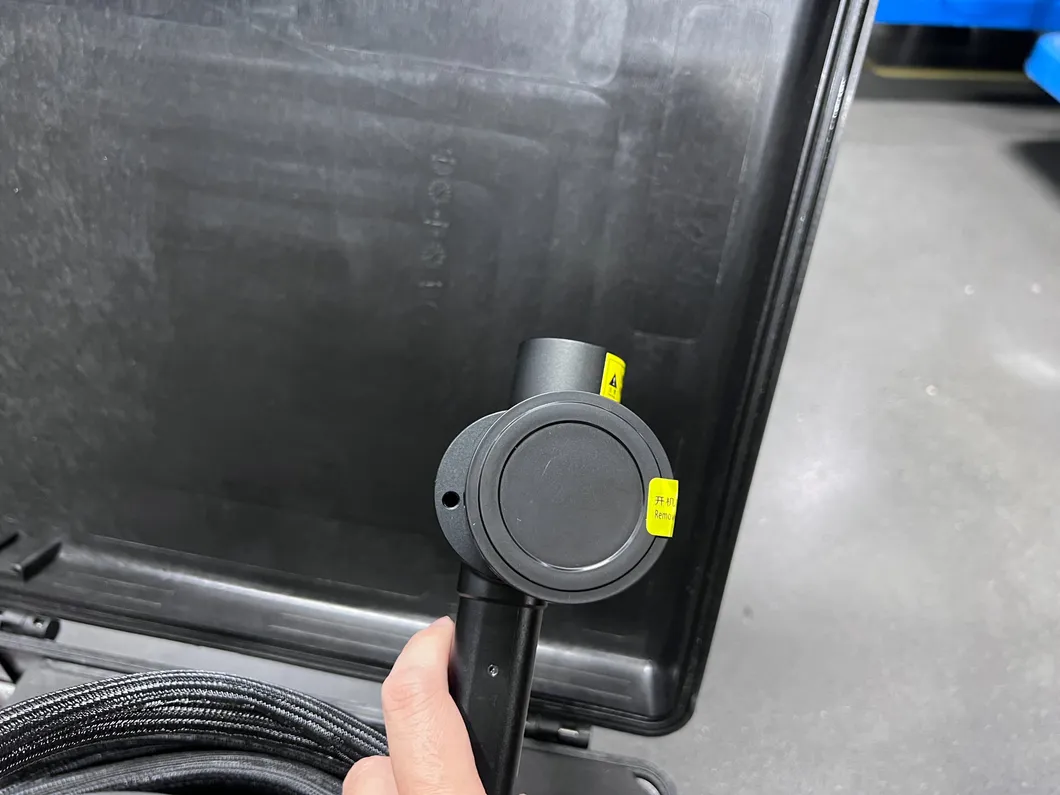

Ultra-lightweight laser cleaning head (only 750g), ideal for long-term handheld use.

Patented red light auxiliary focusing technology for precise adjustments.

Flexible parameter settings and real-time updates.

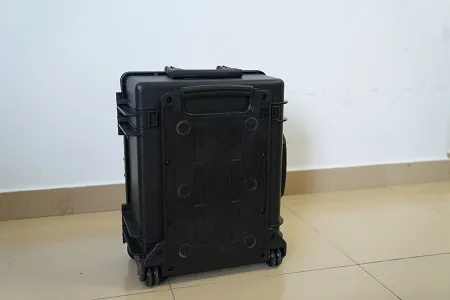

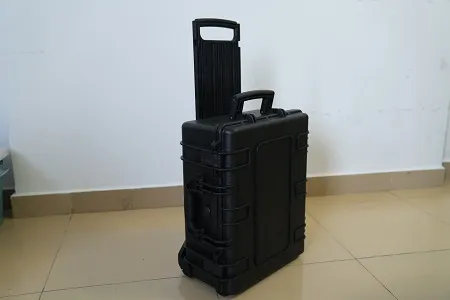

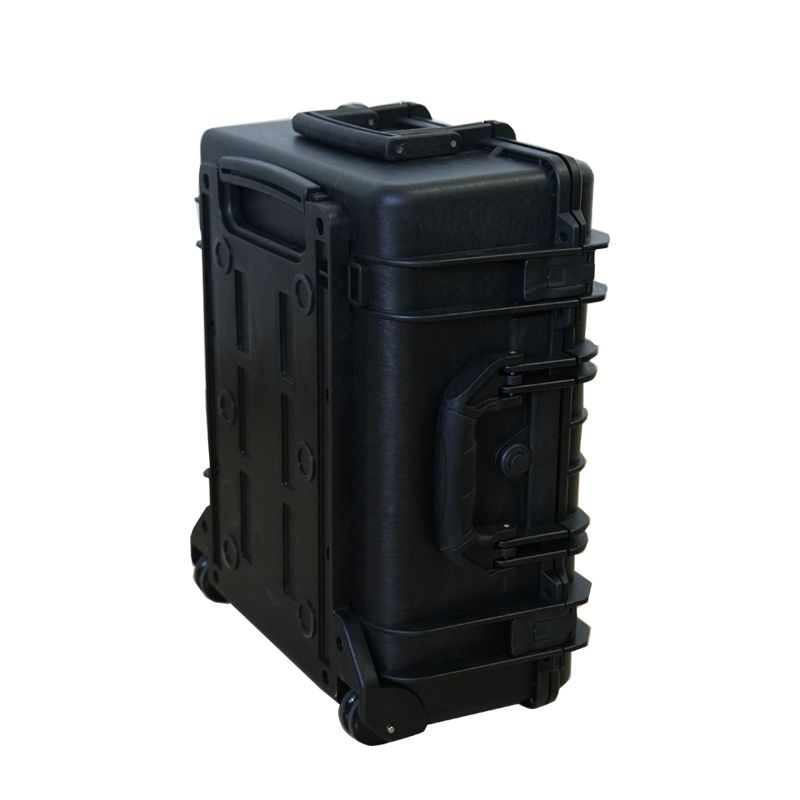

Portable trolley case design (20.2kg total), suitable for rail or air transport.

Super integrated injection molding chassis: shock-proof, drop-resistant, and stable.

Competitive Edge

Vs. Traditional Processes: Replaces sandblasting and chemical cleaning. No consumables, zero pollution, and reduces long-term operational costs by over 60%. Avoids substrate overheating and deformation.

Vs. Similar Equipment: The suitcase design saves 70% of deployment time compared to desktop units, offering higher power and stability than standard handheld machines.

🏢

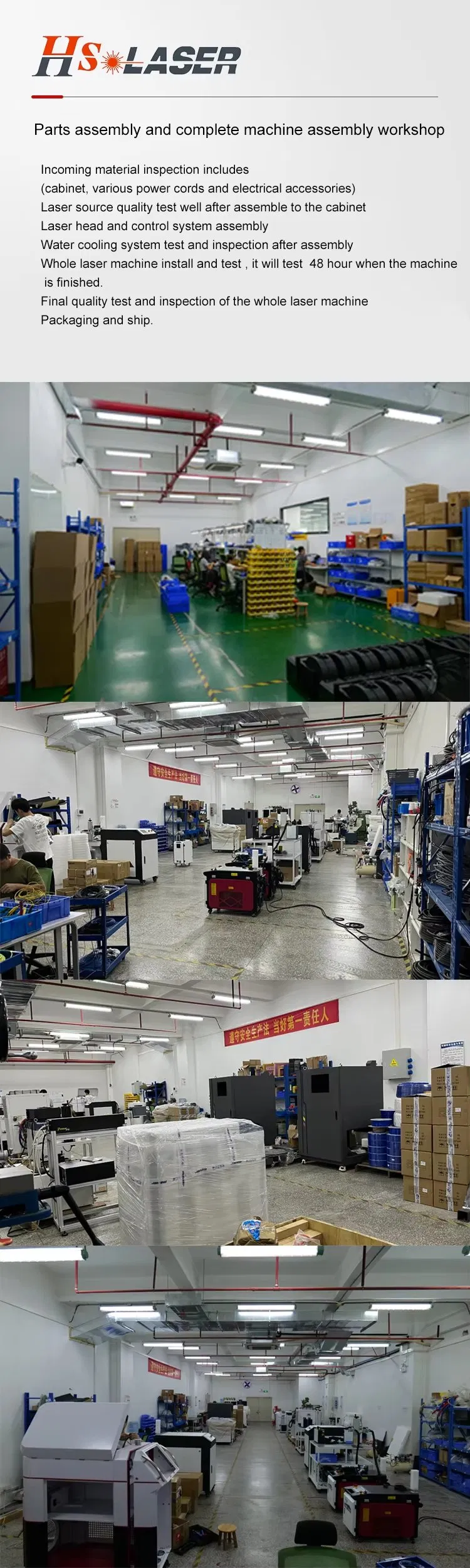

Professional Solution

📦

Packaging & Shipping

Frequently Asked Questions

Q1: How heavy is the handheld cleaning head? The laser cleaning head is extremely lightweight, weighing only 750g, making it comfortable for long periods of operation.

Q2: Can the machine be transported easily for field work? Yes, the machine features a portable trolley case design and weighs approximately 20.2kg, allowing it to be checked in on high-speed trains or flights.

Q3: Does the system require a water chiller? No, this system uses an efficient air-cooling method, which reduces the overall weight and maintenance requirements of the machine.

Q4: What is the main advantage of pulse laser cleaning over continuous laser? Pulse laser cleaning is more precise and provides better protection for the substrate, preventing overheating and deformation while effectively removing rust and coatings.

Q5: Is it difficult to set up the cleaning parameters? Not at all. The system allows for free control and flexible parameter settings, which can be updated at any time to suit different cleaning tasks.

Q6: What is the power requirement for this machine? The machine supports a wide supply voltage range of 100-240V with a maximum power consumption of less than 1000W.
