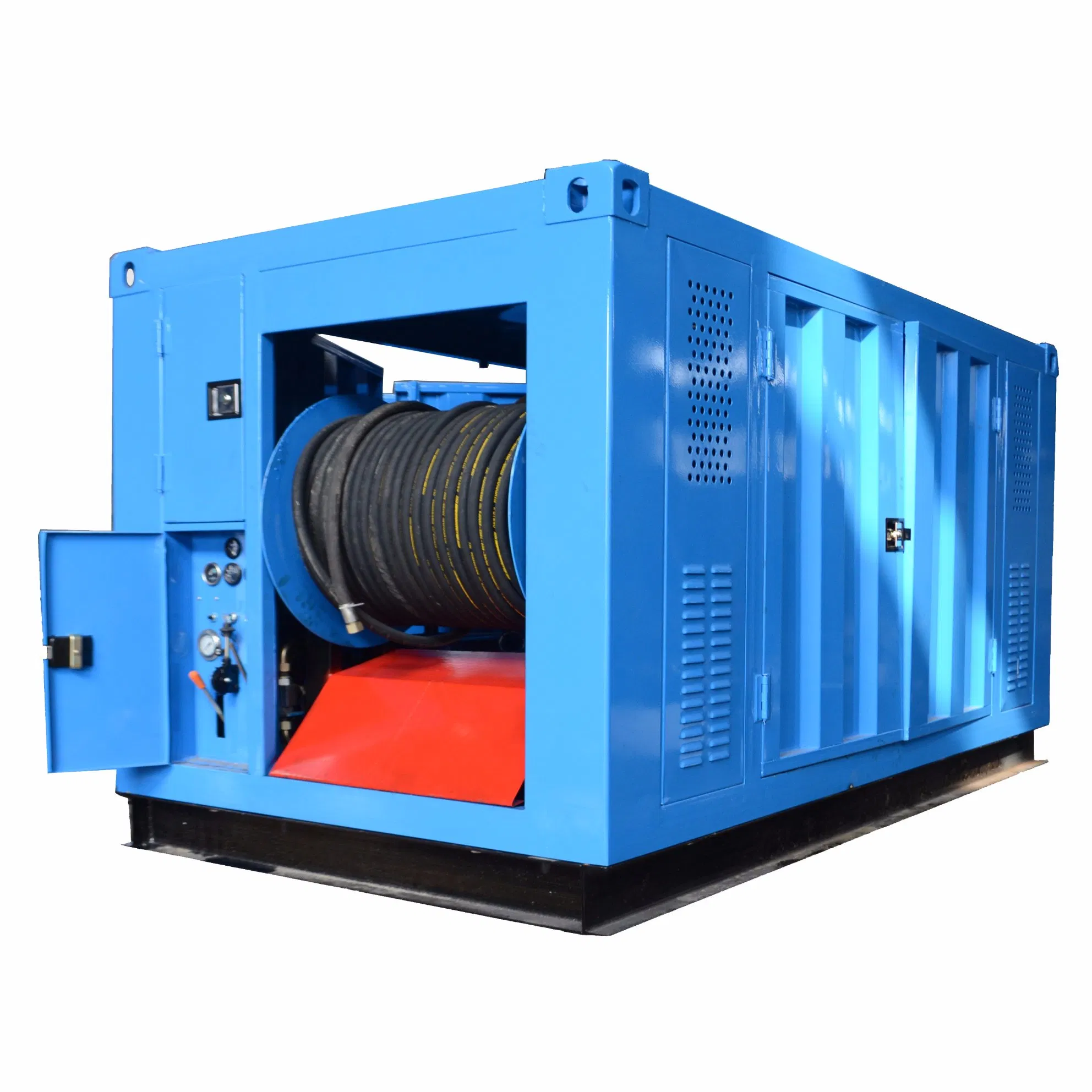

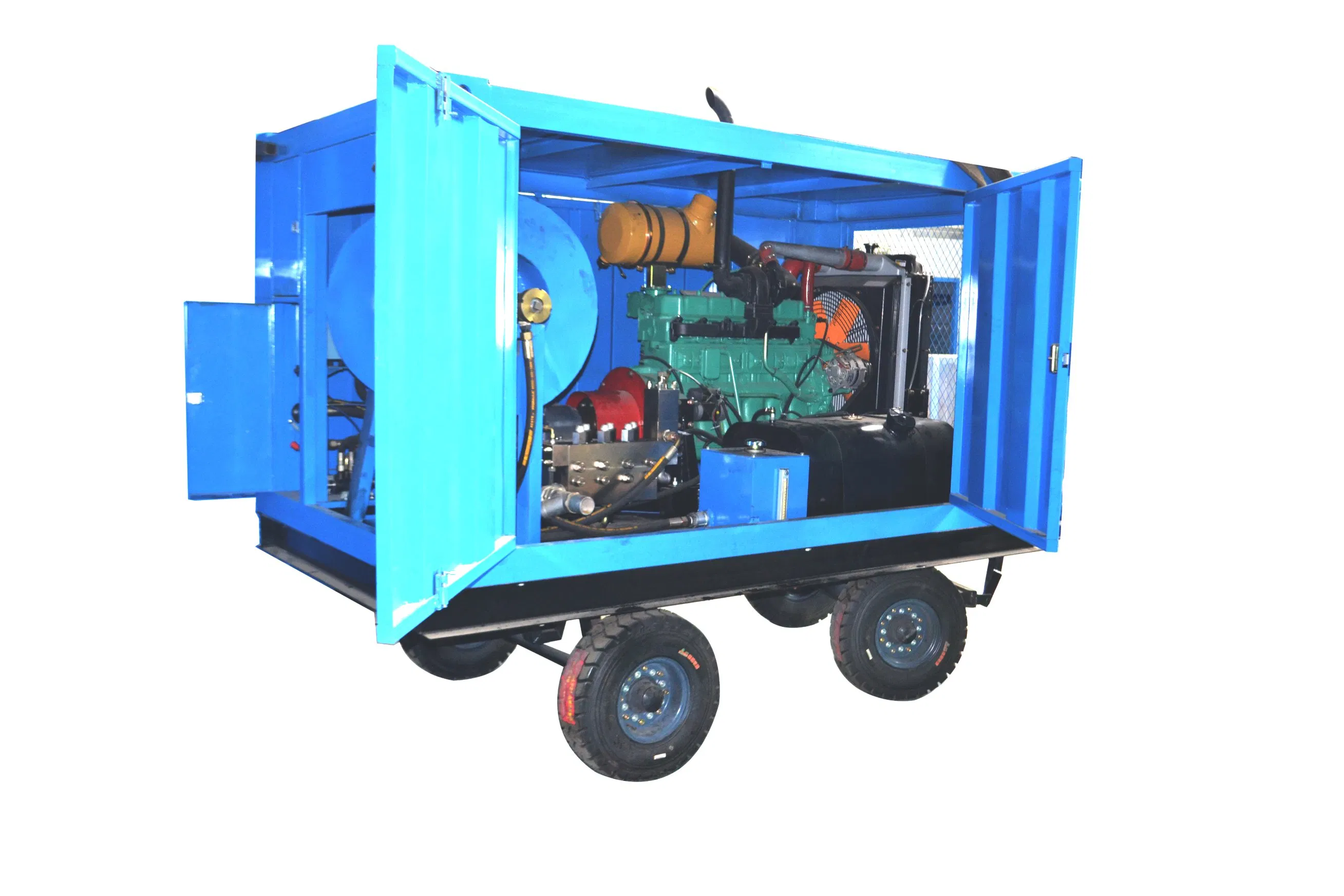

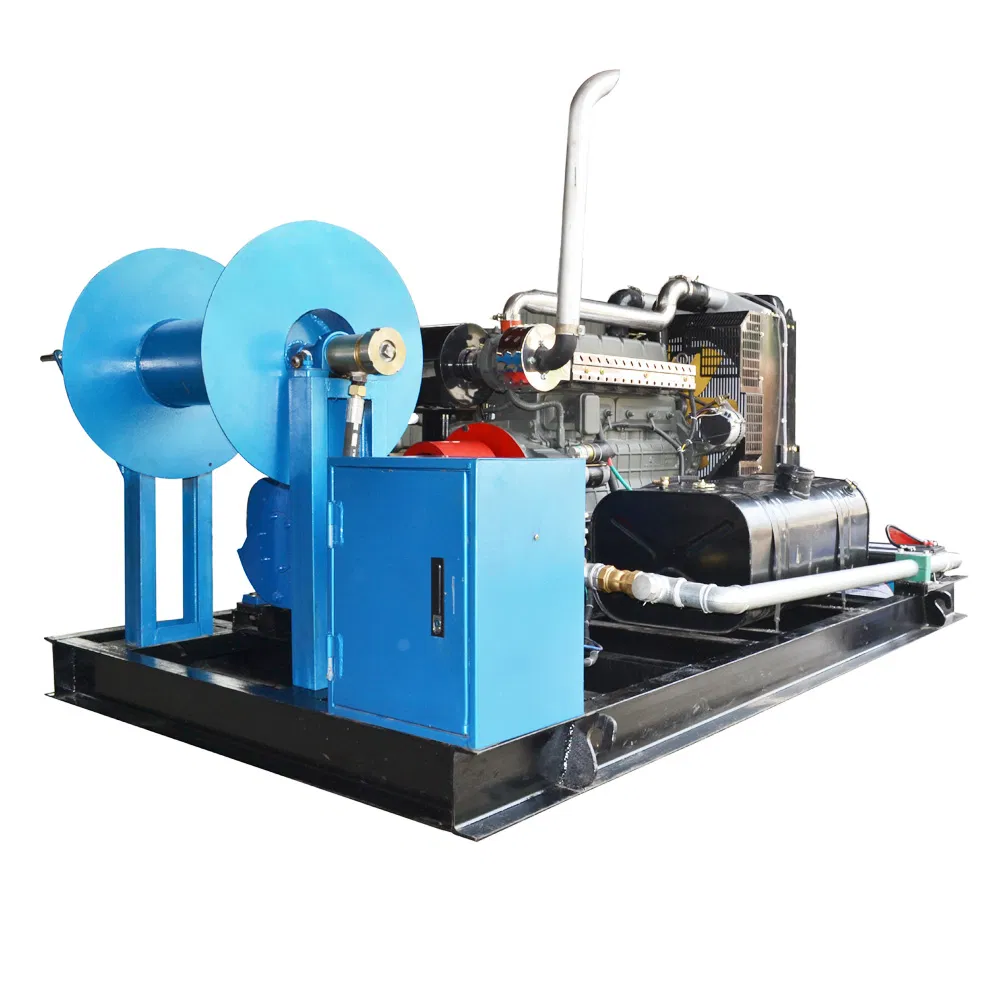

Professional Sewer and Drain Cleaning Equipment

1 / 5

Professional Sewer and Drain Cleaning Equipment

Customization:	Available
After-sales Service:	Online Service
Warranty:	One Year

Send Inquiry

Product Description

Overview - Basic Information

Model NO.GY-170/200

TypeCold Water High Pressure Cleaner

Operation TypeMovable

DriveGasoline / Diesel

Nozzle TypeMul-Ti Hole Pipe Cleaning Nozzle

ApplicationIndustrial Sewer Tube Cleaning

Rate Pressure240bar

Water Flow170L/Min

Diesel Engine145kw, 6-Cylinder

CertificationCE, CB

Product Description

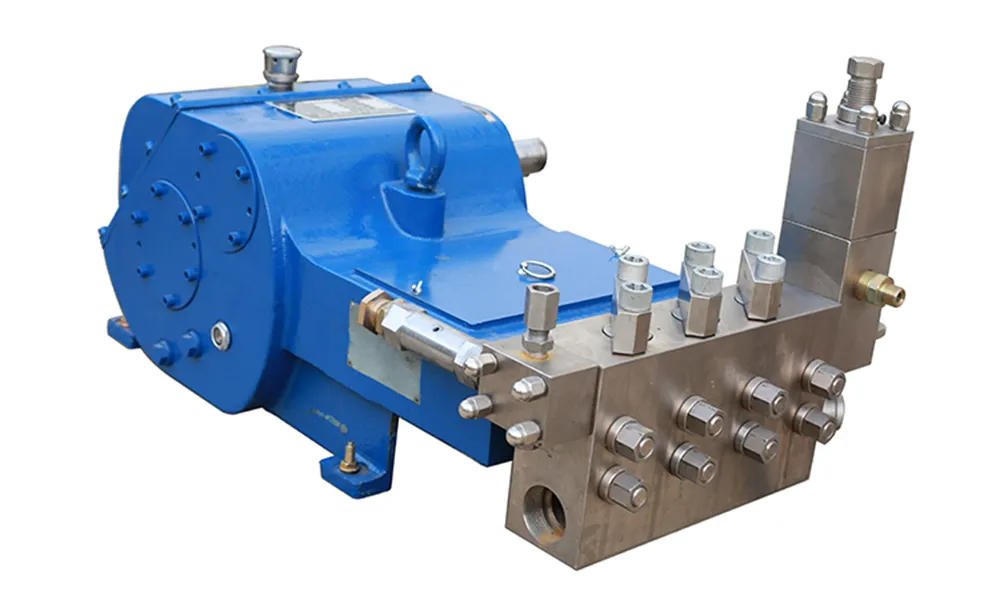

High Pressure Pump Specifications:

Triplex plunger pump
Rate pressure: 0-240bar adjustable
Water flow: 170 L/min
Plunger diameter: 45mm
Pump speed: 405 rpm
Pump head material: Stainless steel

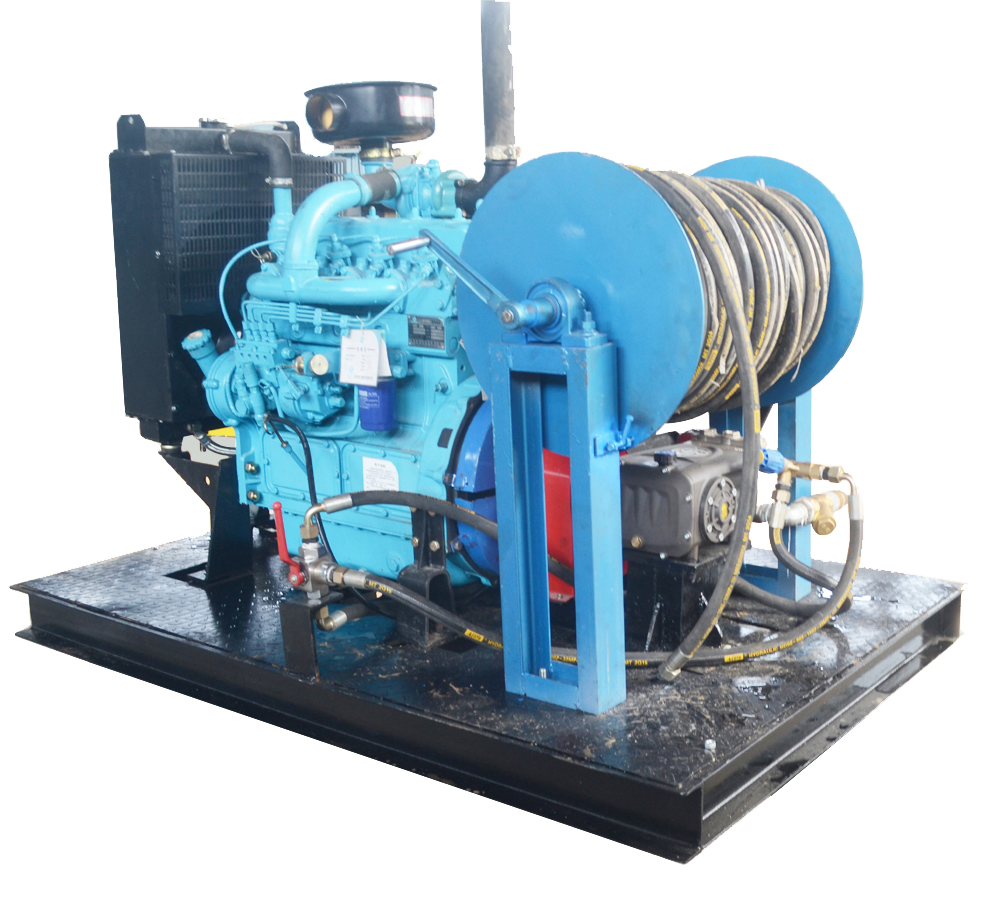

Diesel Engine Details:

Engine power: 145kw
Speed: 1500 rpm
Cylinders: 6 cylinder

Product Parameters

Model	Rate Pressure	Water Flow	Engine Type	Cleaning Pipe Diameter

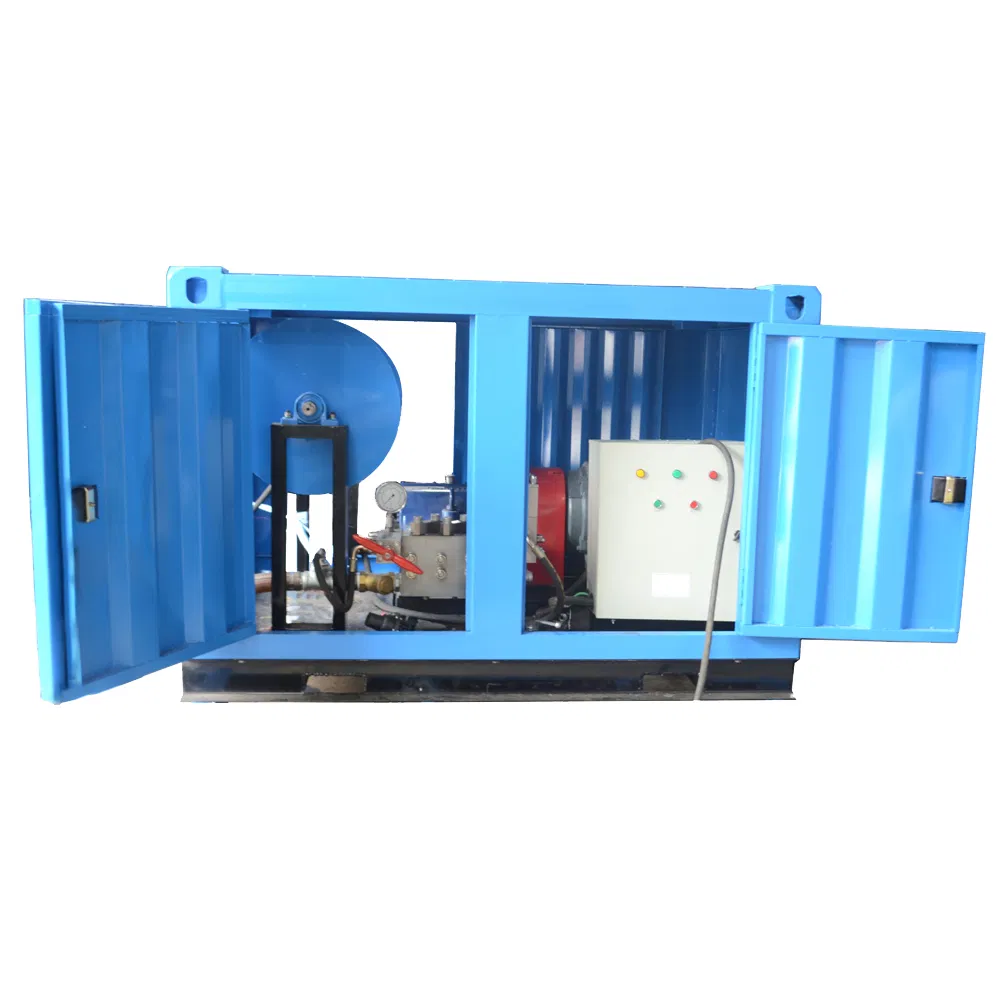

GY-170/240 (Electric)	240bar/24Mpa	170 L/min	Electric 90kw 380v/50Hz	100-1500mm
GY-170/240 (Diesel)	240bar/24Mpa	170 L/min	Diesel engine 145kw	100-1500mm

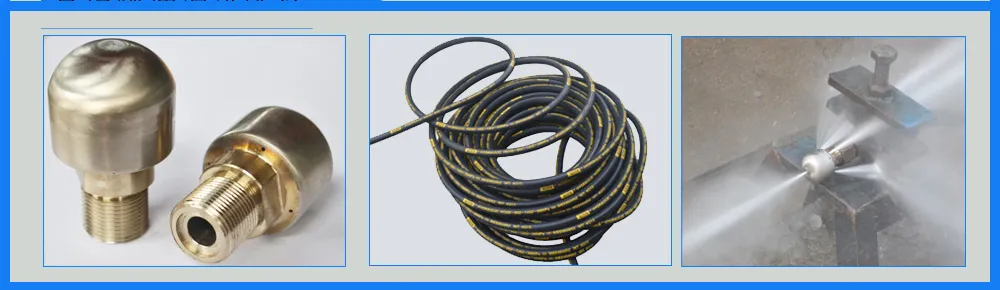

Main Accessories & Features

High pressure hose: 50 meters

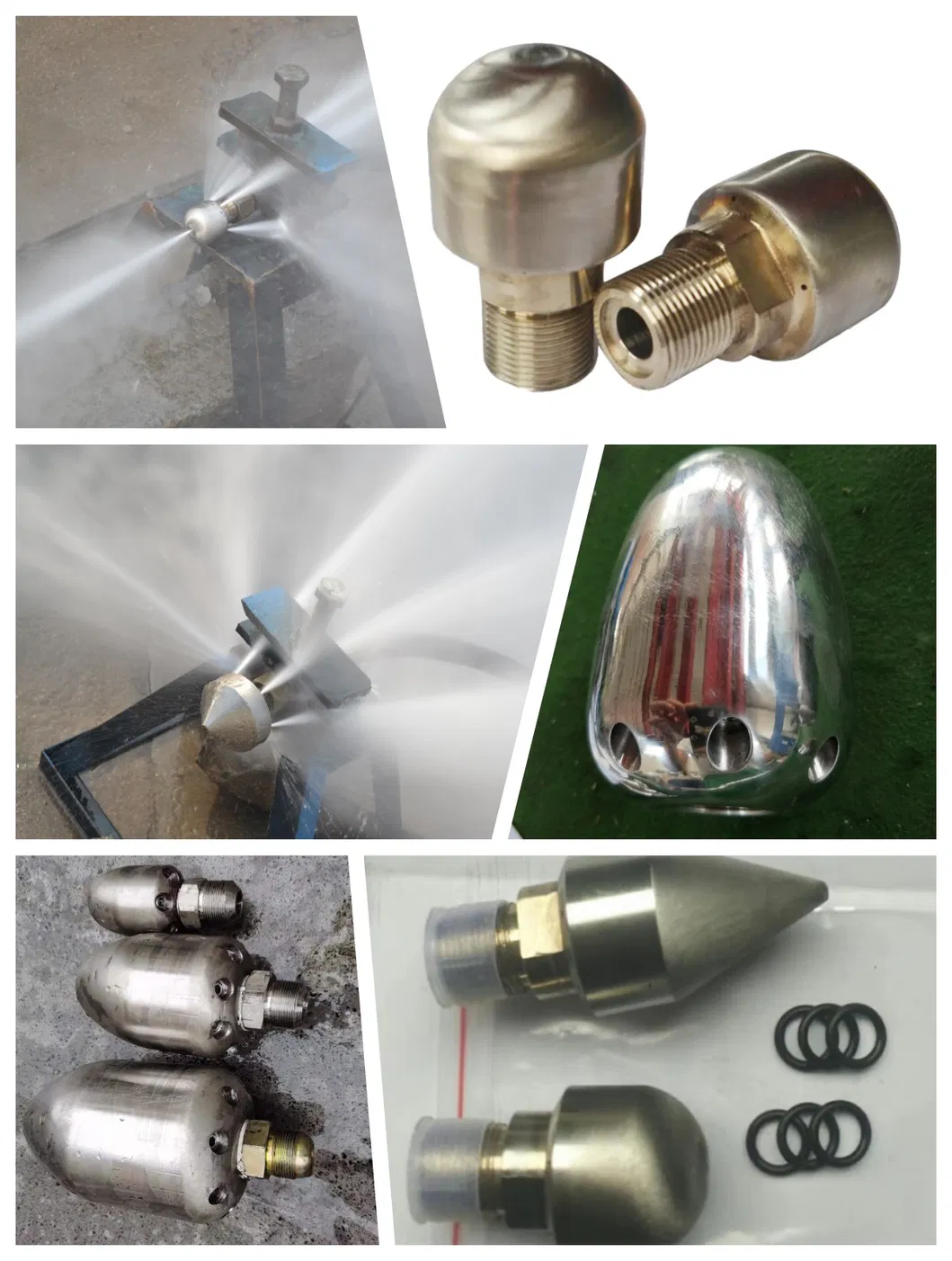

Sewer pipe cleaning nozzles: 5pcs (Dia. 20~80mm)
Hydraulic automatic hose reel
Packing: Sea Shipped Wooden Case
Warranty: One Year

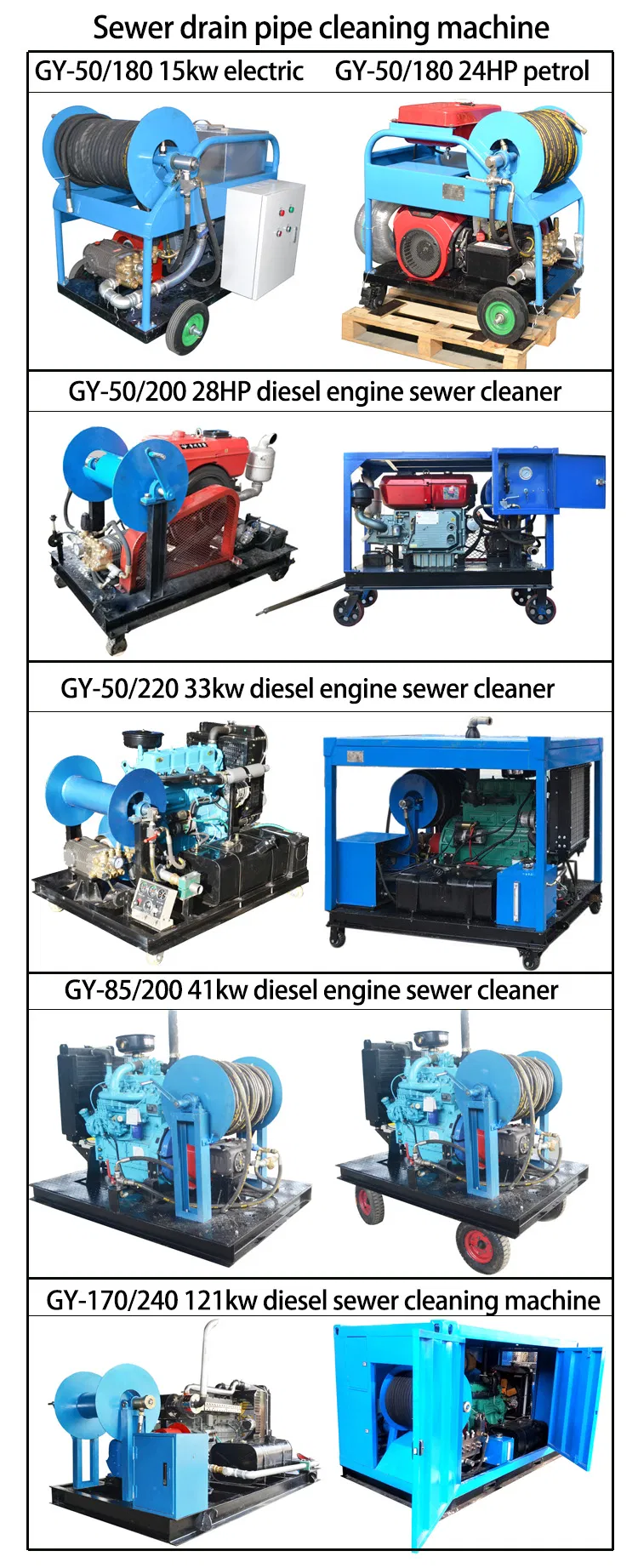

Similar Product Range

Model	Rate Pressure	Water Flow	Engine	Cleaning Diameter
GY-50/180G	180 bar	50 L/min	Gasoline 24Hp Honda	50mm~400mm
GY-135/200D	200 bar	135 L/min	Diesel 84kw 6-cyl	50~500mm
GY-170/200D	200 bar	170 L/min	Diesel 84kw 6-cyl	50~800mm
GY-170/280D	280 bar	170 L/min	Diesel 121kw 6-cyl	50~1000mm

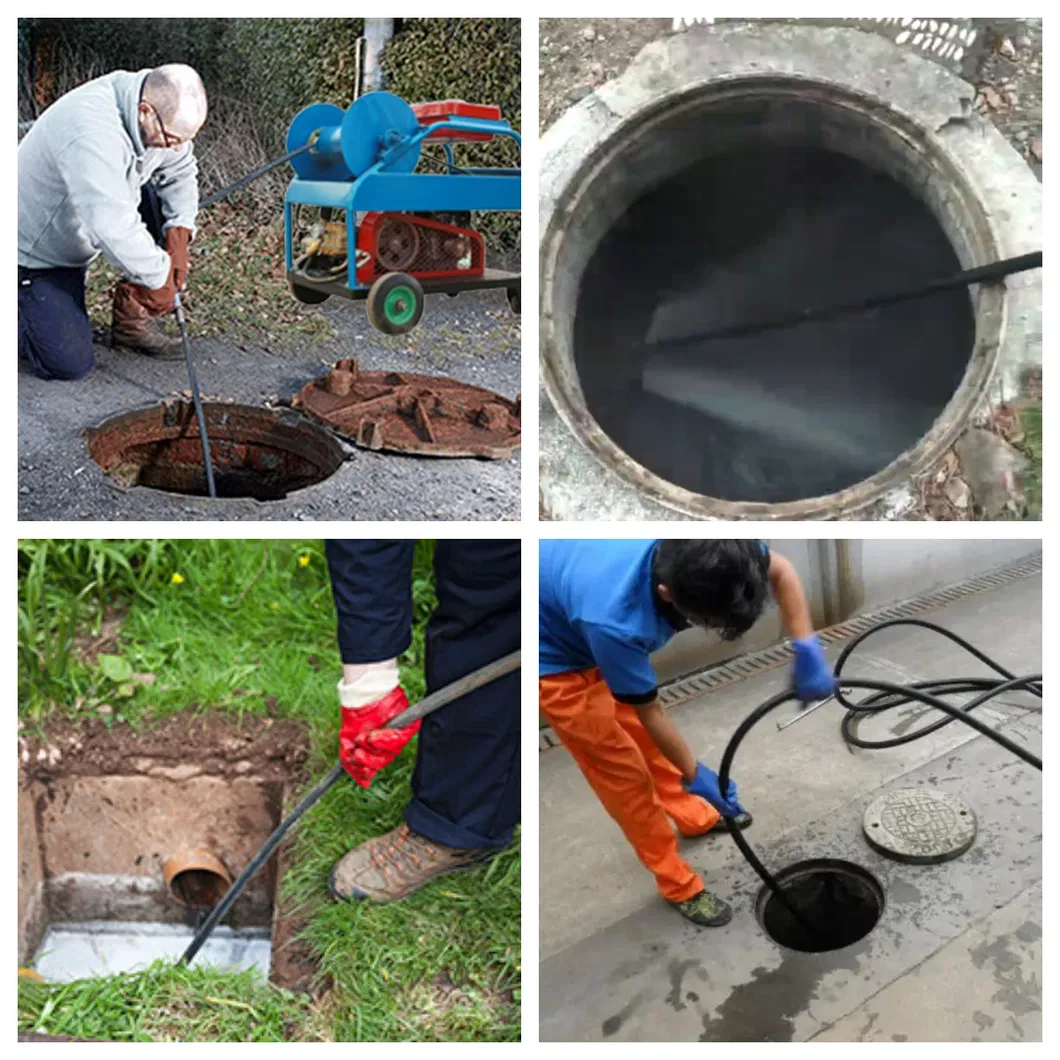

Function & Cleaning Purpose

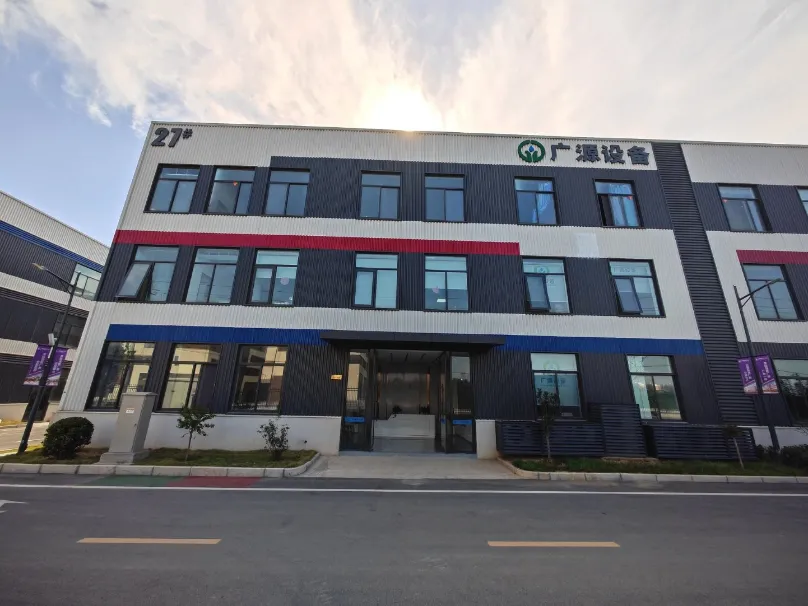

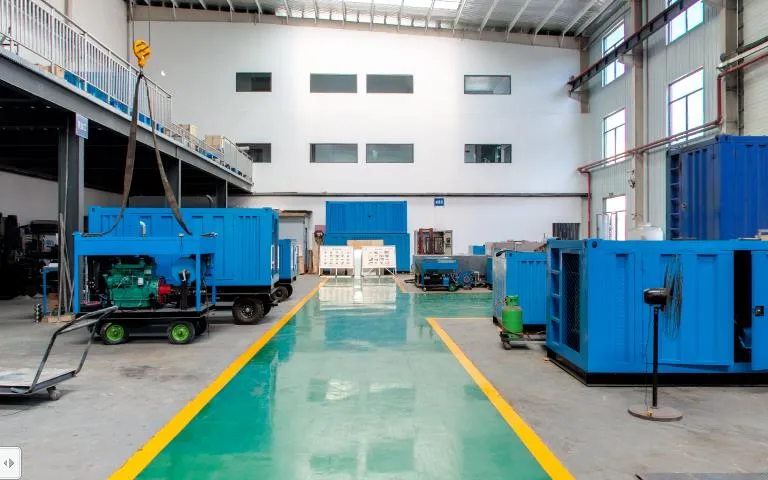

Professional Manufacturing

As a specialized manufacturer for high-pressure water jetting machines founded in 2012, we are committed to exploring the field of high-pressure water jet technology. We are professional in the design, manufacture, and production of high-pressure cleaning machines, water blasters, high-pressure pumps, and customized cleaning systems.

Our cleaning machines are applied in various industrial fields, such as shipyards, power plants, and starch factories. They are used for pipe cleaning, pressure testing, rust removal, paint removal, building surface cleaning, and concrete cutting. With years of research and first-class design technology, our products are highly valued globally.

Certifications

Frequently Asked Questions (FAQ)

Q1: What is the maximum pipe diameter this machine can clean? A: This high-pressure sewer cleaner is capable of cleaning pipes with a diameter ranging from 100mm to 1500mm.

Q2: Can the water pressure be adjusted? A: Yes, the rate pressure can be adjusted from 0 to 240 bar to suit different cleaning requirements.

Q3: What kind of power source does the machine use? A: We offer both Diesel engine (145kw, 6-cylinder) and Electric motor (90kw, 380V) options depending on your site requirements.

Q4: What are the main applications for this equipment? A: It is widely used for industrial sewer and drain cleaning, shipyard rust/paint removal, and heavy-duty concrete cleaning.

Q5: Is the hose reel automated? A: Yes, the machine is equipped with a hydraulic automatic hose reel for easier operation and efficiency.

Q6: What is the standard warranty period? A: The machine comes with a standard one-year warranty covering the core components.
