High Definition PTZ Camera Head Inspection Robot X5-HS Mainline Inspection Equipment

Customization:	Available
Model:	X5-HS
Waterproof Grade:	IP68

Send Inquiry

Product Description

Basic Specifications

Model NO.

X5-HS

Depth of Water

10 Meters

Pipeline Diameter

300-3000mm

Camera Lens Angle

Pan/Tilt

Lens Material

Anti-Scratch Sapphire Glass

Technology

Wireless

Sensor

CMOS

Certification

CE, ISO9001: 2000, FCC, RoHS

Effective Distance

≧30m

Cable Length

Standard 150m

Production Capacity

1000 Sets Per Month

HS Code

8525803100

Product Overview

High Definition PTZ Camera Head Inspection Robot X5-HS Mainline Inspection Equipment

The X5-HS pipeline CCTV Inspection robot is a high-tech solution designed on an industrial personal computer (IPC) system. By utilizing a laptop instead of traditional bulky controllers, it offers unparalleled mobility. During inspection, defect images are acquired in real-time, allowing for immediate reporting. Additionally, the system generates pipeline gradient curves to determine sediment conditions. Equipped with a fish-eye lens and specialized analysis software, it provides a 360° panorama of the inner pipe walls for quantitative measurement of cracks and pipe diameter.

Key Advantages

💡 HD Light Source

Equipped with high-definition cameras and a highlight combination light source for crystal clear visuals.

⚡ Efficient Detection

Quick assembly on-site with wireless control capabilities to save time and labor costs.

📡 Digital Transmission

Utilizes advanced digital transmission technology with zero-delay synchronization of video screens.

🛡️ Stable & Durable

IP68 waterproof rating up to 10 meters and explosion-proof design for harsh environments.

Technical Parameters

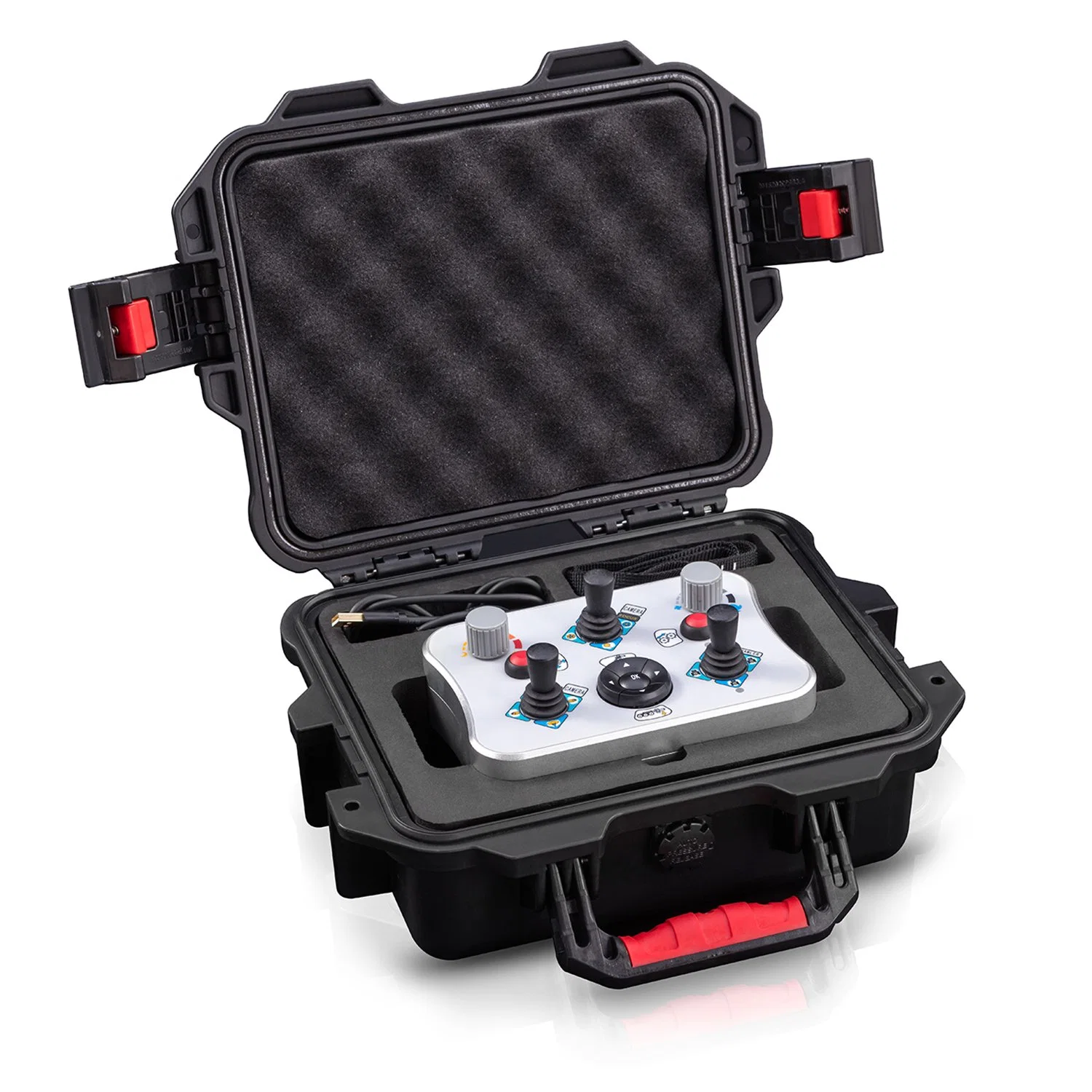

Main Controller	Available in any notebook computer; wireless control; real-time display of date, time, distance, and crawling attitude; front/rear sight simultaneous display.

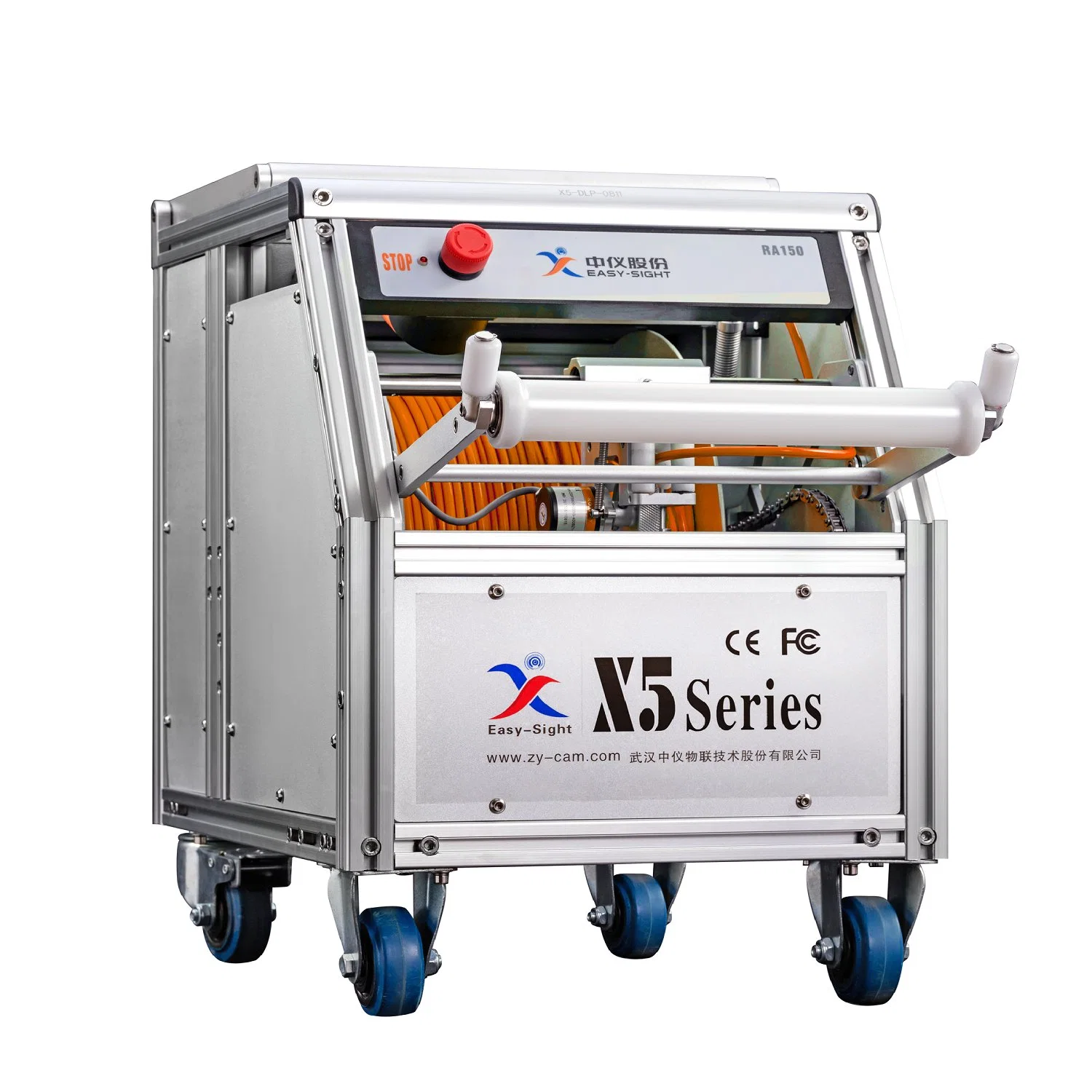

Electric Cable Reel	Standard 150M length; two-core cable to reduce joint failure rate; automatic retractable mechanism.

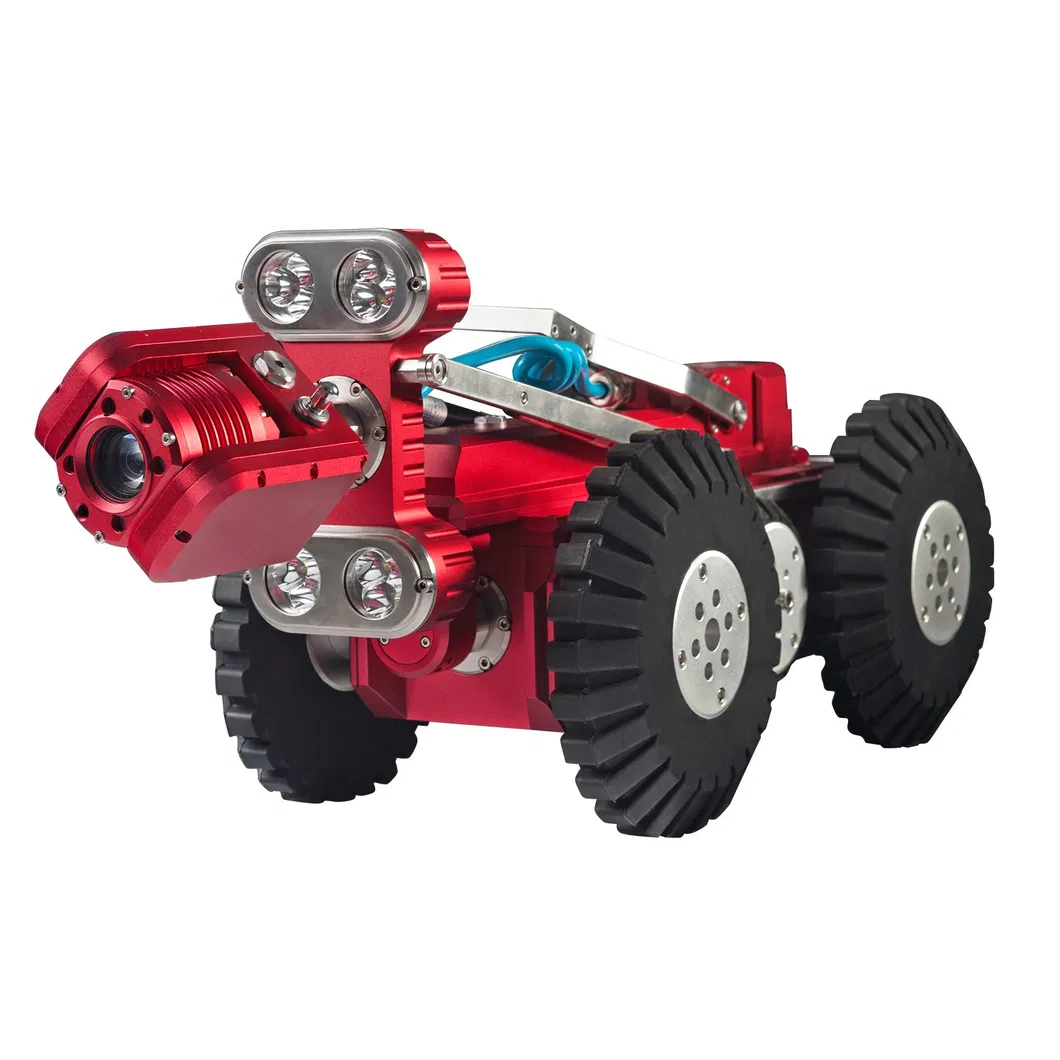

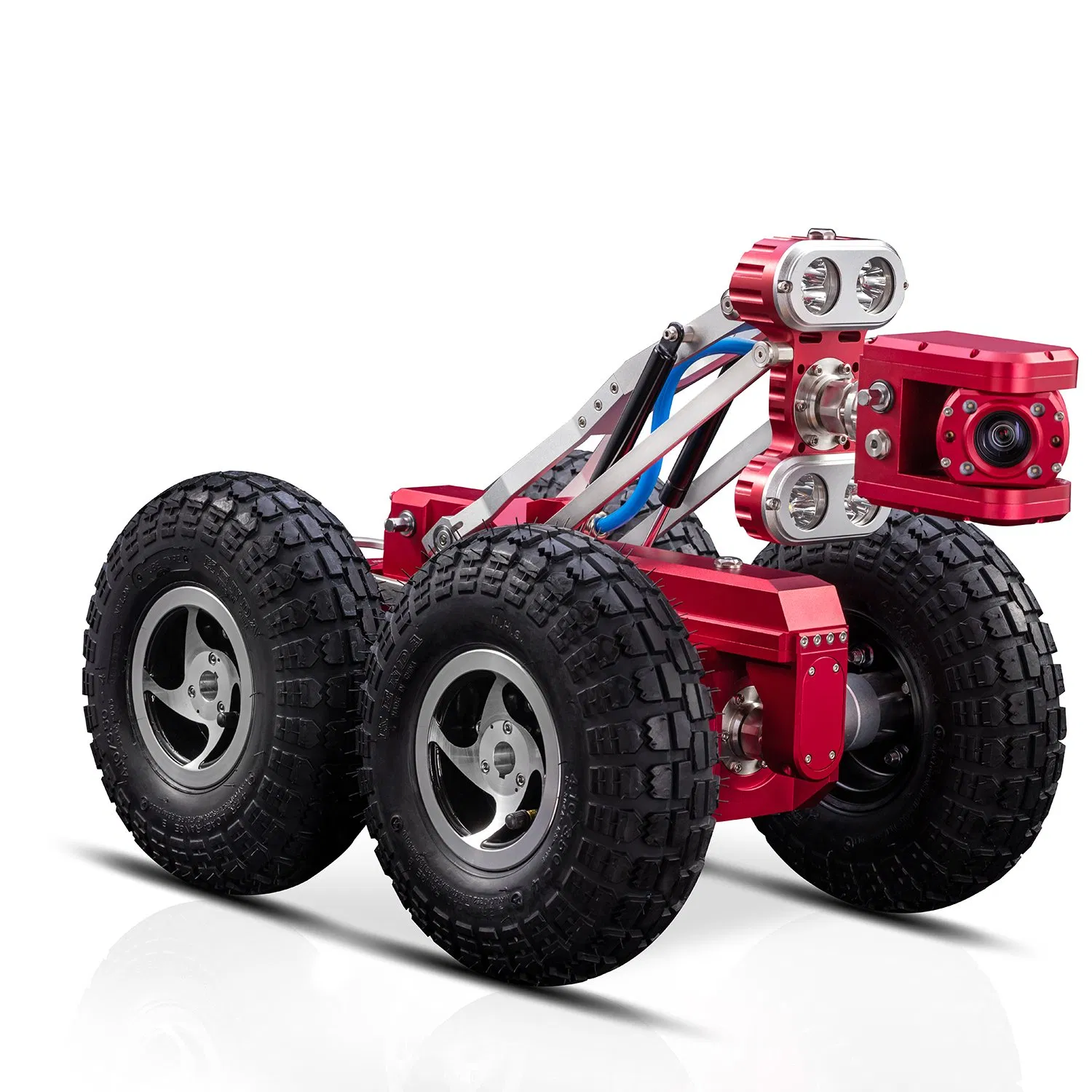

Crawler	IP68 waterproof (10m); fits DN300mm-DN2000mm; made of brass, stainless steel, and aluminum alloy; electric lift frame; 12 LED condenser lights.

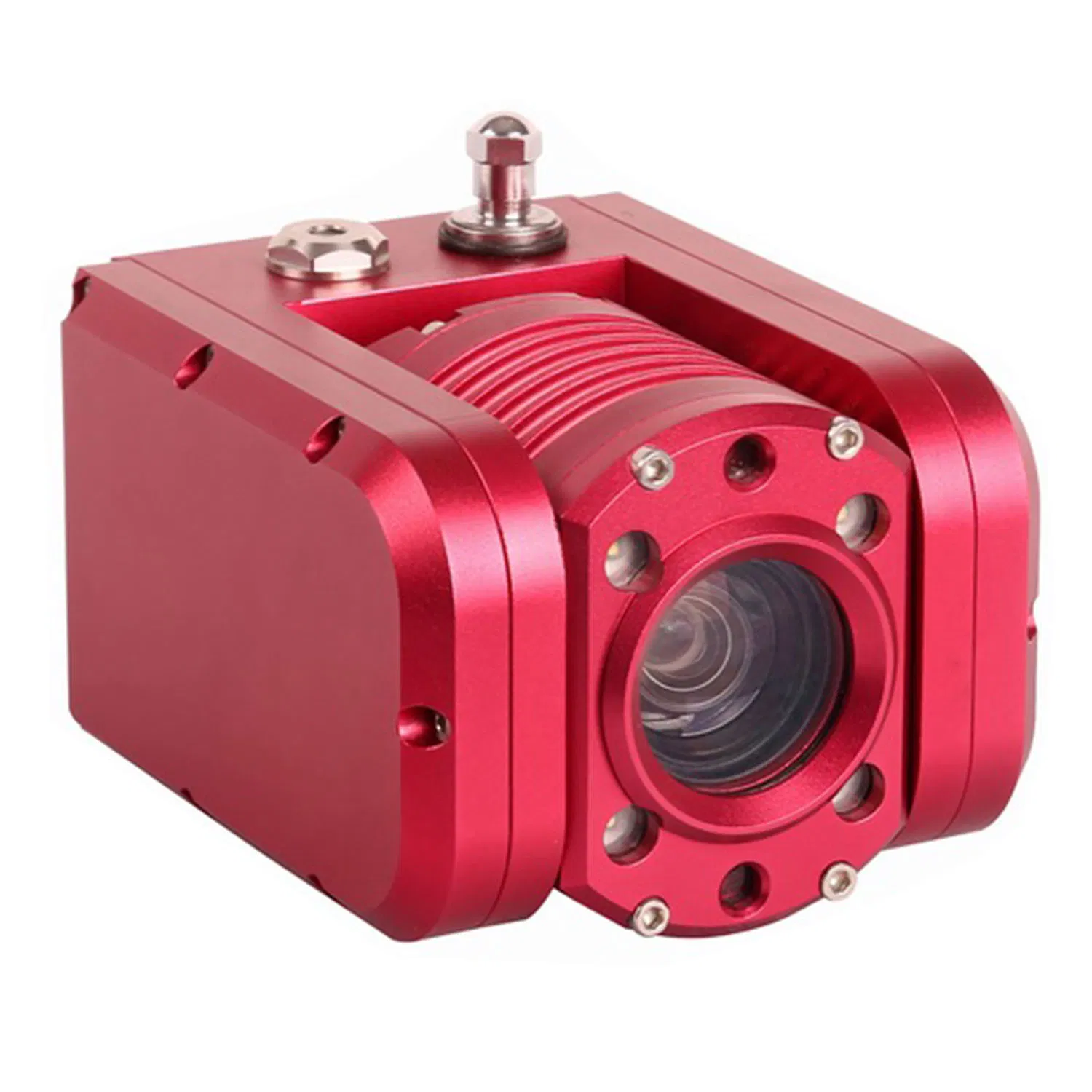

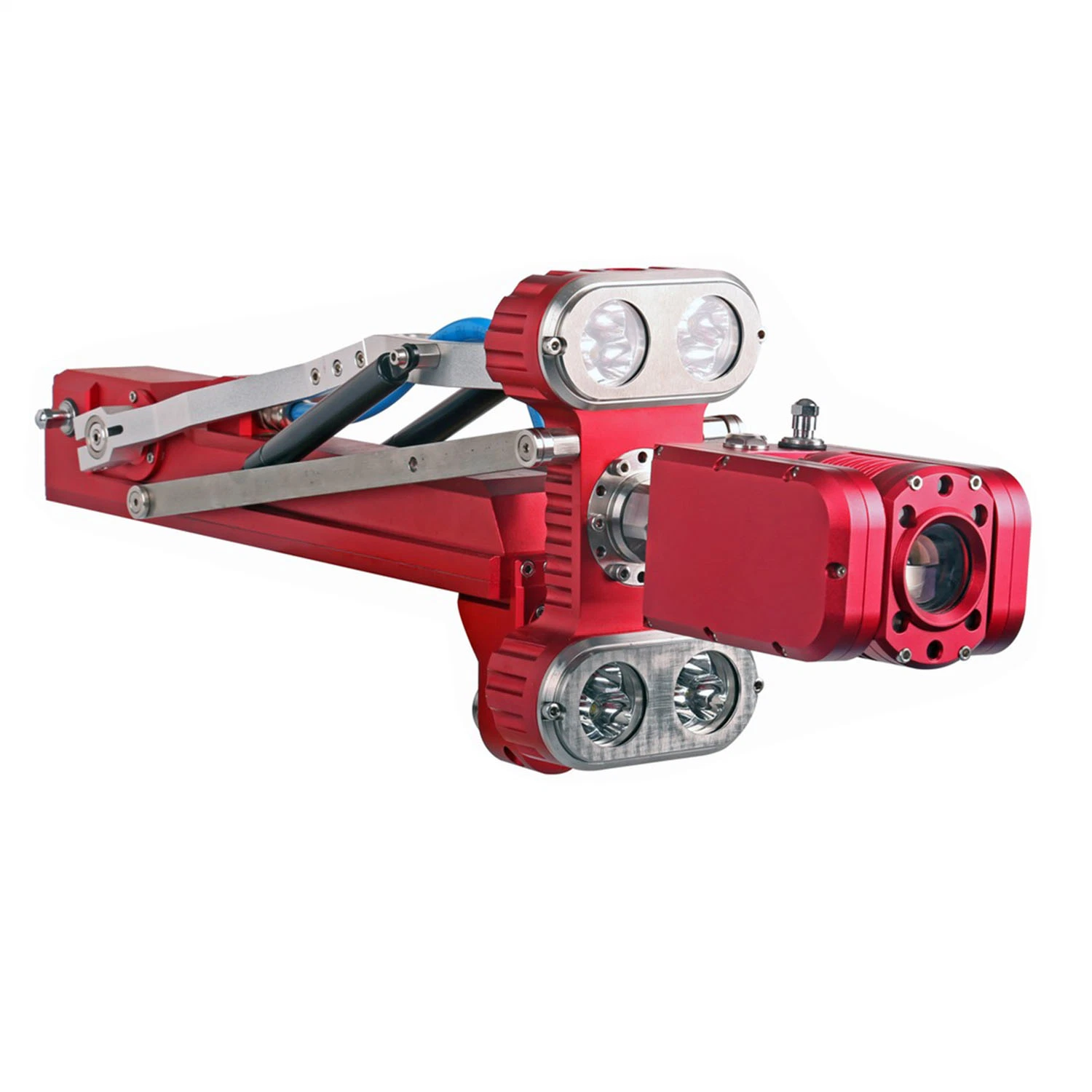

Camera Head	1920*1080 High Resolution; 360° radial limitless rotation; 0.1Lux sensitivity; one-click reset function.

Application & Details

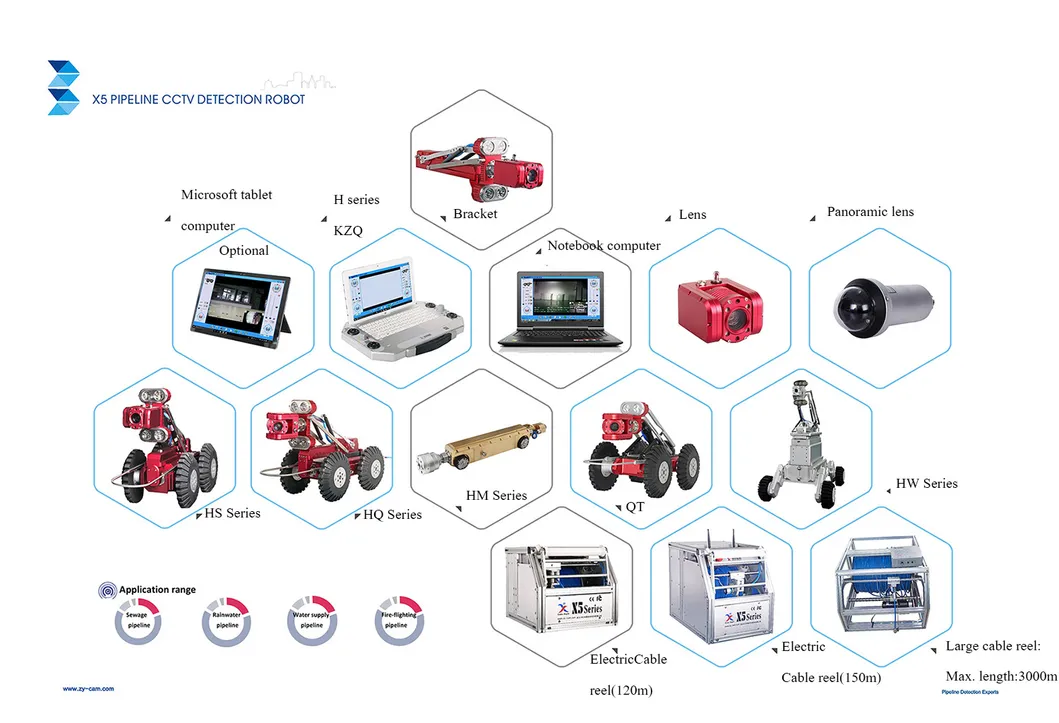

Our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy, and hydro power. The robot consists of a crawler, lens, cable reel, and main controller. The crawler supports various lens models (rotary, direct-view, fish-eye) to respond to complex operational orders.

Certification & Quality

We adhere to ISO quality management systems including ISO9001, ISO14001, and OHSA18001. Products have obtained FCC (USA), CE (EU), and national explosion-proof certifications, along with numerous patents for software and hardware design.

Frequently Asked Questions

What is the standard water resistance for this robot?

The X5-HS crawler and camera are IP68 rated, allowing operation in water depths of up to 10 meters.

What range of pipe diameters can the X5-HS inspect?

The robot is designed for mainline inspection in pipes ranging from 300mm to 3000mm in diameter.

How is the equipment packaged for international shipping?

We use standard plywood wooden cases. The interior is lined with protective foam and waterproof plastic bags to prevent damage during transit.

What is the warranty period for this inspection equipment?

We provide a 12-month warranty from the date of arrival at the destination port, with lifelong technical maintenance and support.

Can I use my own laptop as the controller?

Yes, the system is designed to be compatible with standard notebook computers or tablets, serving as the main control system via wireless connection.

Is technical training provided for new users?

Absolutely. We provide detailed operational manuals and training videos in English. We also offer free technical training to ensure correct operation.
