| Model NO. | HYRO-1000L |
| Capacity | 10m3 to 50m3/Hr |
| Source Water | Borehole Water |
| Incoming Water | Seawater |
| Untreated Water | for Drinking or Irrigation |
| HS Code | 842121 |
| Package Size | 2.00cm * 1.00cm * 1.80cm |
| Package Gross Weight | 800.000kg |
| Transport Package | Seaworth |

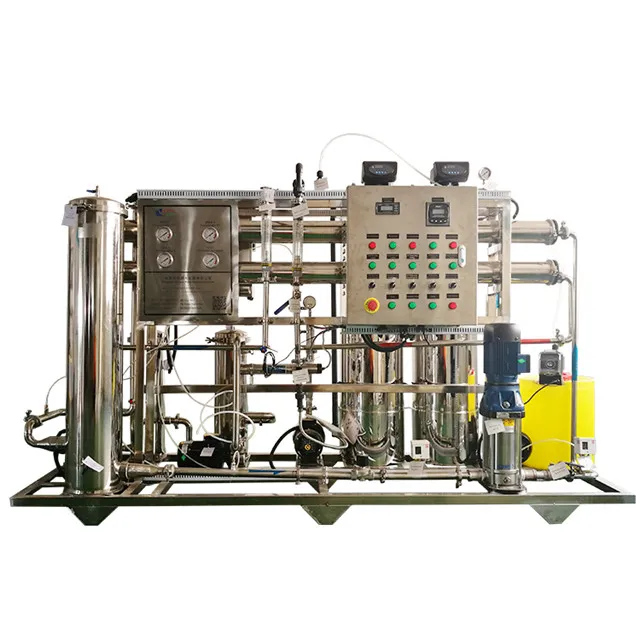

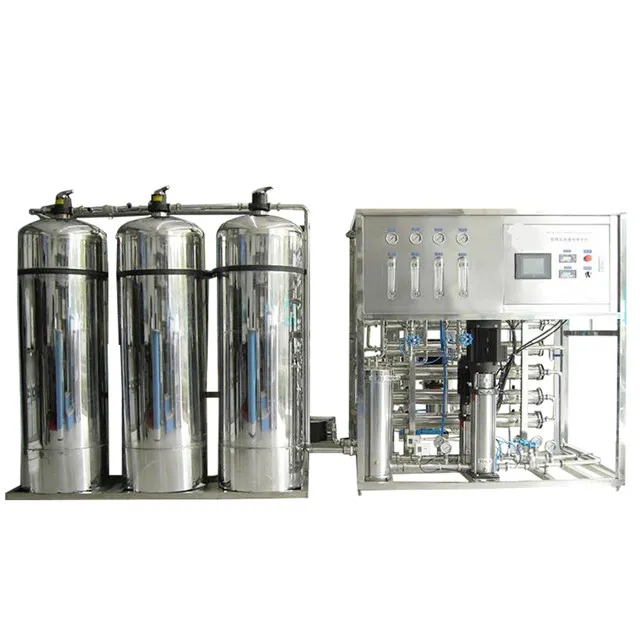

1000Lph RO Water Filter System Reverse Osmosis Purification System
| Raw water / Application | Bottled/Bag water | City tap water | Brackish water | Seawater |
|---|---|---|---|---|
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Human Consumption | Yes | Yes | No | No |
| Irrigation/Industry | Yes | Yes | No | No |

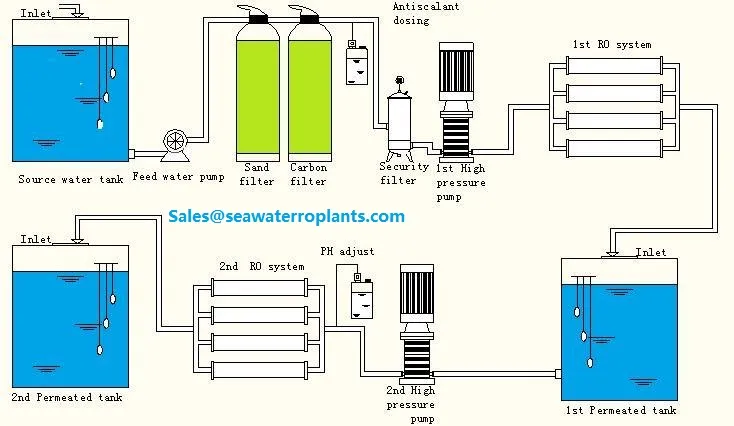

| Phase | Component | Application/Function |
|---|---|---|
| Pre-treatment | Quartz sand filter | Remove suspended particles and large impurities. |
| Active Carbon Filter | Remove color, free chloride, and organic matter. | |
| Anti-scalant system | Add chemicals to prevent membrane blocking. | |
| 5-micron filter | Remove colloids larger than 5 micro. | |
| RO Main Part | High pressure pump | Provide necessary pressure for the RO membrane (Stainless Steel 316L). |
| RO membranes | Over 98% desalination rate; removes most ions. | |
| CIP system | For washing membranes after long-term use. |
| Model | Productivity | Motor Power | Recovery Rate |
|---|---|---|---|
| HYRO-500L | 0.5T/H | 1.5kw | 50% |
| HYRO-1000L | 1T/H | 2.2kw | 50% |
| HYRO-2000L | 2T/H | 3kw | 50-60% |
| HYRO-5000L | 5T/H | 8kw | 60-70% |
| HYRO-10T | 10T/H | 15kw | 60-70% |
To provide the best quote, please confirm the following:
Quartz sand, activated carbon, and resin typically last 15-18 months. PP filter cartridges should be replaced monthly, and RO membranes approximately every 2 years, depending on water quality.
Our RO system provides a desalination rate of more than 98%, effectively removing ions, bacteria, and organic impurities from the water.
Yes, the system is designed to handle high TDS source water, including seawater and brackish water, treating it to meet drinking or irrigation standards.
Yes, the system includes a CIP (Clean-In-Place) cleaning system to wash the membranes with chemicals when they become blocked after long-term use.
Absolutely. We offer customized water treatment solutions, including flow rates, pump brands (like CNP or Grundfos), and control types (Manual, PC, or PLC controllers).
The recovery rate generally ranges from 50% to 75% depending on the specific model and the quality of the raw feed water.
