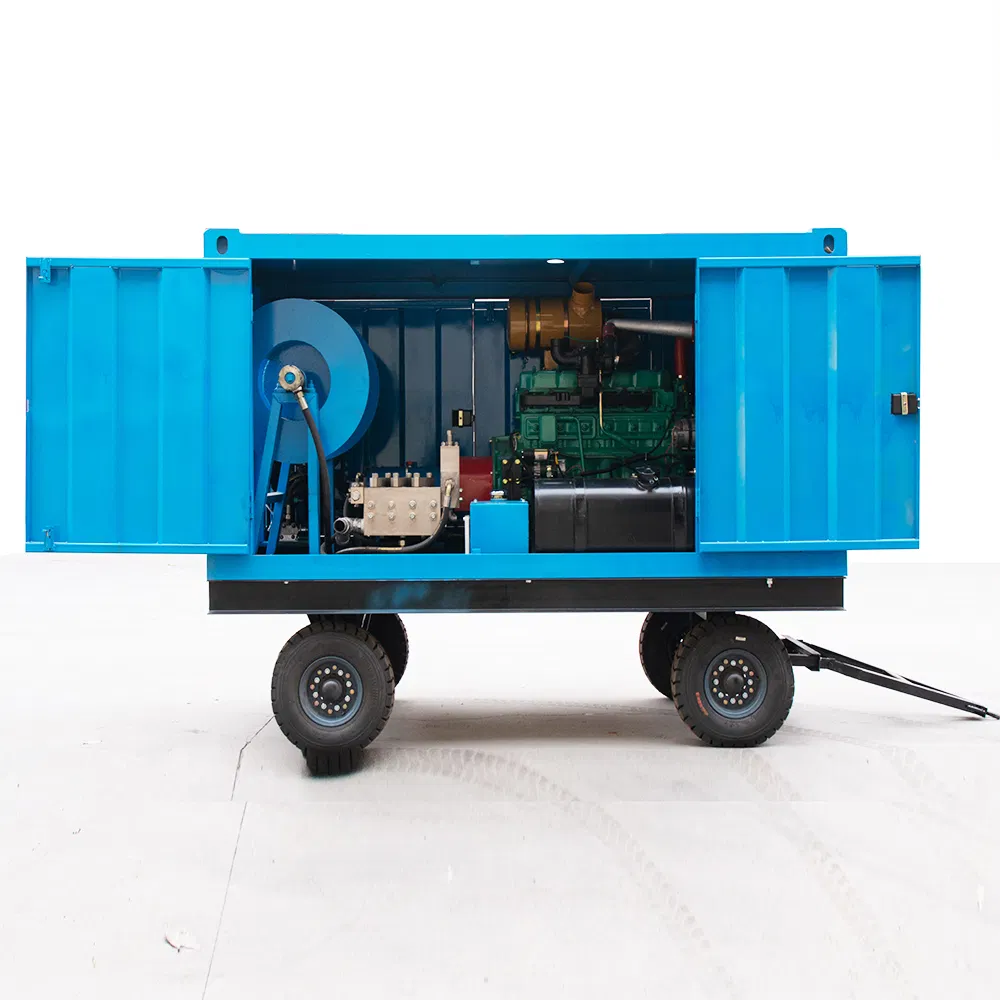

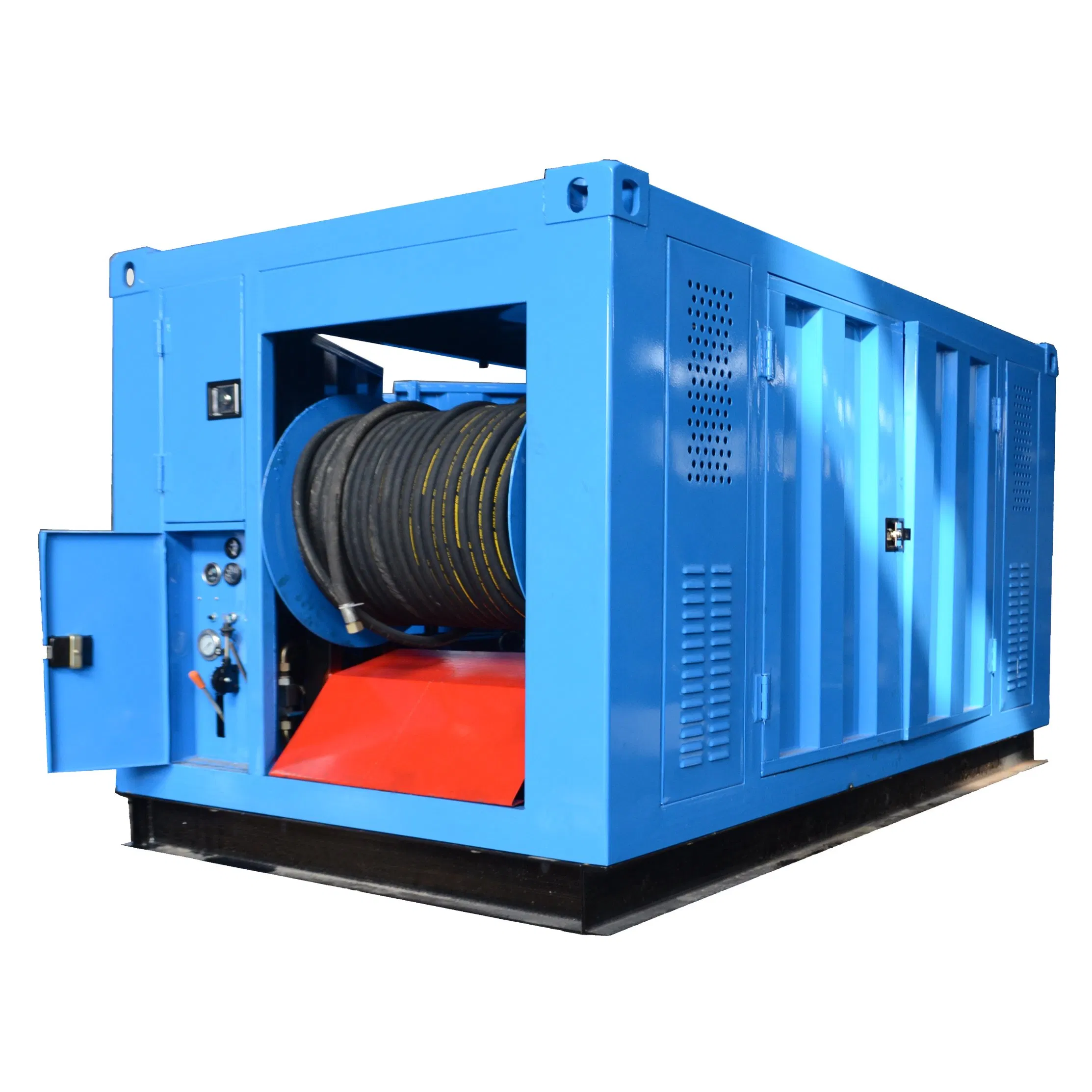

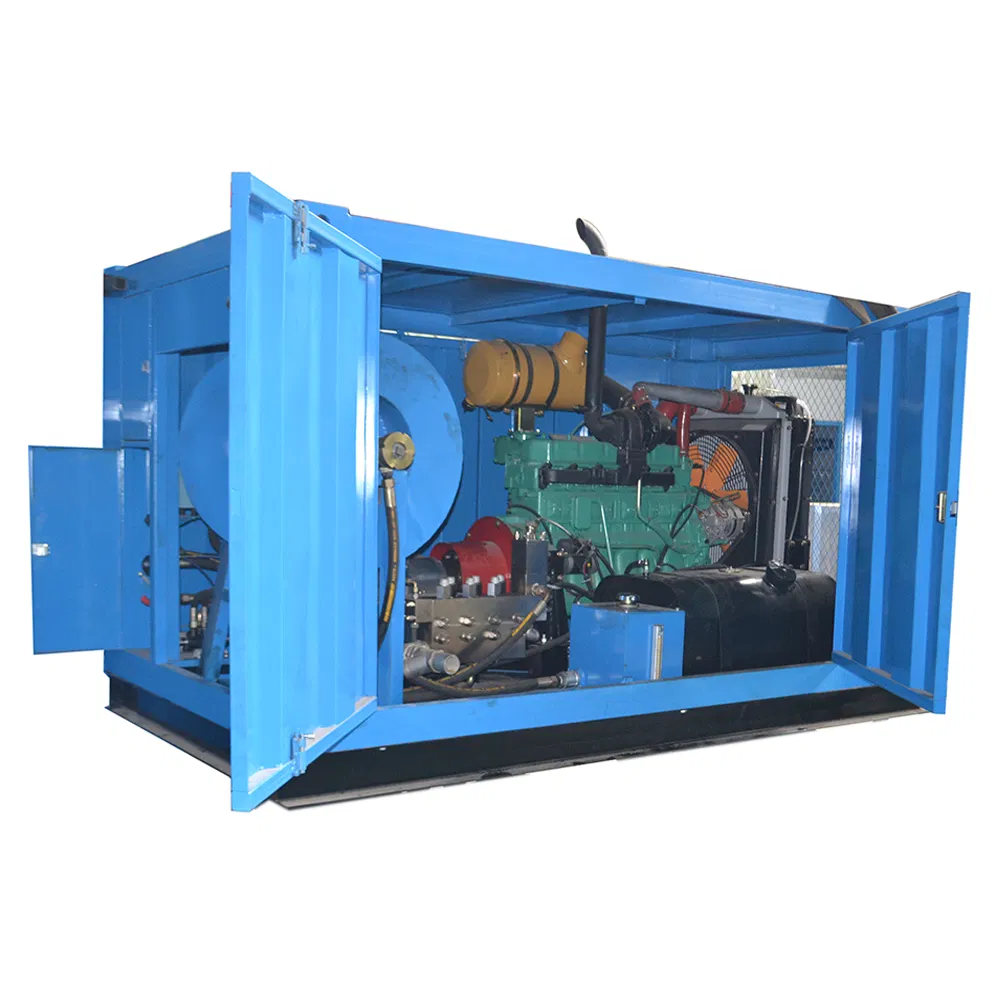

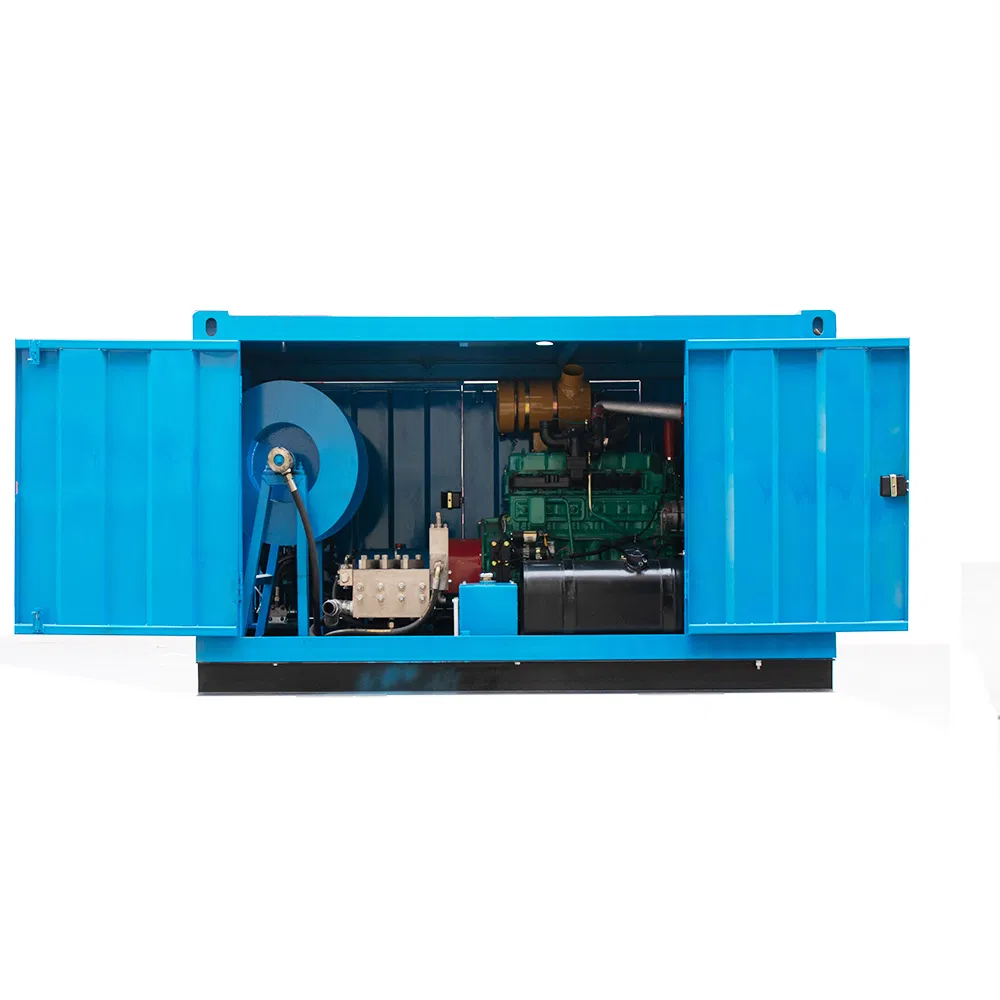

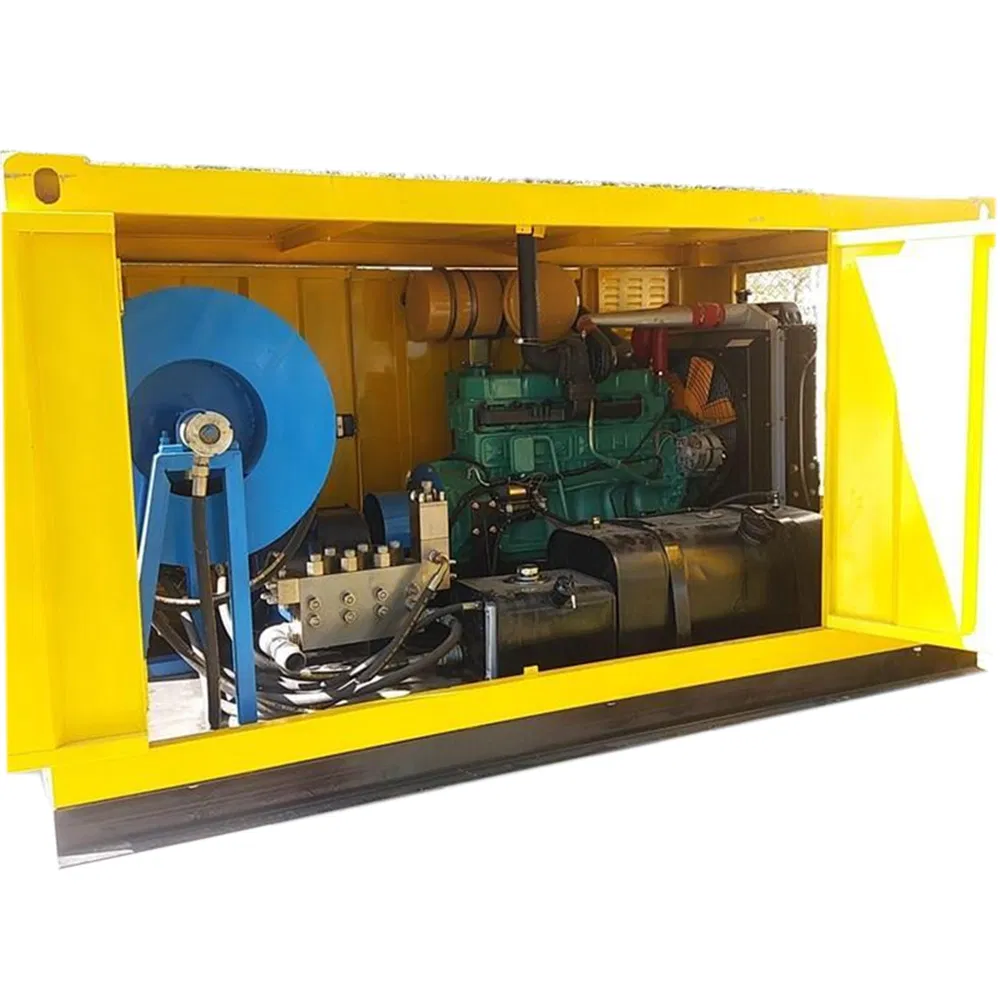

Sewer Jetting Machine Drain Pipe Cleaner High Pressure Water Jetting System

Customization: Available
After-sales Service: Online Service
Warranty: One Year

Product Description

i

Basic Information

Model NO.:GYB-2
Type:Cold Water High Pressure Cleaner
Operation Type:Movable
Drive:Diesel
Application:Sewer Drain Pipe Cleaning
Pressure:240bar / 24MPa
Water Flow:170 L/Min
Diesel Engine:145kw, 6-Cylinder
Hose Reel:Hydraulic Automatic Hose Reel
Cleaning Pipe:100-1200mm Diameter
Weight:1400kgs
Certification:CE
P

Product Description

High Pressure Water Jetting System

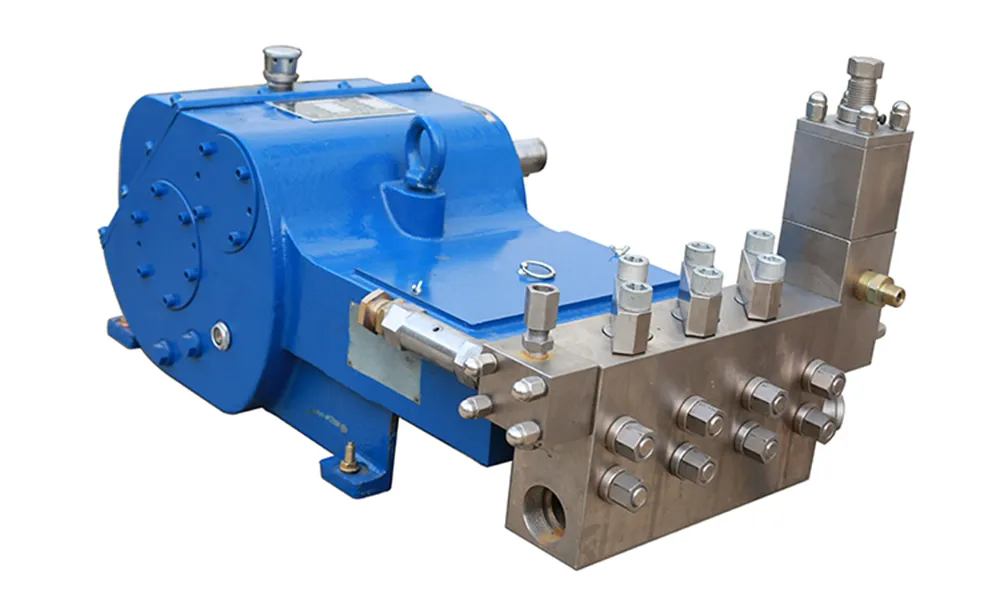

High Pressure Pump Details

  • Triplex plunger pump
  • Rate pressure: 0-240bar (Adjustable)
  • Water flow: 170 L/min
  • Plunger diameter: 45mm
  • Pump speed: 405 rpm
  • Pump head material: Stainless steel
  • Plunger material: Stainless steel nickel-plated alloy

Diesel Engine Specifications

  • Engine power: 145kw
  • Speed: 1500 rpm
  • No. of cylinder: 6 Cylinder

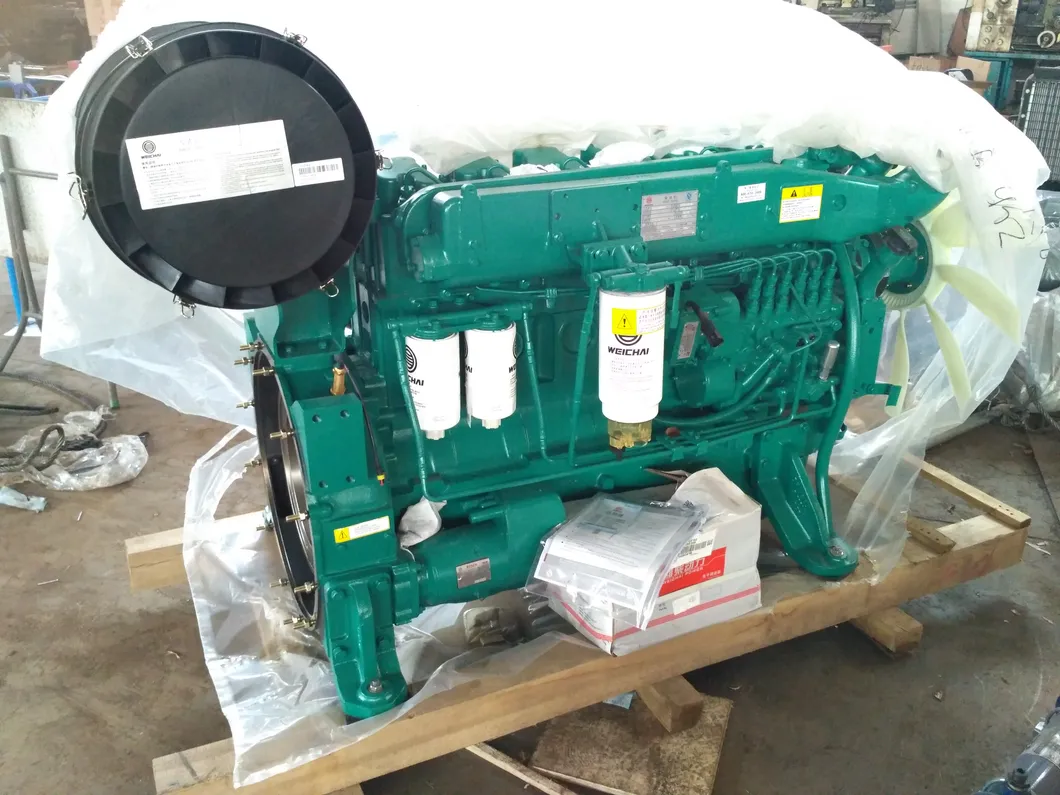

Diesel Engine System
S

Technical Parameters

Model Rate Pressure Water Flow Engine Cleaning Pipe Dia.
GY-170/240 240bar / 24Mpa 170 L/min Electric 90kw 380v/50Hz 100-1500mm
GY-170/240 240bar / 24Mpa 170 L/min Diesel engine 145kw 100-1500mm
ModelGYB-2
Rate Pressure240 bar / 24Mpa
Water Flow170 L/min
Pump Speed405 rpm
Pump Plunger Dia.45 mm
Diesel Engine145 kw, 6-cylinder
Hose ReelHydraulic automatic hose reel
Cleaning Pipe Diameter100-1500mm sewer drain pipe cleaning
A

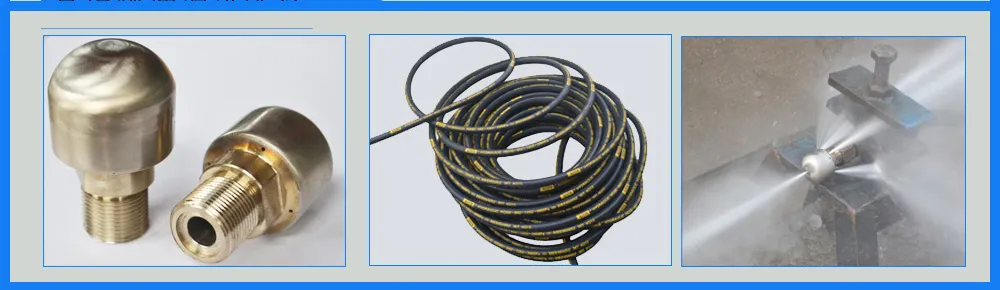

Accessories

Accessories

Standard Package Includes:

  • High pressure hose: 50 - 80 meters
  • Sewer pipe cleaning nozzle: 5pcs
  • Nozzle Diameter: 20~80mm based on purpose

Main Features:

  • Production Lead Time: 3-15 days depending on model
  • Packing: Sea Shipped Wooden Case
  • Warranty: One Year
  • Size: 1100*800*900mm
M

Similar Models

Model Rate Pressure Water Flow Engine Type Cleaning Dia.
GY-50/180E180 bar50 L/minElec. 15kw50-400mm
GY-50/180G180 bar50 L/minGasoline 24Hp50-400mm
GY-135/200D200 bar135 L/minDiesel 84kw50-500mm
GY-170/200D200 bar170 L/minDiesel 84kw50-800mm
GY-170/280D280 bar170 L/minDiesel 121kw50-1000mm

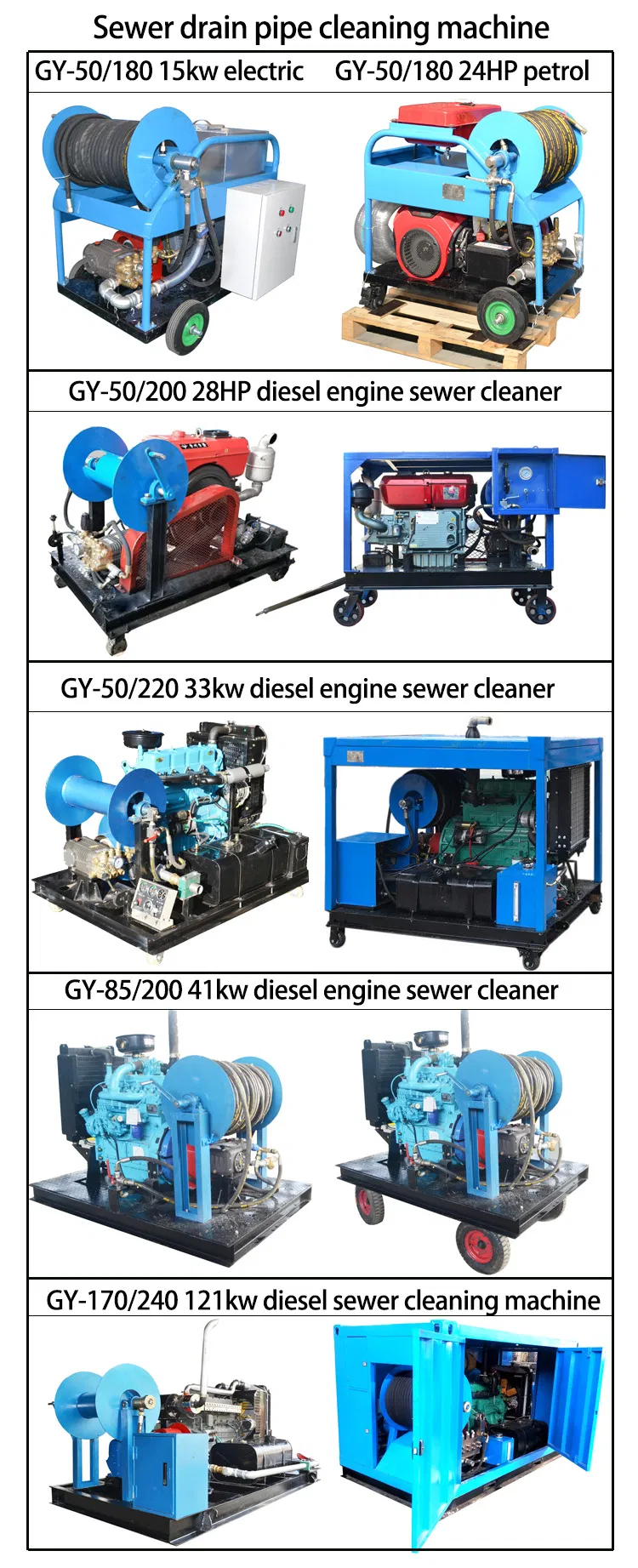

Product Range
C

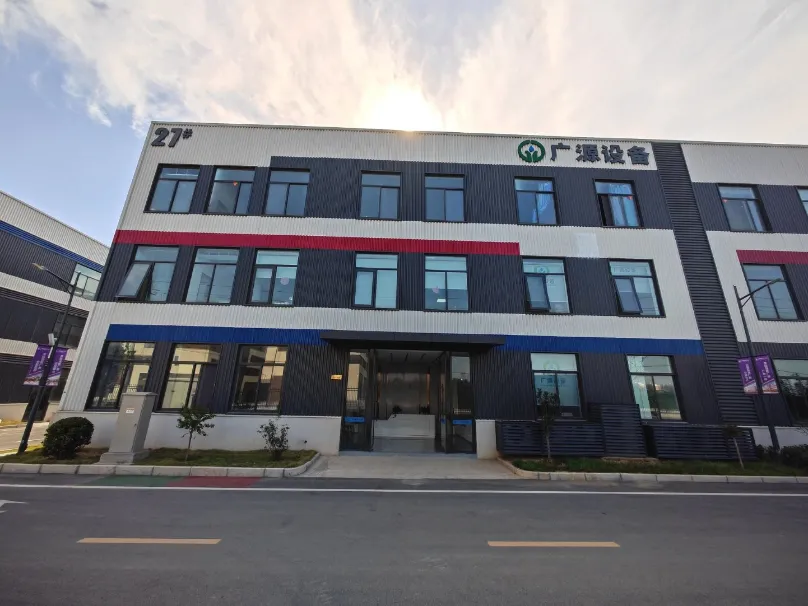

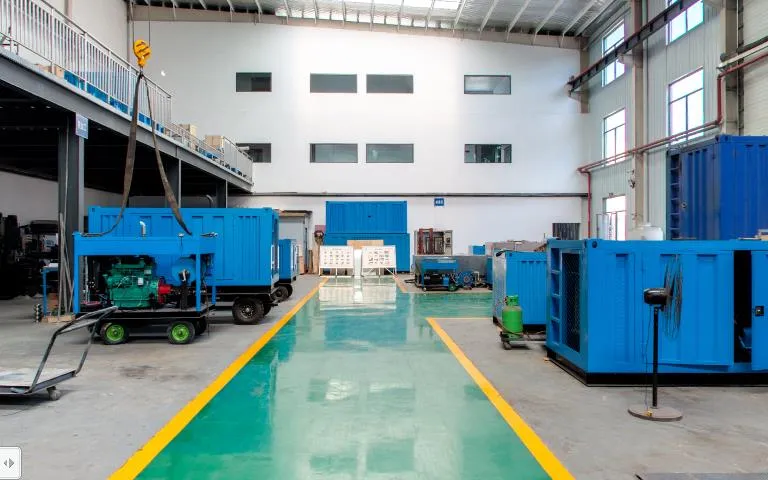

About Our Expertise

As a leading manufacturer for high pressure water jetting machines founded in 2012, we are committed to exploring the field of high pressure water jet technology. We specialize in the design, manufacture, and production of high-pressure cleaning machines, water blasters, high-pressure pumps, and customized cleaning systems.

Our equipment is widely applied in both industrial and commercial cleaning, including shipyards, power plants, and starch factories. Applications include pipe cleaning, pressure testing, rust removal, paint removal, building surface cleaning, and concrete cutting. With years of research and first-class design technology, we maintain an excellent quality control system recognized by customers worldwide.

Q

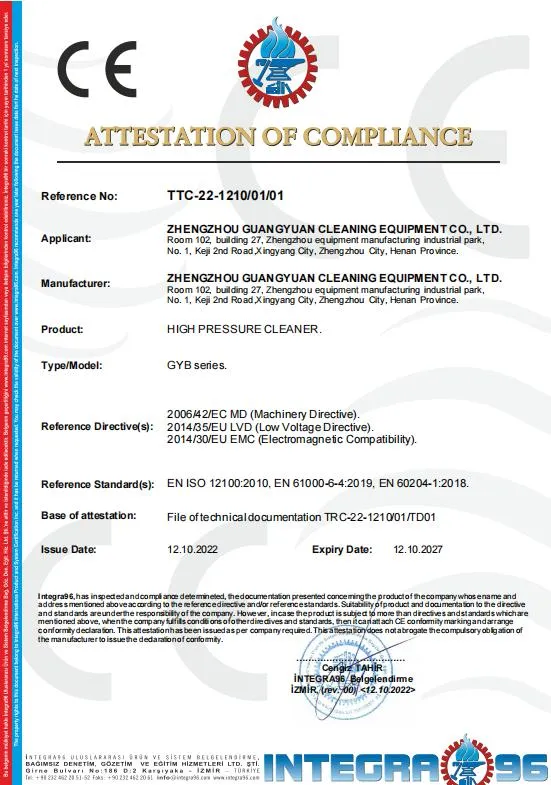

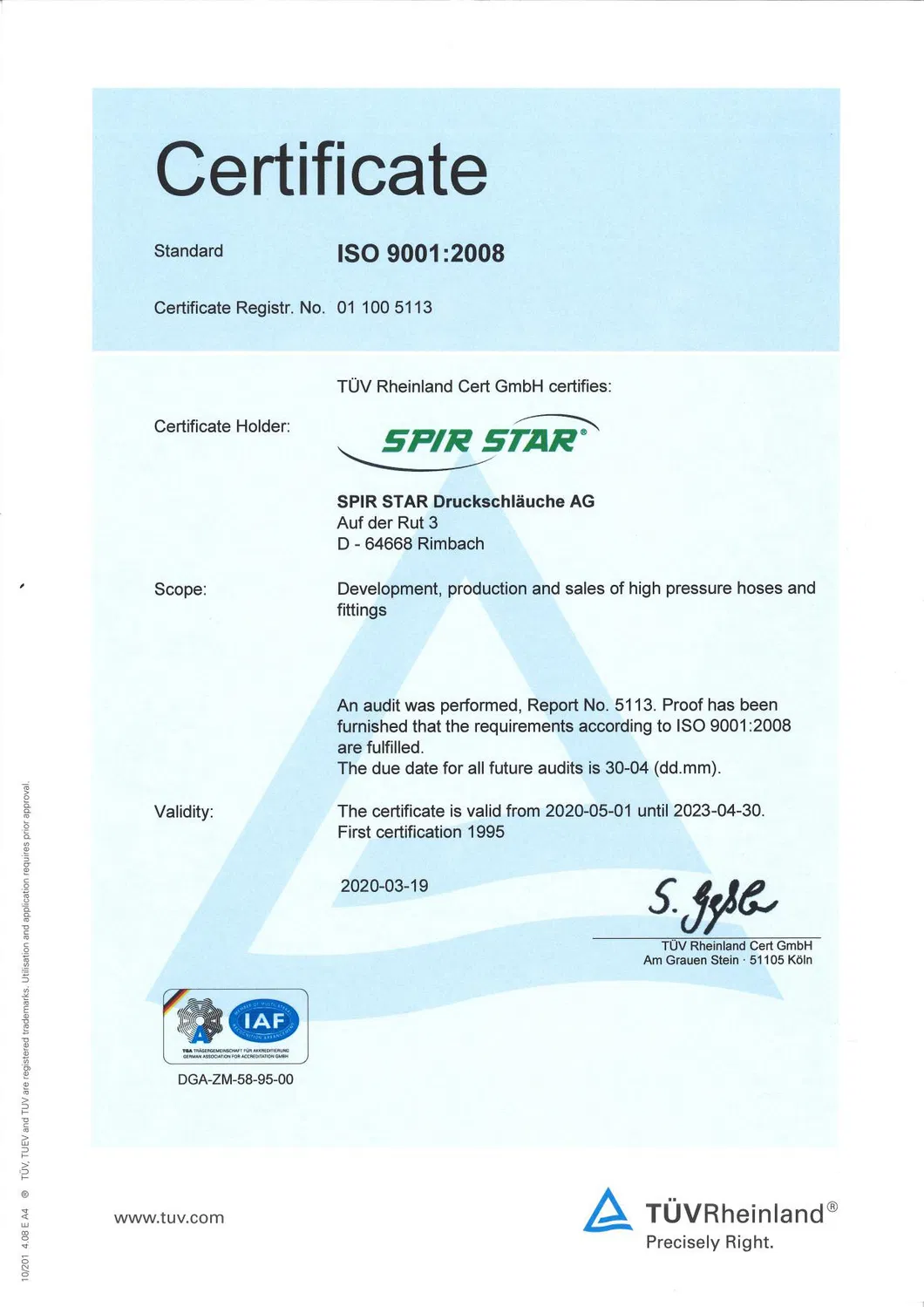

Certifications

L

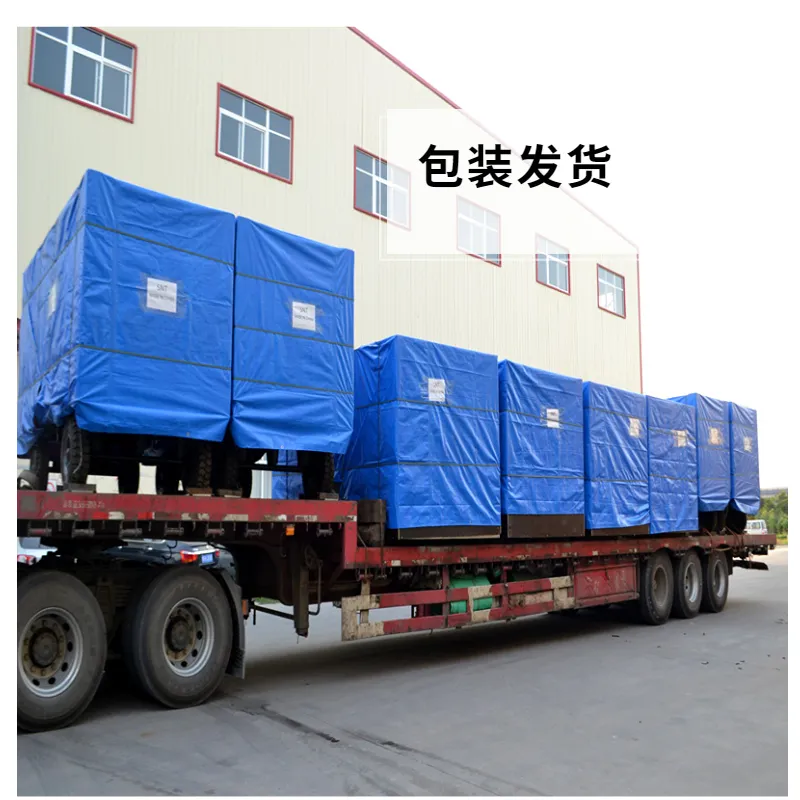

Packaging & Shipping

Packaging
?

Frequently Asked Questions

1. What is a high-pressure water jet cleaning machine? It is a device that uses pressurized water to remove dirt, grime, and contaminants from surfaces, equipment, and pipes efficiently.
2. How does the machine work? It pressurizes water and directs it through a specialized nozzle, creating a high-velocity jet that dislodges and removes debris.
3. What surfaces can be cleaned? These machines can clean a variety of surfaces including concrete, metal, wood, glass, and plastic.
4. What are the main benefits? Benefits include chemical-free cleaning, reduced environmental impact, and preservation of surface integrity.
5. Is operator training required? Yes, training is recommended to ensure safe usage, proper technique, and correct nozzle selection.
6. What is the maintenance schedule? Regular maintenance includes nozzle inspection, pump maintenance, and overall system checks as per usage.
