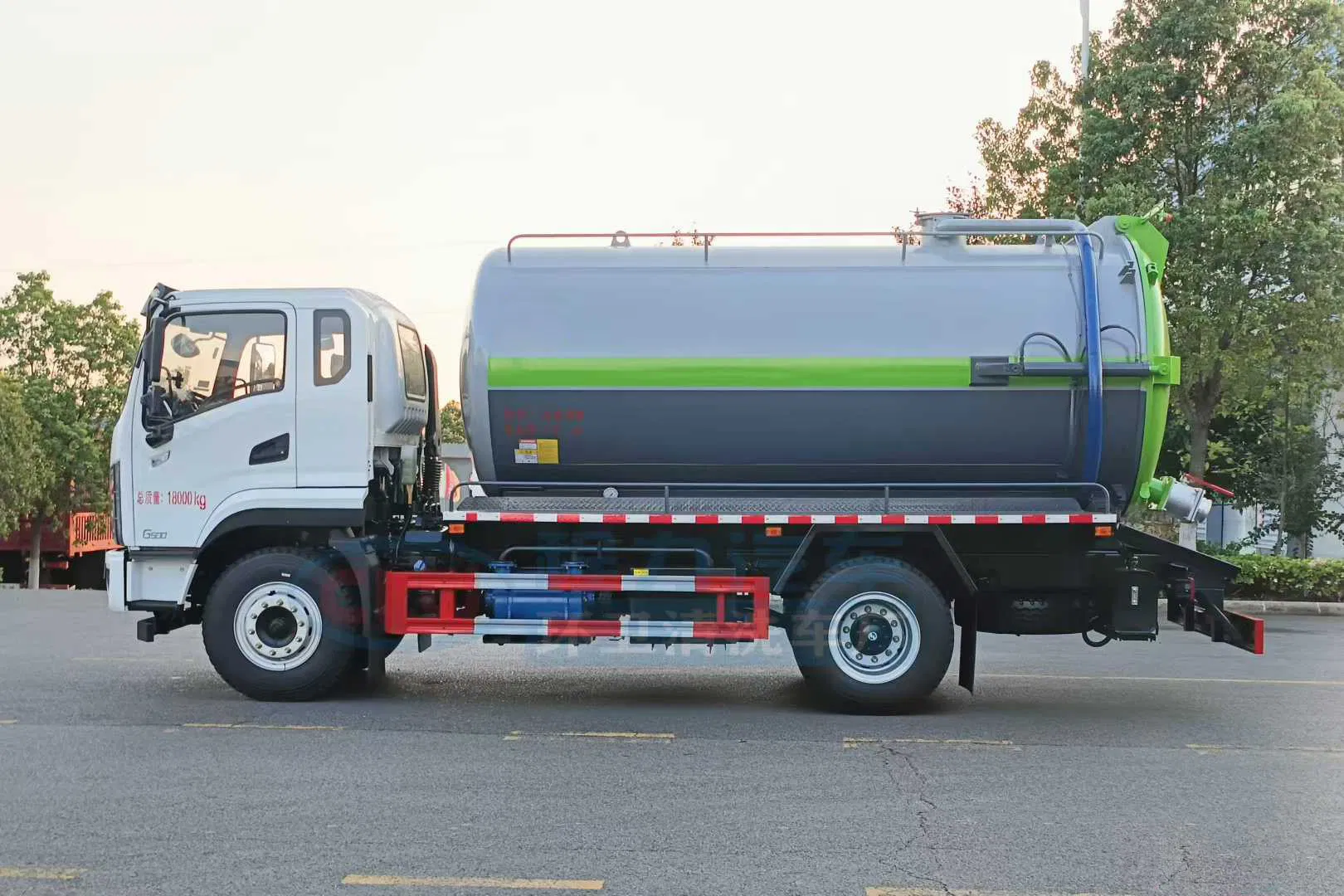

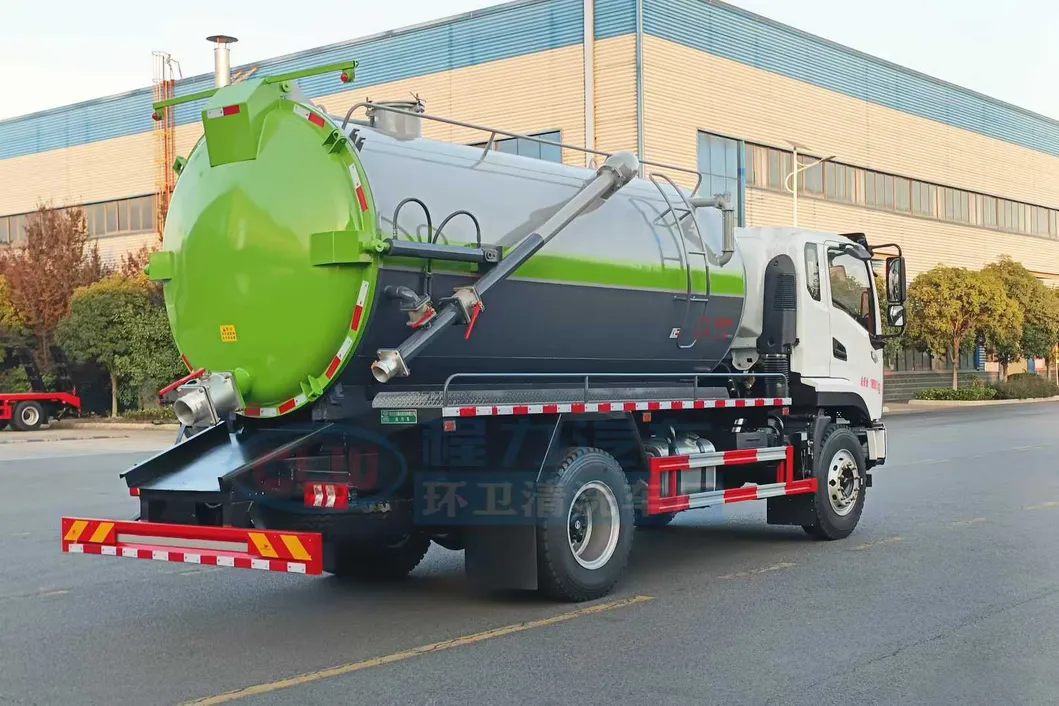

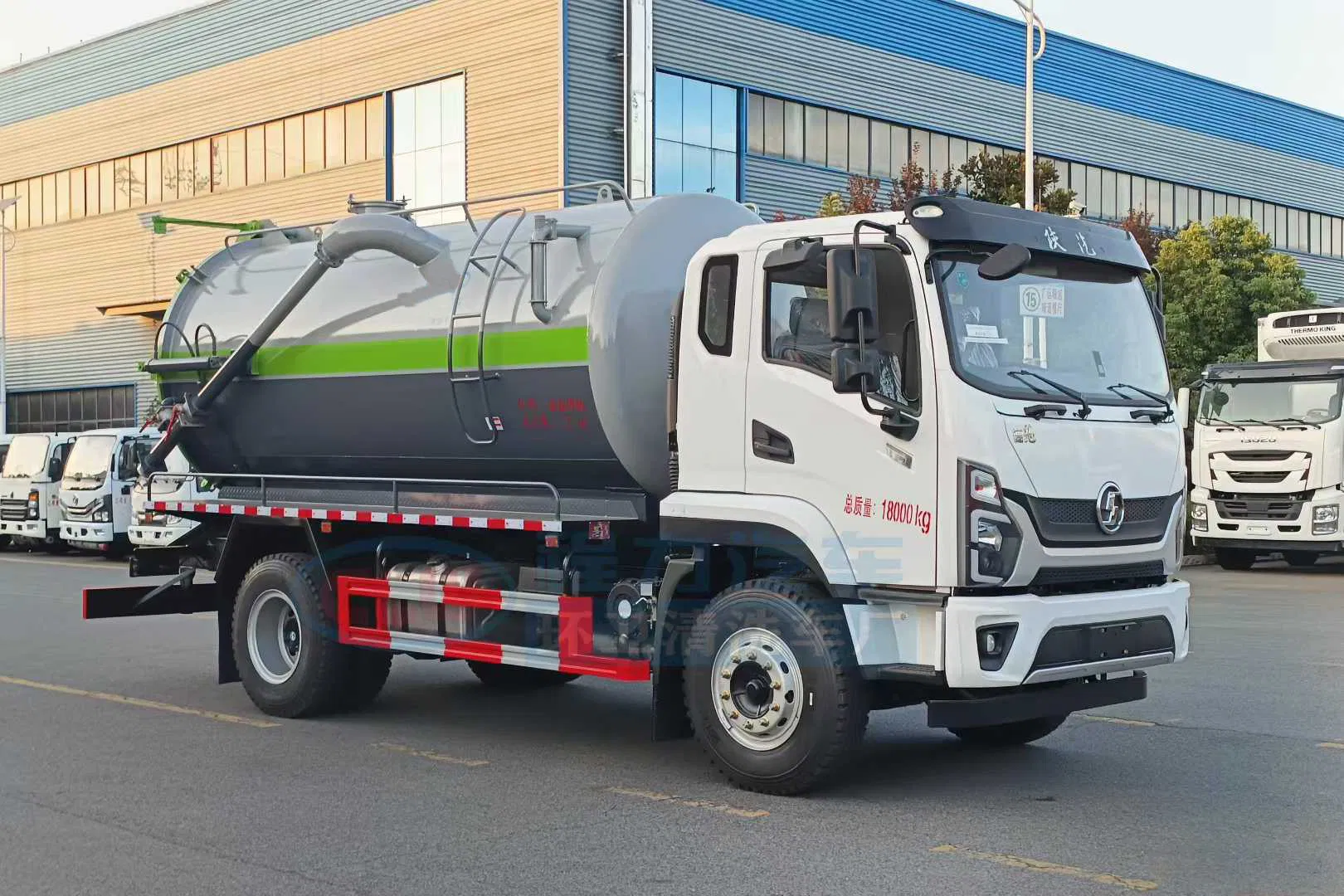

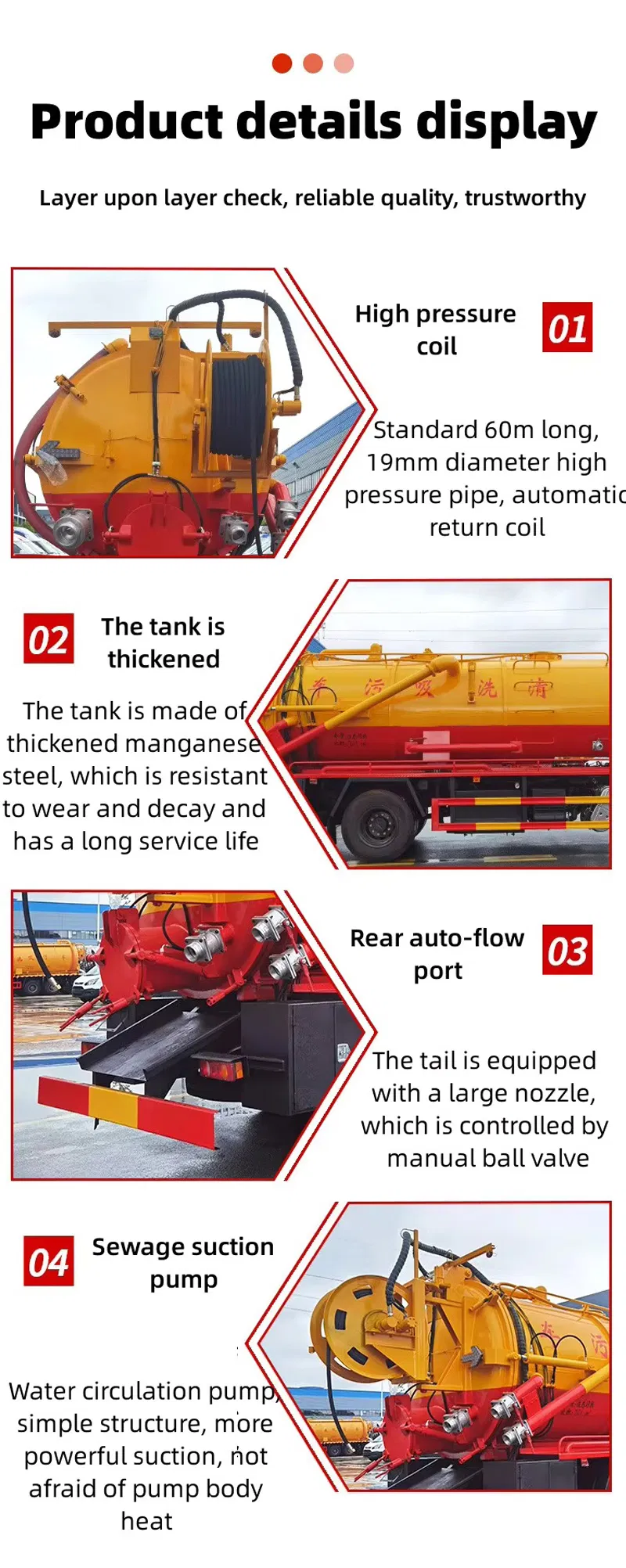

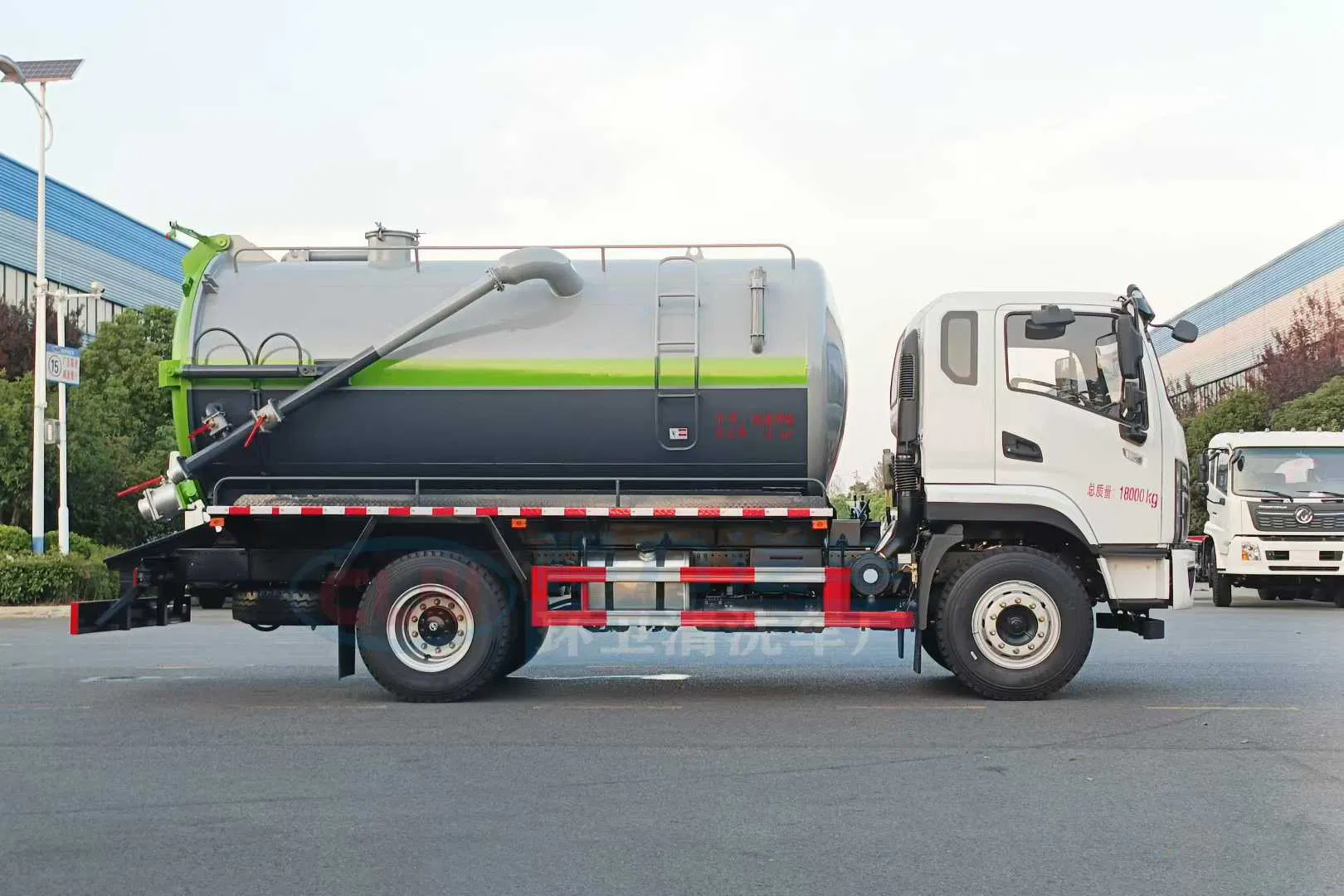

The whole vehicle has 95 horsepower, equipped with water pump, original factory air conditioning, and medium control high voltage door. 3.3 cubic meters capacity, 60 meters of high-pressure hose, 8 meters of suction hose, and 150mm sewage outlet.
Professional R&D Support: We can customize products according to your specific needs, including tank volume (3-33 m³), steering orientation (LHD/RHD), and emission standards (Euro 2 to Euro 6).
| Item | Parameter | Remarks |
|---|---|---|
| Complete Vehicle Model | DLQ5041GQWE6 | - |
| Wheelbase (mm) | 2800 | - |
| Engine Model | Q23-95E60 | National VI, Diesel |
| Engine Power (kW) | 70 | - |
| Overall Dimension (L×W×H) | 5700×1880×2000 mm | - |
| Curb Weight (kg) | 3180 | - |
| Maximum Total Mass (kg) | 4495 | - |
| Effective Volume of Tank | 3.3 cubic meters | - |
| Hydraulic System Pressure | 18 MP | - |
| Operation Mode | Manual | - |

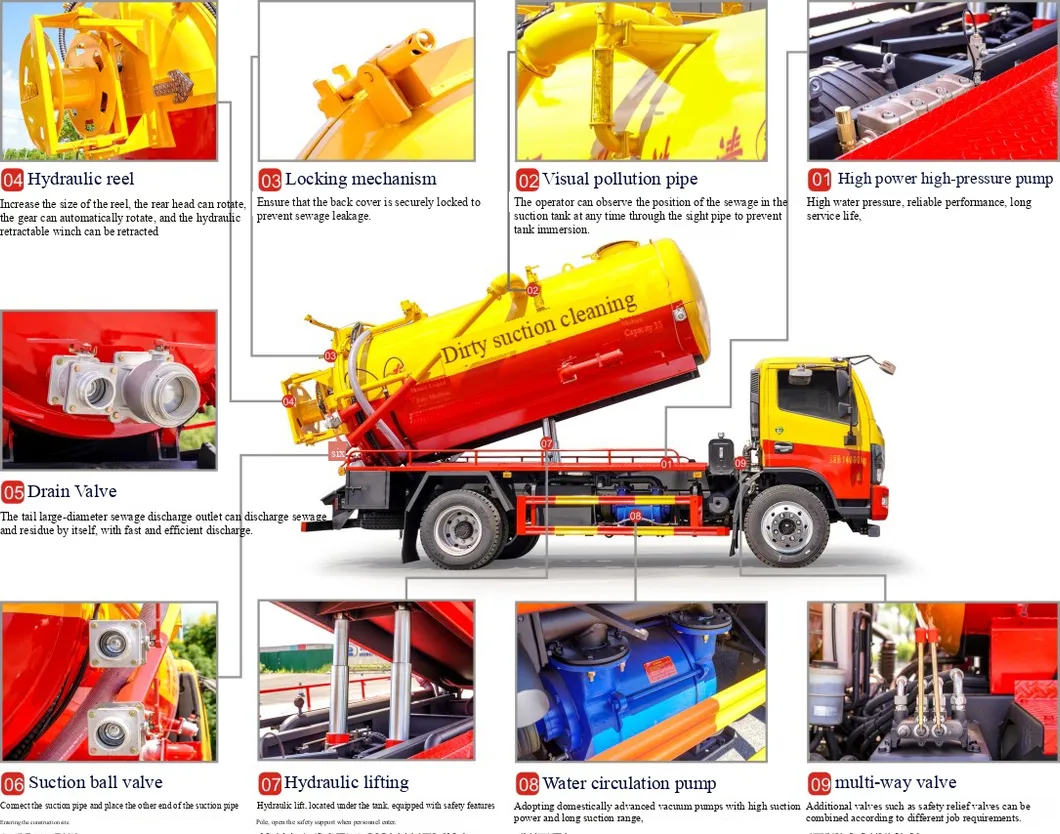

Our cleaning and sewage suction trucks integrate high-pressure cleaning and vacuum suction, widely used in:
| Vehicle Type | Tank Design | Suction System | Additional Functions |
|---|---|---|---|
| Septic Suction | Slender carbon steel tank, smooth interior. | Medium power vacuum pump, small diameter pipe. | Suction only, lower cost. |
| Sewage Suction | Large volume (5-15m³), conical bottom for discharge. | High power pump, large diameter (100-200mm). | Handles solid impurities/sludge. |
| Combined Jet-VAC | Divided into clean water and sewage sections. | High-power vacuum + 10-30MPa high-pressure pump. | Unclogging + Suction all-in-one. |

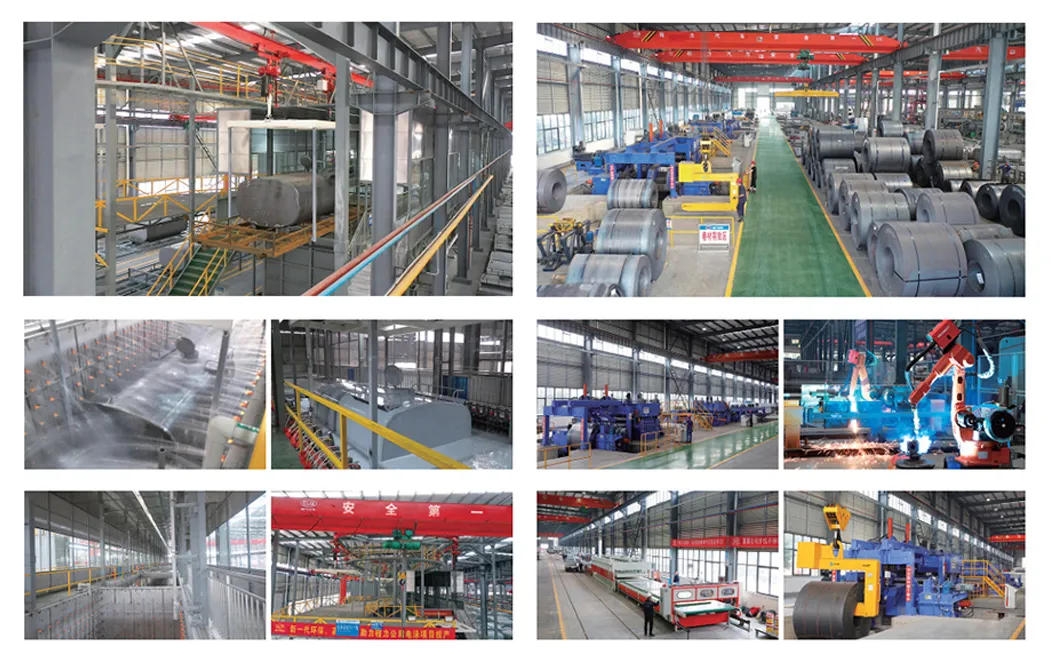

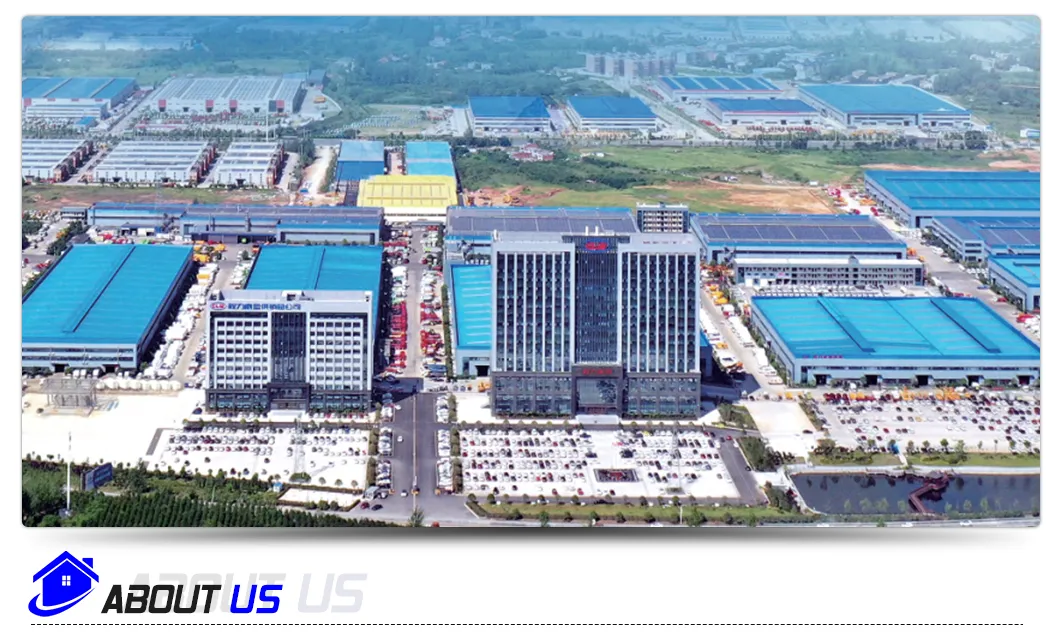

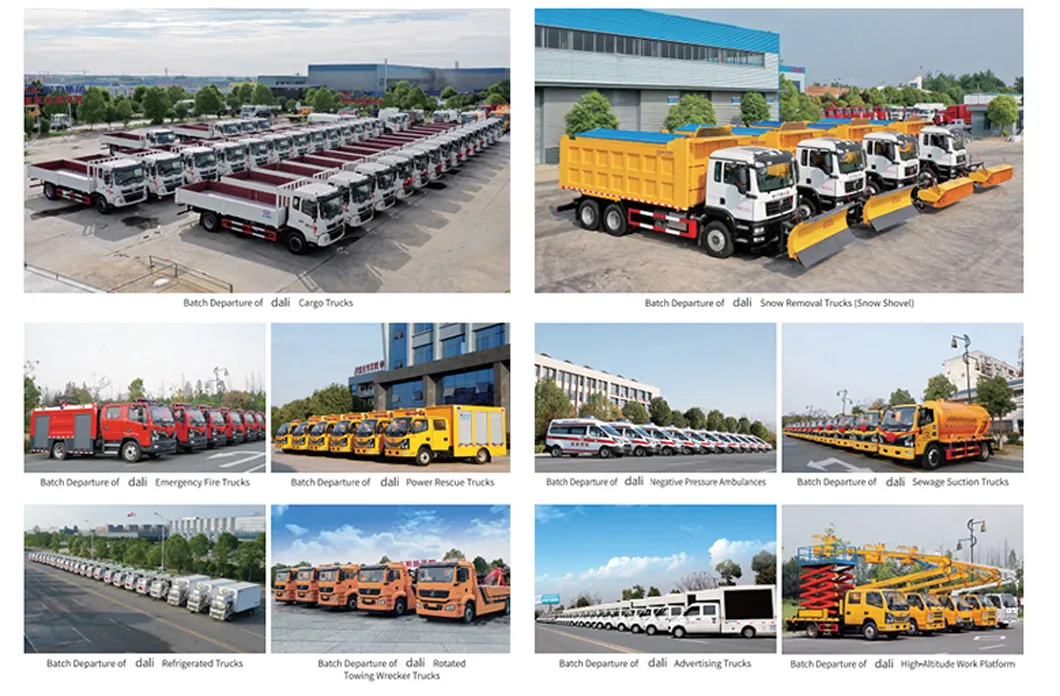

Our group is a comprehensive enterprise integrating R&D, manufacturing, and sales of specialized vehicles. We operate a vast production system with over 100 specialized factories and an annual capacity of 100,000 specialized vehicles.
Core Certifications: ISO 9001, ISO 14001, ISO 45001, CCC, ASME, and ADR certification for dangerous goods transport.
