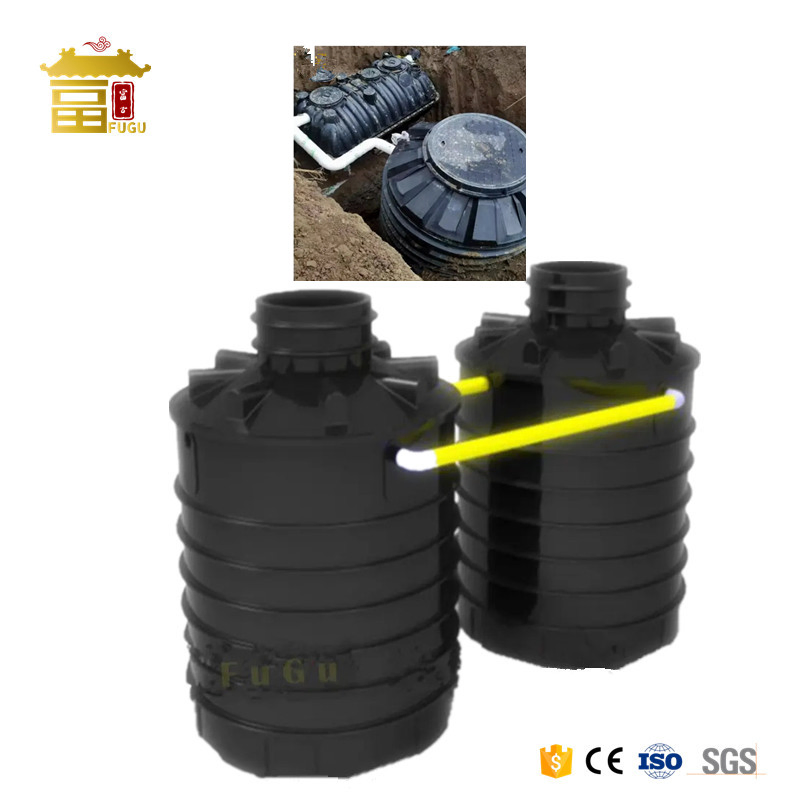

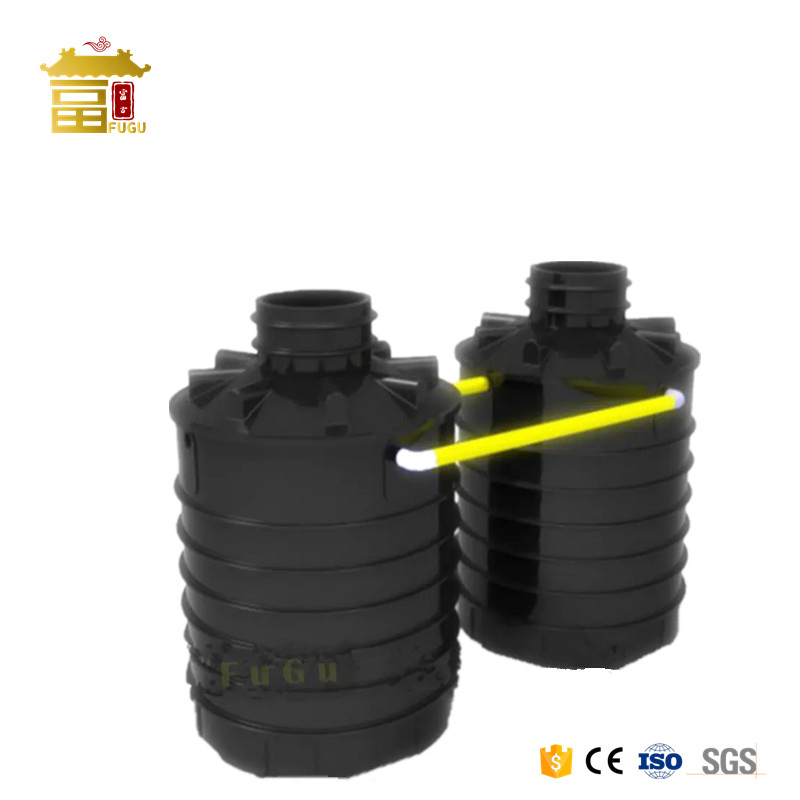

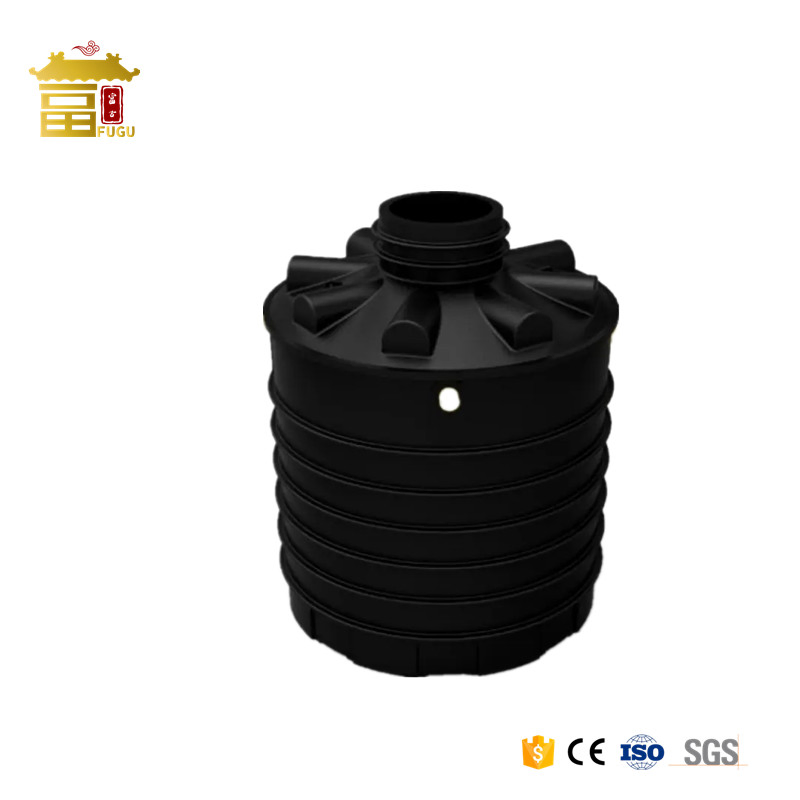

Small Domestic Sewage Treatment Plant Purification Tank Sewage Treatment System 1 Cbm - 5 Cbm

Customization: Available
Material: PP+PE
Hardness: Hoses

Product Description

Certified High Quality, Buy Without Worries.
35 Injection Production Lines, Annual Capacity Over 1,200,000 sets.
Official Customs Recordation & Complete Certification Support (FORMA, FORM E, etc.).
Specialized in Wholesale Cooperation to Maximize Partners' Profit.
One-Stop Supply Chain: Septic Tanks, Manholes, Grease Traps, and Purification Tanks.
We are sorry that cannot accept the order directly on line due to the special characters of products. You are welcome to contact our salesman directly for more details.
Basic Information
Model NO. 1CBM/2CBM/5CBM Type Reusable
Color Black Shape Round/Cylindrical
Usage Drainpipe / Sewer
Material PP+PE Style Underground
Service Life 10 Years Daily Capacity 1 Ton - 3 Ton

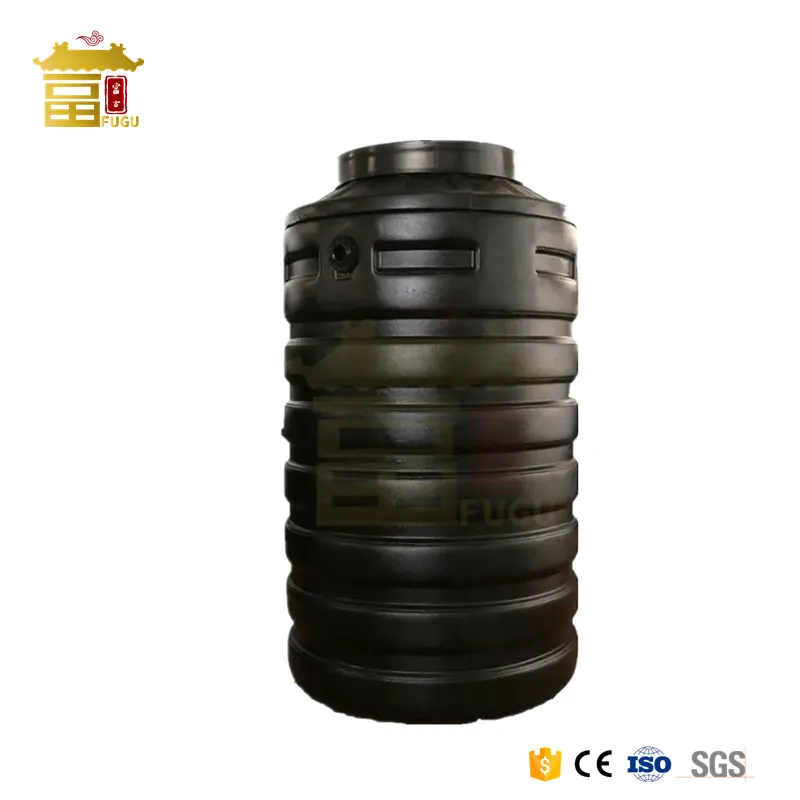

Small Domestic Sewage Treatment Plant

This Purification system is a comprehensive treatment solution for domestic wastewater and sewage from kitchens, bathing, washing, and flushing toilets. It utilizes a high-efficiency bioreactor that degrades sewage through two-step anaerobic, one-step aerobic, and simultaneous denitrification technology. By combining physical, biochemical, and chemical effects, it effectively converts domestic sewage into clean water for reuse.

Technical Specifications

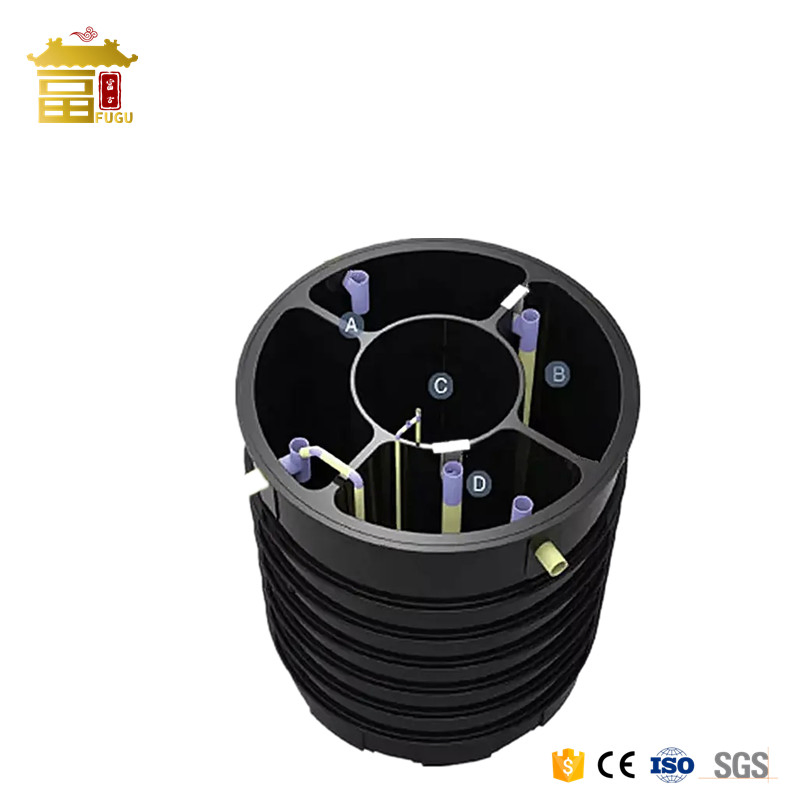

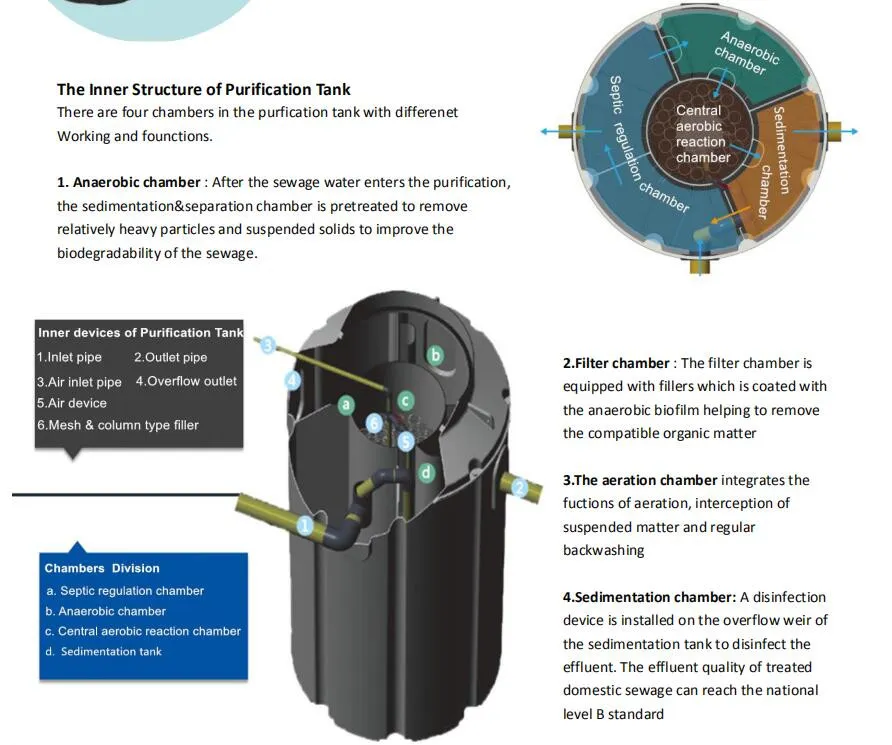

The system features a precipitation separation tank for pretreatment, removing large particles and suspended matter. The pre-filtration tank is equipped with specialized filler to remove soluble organic matter under anaerobic biofilm action. The aeration tank integrates high-speed filtration and regular backwashing, while a disinfection device ensures clean effluent.

Product Name Sewage Purification Tank
Main Material Tank: PP+PE; Pipe system: PE/PVC
Capacity Options 1CBM / 2CBM / 5CBM

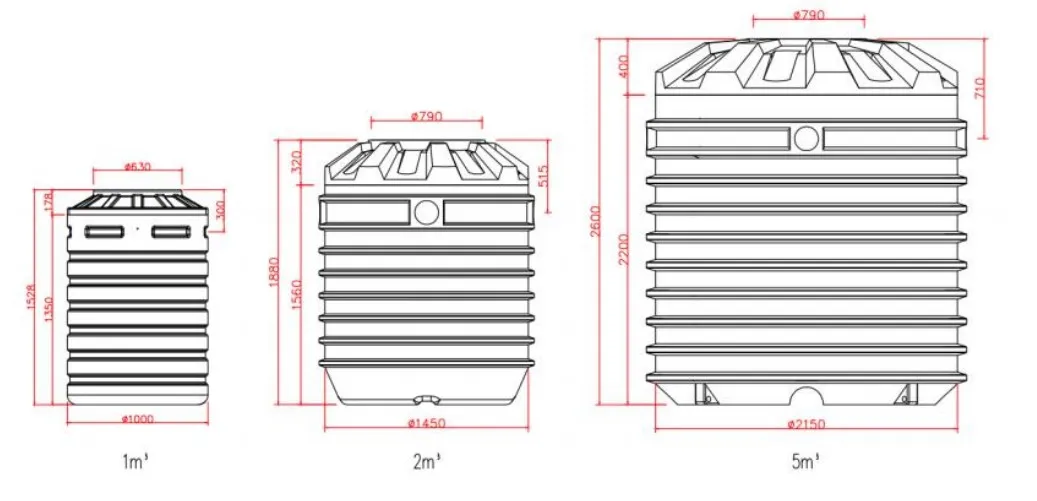

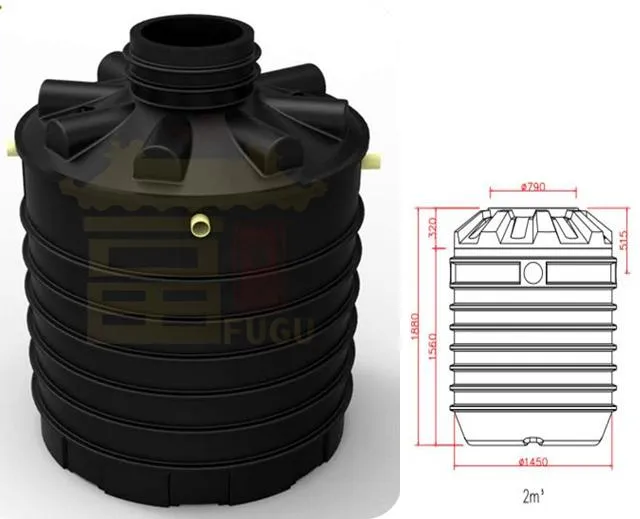

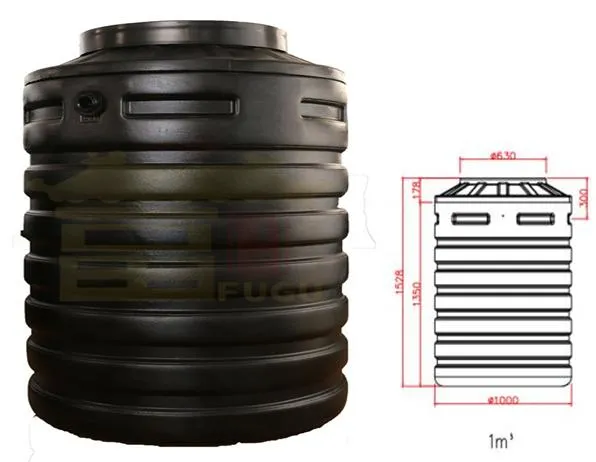

Size (L*W*H) 1000*1000*1528mm / 1450*1450*1880mm / 2150*2150*2600mm
Power 25W ~ 35W
Thickness Single layer ≥6mm
Inspection Hole Inner diameter ≥790mm
Appearance Smooth surface, uniform color, no obvious scratches or holes
Product Features

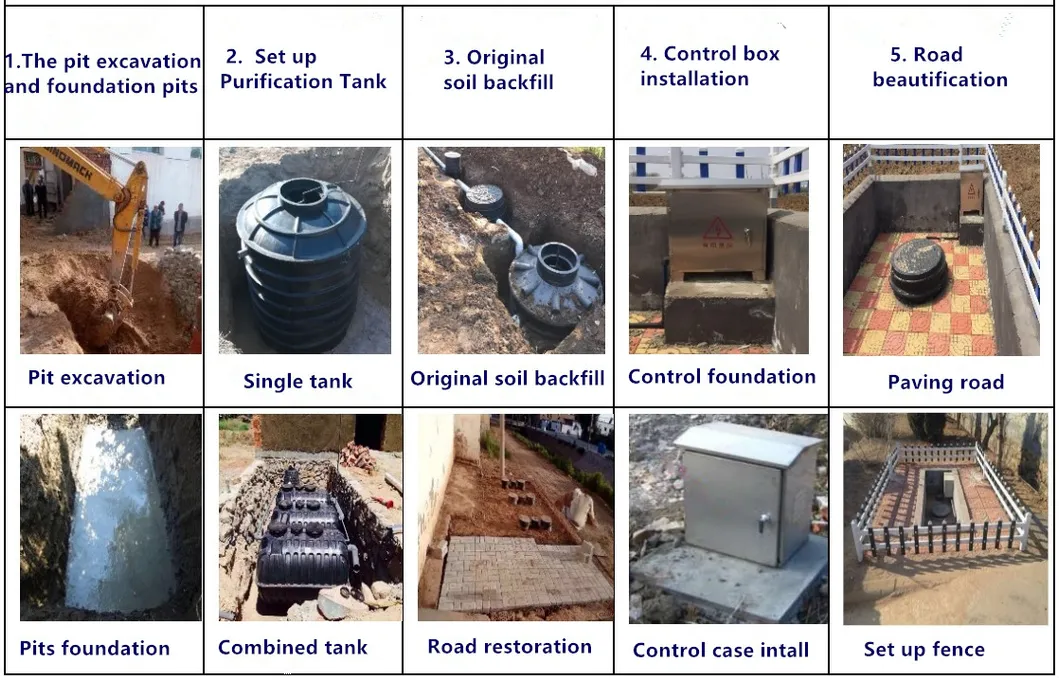

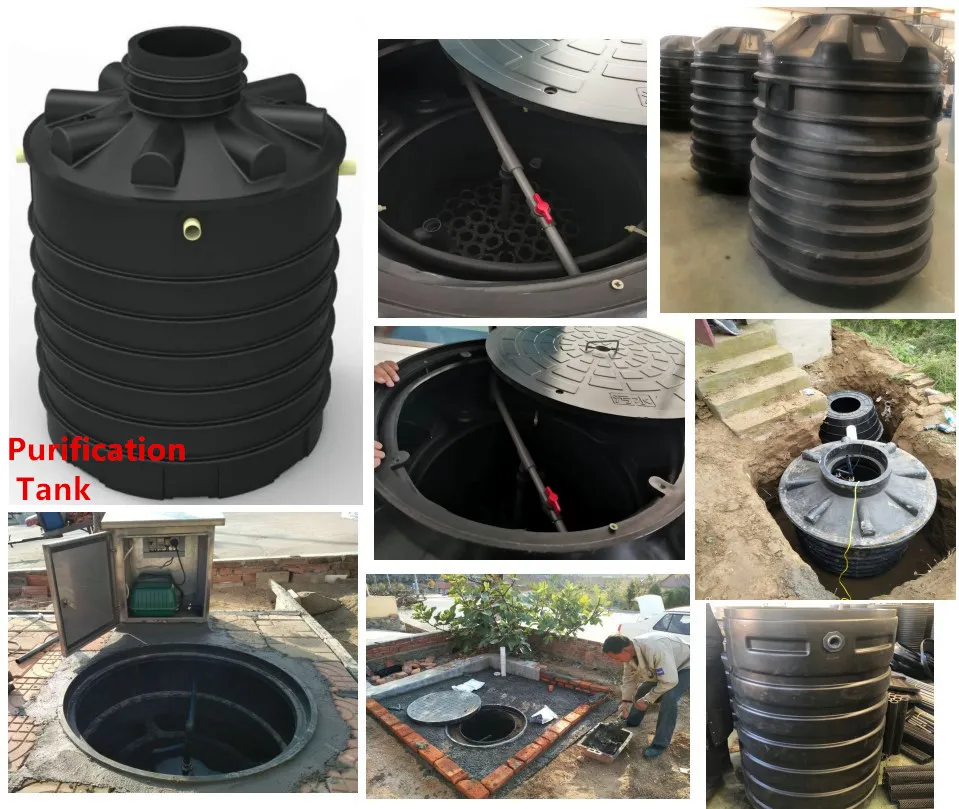

Installation Instructions
Production Capability

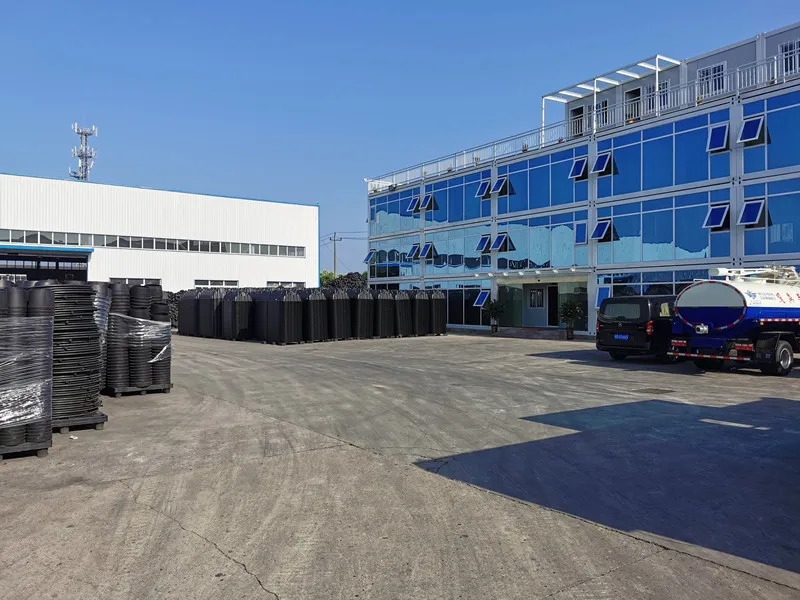

With production sites covering an area of 40,000 square meters, the facility is one of the largest professional manufacturers specializing in plastic septic tanks (0.6CBM-150CBM), drainage ditches, manhole wells, and purification tanks. The operation holds ISO9001, ISO14001, OHSAS18001, SGS, and CE certificates.

Utilizing 25 sets of large injection moulding equipment (ranging from 300T to 4000T), we ensure the manufacture of high-precision and high-quality products. With over 35 specialized technicians and an annual capacity of 1,500,000 sets, we provide a powerful guarantee for large-scale government bids and bulk wholesale orders globally.

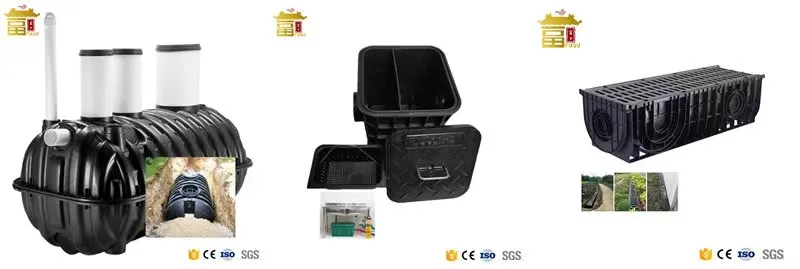

Related Products
Frequently Asked Questions
What materials are used in the purification tank?
The main body of the tank is made of high-quality PP+PE, while the piping system uses PE or PVC materials for maximum durability.
Is the system suitable for underground installation?
Yes, the system is specifically designed for underground installation to save space and maintain environmental aesthetics.
What is the expected service life of the tank?
The purification tank is designed for a service life of at least 10 years under normal operating conditions.
What is the daily treatment capacity?
Depending on the model chosen (1CBM to 5CBM), the daily treatment capacity ranges from 1 Ton to 3 Tons of sewage.
Does the system require a lot of power?
No, the system is very energy-efficient, with power requirements ranging only between 25W and 35W.
What certifications do these products hold?
Our products and production processes are certified by ISO9001, ISO14001, OHSAS18001, SGS, and hold CE certificates.
