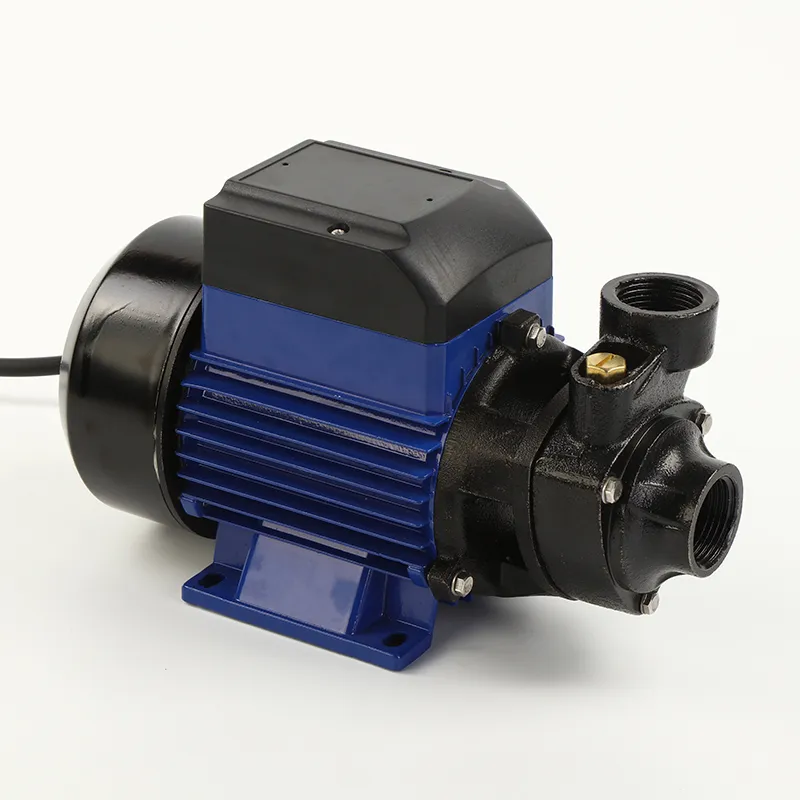

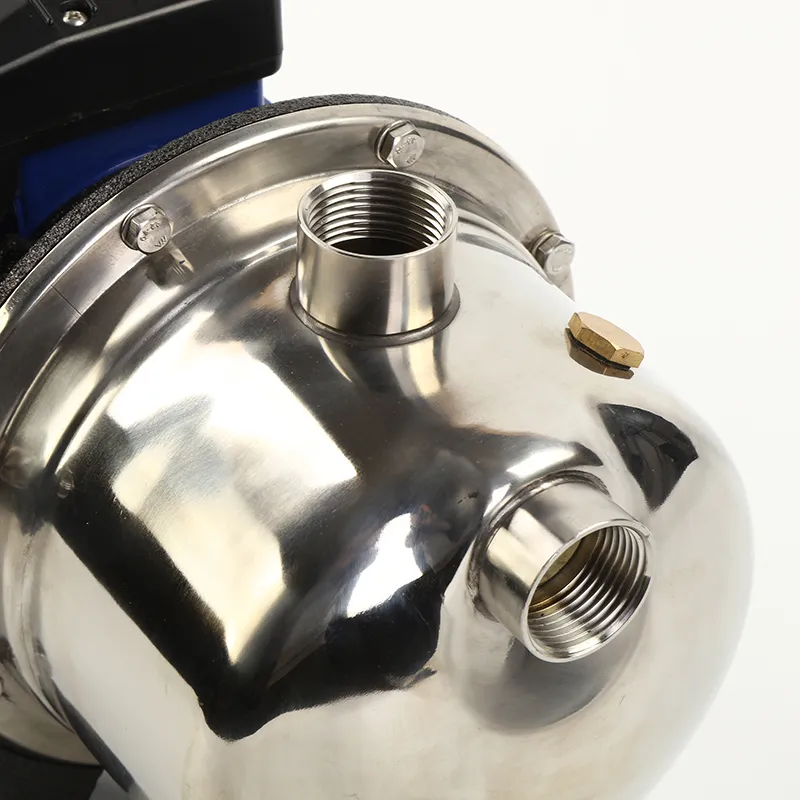

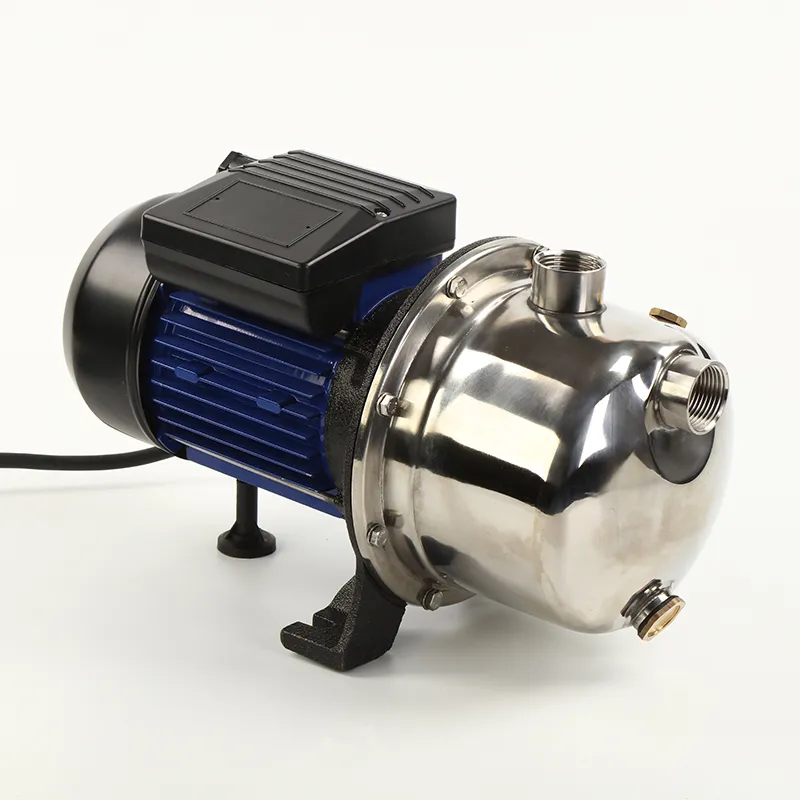

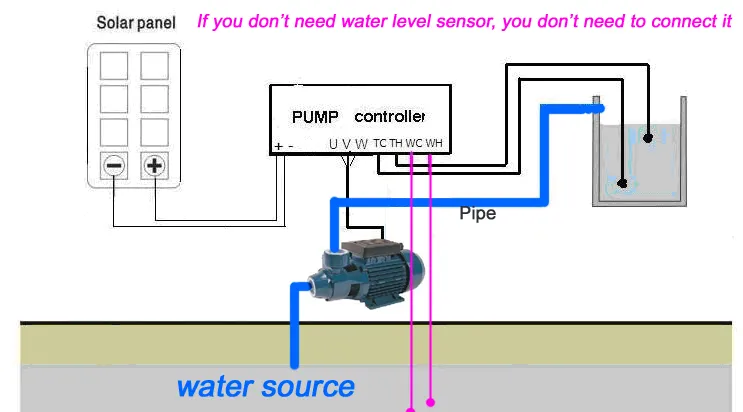

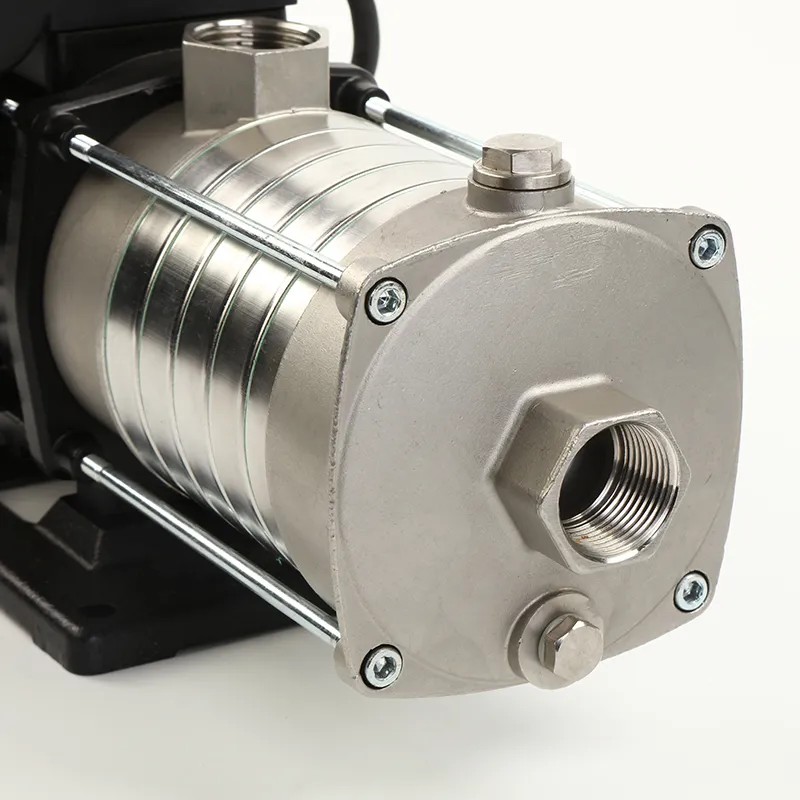

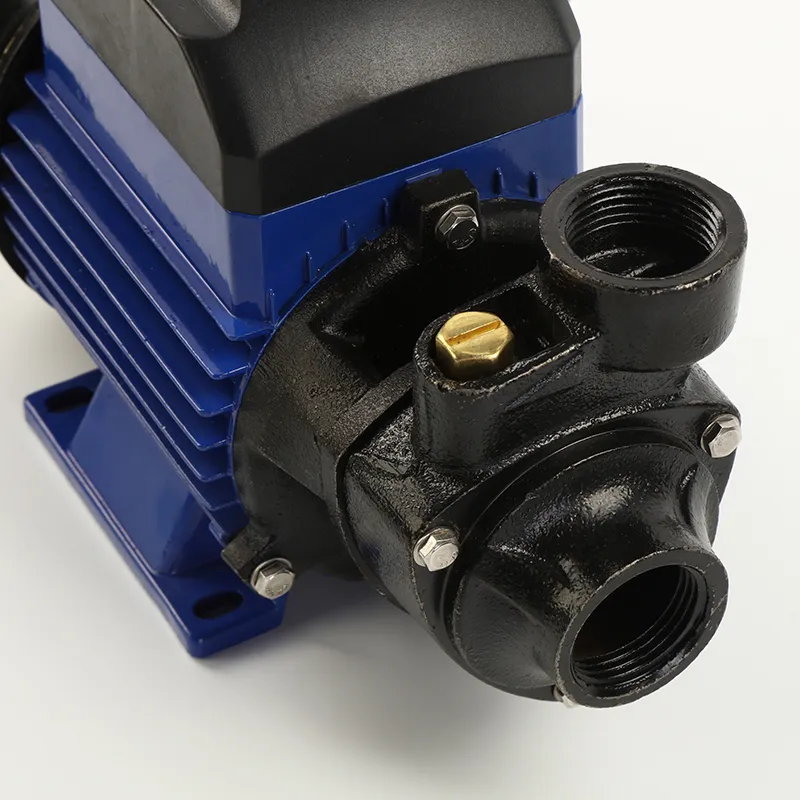

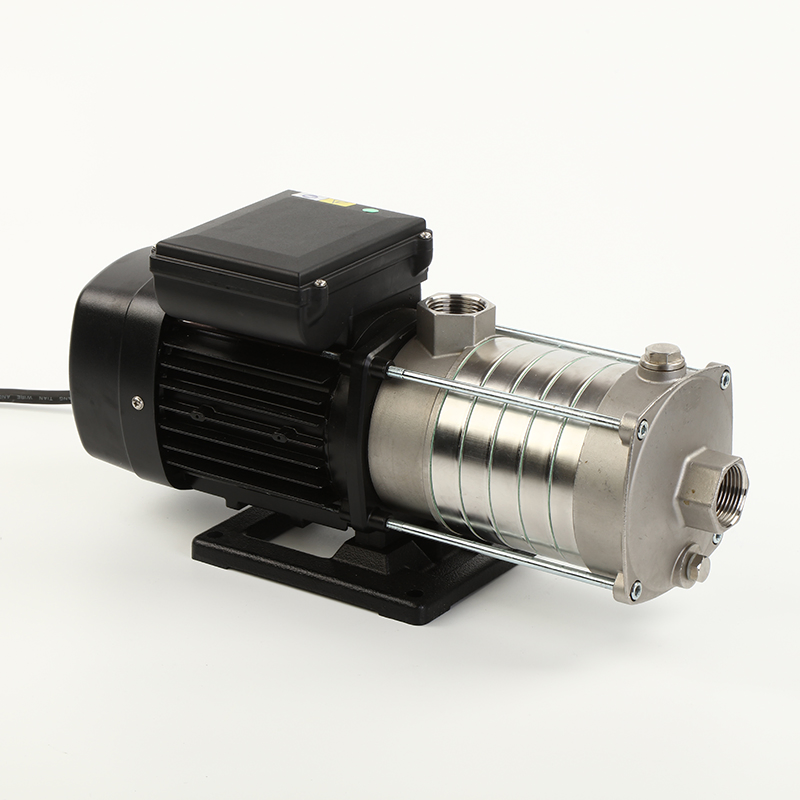

Solar Surface Pump & DC Pressure Booster System

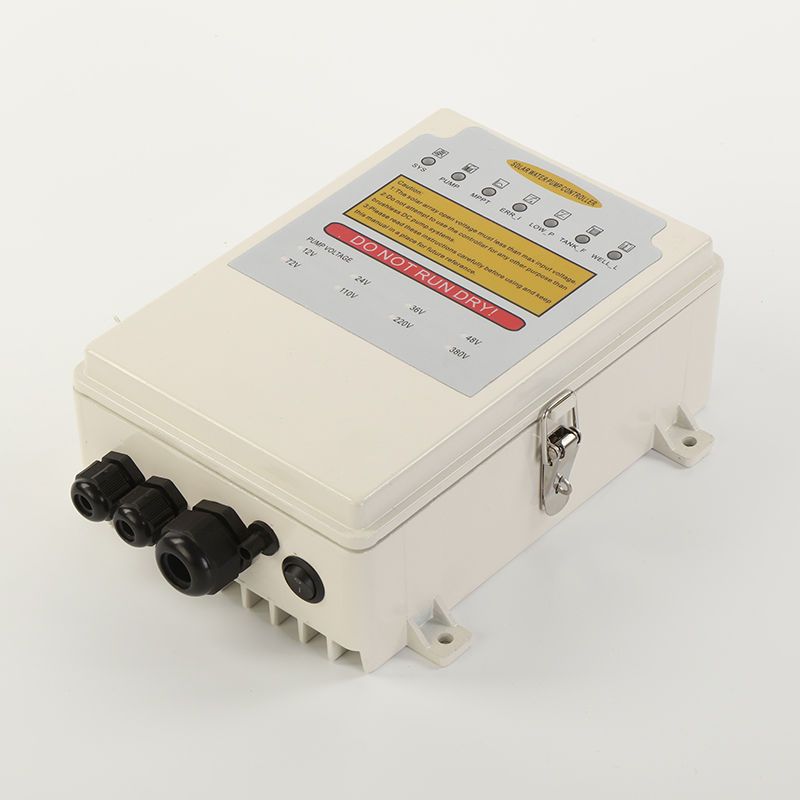

Replacement Policy: If the controller or motor is damaged within 3 years, a new unit will be sent for replacement (free shipping). Spare parts are provided for pump damage within the same period.
1. Application Innovation: Permanent magnetism, DC brushless, and non-sensor motor improve efficiency by 25% compared to traditional AC machines.
2. Technics Innovation: High reliability, cost-efficient pumping, and extended life expectancy.

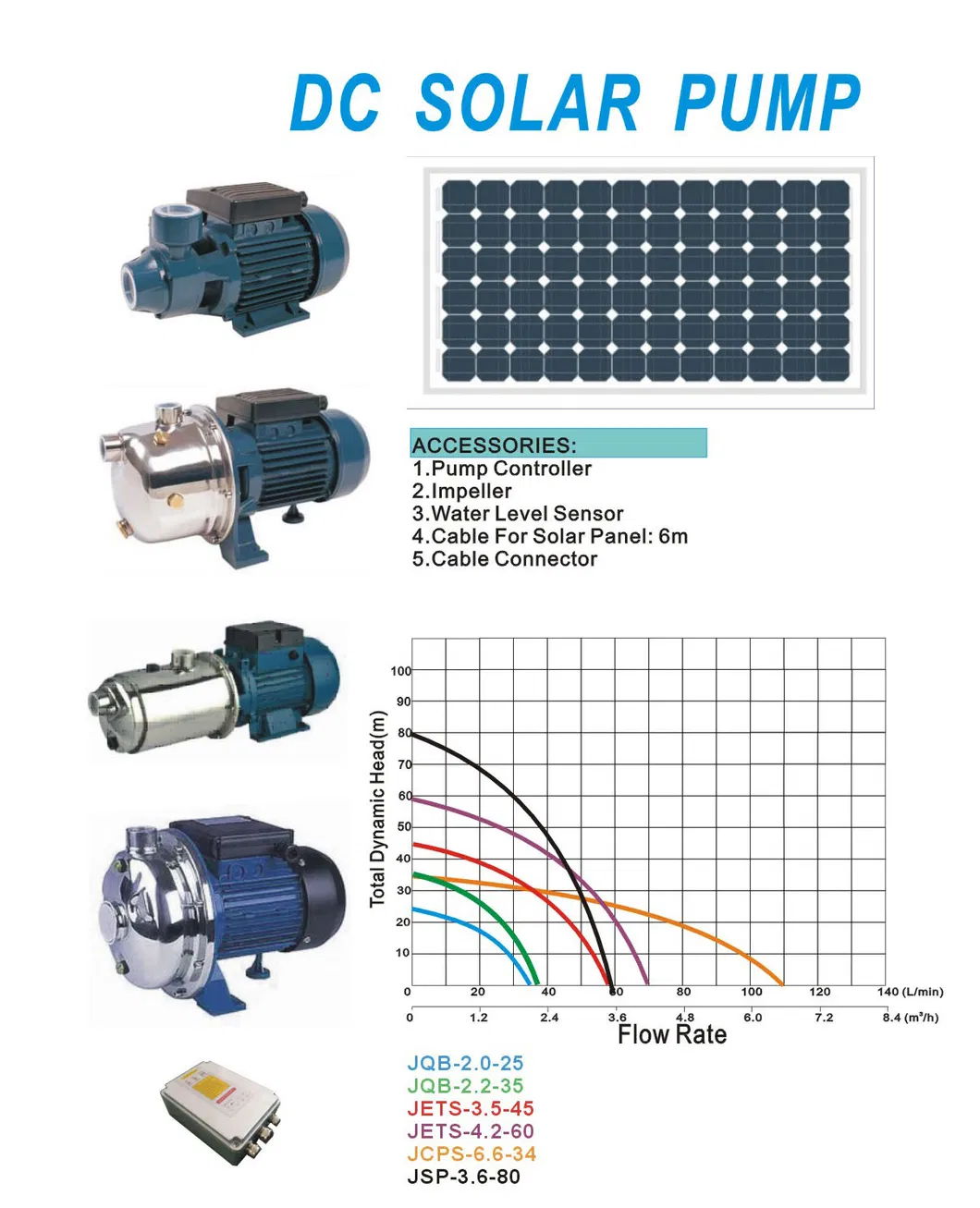

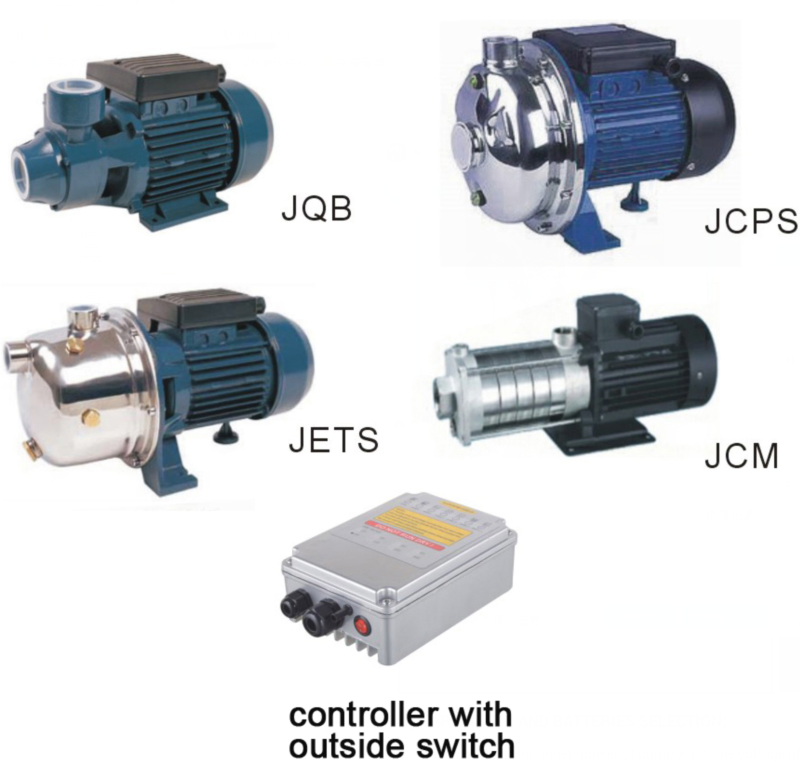

| TYPE | VOLTAGE (V) | RATE POWER (W) | MAX FLOW (m³/h) | MAX HEAD (m) | OUTLET SIZE (in) |
|---|---|---|---|---|---|
| JQB-2.0-25 | 24 | 120 | 2 | 25 | 1" *1" |
| JQB-2.2-35 | 36 | 210 | 2.2 | 35 | 1" *1" |
| JETS-3.5-45 | 48 | 550 | 3.5 | 45 | 1" *1" |
| JETS-4.2-60 | 72 | 1000 | 4.2 | 60 | 1" *1" |
| JCPS-6.6-34 | 72 | 1000 | 6.6 | 34 | 1.25*1" |
