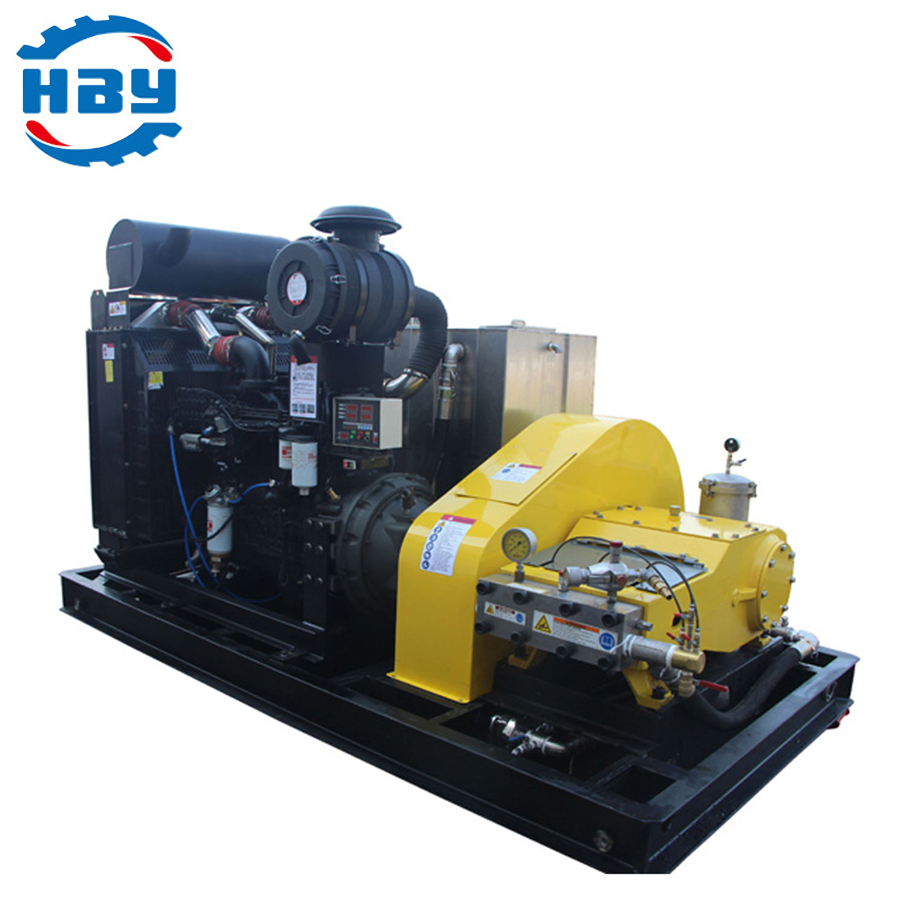

1500bar DN2000 Submarine Pipeline Surface Cleaning System Wholesale Price

1 / 5

1500bar DN2000 Submarine Pipeline Surface Cleaning System Wholesale Price

Type:	High Pressure Water Jets
Feature:	High Pressure
Certification:	CB, CE

Send Inquiry

Product Description

Technical Specifications

Model NO.

SP850

Condition

New

Customized

Non-Customized

Pressure

<1500bar

Applications

Surface or Tube Cleaning

Size

DN 500-2000mm

Package

Wooden Case

Trademark

HBY

HS Code

8413302100

Capacity

50 Sets/Month

Introduction

800-1500bar DN500-2000 Submarine Pipeline Surface Cleaning Machine

We are a leading manufacturer in the water blasting and jetting industry. For machines under 1000bar, all main parts are manufactured in-house. For equipment exceeding 1000bar (including standard 15000psi, 20000psi, and 40000psi models), we collaborate with German and US engineering teams to provide high-performance solutions with optimized delivery times.

● Surface prep & cleaning

● Pipeline cleaning

● Vessel & Undersea cleaning

● Stone & Water jetting cutting

● cooling tower & Chimney cleaning

● Fuel tank & Floor cleaning

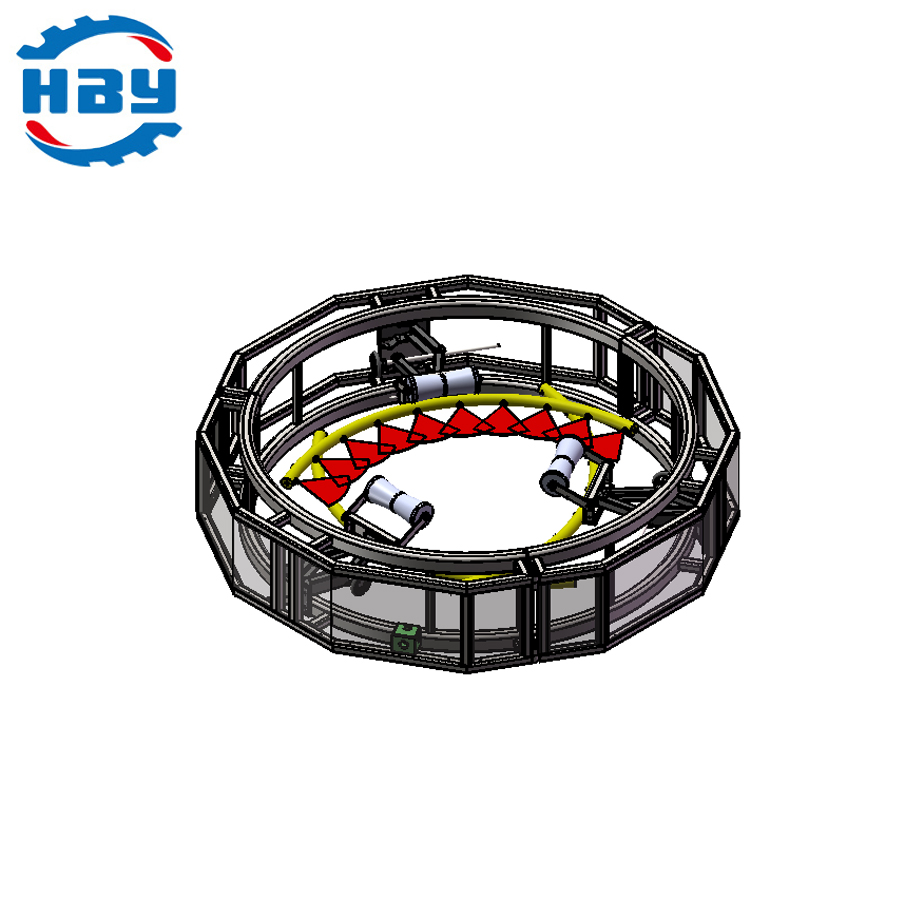

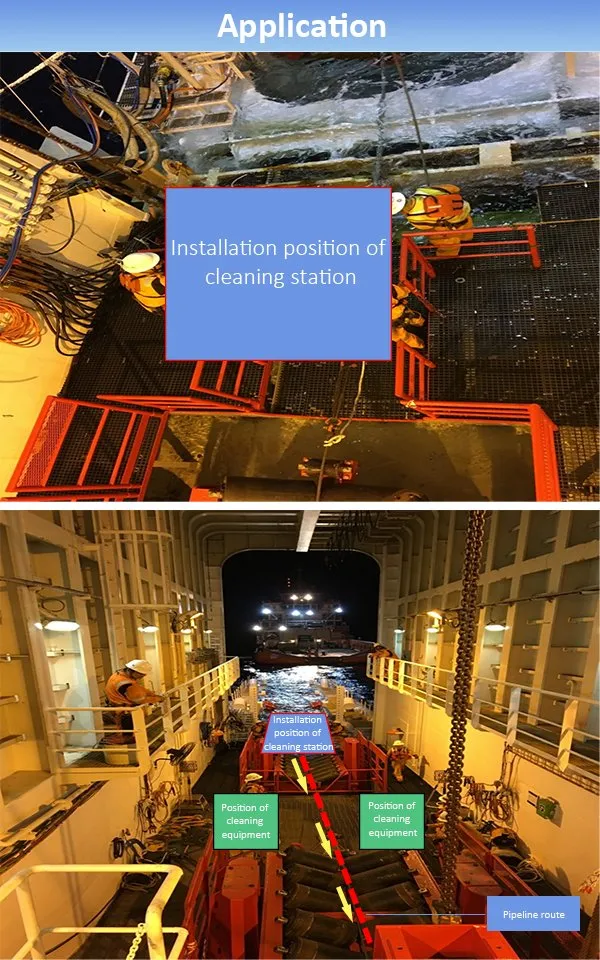

Submarine Pipeline Surface Cleaning System

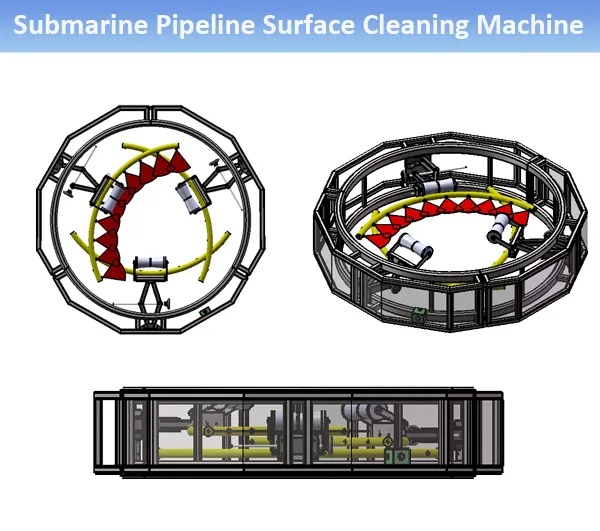

Submarine Pipeline Surface Cleaning Machine

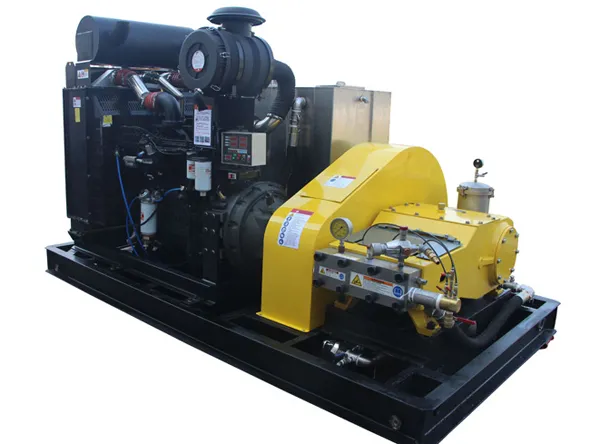

Diesel Engine Driving

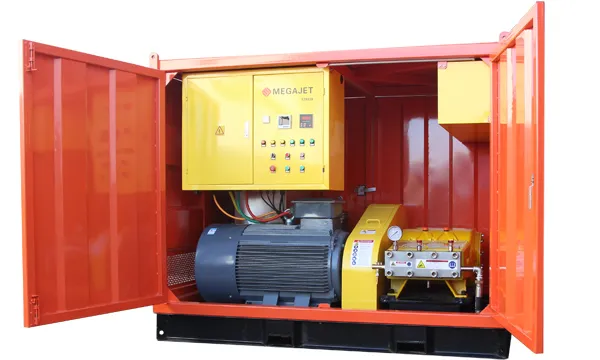

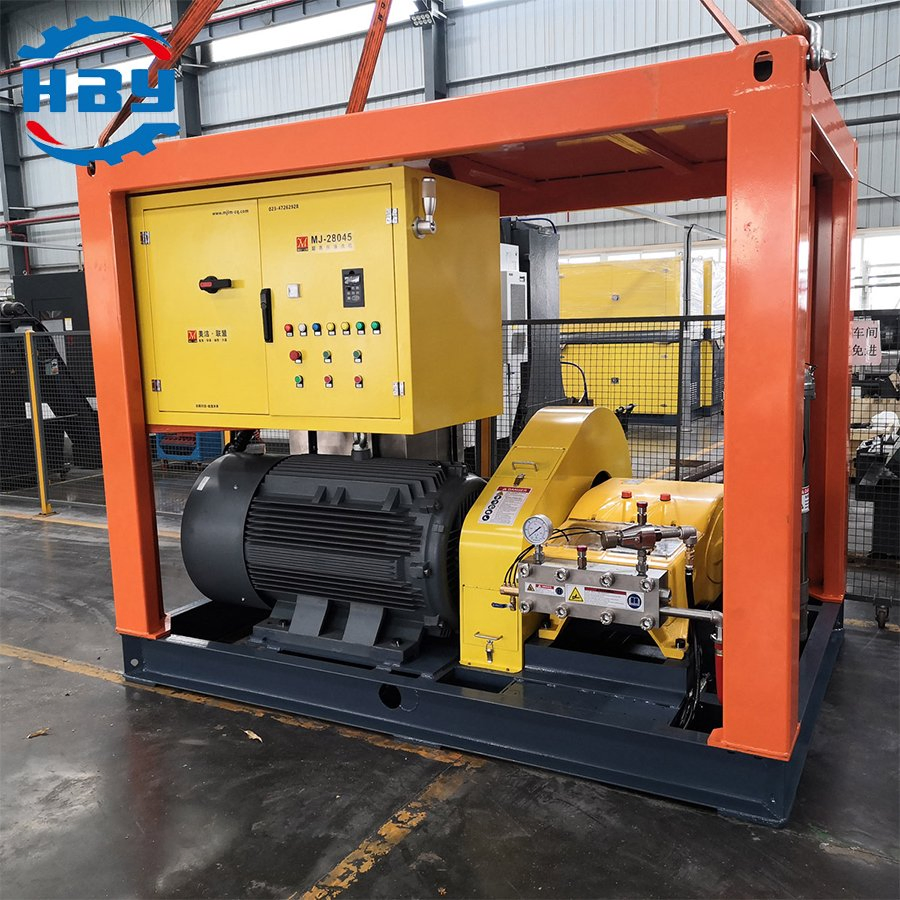

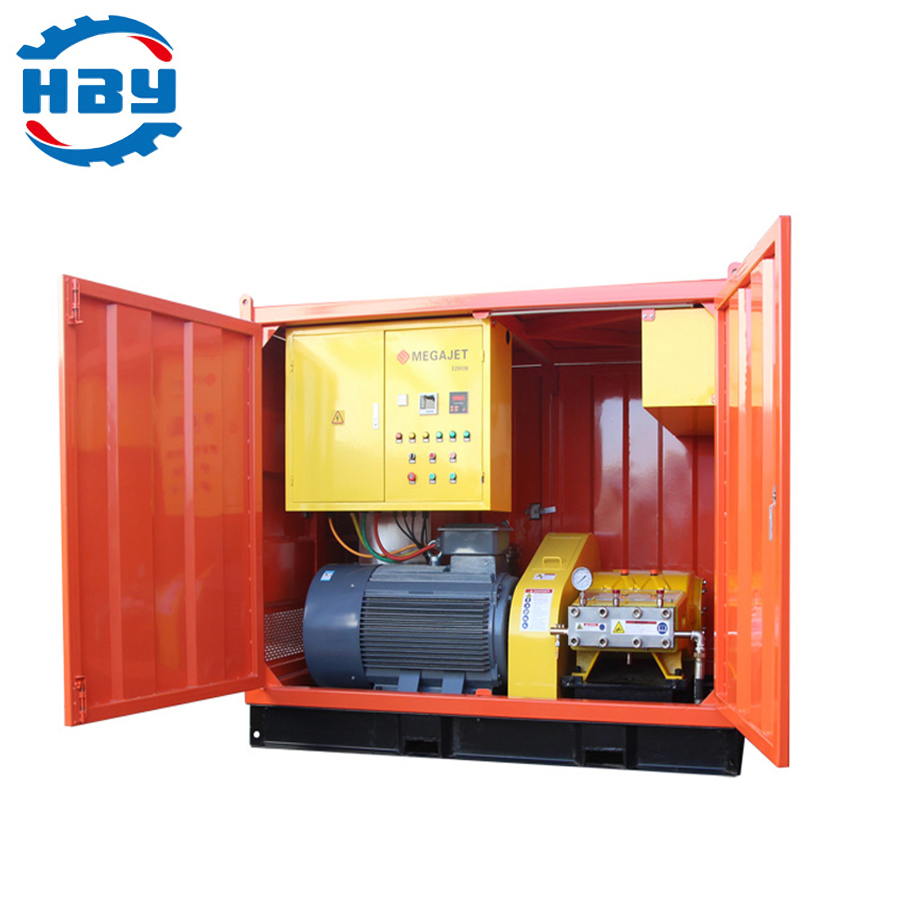

Electric Motor Driving

Main Specifications

Item	Descriptions
Typical Fixing Method	Skid, Trailer, Container or Customized
Driving Method	Motor, Diesel Engine or Gasoline Engine
Standard Flow Rate	25L/min-125L/min
Input Power	60Kw/75HP-350Kw/420Hp
Gun Type	Dump Style, Shut-in Style or Foot Gun
HP Hose	600bar - 3500bar
Nozzle Type	Rotary, Banshee, Tornado, etc.
Plunger Size	#6, #7, #8, #9, #10, #11

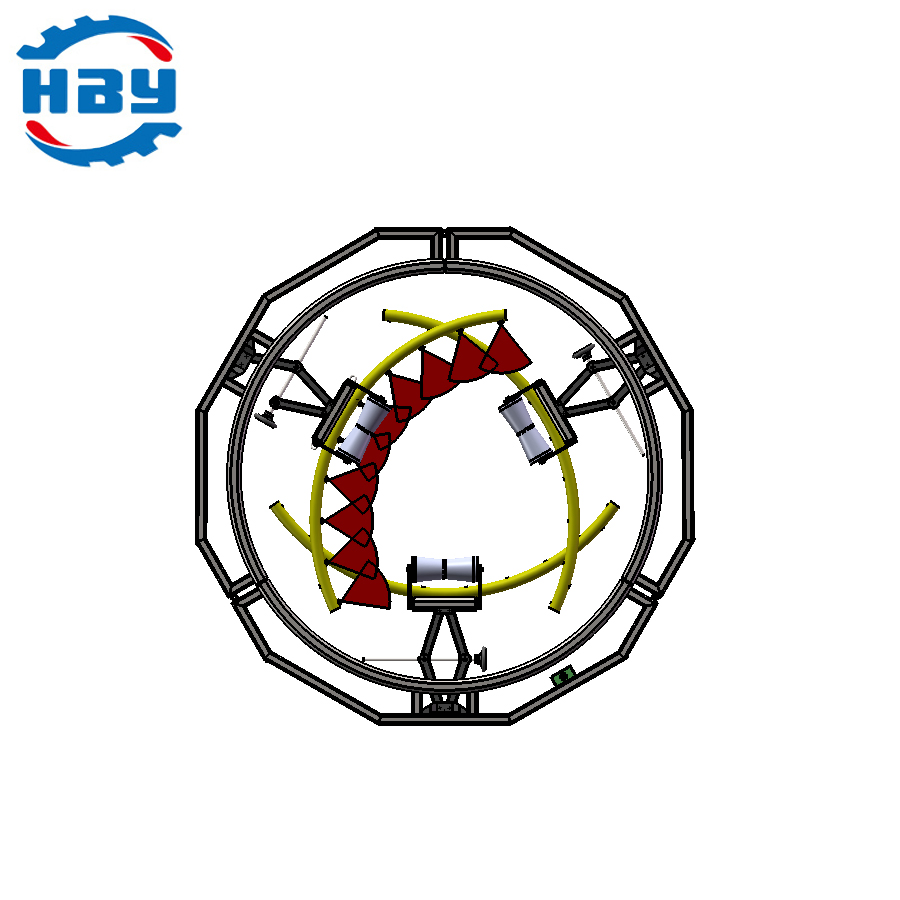

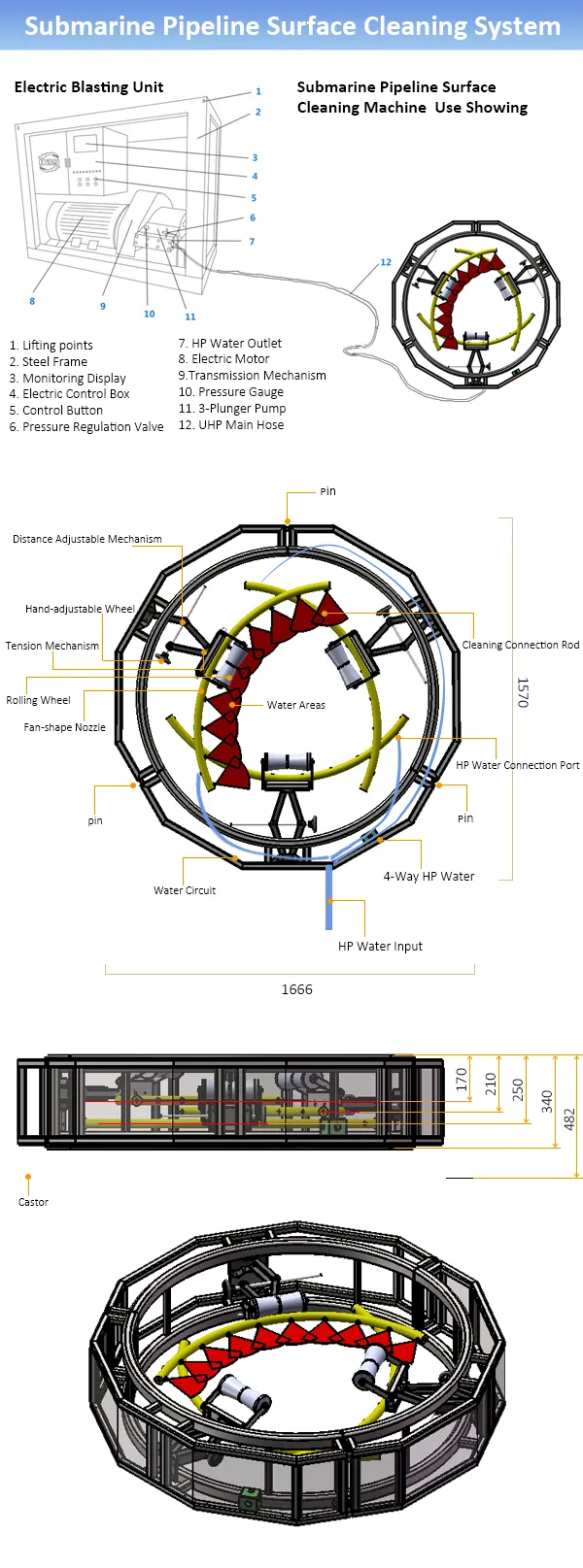

Marine Growth Removing Mechanism

Distance Adjustable Mechanism: Hand-controlled jack with 100-350mm adjustable range, suitable for 20-40 inch pipeline diameters.
Nozzle Precision: Fan-shape nozzle hole diameter of 1mm with an optimal cleaning distance of 150mm.
Tension Mechanism: Consists of rolling wheels and stretching springs to secure the pipeline during cleaning.
Flow Distribution: High-pressure water is distributed through 4-way valves to 3 specialized connection rods.
Non-Interference Design: The mechanism uses 3 separate branches layered to prevent interference when adjusting for different diameters.

Frequently Asked Questions (FAQ)

Q1: What is the maximum pressure range for this cleaning machine? A: The machine operates within a high-pressure range of 800bar to 1500bar, suitable for heavy-duty industrial cleaning.

Q2: What pipeline sizes are compatible with the SP850? A: It is designed for submarine and industrial pipelines ranging from DN500mm up to DN2000mm.

Q3: What driving options are available for the UHP water cleaning machine? A: Customers can choose between Electric Motor driving, Diesel Engine driving, or Gasoline Engine options based on site requirements.

Q4: Can the cleaning distance be adjusted for different pipe diameters? A: Yes, the machine features a hand-controlled jack that allows distance adjustment between 100mm and 350mm.

Q5: What are the primary industrial applications for this equipment? A: It is widely used for marine growth removal, surface preparation, vessel cleaning, and pipeline maintenance in various industrial fields.

Q6: What nozzle types can be used with this system? A: The system is compatible with several nozzle types, including Rotary, Banshee, and Tornado nozzles, ensuring versatile cleaning performance.
