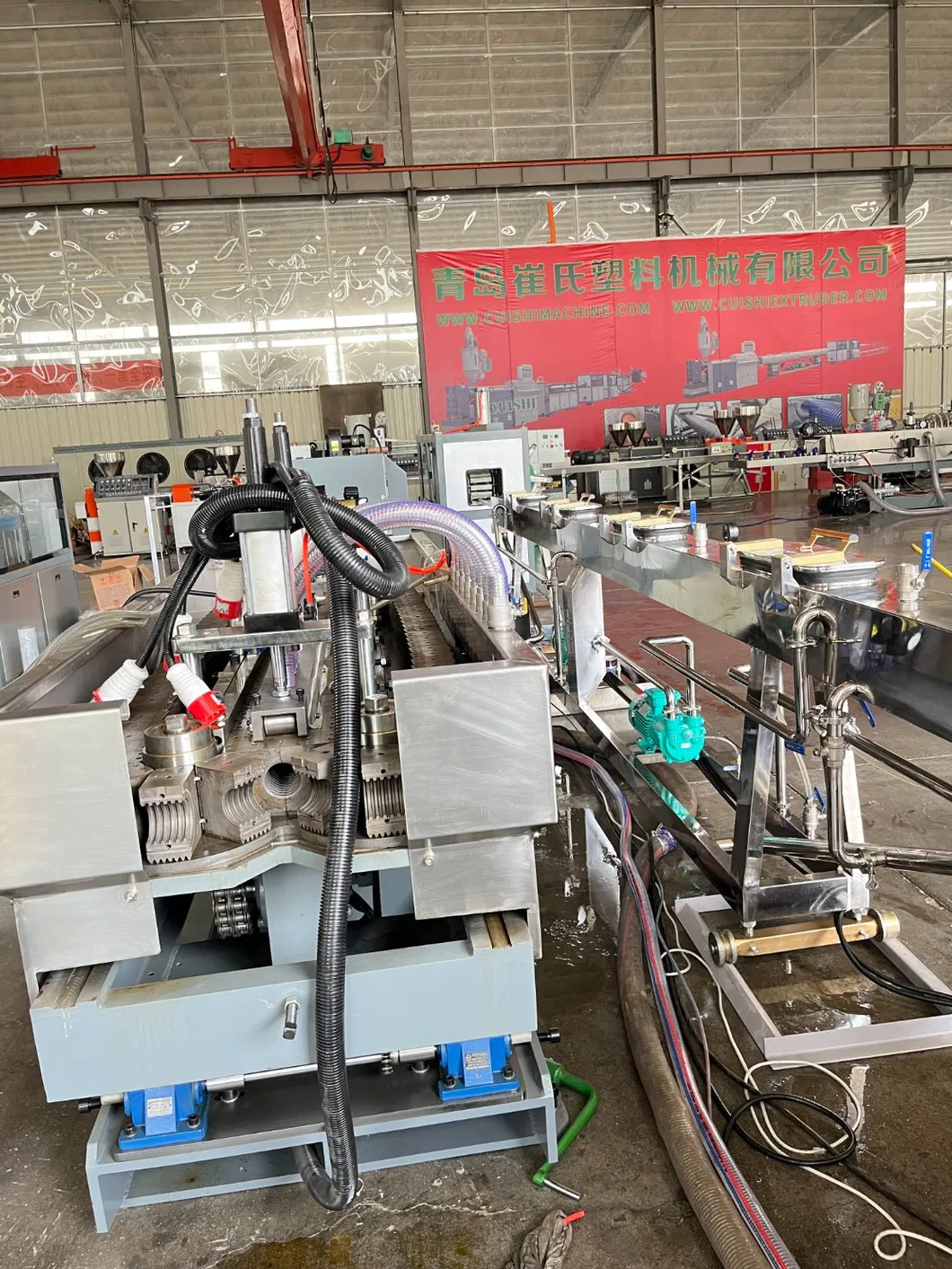

Three-Layer Pert Pipe Extrusion Line High-Speed Floor Heating Pipe Extrusion Production Equipment

1 / 5

Three-Layer Pert Pipe Extrusion Line High-Speed Floor Heating Pipe Extrusion Production Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:sj75/30 single screw extruder

Screw No.:Single-screw

Automation:Automatic

Computerized:Computerized

Certification:ISO9001:2008, SGS

Condition:New

After-sales:1 Year

Raw Material:Pert PPR

Pipe Diameter:16.20.25mm

HS Code:8477800000

Product Description

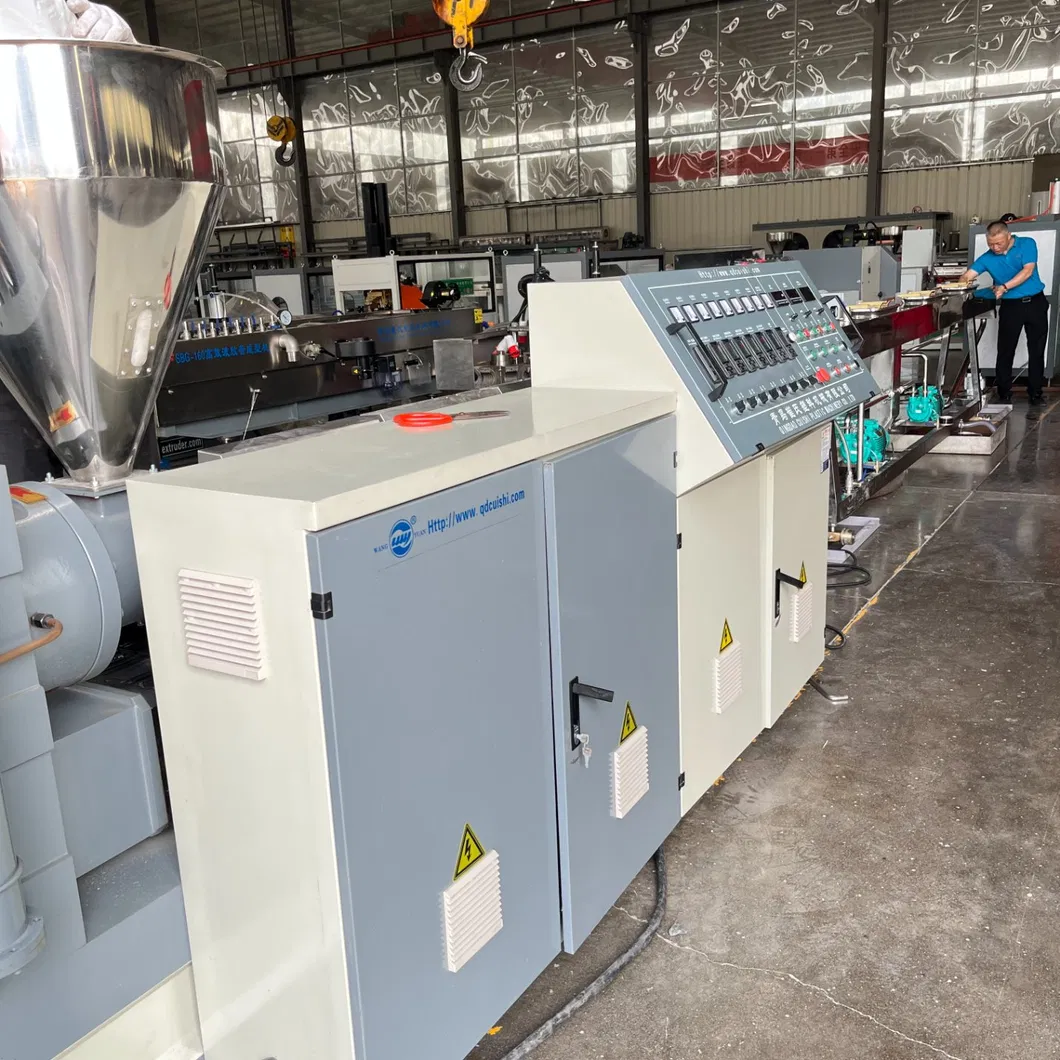

PPR PERT PEX Cool and Hot Water Pipe Extrusion production line plastic underground hot water pipe making machine

Plastic PE PP PPR Extruder Machine, Single Screw Extruder. 20-110mm PE/PPR/PERT plastic water pipe extrusion production line / machine.

This equipment is designed and produced as a physical factory that integrates scientific research and production. We specialize in producing plastic pipe production lines, including single wall corrugated, double wall corrugated, and city supply drainage pipes. Our professionalism ensures a high focus on quality and turnkey engineering performance.

Key Applications

PP-R Hot & Cold water supply pipe
Building heating systems (floor, wall, radiating)
Central air conditioning system pipes
Industrial liquids transportation pipe
Municipal water supply, water drain, and gas supply
Urban and rural drinking water pipelines
Agricultural irrigation and electrical power cable protection

Features & Advantages

The Large Diameter HDPE/MDPE Pipe Extrusion Line features a unique structure, easy control, high automation, and stable performance. Pipes produced have moderate rigidity, strength, flexibility, anti-rot, and anti-stress split properties.

Technical Specifications (Extruder)

Item	Value
Application	PIPE Production
Plastic Processed	PE/PP/PPR/PPRC
Output (kg/h)	100kg/h - 1000kg/h
Screw Material	38CrMoALA
Screw Speed	38rpm
Screw L/D Ratio	33:1

Main Technique Parameters

Model	Pipe Diameter	Marking Line	Output Capacity
SJ65/30	16-63mm	SJ30	100kg/h
SJ75/33	75-110mm	SJ30	200kg/h
SJ90/30	110-250mm	SJ30	200-250kg/h
SJ120/30	450-800mm	SJ45	500-700kg/h

Production Line Components (Φ20-63mm)

No.	Machine Name	Model	Qty.
1	Auto-loader	ZJ200	1 set
2	Hopper Dryer	75 KG	1 set

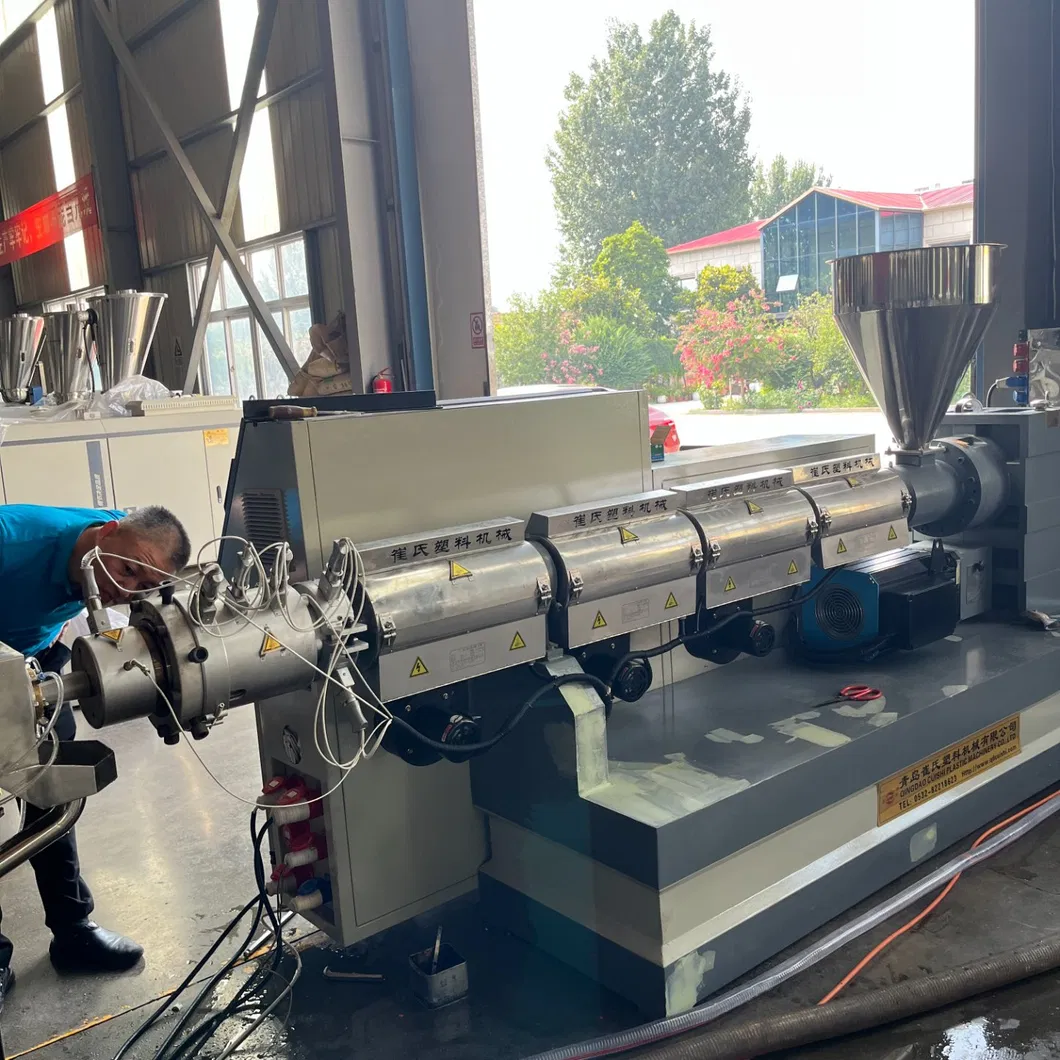

3	Single Screw Extruder	SJ75/33, 55 KW	1 set
4	Co-extruder	SJ25/25	1 set
5	Vacuum Calibration Tank	Φ110x9m	1 set
6	No-dust cutter	3kw SERVO MOTOR	1 set

Additional Equipment Standards

Mode	L/D Ratio	High Output	Main Motor
SJ45/30	30:1	28kg/h	11kw
SJ65/30	30:1	70kg/h	30kw
SJ90/30	30:1	150kg/h	75kw
SJ120/30	30:1	220kg/h	110kw

Frequently Asked Questions (FAQ)

Q1: What materials can this extrusion line process? A: This machine is widely applicable for HDPE, MDPE, PERT, PP, PPR, PPR-FIBER, PB, PS, ABS, and HMW-PE pipe production.

Q2: What is the output capacity of the production line? A: The output capacity ranges from 100kg/h to over 1000kg/h, depending on the specific model (SJ65 to SJ120) and pipe diameter.

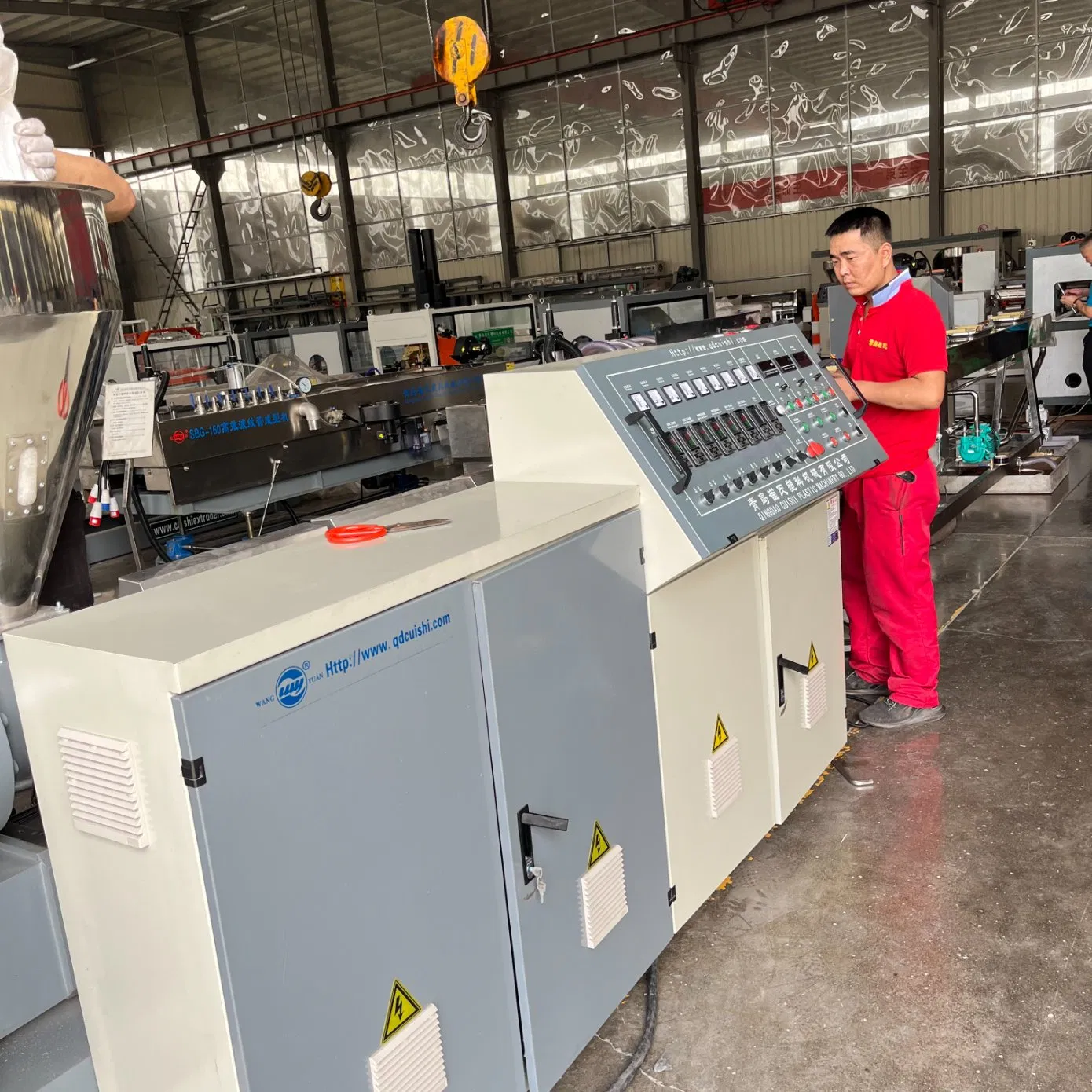

Q3: Does the machine support automatic control? A: Yes, it features a Siemens PLC touch screen system to control the entire line, including auto-loaders and weight measurement systems.

Q4: What diameter pipes can be produced? A: Standard models cover diameters from 16mm up to 800mm, with specific solutions for 20-110mm and 20-160mm high-efficiency needs.

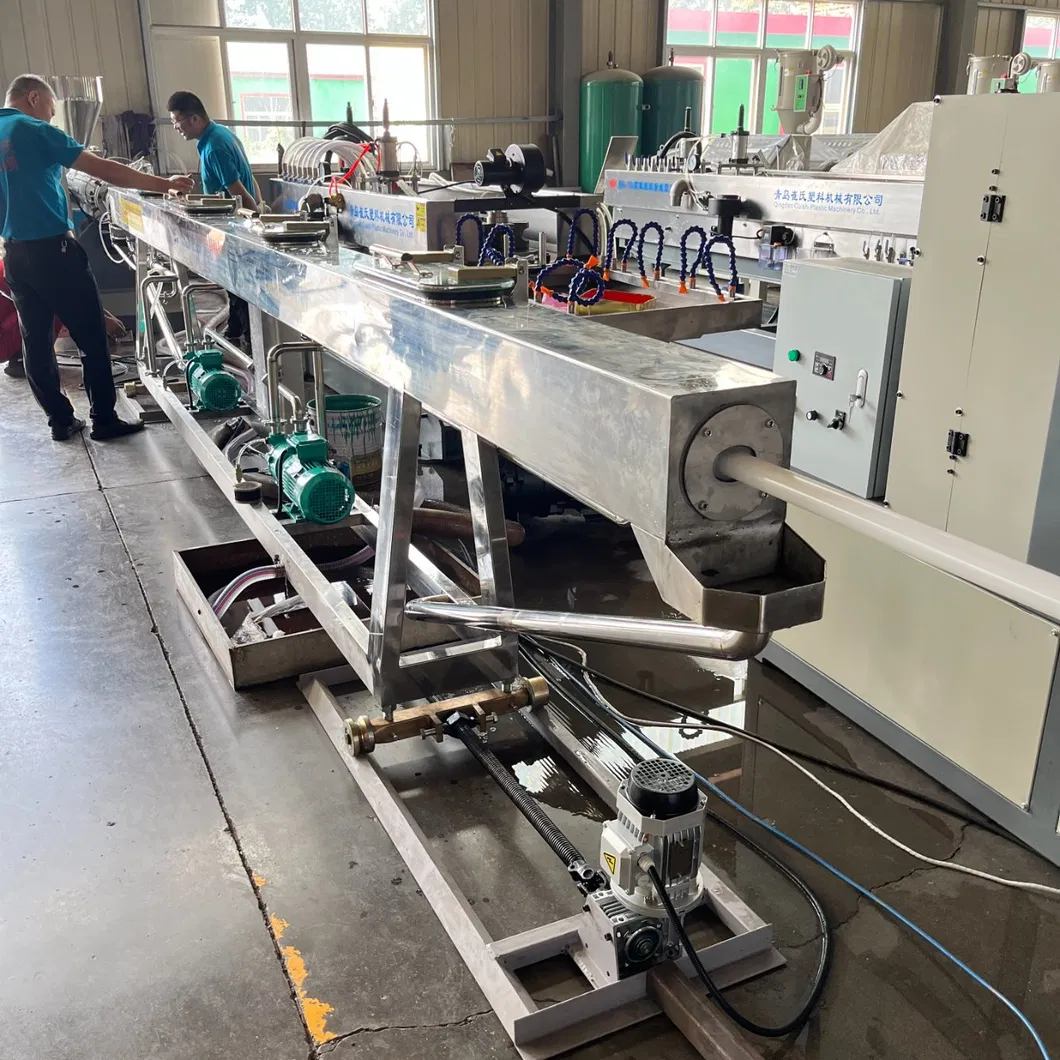

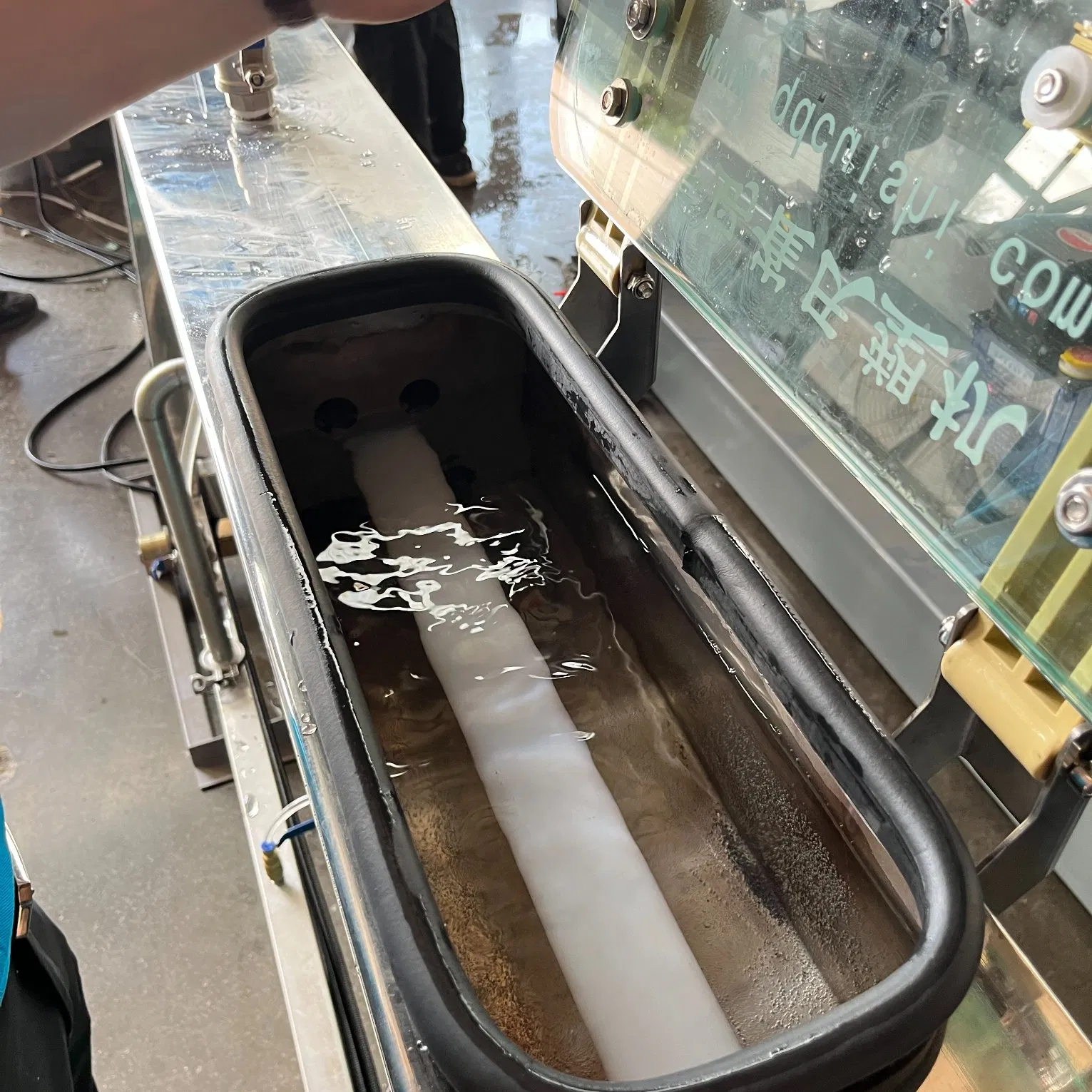

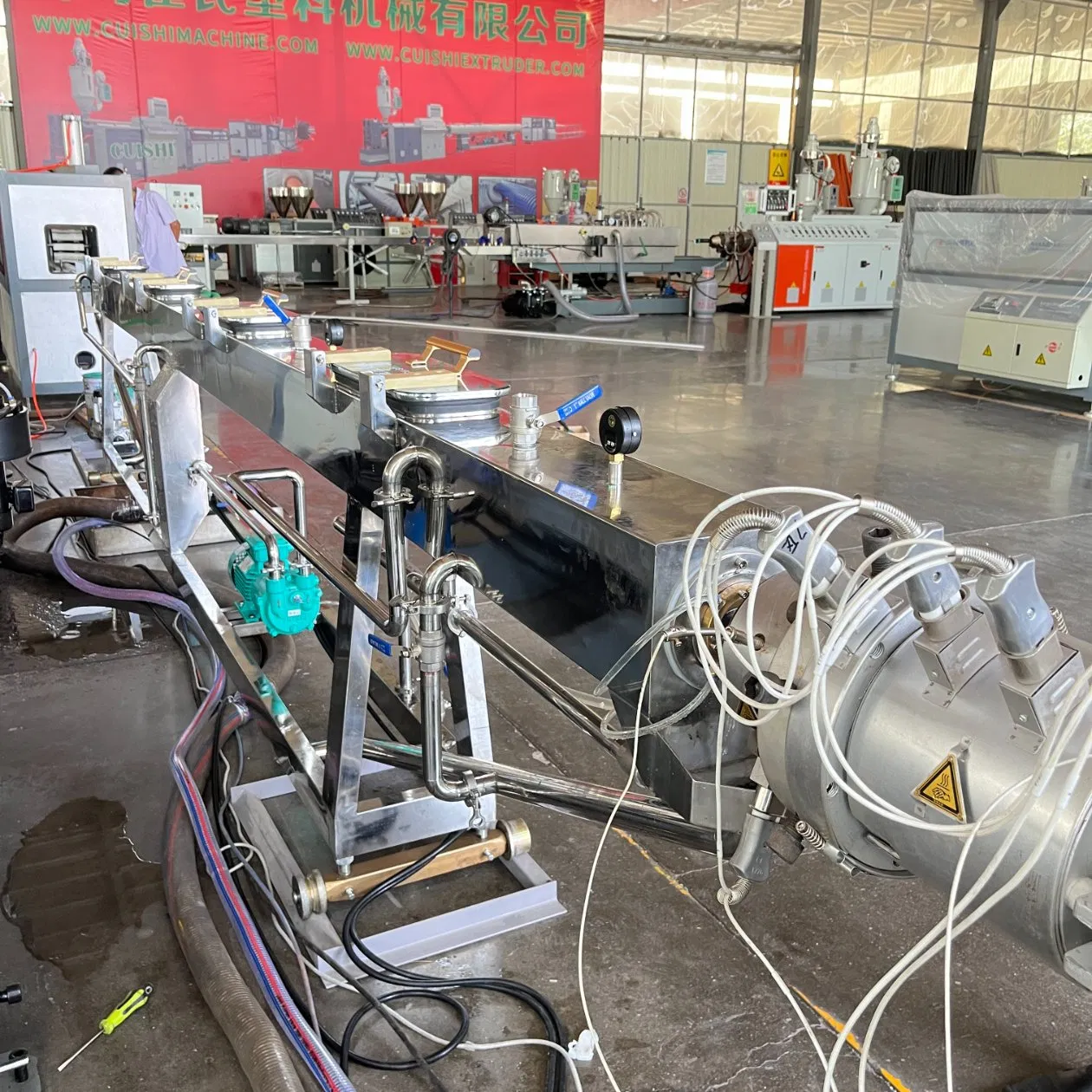

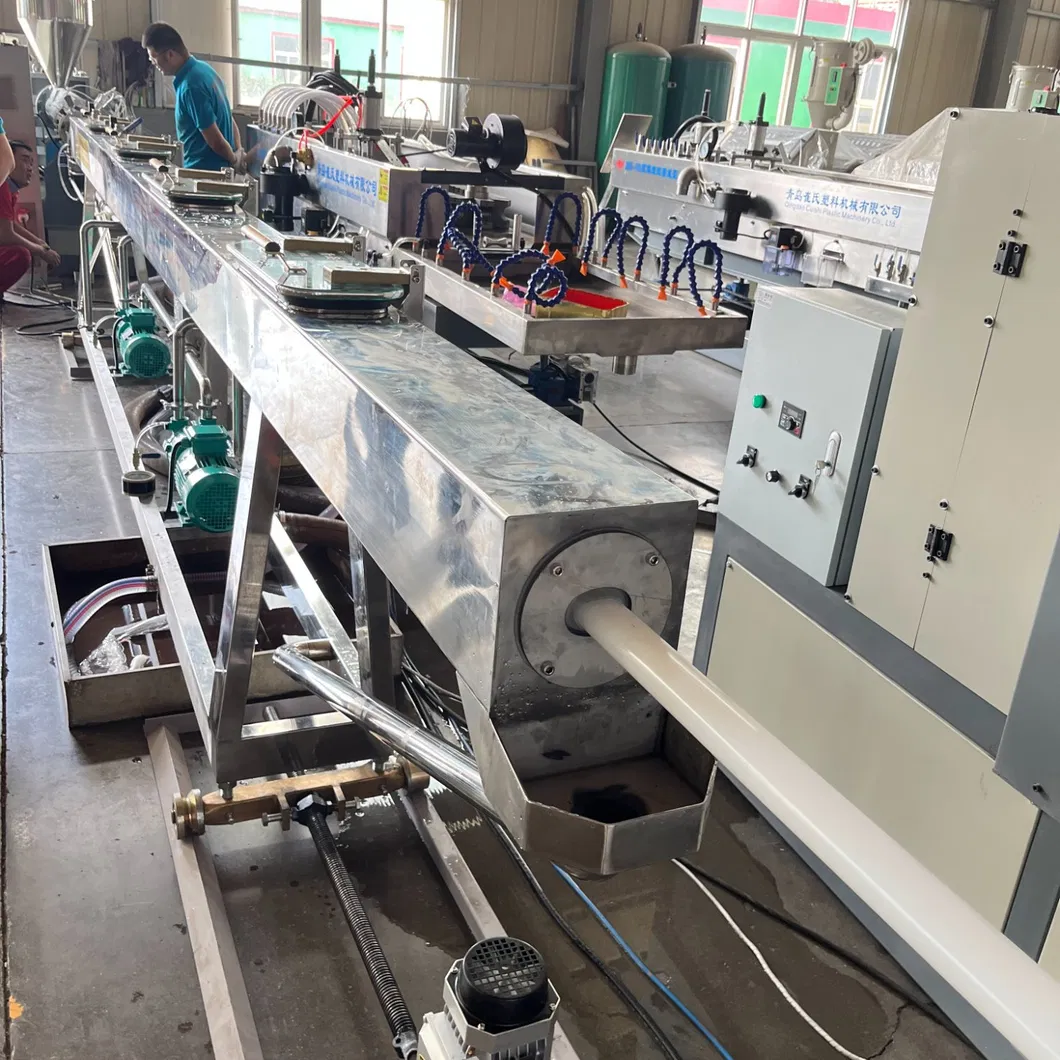

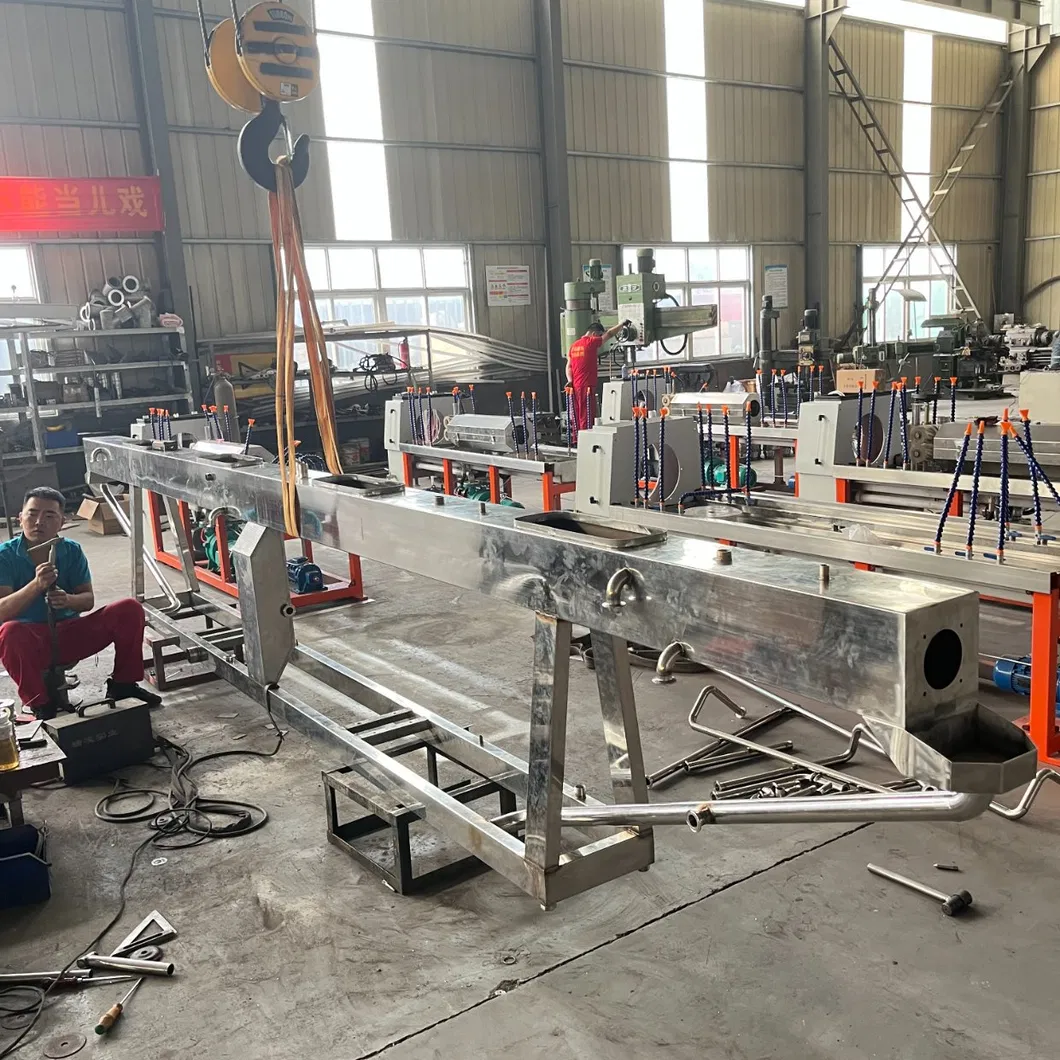

Q5: What are the main features of the vacuum calibration tank? A: The tank body is made of high-quality stainless steel and ensures high-speed, accurate sizing for various pipe materials.

Q6: What is the warranty and after-sales service? A: We provide a one-year free warranty, lifelong maintenance, debugging support, and technical training for personnel.
