Touchless Car Wash Equipment for Effective and Gentle Cleaning Solutions

1 / 5

Touchless Car Wash Equipment for Effective and Gentle Cleaning Solutions

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

📊 Basic Info.

Model NO.:FAT-03

Type:Self-Service

Application:Basement Parking

Fuel:Electric

Cleaning Process:Cold Water Cleaning

Certification:CE, RoHS, CB

Feature:Sudsing / Foaming

Material:Metal

Input Voltage:380 V 50 Hz

Maximum Power:16 Kw

Water Consumption:80-120 L

Production Capacity:500 Sets/Year

📦 Packaging & Delivery

Package Size:750.00cm * 160.00cm * 145.00cm

Gross Weight:2000.000kg

📝 Product Description

Main Features

This system features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. Suitable for various professional cleaning environments with a focus on durability and efficiency.

Touch free automatic cleaning to avoid scratches.
360° rotary nozzle design with 90 kg/cm2 high pressure.
Ultrasonic testing and PLC touch screen operating system.
Stainless steel material for corrosion resistance.

Basic Equipment Parameters
Project Description	Basic Parameters	Mode Configuration	Standard/Optional
Frame Mounting Length	6500mm~7500mm	Standard Mode	√
Frame Mounting Width	≥3600mm	Chassis Flush	√
Frame Mounting Height	≥3000mm	Rotating Smart Flush	√
High Pressure Pump Power	15kw~22kw	Tire Washing	√
Rinse Speed	28S/vehicle	Fault Self-test	√
Electricity Consumption	1.5-1.8KWH/Vehicle	Remote Control	√

🖼️ Product Details & Operation

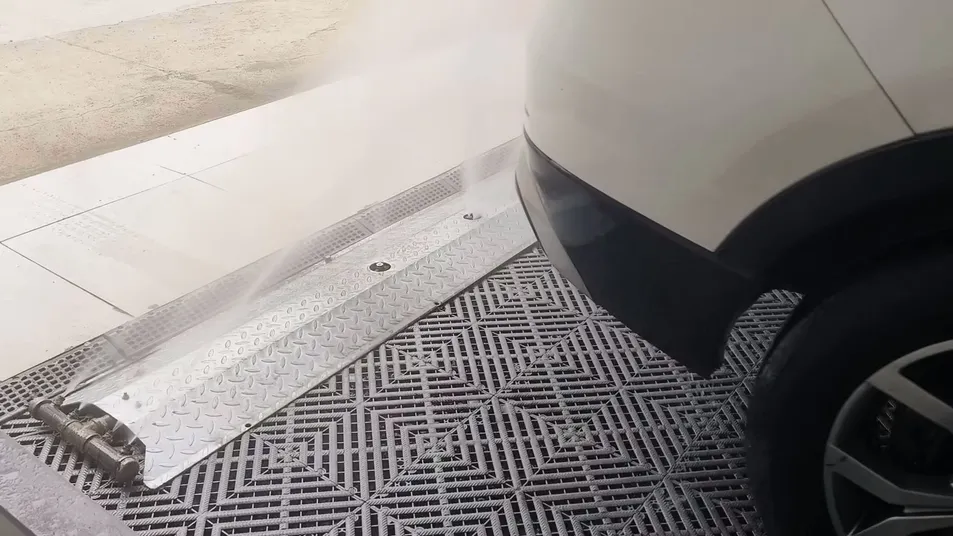

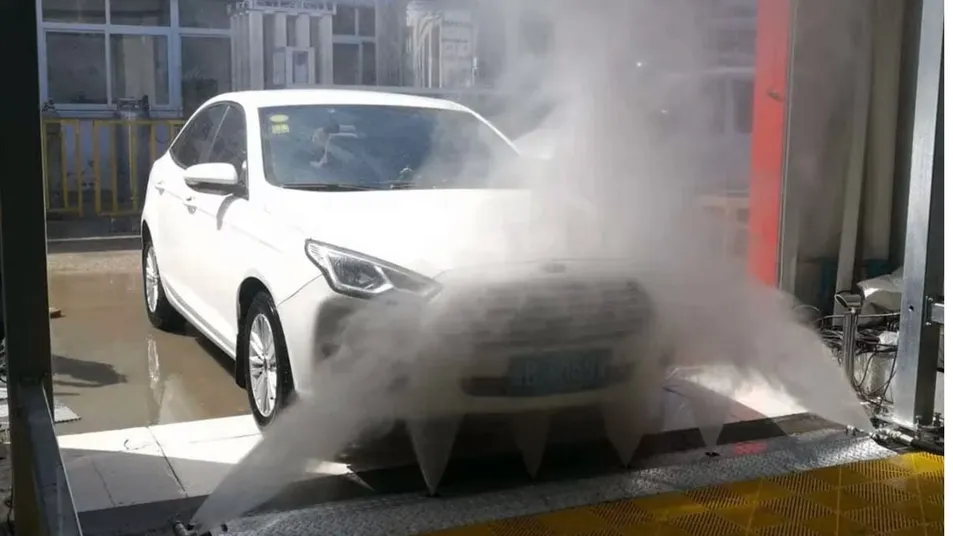

1. Chassis and Tires Blasting

High pressure at 80kg sprays to clean dirt on chassis, two sides, and tires. Effective for muddy road conditions or rainy seasons.

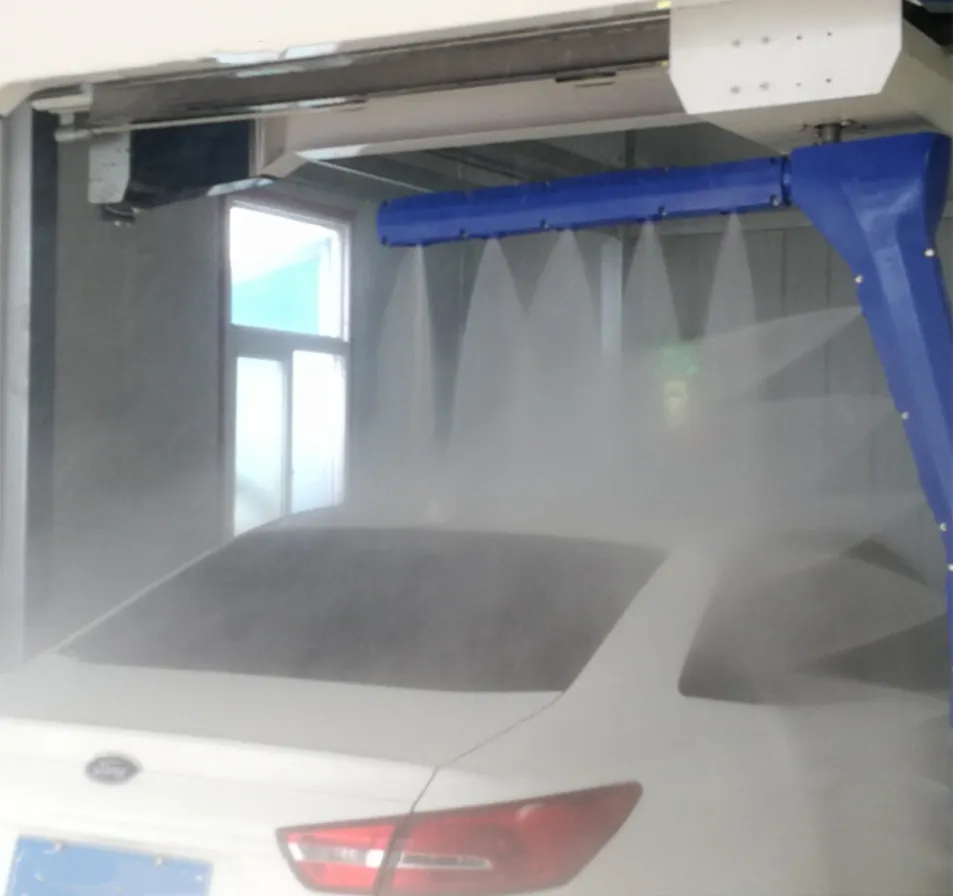

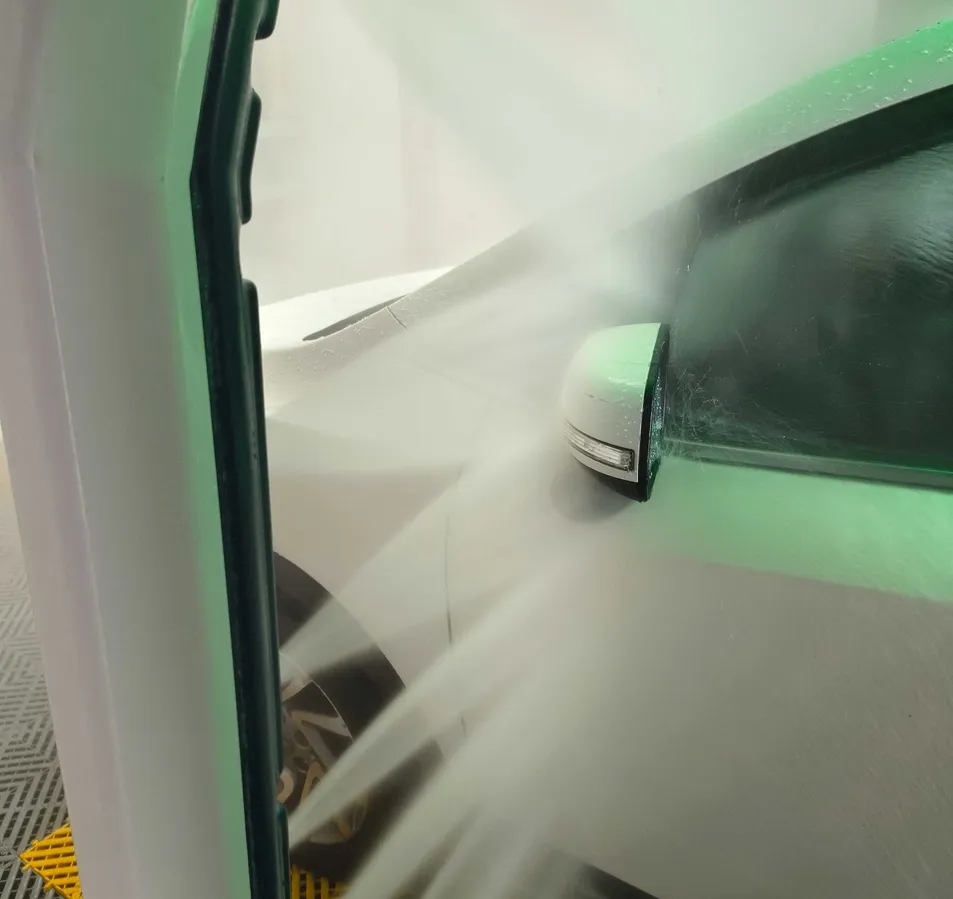

2. 360 Degree Rotating Arm

Designed to follow car body contours. 360-degree spraying water and detergents at optimized speed and pressure. Only 28 seconds per round.

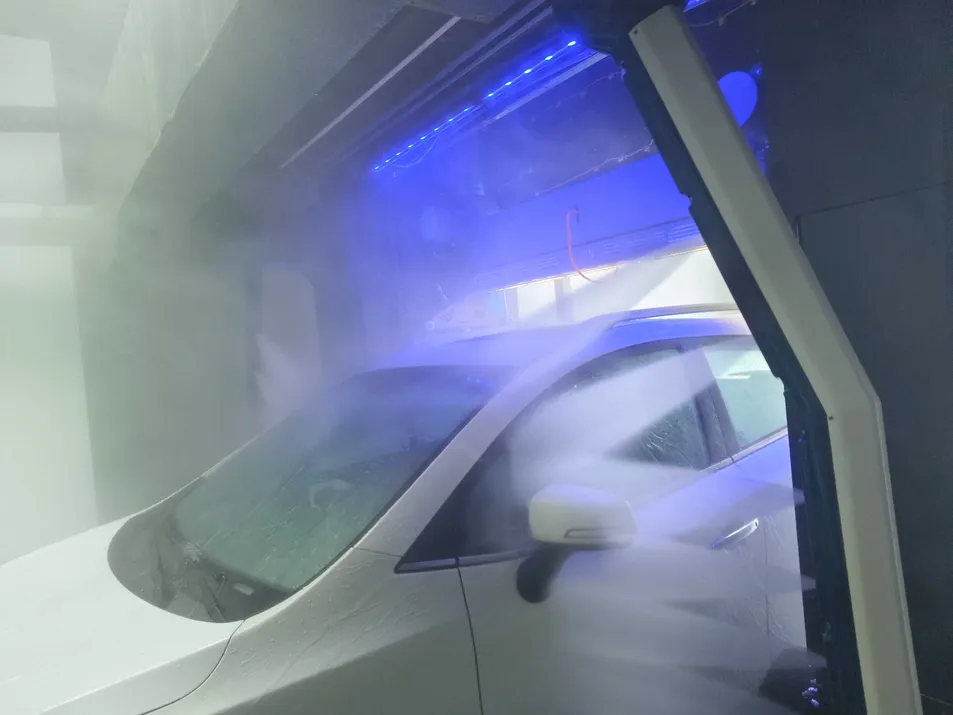

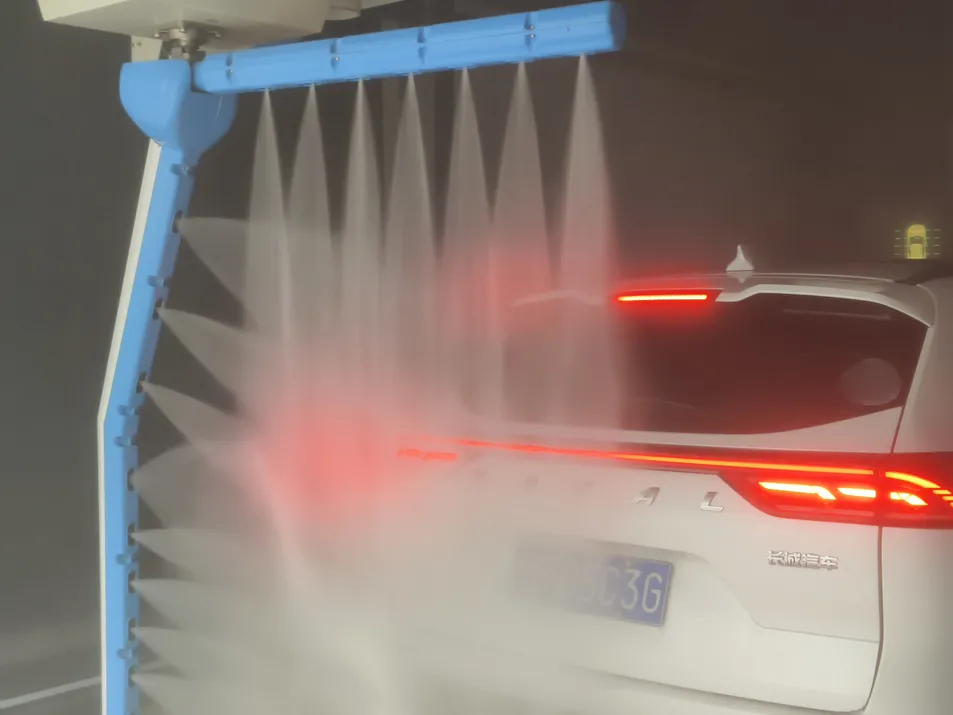

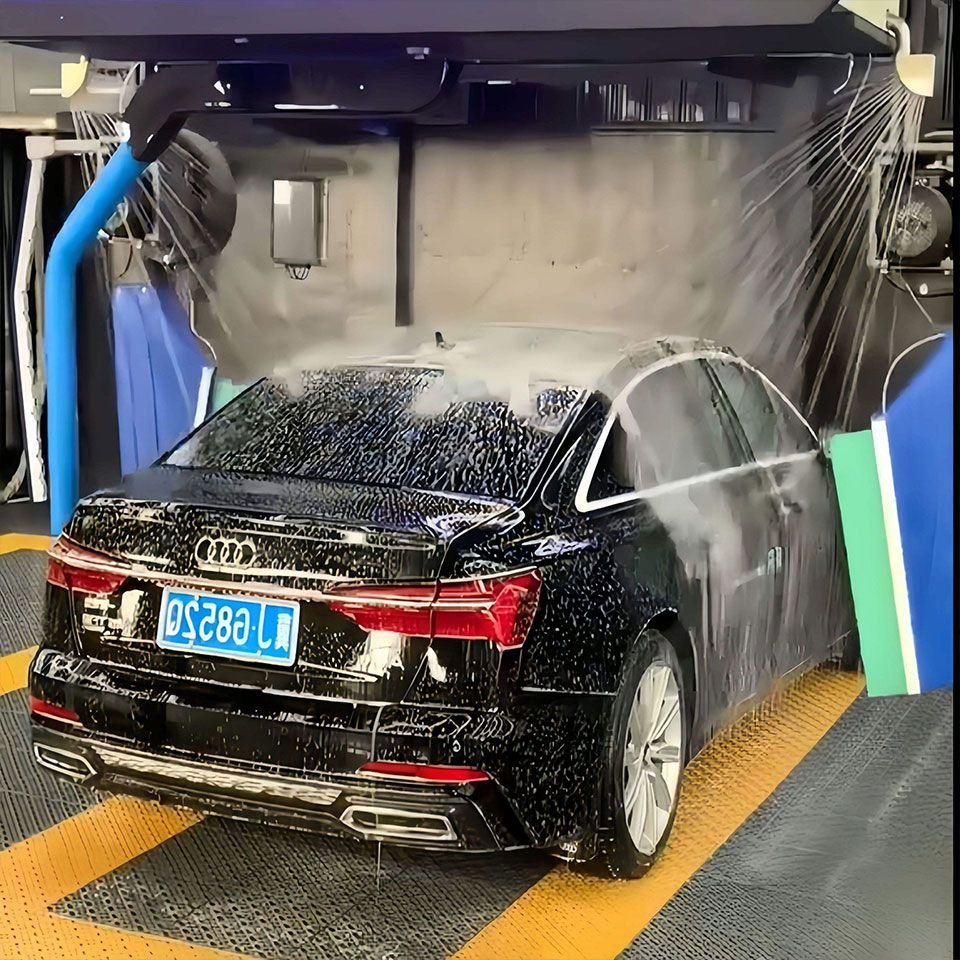

3. Detergent & Cleaning Agents

Innovative foggy spraying helps save up to 80% of detergent. No hand work rub is required, protecting the car paint from damage.

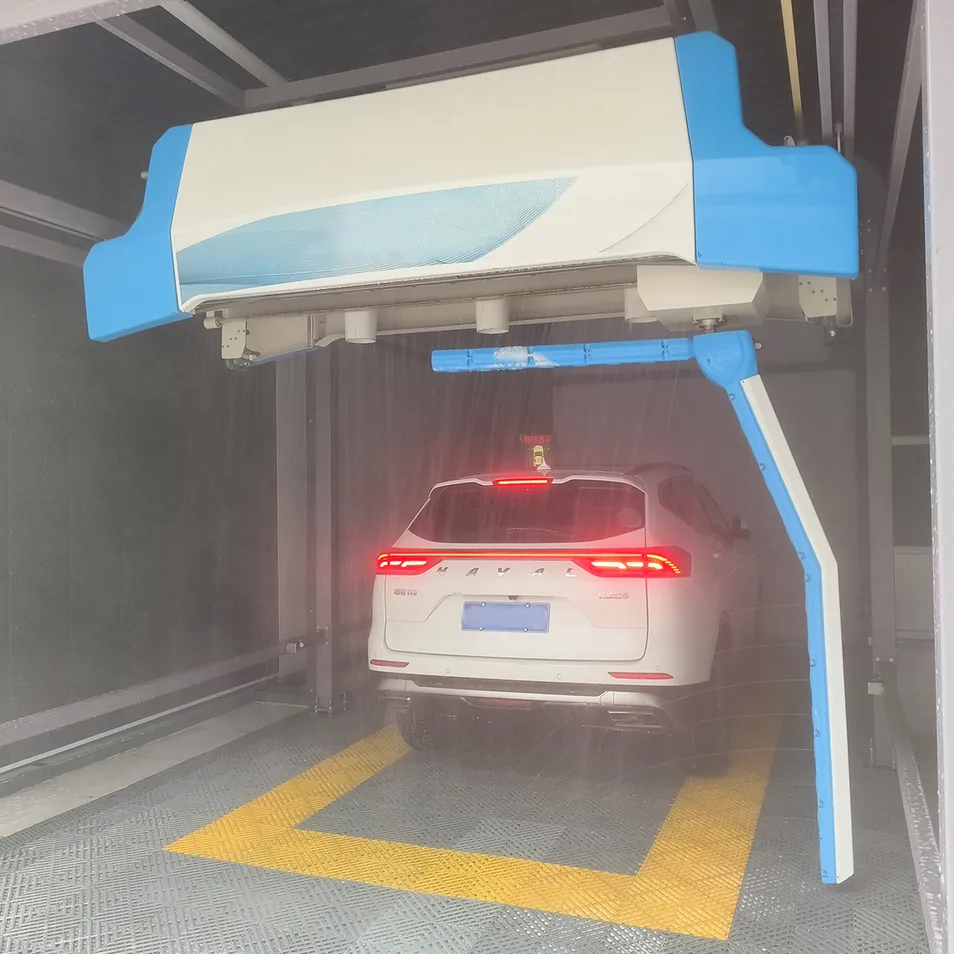

4. Liquid Waxing & Polish

Liquid wax makes the car body look shiny and provides water-repelling characteristics for better drying effects.

❓ Frequently Asked Questions

Q1: How long does a standard cleaning cycle take? A: A standard rinse speed is approximately 28 seconds per vehicle, with a complete cycle including wax and drying taking around 3-5 minutes depending on chosen modes.

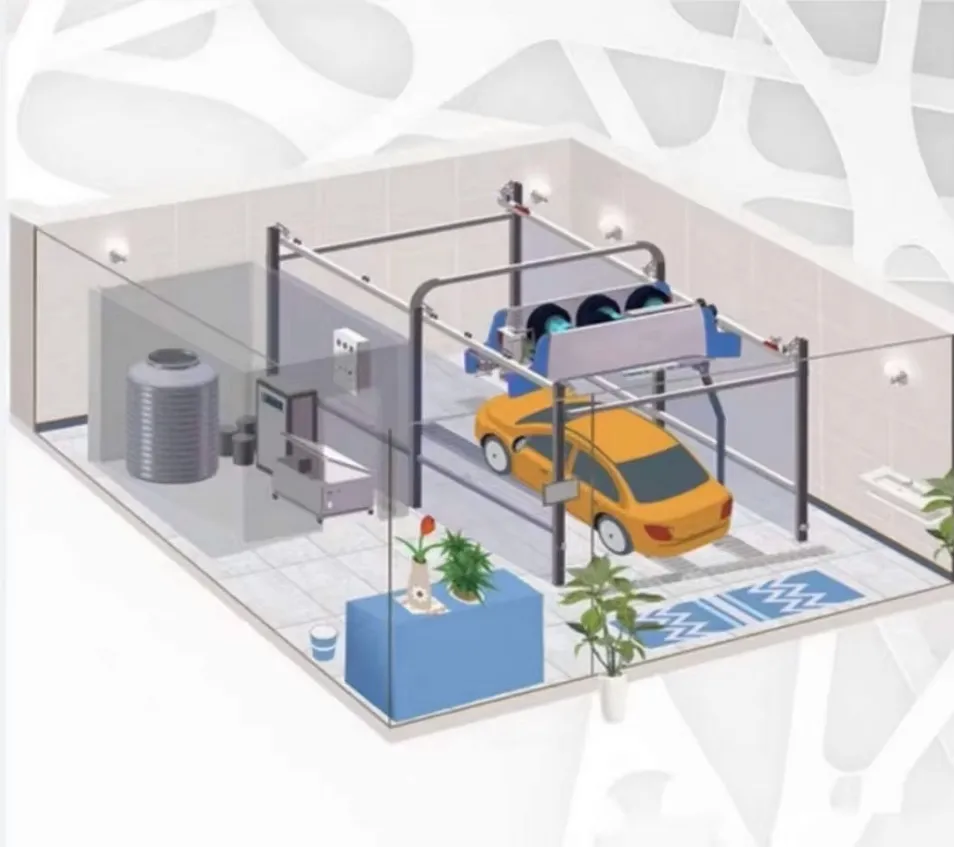

Q2: What are the installation space requirements for the FAT-03? A: The required frame mounting dimensions are roughly 6500mm-7500mm in length, at least 3600mm in width, and at least 3000mm in height.

Q3: Does the touchless system protect the car paint? A: Yes, the touchless design uses high-pressure water and specialized detergents to clean without physical brushes, preventing scratches and damage to the car's surface.

Q4: What is the power and water consumption per vehicle? A: Electricity consumption is approximately 1.5-1.8 KWH per vehicle, and water consumption ranges from 80 to 150 liters per vehicle depending on the wash mode.

Q5: Can the system be operated remotely? A: Yes, the system supports multiple control modes including a touch panel, magnetic cards, and remote control for easy management.

Q6: Is the equipment resistant to corrosion? A: The equipment is constructed using stainless steel materials, ensuring long-term corrosion resistance and reducing maintenance costs in wet environments.
