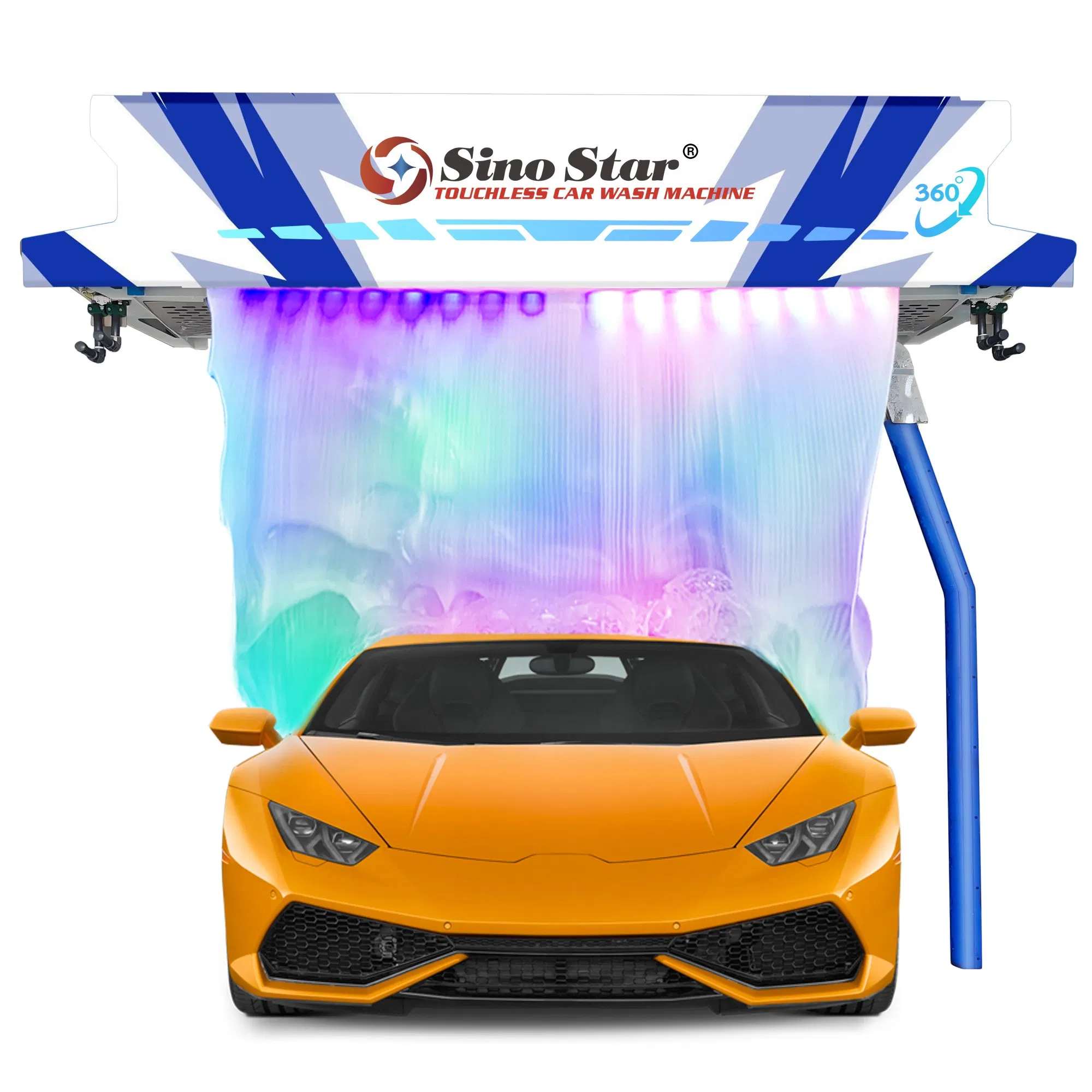

Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
1 / 5
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star
Touchless Carwash Equipment with Advanced Technology From Sino Star

Touchless Carwash Equipment with Advanced Technology From Sino Star

Customization: Available
After-sales Service: Online
Warranty: 3 Years
Send Inquiry

Product Description

📋 Basic Specifications
Model
K9
Type
Self-Service / Touchless
Fuel
Electric
Cleaning Process
Cold Water Cleaning
Certification
CE
Installation Size
7000*3200*2800mm
Max. Car Size
5600*2100*2080mm
Power
AC380V/50Hz/3pH/11kw
K9 Equipment
⚙️ Technical Parameters
Parameter K9 Model Details
Three Phase/Total Power380V/ 40KW
Wash Bay Sizes (mm)7000*3500*3200mm
Max Vehicle Sizes (mm)5600*2600*2050mm
Rail Length (mm)7000mm
Guarantee3 Years Warranty
Water Pump Motor Power380V/15KW
Air Fan Motor Power5.5KW * 4pcs
Water Pressure60-100kg
Car Wash Time2~5 Minutes/car
⭐ Unique Product Features

The K9 high-pressure touchless automatic car wash machine is designed to challenge industry standards with a new concept focused on industrial-grade manufacturing and strong technical support. It promotes an intelligent, standardized, and modernized car wash business model with low-cost and high-output performance.

High-Pressure Care Equipped with high-pressure flushing chassis and tire functions, plus 360-degree high-pressure flushing for the full vehicle.
Smart Chemical Matching Features automatic matching for chemical materials, magic shampoo application, and automatic water wax function.
Advanced Drying System Includes an automatic air drying function using air fluid mechanics for superior results.
Intelligent Controls One-button start/stop, fault self-test, data reports, automatic standby, and intelligent anti-collision systems.
Space Efficient Suitable for indoor/outdoor installation requiring only 7m length, 4m width, and 3.2m height.
📸 Equipment Details Gallery

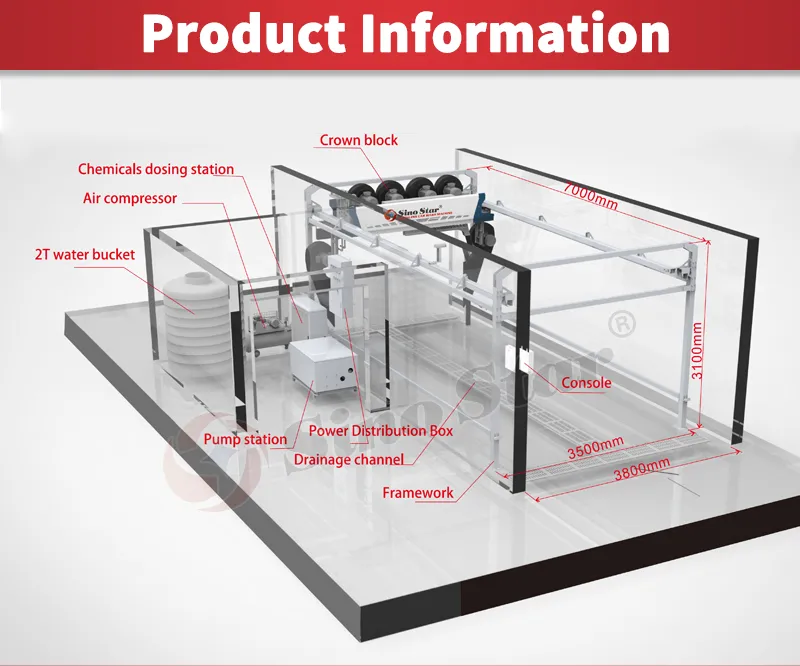

K9 Detail 1

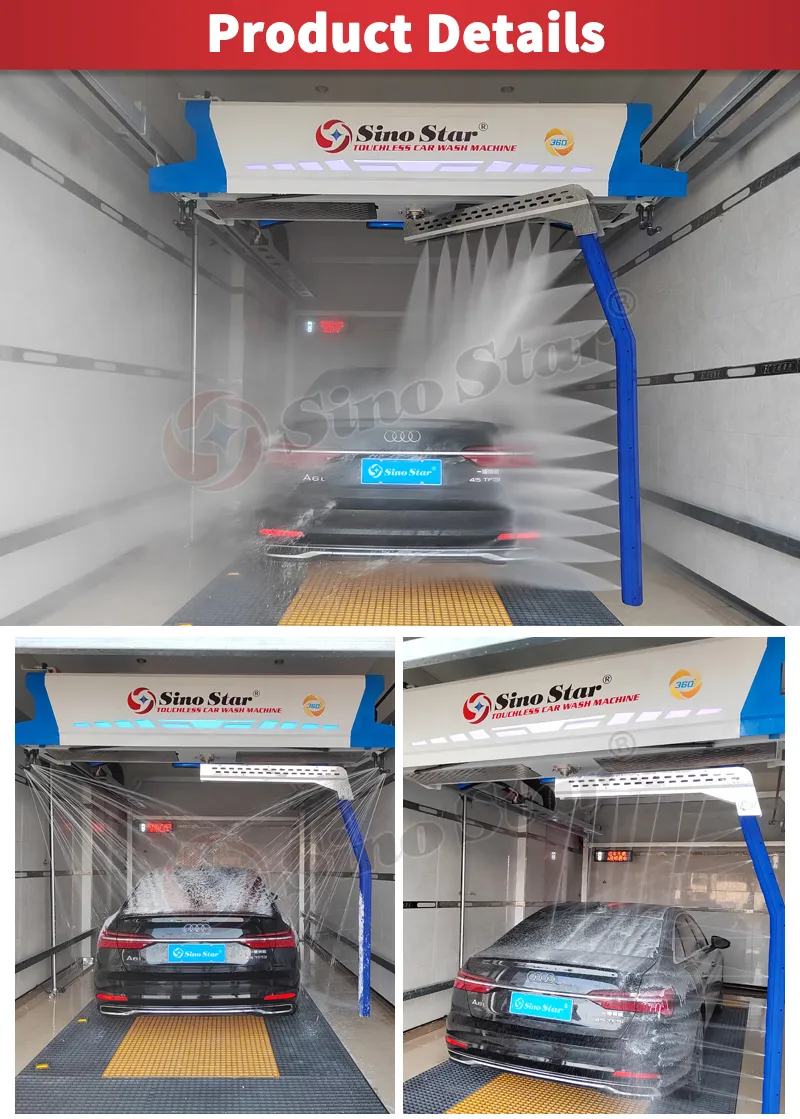

K9 Detail 2

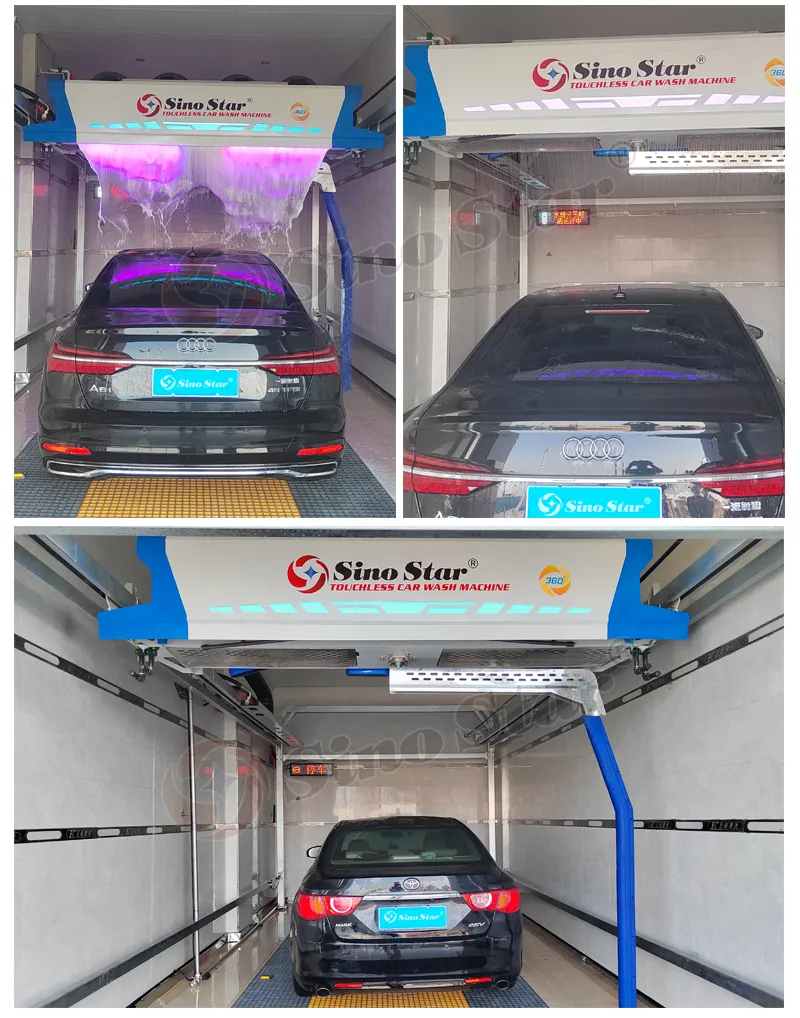

K9 Detail 3

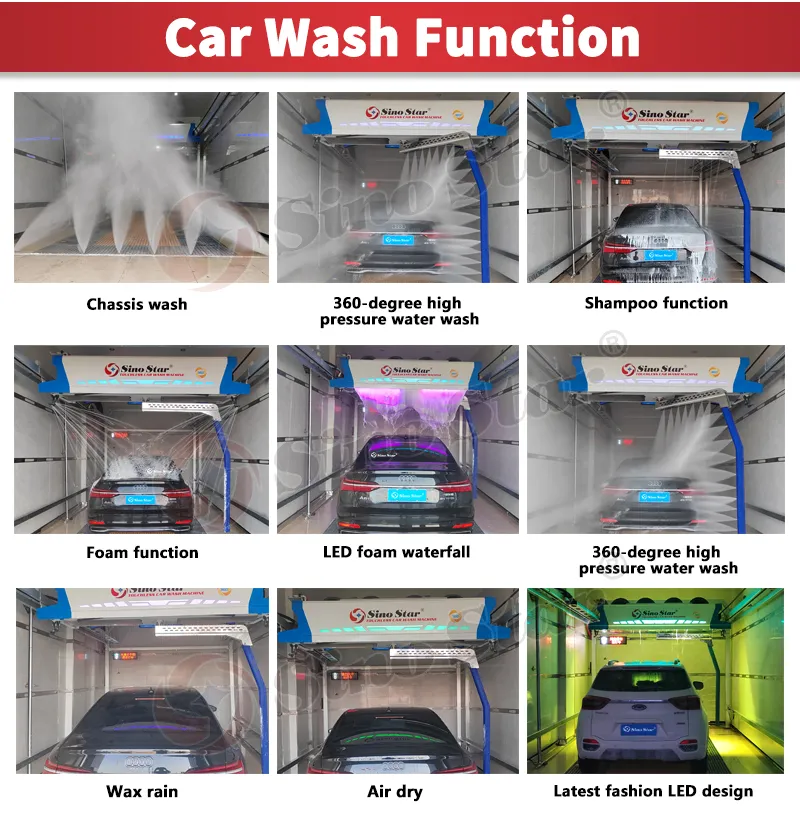

K9 Detail 4
K9 Detail 5
K9 Detail 6

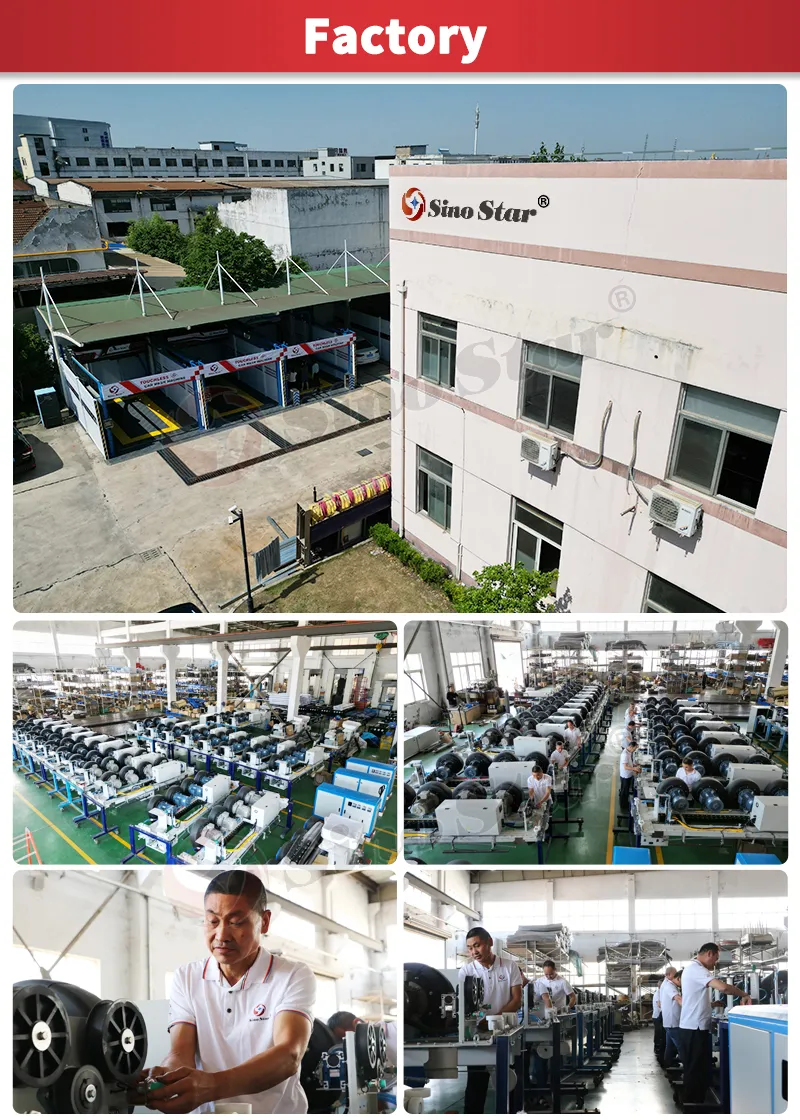

K9 Detail 7

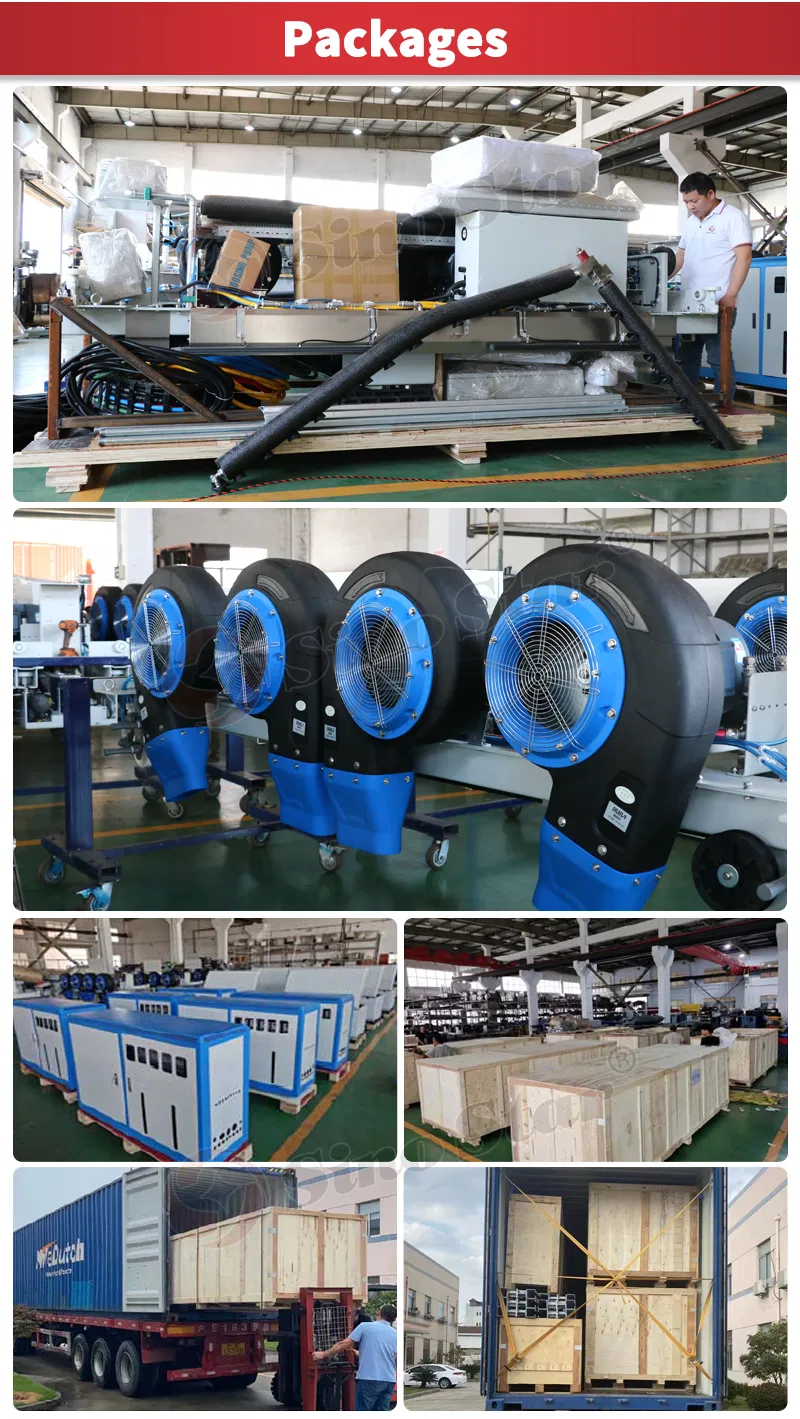

K9 Detail 8

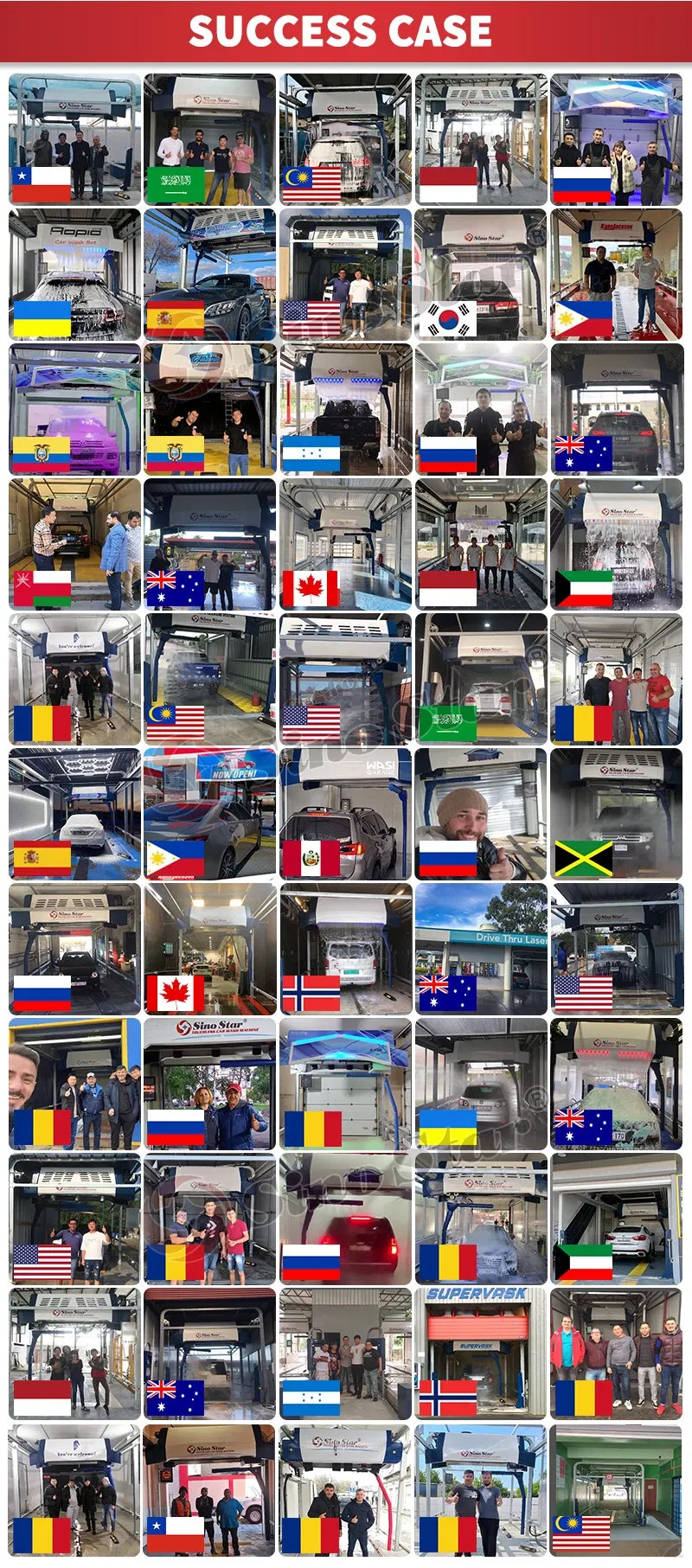

K9 Detail 9
❓ Frequently Asked Questions
1 What size cars can the K9 automatic car wash machine handle?
The maximum car wash size is L 5600mm * W 2600mm * H 2050mm.
2 How long does a complete wash cycle take?
A complete fine wash including high-pressure water spray, wax, foam, and air drying takes approximately 2 to 5 minutes per car.
3 How effective is the air drying result?
Using air fluid mechanics principles, the system achieves a 90% drying result. The high-pressure air cylinder design offers better stability and safety compared to traditional brush machine drying.
4 What are the power supply requirements?
The equipment requires a 3-phase industrial power supply. The standard is 380V/50Hz, but customization for different voltages or frequencies is available.
5 What is the warranty policy for the K9 model?
We offer a 3-year extended warranty for the complete machine, including all spare parts. If any parts fail during the warranty period, new parts are provided free of charge.
6 What is the typical lead time for delivery?
For standard 380V/50Hz specifications, delivery is within 10-15 days. For customized power requirements, the lead time is approximately 30 days.
