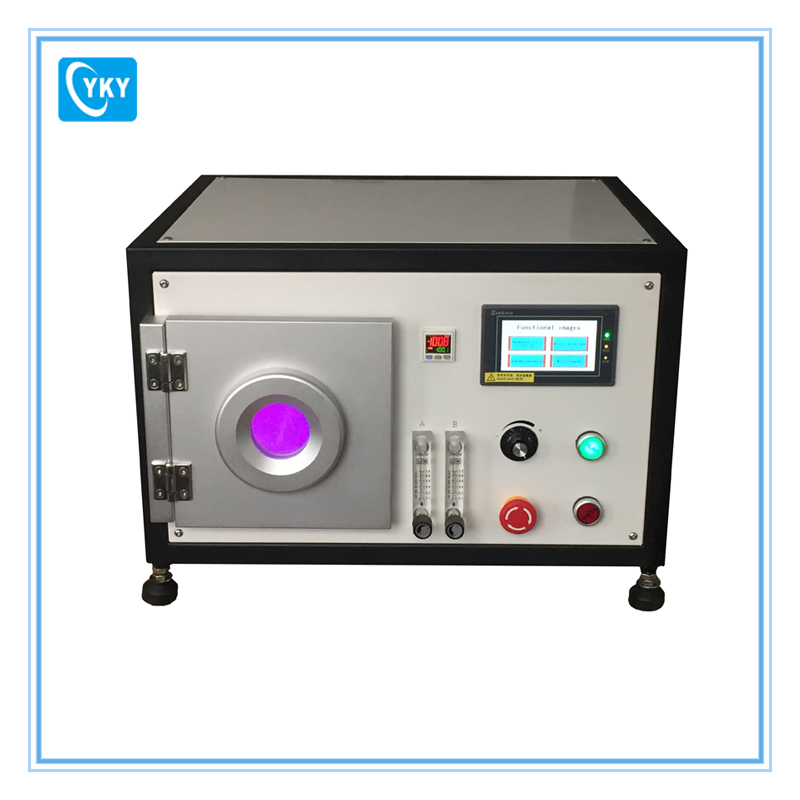

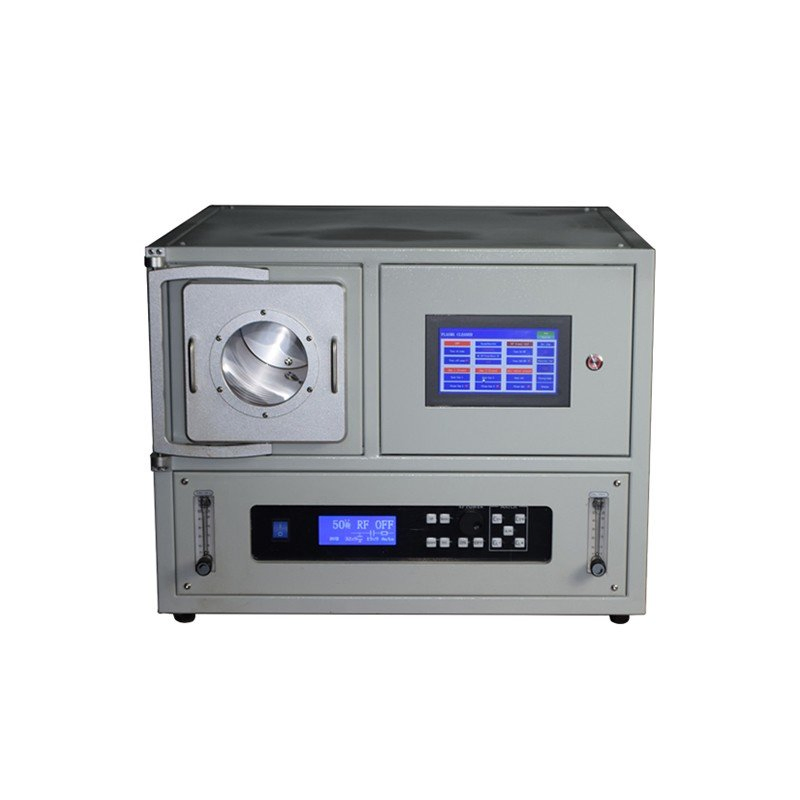

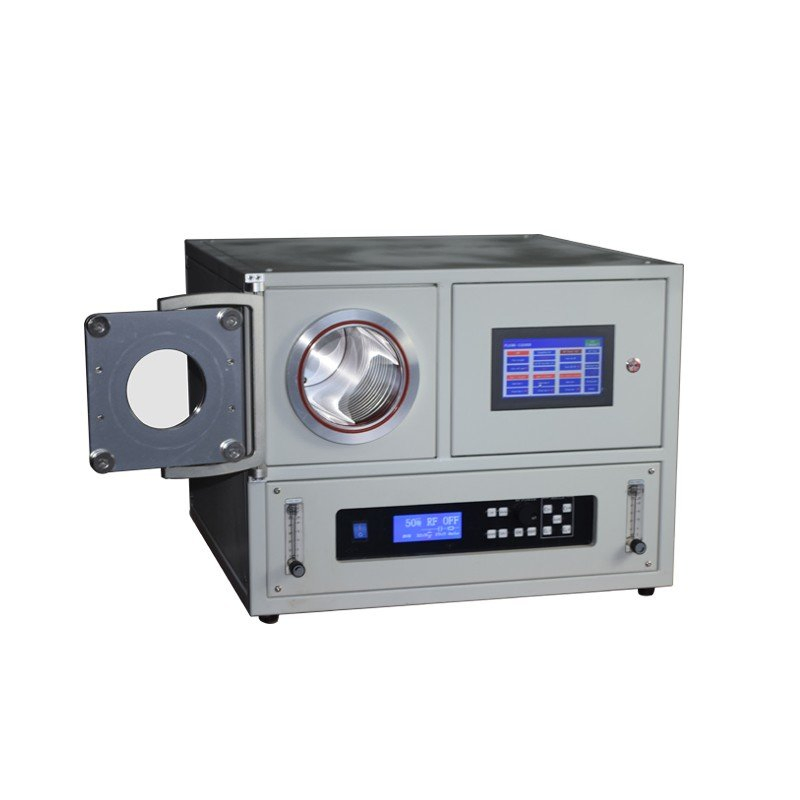

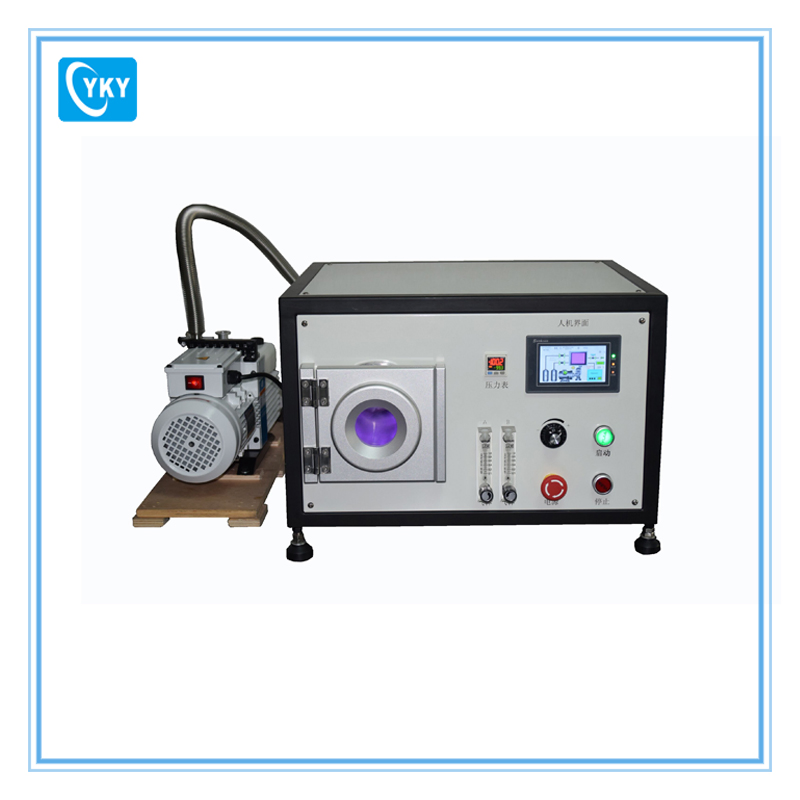

Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
1 / 5
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System
Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System

Vacuum Atmosphere Pressure Plasma Surface Treatment Cleaning System

Customization: Available
Warranty: One Year
Cleaning Process: Vapor Cleaning
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
CY-10L-A
Style
Mobile Style
Clean Type
Manual
Usage
Auto Industry
Principle
Chemical Cleaning
Fuel
Electric
Certification
CE, TUV
Control
PLC
Automation
Automatic
RF Power
200-400W
RF Frequency
13.56MHz
Chamber
High Purity Quartz Tube
Capacity
10L
HS Code
85141090
★

Core Features

Environmental Technologies: Plasma process is a gas-solid coherent reactor that consumes no water resources, requires no chemicals, and causes no environmental pollution.
Wide Adaptability: Suitable for various substrates including metals, semiconductors, oxides, and most polymer materials.
Low Temperature: Operates close to room temperature, ideal for polymer materials; provides longer retention time and higher surface tension than flame methods.
Multifunctions: Affects only the shallow surface (10-1000A) to add new features while preserving the material's bulk characteristics.
Low Cost: Simple operation and maintenance. Continuous operation is possible; a few gas bottles can replace thousands of kilograms of cleaning fluid.
Controllable Process: All parameters can be set via computer with full data recording capabilities.
Unlimited Geometry: Can process parts of any size or complexity, including textiles.
⚙

Technical Parameters

ModelCY-P10L-A
Working currentTotal working current ≤ 2A (Excluding vacuum pump)
Chamber MaterialHigh purity quartz tube
RF Frequency40KHZ
RF Power200-400W (10-100% adjustable)
Vacuum Degree60Pa-100Pa
Cleaning Time1-6000s adjustable
Gas Flow>10-100ml
Process ControlManual / Automatic
Vacuum PumpBipolar direct rotary vane pump
Impedance MatchingAutomatic
DisplayLCD
Power SupplyAC 220V 60Hz
✔

Industry Applications

Car Industry (Engine Oil Seals) Defense (Aerospace Connectors) Electronics (Cell Phone Covers, Earphones) Medical (Catheter Treatment, Infusion) Textile Fiber Rubber & Plastic
📷

Product Gallery

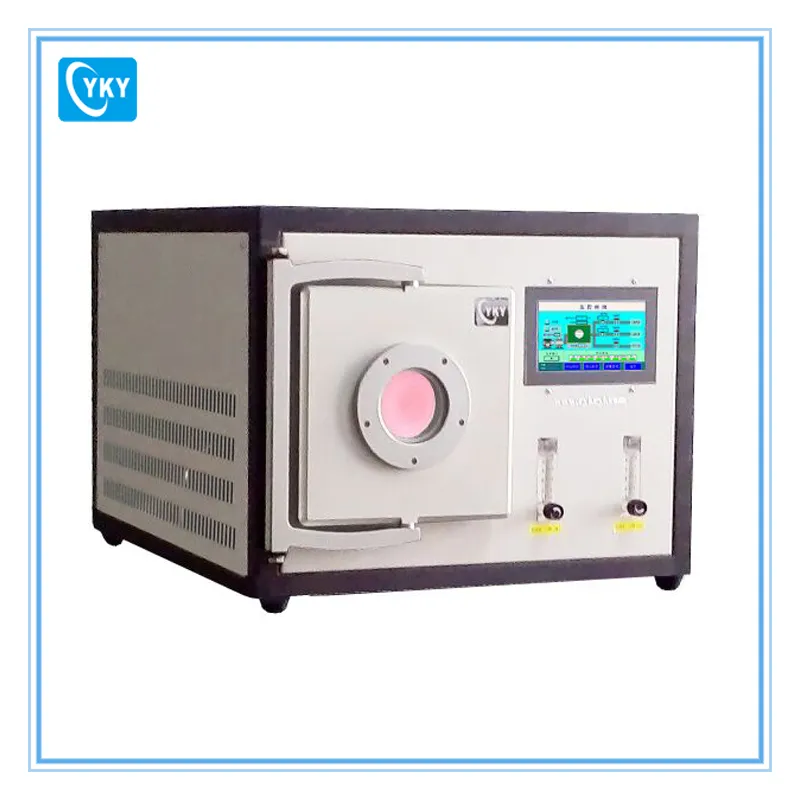

Plasma Cleaning System 1

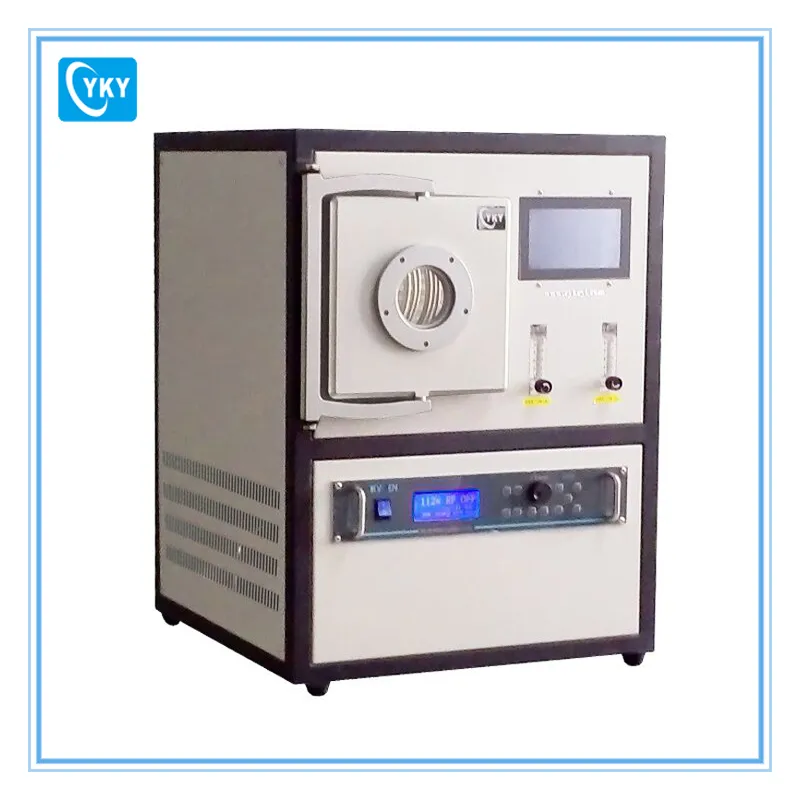

Plasma Cleaning System 2
Plasma Cleaning System 3

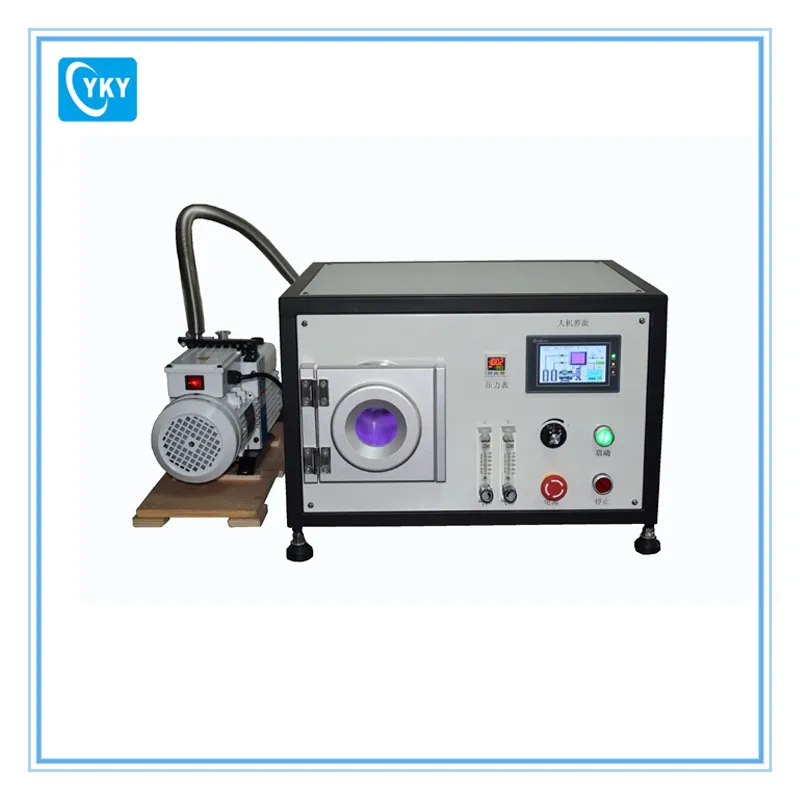

Plasma Cleaning System 4

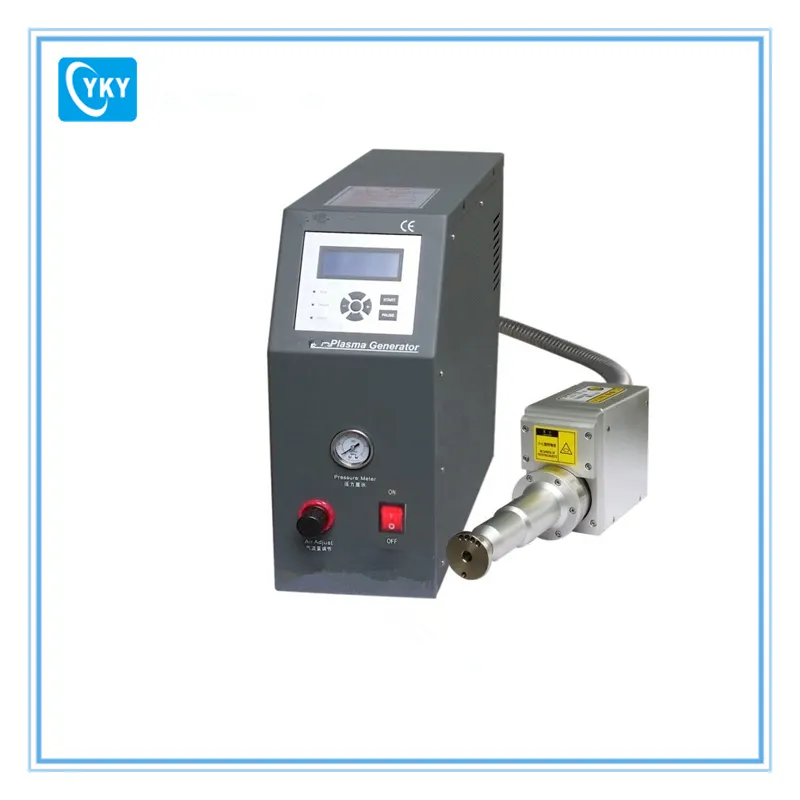

Plasma Cleaning System 5
Plasma Cleaning System 6
?

Frequently Asked Questions

What materials can be treated with the CY-10L-A plasma system?
The system offers wide adaptability and can treat metals, semiconductors, oxides, and most polymer materials efficiently.
Is the plasma cleaning process environmentally friendly?
Yes, it is a dry process that consumes no water resources and requires no added chemicals, resulting in zero environmental pollution.
Can I control the cleaning parameters for different parts?
Absolutely. The system features PLC control where all parameters such as power, time, and gas flow can be set and recorded via computer.
What is the advantage of low-temperature plasma treatment?
Operating close to room temperature makes it particularly suitable for delicate polymer materials, ensuring higher surface tension and longer retention times compared to other methods.
Does the system handle complex-shaped components?
Yes, there are no geometry limits. Whether the parts are small, large, simple, or complex, the plasma can reach all surfaces for uniform treatment.
What are the power and frequency specifications?
The system operates at an RF frequency of 40KHz (or 13.56MHz depending on configuration) with an adjustable RF power range of 200-400W.
