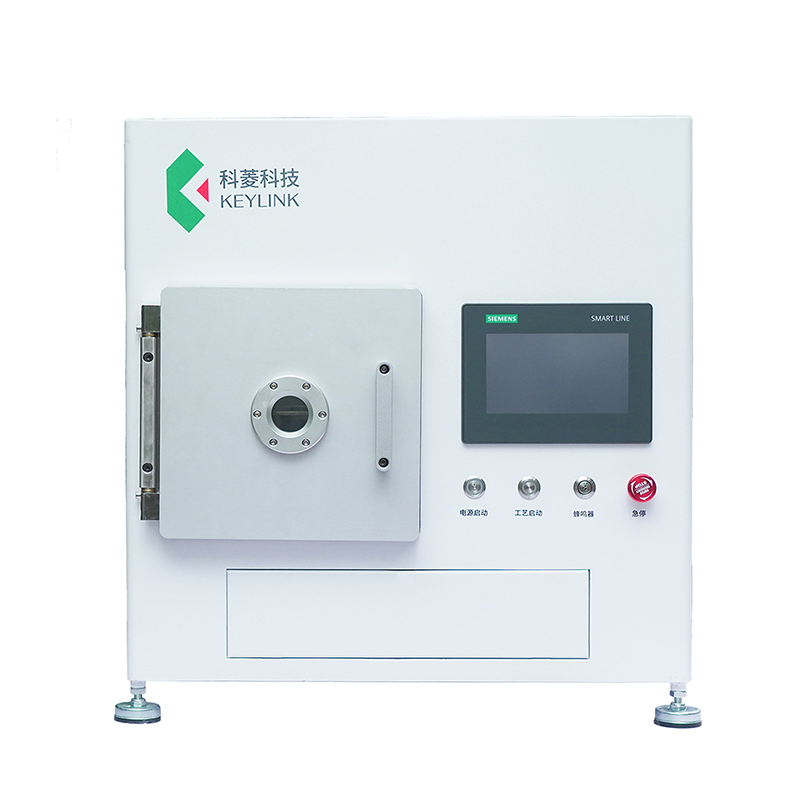

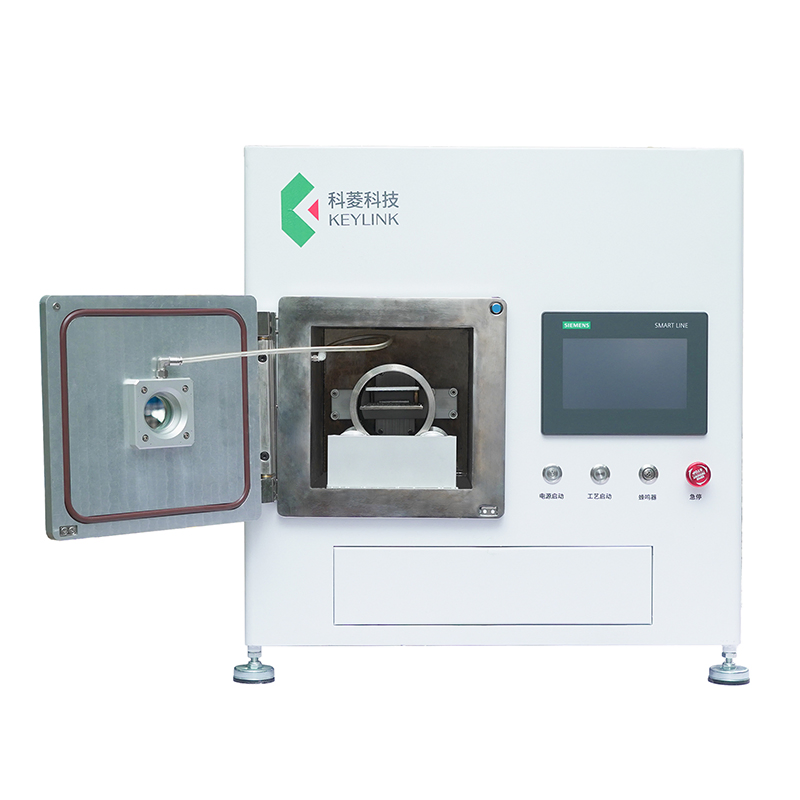

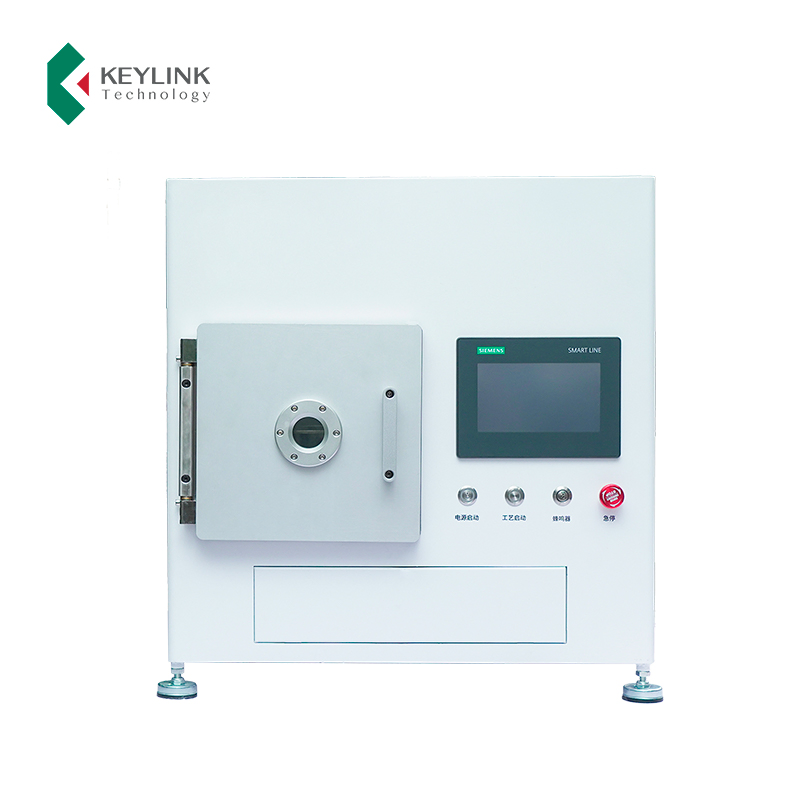

Professional Vacuum Plasma Cleaning System for Surface Treatment in Advanced Electronic Materials

1 / 5

Professional Vacuum Plasma Cleaning System for Surface Treatment in Advanced Electronic Materials

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

VL-10-F

Type

Clean Machine

Voltage

220V

Color

White

Usage

Clean

Function

Improve Adhesion of Surface

Product Name

Vacuum Plasma Surface Treater

HS Code

8479899990

Technical Specifications

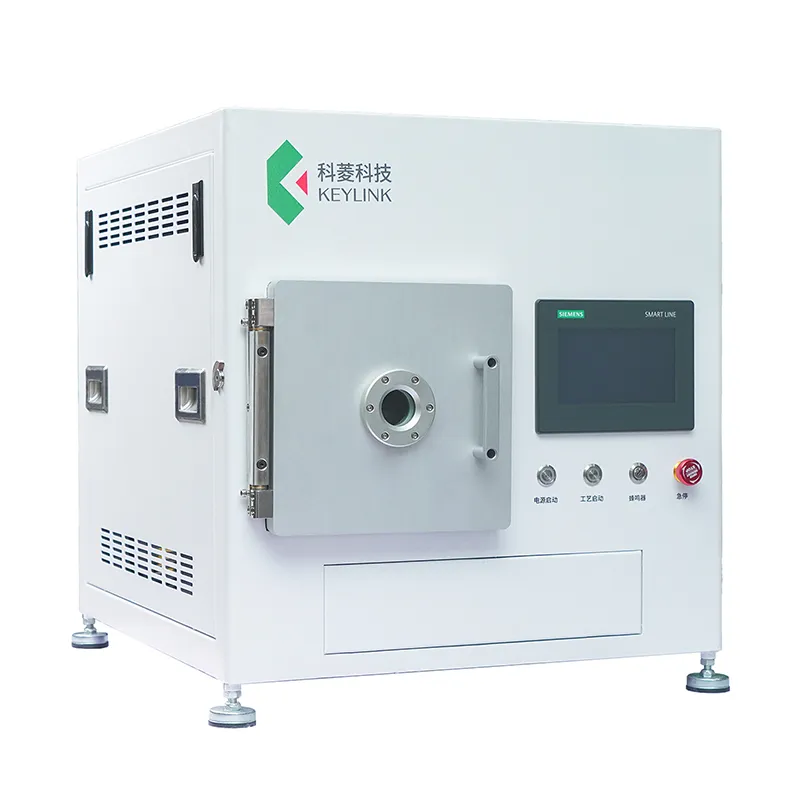

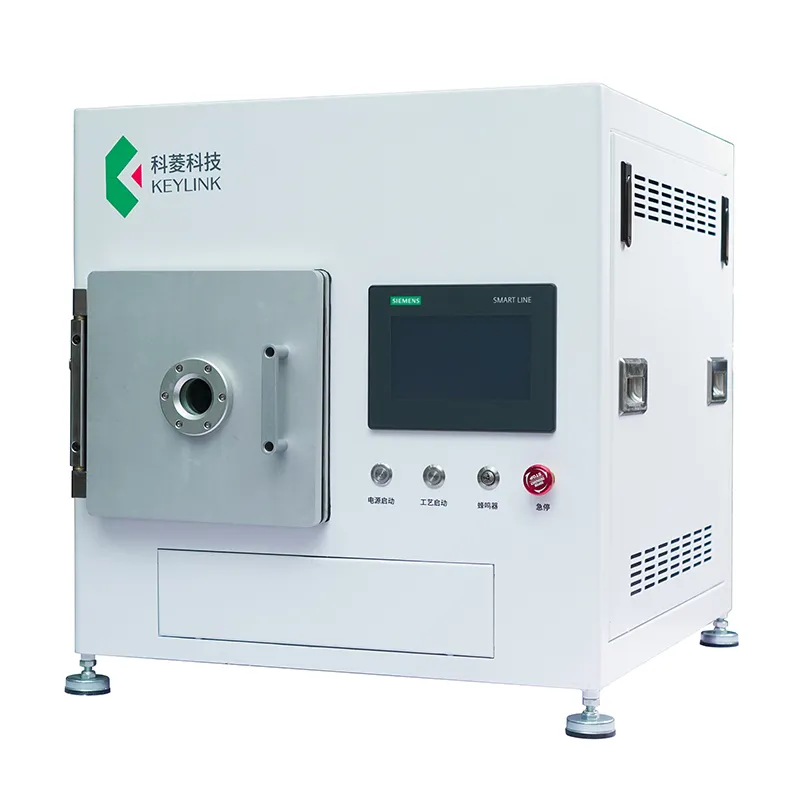

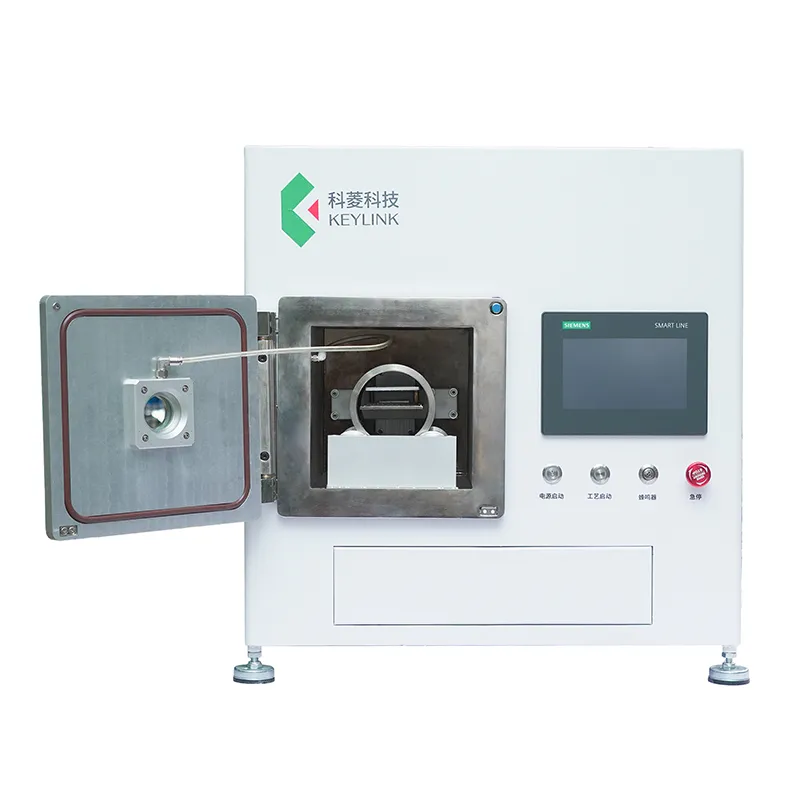

VL-10-F Powder Vacuum Plasma Cleaning Machine
Factory Requirements	Input Voltage	AC220V(±10%)
	Compressed gas	≥0.4Mpa
	Process gas	0.2~0.3Mpa
Host Info	Dimension	620(L)×550(W)×680(H)mm
	Weight	About 200Kg
	Total power	1.8KW
Power System	Power Output	300W
Power System	Frequency	13.56MHz
Vacuum System	Vacuum pump	40m³/h
	Cavity material	Stainless steel (10mm thickness)
	Ultimate vacuum	<5Pa
	Internal dimensions	200(W)×200(H)×250(D)mm
Control System	Systems control	PLC (Siemens)
Control System	Interactive mode	7-inch touch screen (Siemens)

What is Plasma?

Plasma is an appellation for a kind of unstable aggregation state of high energy level. Through the input of energy, the material is transformed from solid and liquid to gas. Additional energy is injected into the gas through the discharge action, and then the plasma state is produced. The input of the energy allows electrons to break away from their atomic orbitals and can break the chemical bonds to form free electrons, ions, and molecules. It is regarded as the fourth state of material existence.

Product Application

Automotive & Aerospace: Headlights, EPDM profiles, control devices, tyres, motor pumps.
Electronics: Mobile phones, flat screens, displays, discs, micro-speakers, computers.
Packaging: Cardboard packaging, bottle caps, tamper evident seals, plastic films.
House & Home: Solar panels, window frames, safety glass, furniture edges.
Medical Sterilisation: Operating instruments, implants, cardiac pacemakers, catheters.
Leisure & Sports: Shoes, textile fibres, golf balls, watches.

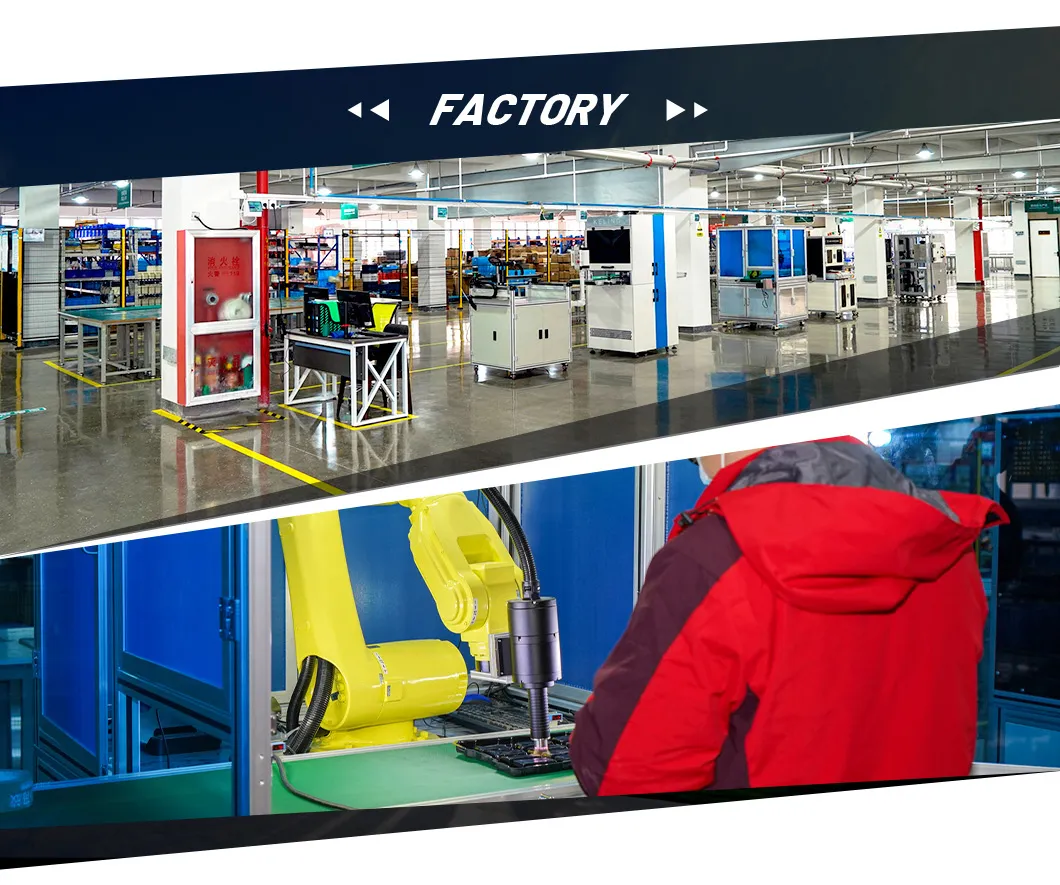

Production & Quality

Packaging & Shipping

Frequently Asked Questions

What is the shipping warehouse location?

Our main shipping warehouse is located in China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

What is the production lead time?

For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

Can I customize my order?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements.

What are the payment terms?

We offer flexible terms: Full payment before shipping or 50% deposit upon order confirmation with the remaining balance before shipment, typically via SWIFT transfer.

What kind of after-sales support do you provide?

We provide technical assistance via email/video, quick access to spare parts, comprehensive documentation (manuals/SOPs), and on-site support for critical issues if required.

What gas is required for the process?

The standard configuration supports Argon and Oxygen two-way process gas, depending on the surface treatment requirements.
