Ventus Laser Cleaning System 300W Backpack

1 / 5

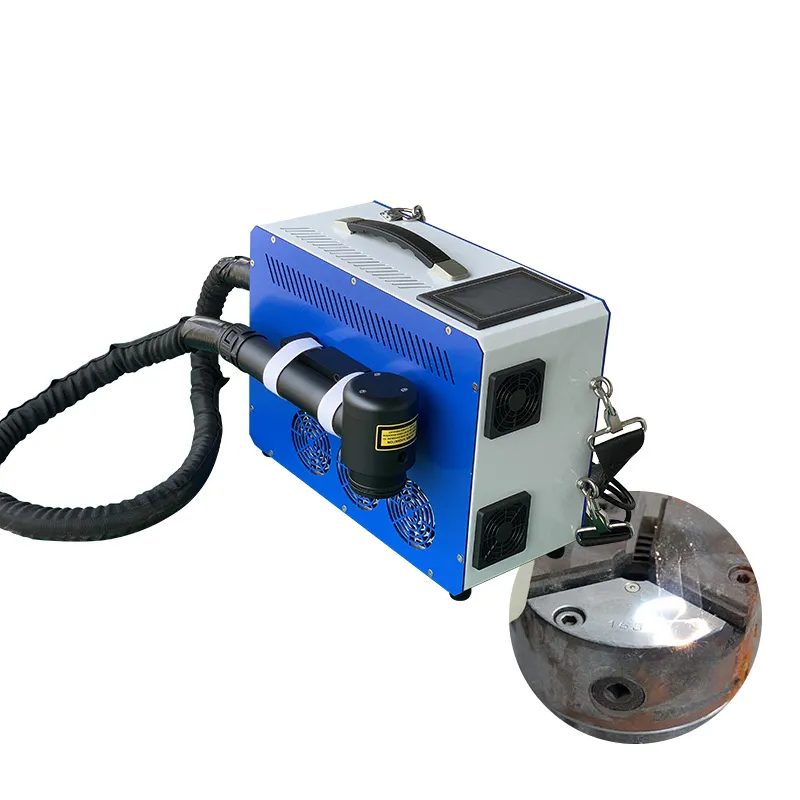

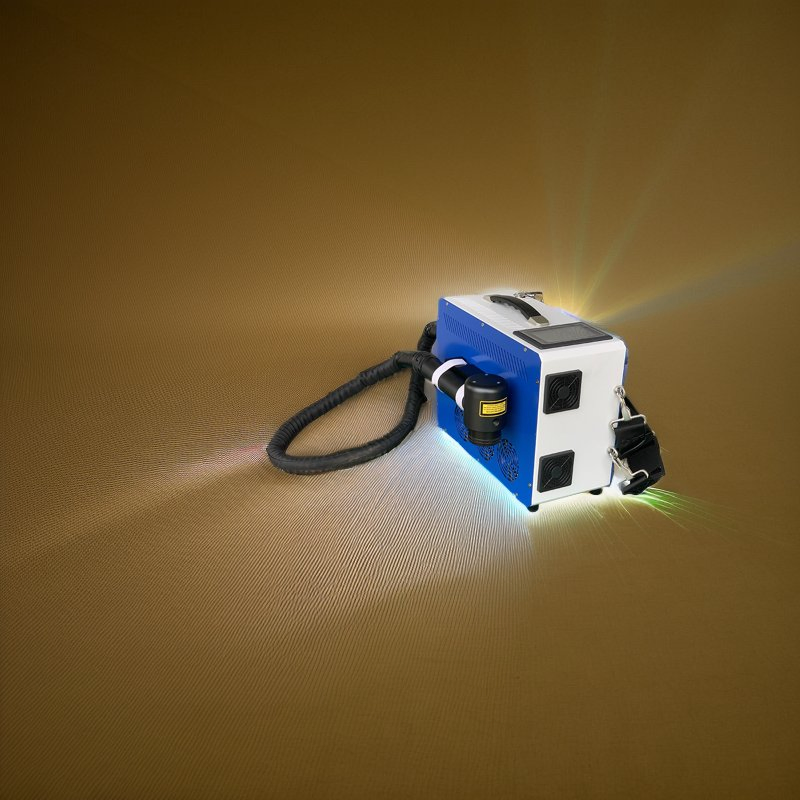

Ventus Laser Cleaning System 300W Backpack

Customization:	Available
After-sales Service:	Online Support and Overseas Support Available
Power:	100w

Send Inquiry

Product Description

Basic Information

Model NO.

DV-LCB

Control Type

Automatic

Warranty

2 Years

Laser Type

Pulse Laser

Cooling Mode

Air Cooling

Power Supply

220V, 50Hz/60Hz

Weight

12kg

Machine Type

Handheld / Backpack

Product Description

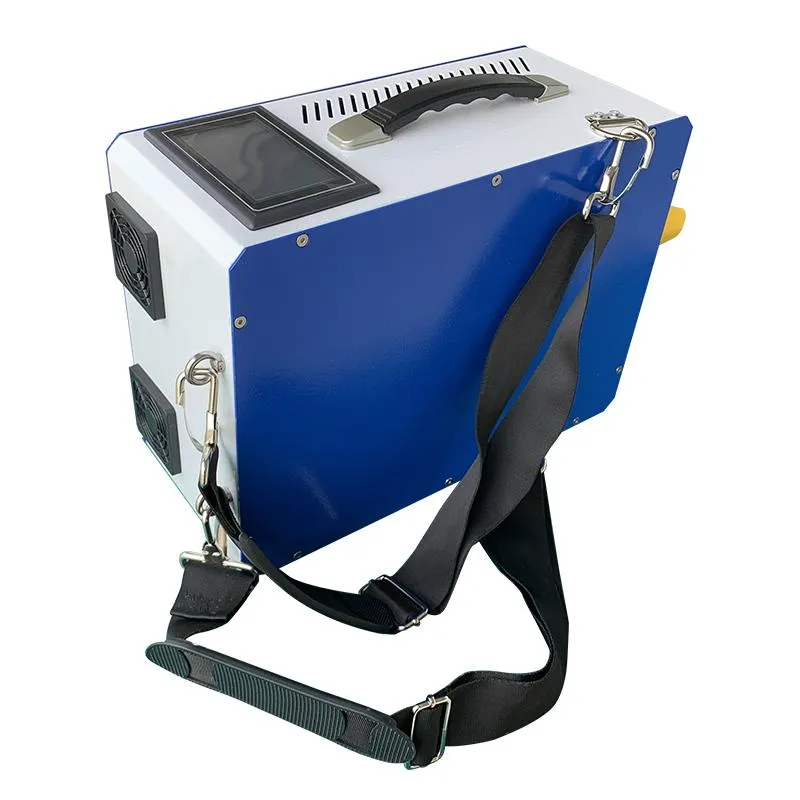

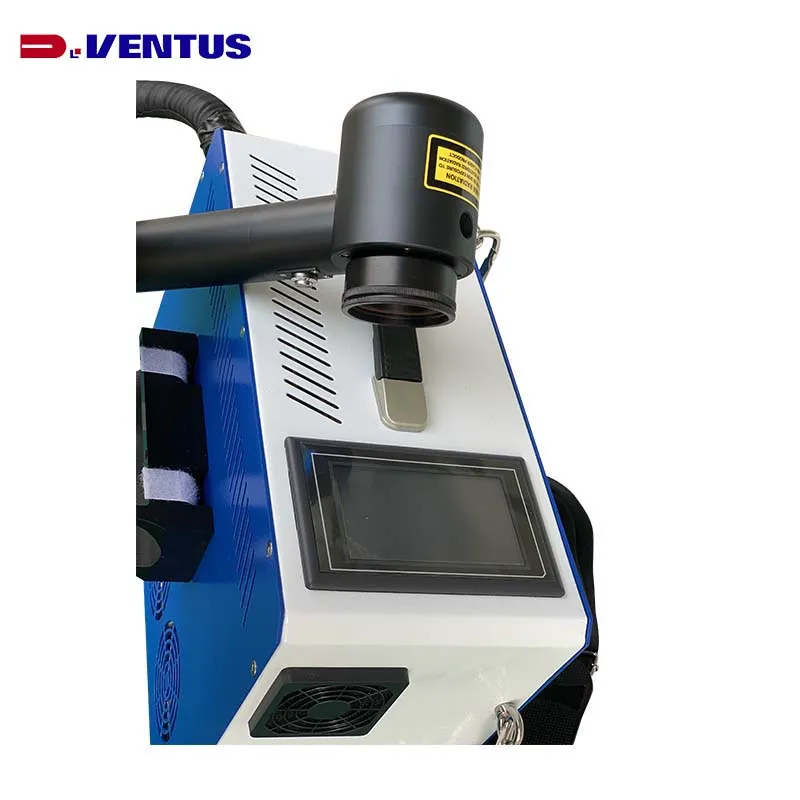

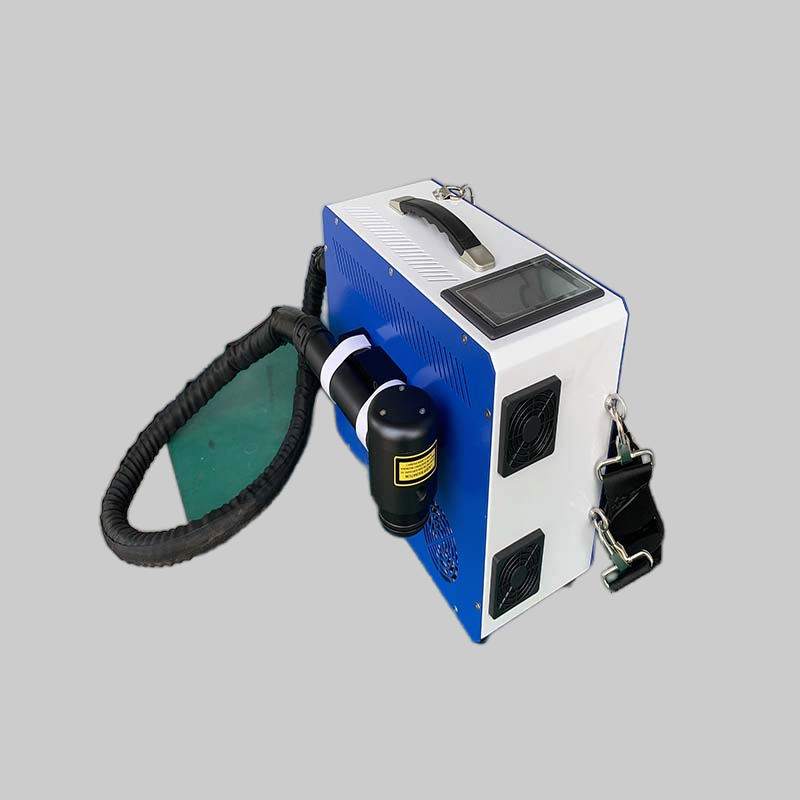

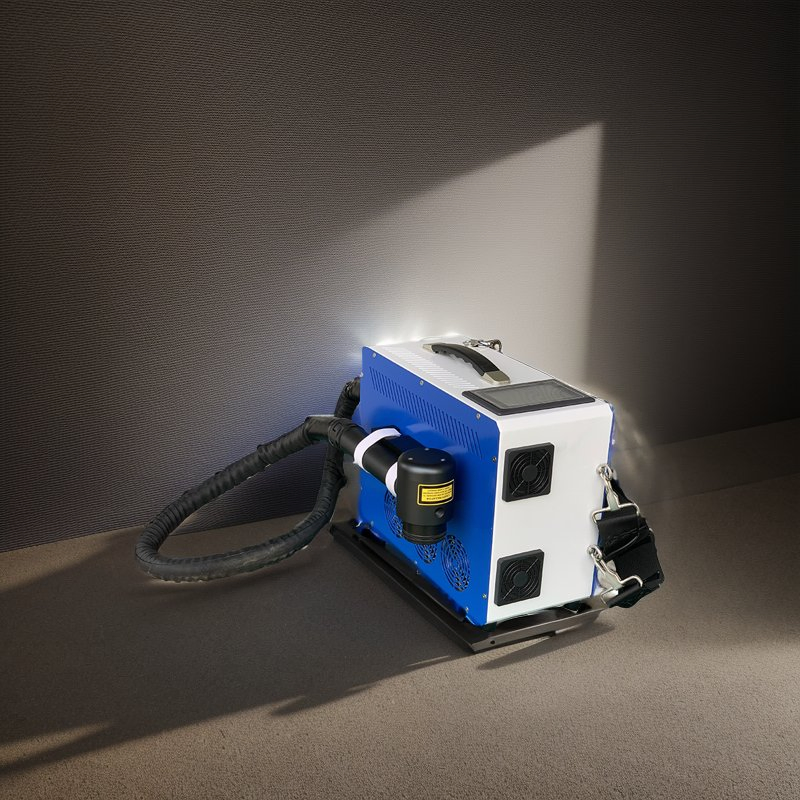

The Ventus Laser Cleaning System 300W Backpack is a portable and efficient metal cleaning device. This pulse laser rust remover is a durable and versatile backpack laser machine, ideal for industrial use.

Key Features

Non-contact cleaning without damaging the matrix of the parts
Accurate cleaning, achieving precise position and size selective cleaning
No need for chemical cleaning liquid or consumables, ensuring safety and environmental protection
Simple operation with ergonomics design
High cleaning efficiency, saving time and cost
Stable cleaning system with minimal maintenance

Technical Specification

Operating Environment
Model	DV-LCB
Supply Voltage	Standard AC220V±10%, 50/60Hz (Optional Battery Available)
Power Consumption	≤300W
Working Temperature	5ºC~40ºC
Optical Parameters
Average Laser Power	≥100W
Laser Working Mode	Pulse
Pulse Width	150-190ns
Repeat Frequency	20-200kHz (Adjustable)
Cooling Mode	Air Cooling
Cleaning Head Parameters
Scan Range	0mm - 100mm (8 scanning modes)
Scanning Frequency	10Hz~300Hz
Focal Length	160mm (Optional 210/254/330/420mm)
Head Weight	<0.8kg

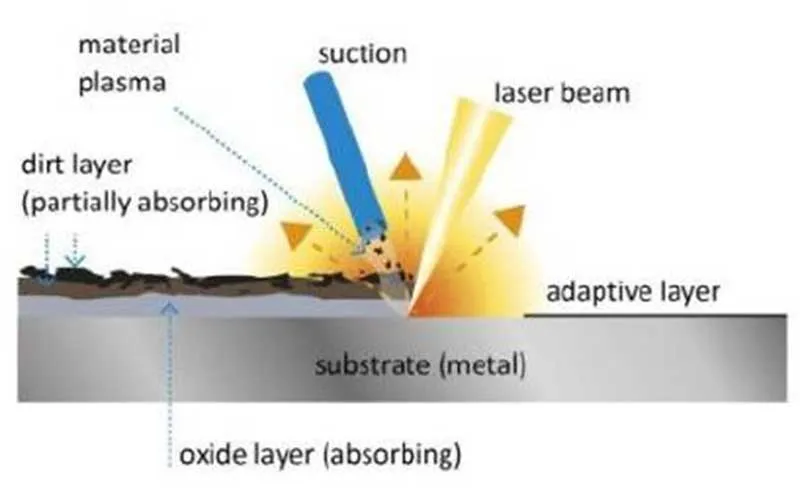

Core Advantages

High cleanliness and precise positioning cleaning
Non-contact cleaning, protecting brittle material surfaces
Zero maintenance cost and environmentally friendly (No chemical pollution)
Can clear pollution particles below the nanometer level
Fiber optic transmission allows for operation in hard-to-reach areas
Wide application scope for various industrial materials

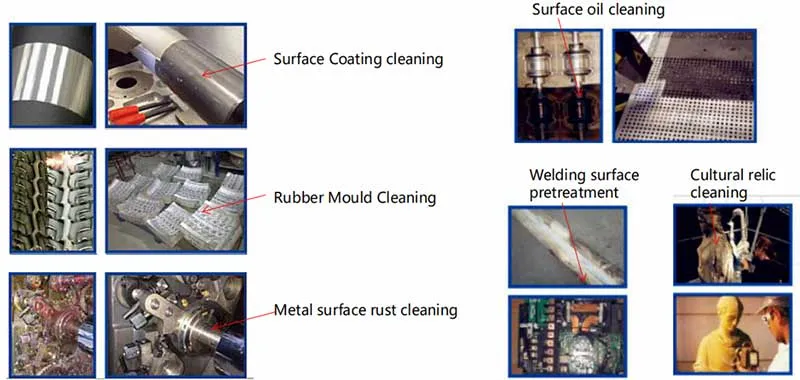

Typical Applications

Metal surface derusting and oxide layer removal
Surface paint removal and treatment
Surface cleaning of oil stains and contaminants
Welding surface and spray surface pretreatment
Stone figure surface dust and attachment cleaning
Rubber, plastic, and metal mold residue cleaning

Reliable Services

Full assembly, testing, and inspection before shipment
Pre-sales technical advisory and operational training
Free repair for main spare parts within the warranty period
Software system upgrades and lifetime maintenance support
Preferential pricing for spare parts beyond the warranty period

Frequently Asked Questions

1. Will the laser damage my metal surface?

No. The pulse laser cleaning is a non-contact process that removes surface contaminants like rust or paint without damaging the underlying matrix or substrate.

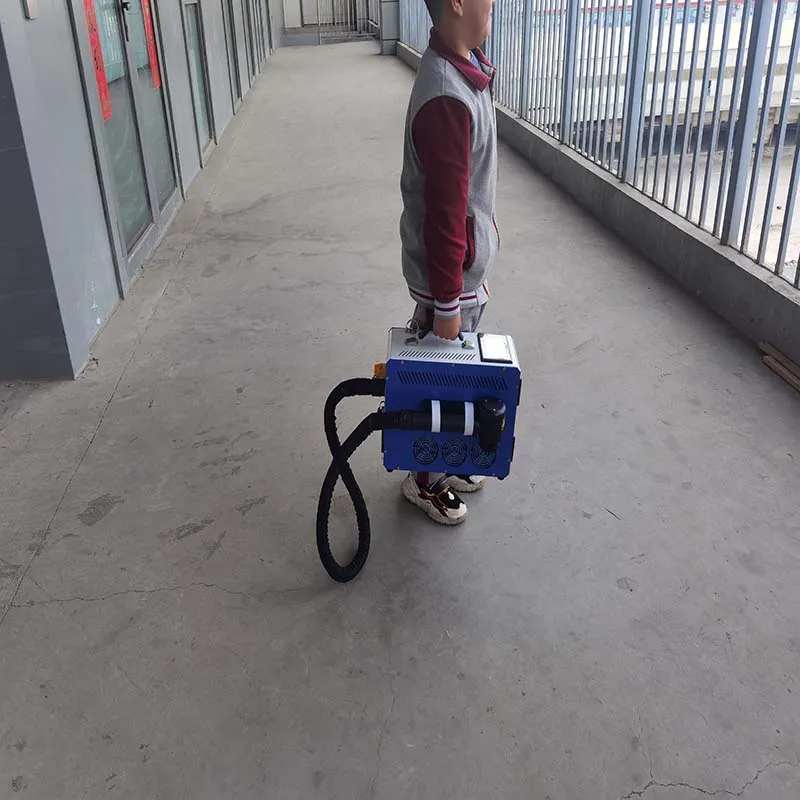

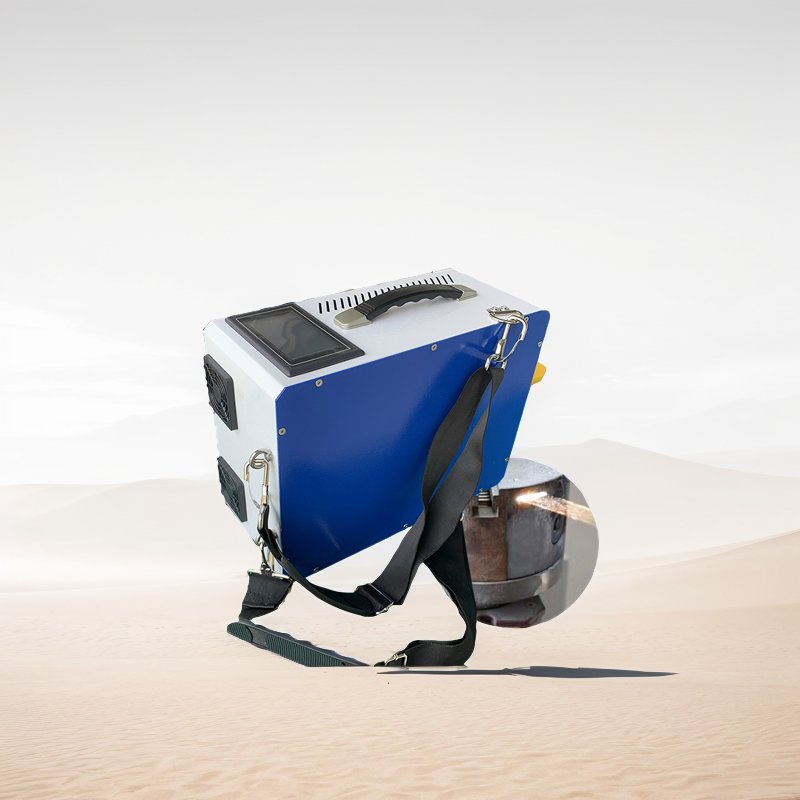

2. Is this machine portable for outdoor use?

Yes. The backpack design and 12kg lightweight structure make it highly portable. It can also be equipped with an optional battery for operation in areas without power outlets.

3. Does it require chemicals or consumables?

No chemicals, sand, or consumables are required. It only uses electricity, making it an eco-friendly and cost-effective solution.

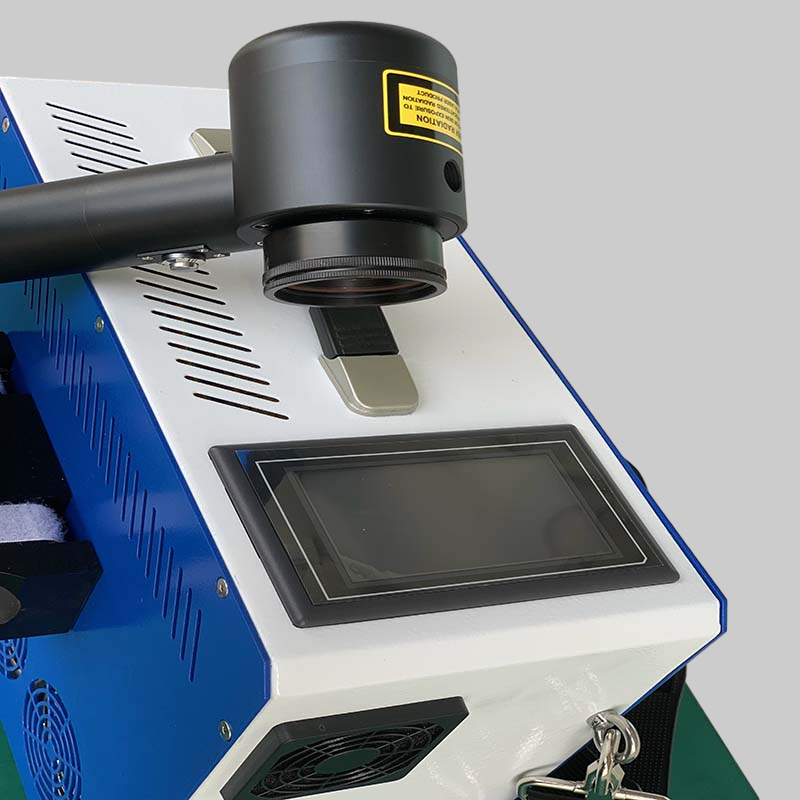

4. What is the typical weight of the cleaning head?

The handheld cleaning head is ergonomically designed and weighs less than 0.8kg, allowing for long-term use without fatigue.

5. What is the warranty period for this machine?

We provide a 2-year warranty and lifetime maintenance support. Major spare parts are repaired or replaced for free within the warranty period.
