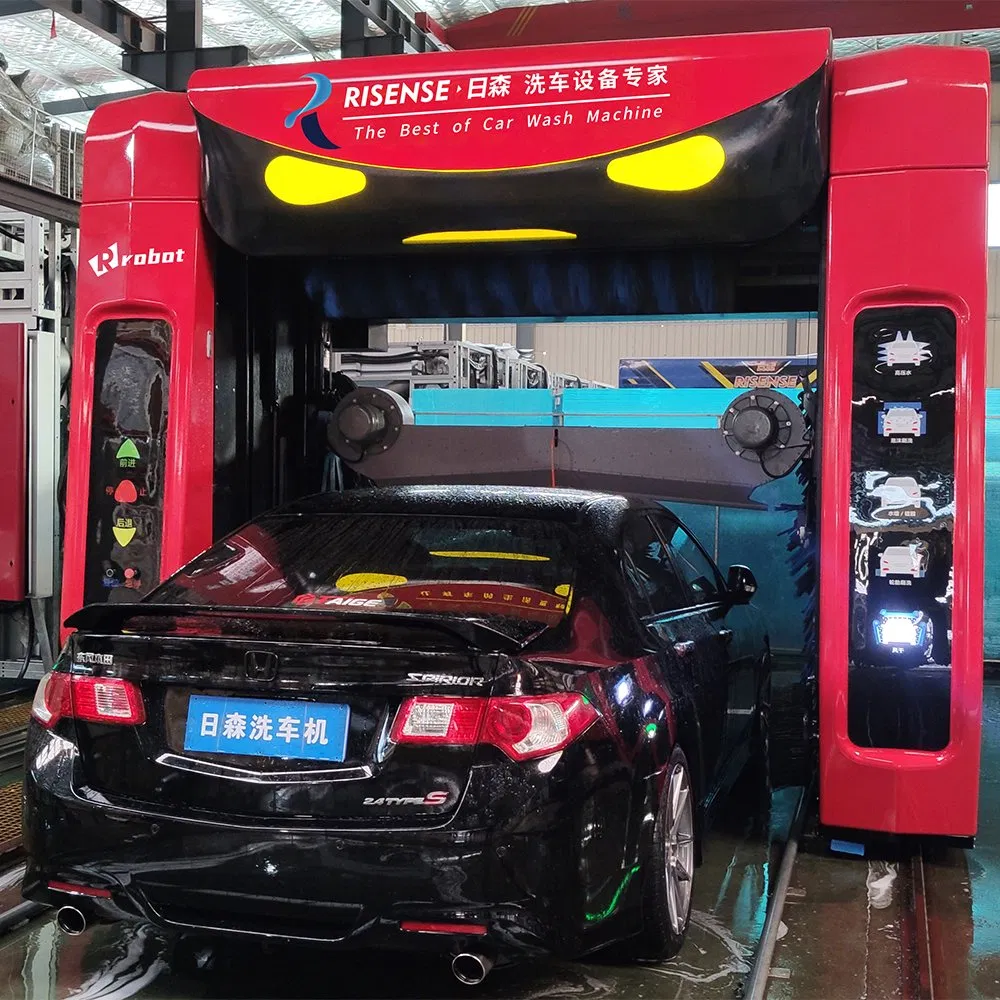

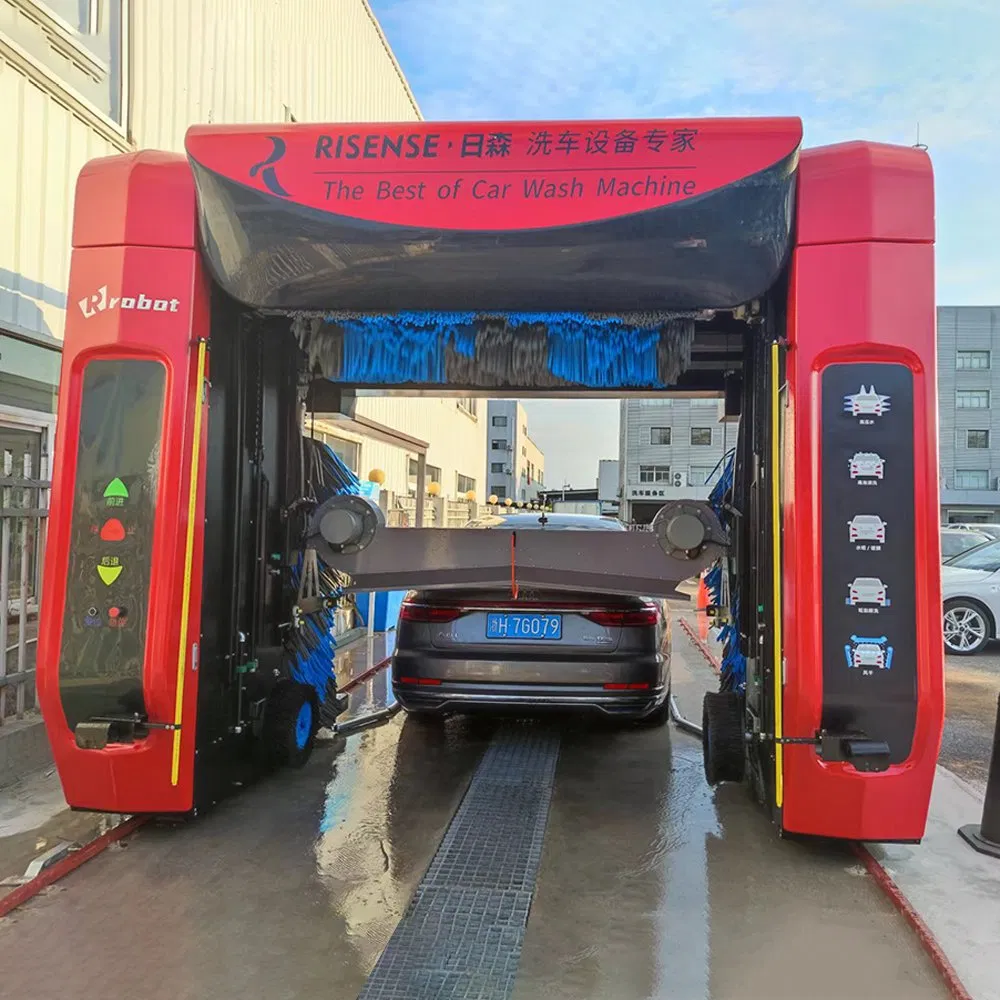

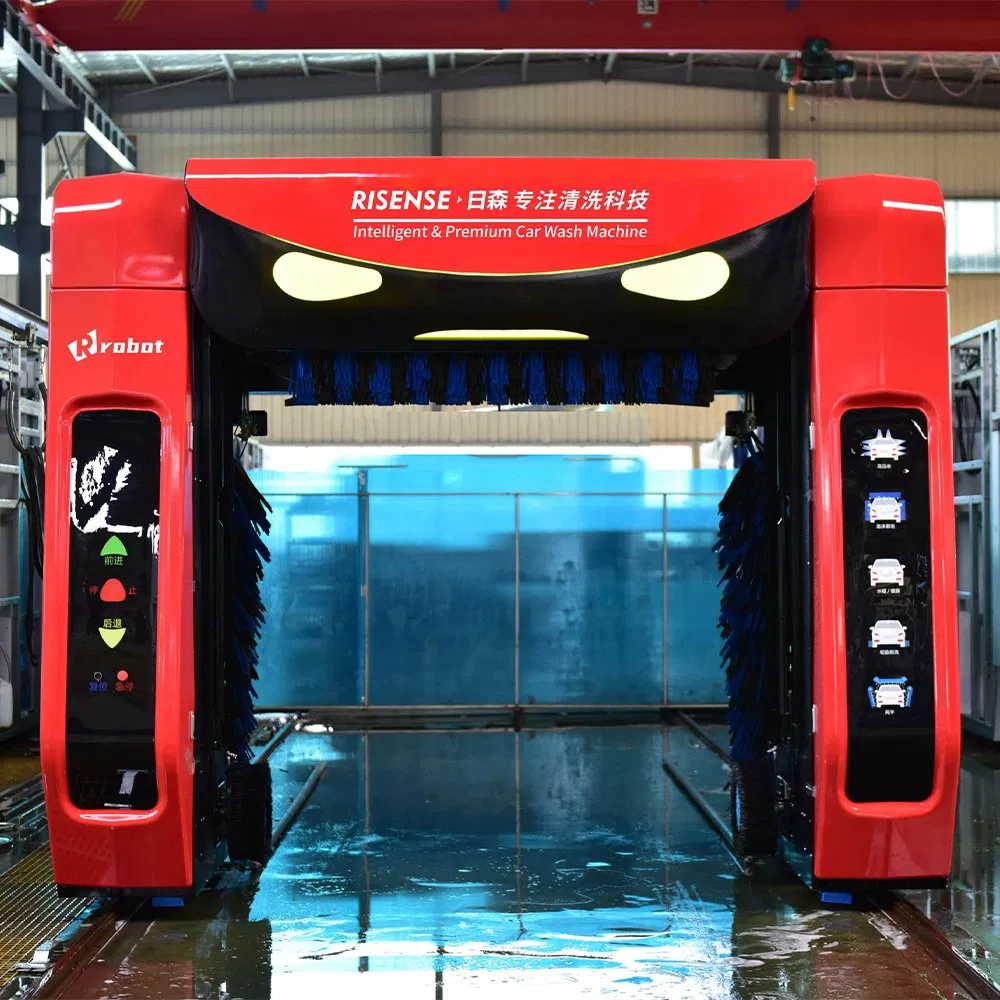

Advanced Vertical Brush Car Wash System for Superior Cleaning

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

📊

Basic Information

Model NO.
CF-390
Type
Reciprocating
Fuel
Electric
Cleaning Process
Cold Water Cleaning
Certification
CE, ISO9001, ISO14001
Material
Metal / Hot-dip galvanized steel
Installation Size
11m * 4.3m * 3.3m
Brush System
1 Top + 2 Wheel + 2 Long Vertical
Drying System
4 Air Dryers
Control System
Full Automatic MCU
🏢

Company Profile

A professional car wash equipment manufacturer with almost a decade of design and production experience. We supply comprehensive systems including tunnel wash, rollover systems, touchless wash, and high-pressure wash systems. Based on time-tested technology and combined with the latest innovations, we offer complete and unique car washing solutions.

Our manufacturing process utilizes mature and stable numerical control processing technology for all components, frames, and motors. The facility includes 6 separate manufacturing workshops spanning a total area of 25,000 square meters.

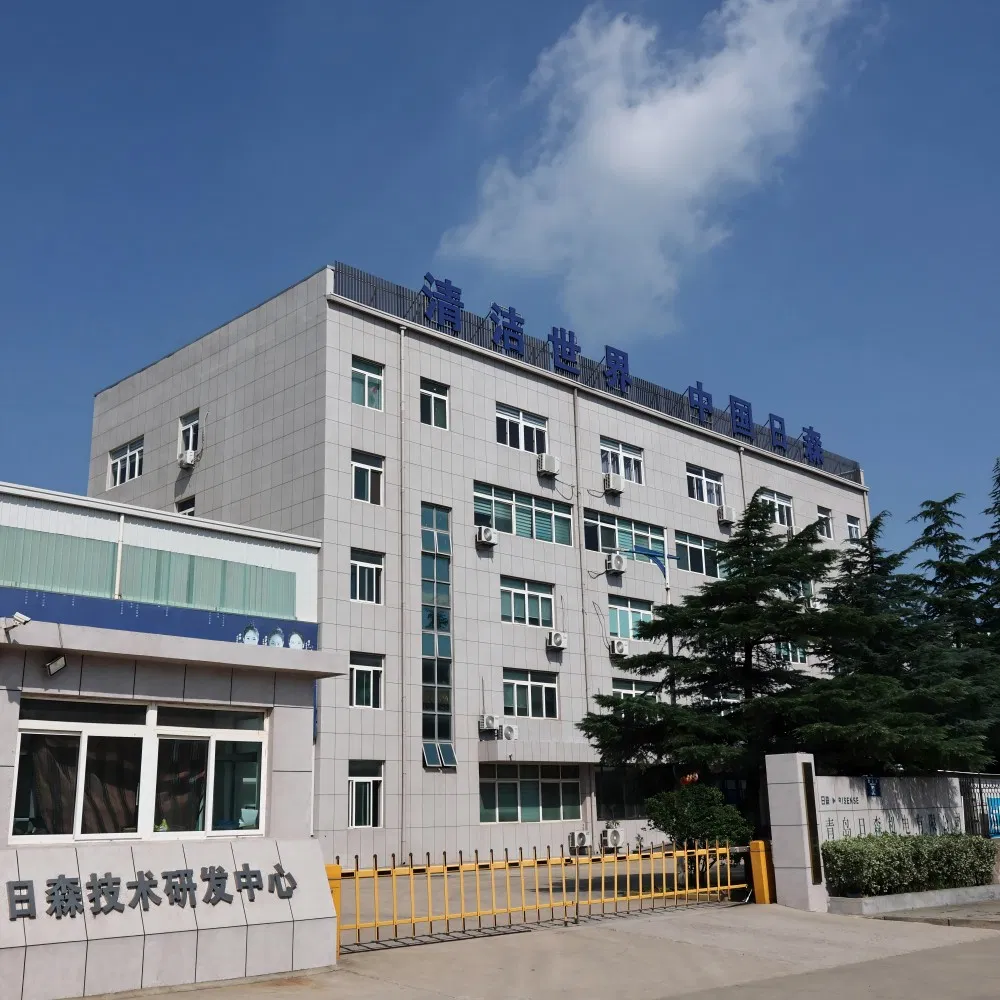

Workshop View 1
Workshop View 2

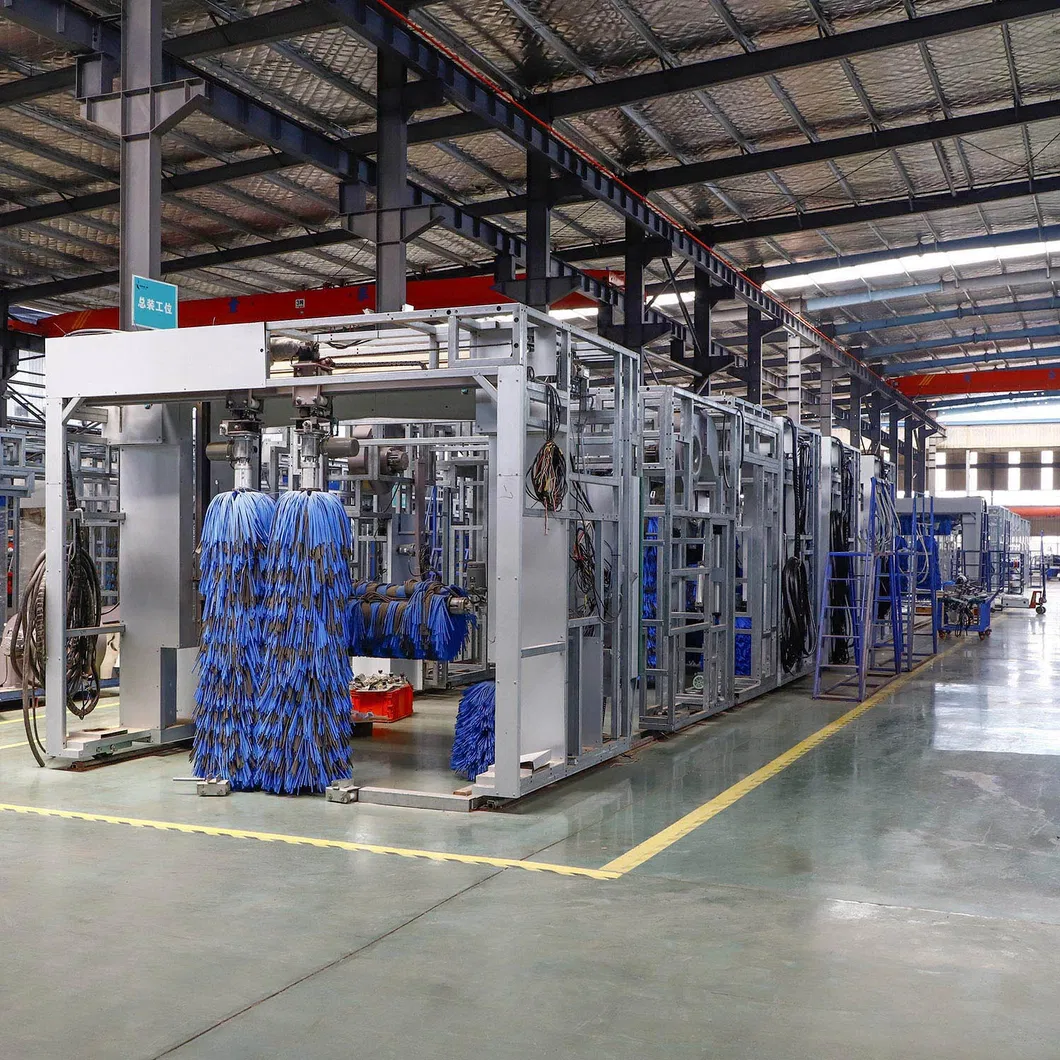

Assembly Line
🚗

Rollover Car Wash Machine with Drying

  • Hot-dip galvanized steel frame for maximum stability and durability.
  • Full automatic MCU control system for easy operation and maintenance.
  • High-speed washing contoured to the specific body shape of the vehicle.
  • Automatic shampoo and wax proportioning system for optimal chemical use.
  • 5-brush configuration (1 top + 2 wheel + 2 long vertical) for 360-degree cleaning.
  • Four large-volume air dryers ensure a superior drying effect.
  • Intelligent brush wrapping to safely clean without any dead angles.
Machine Detail 1

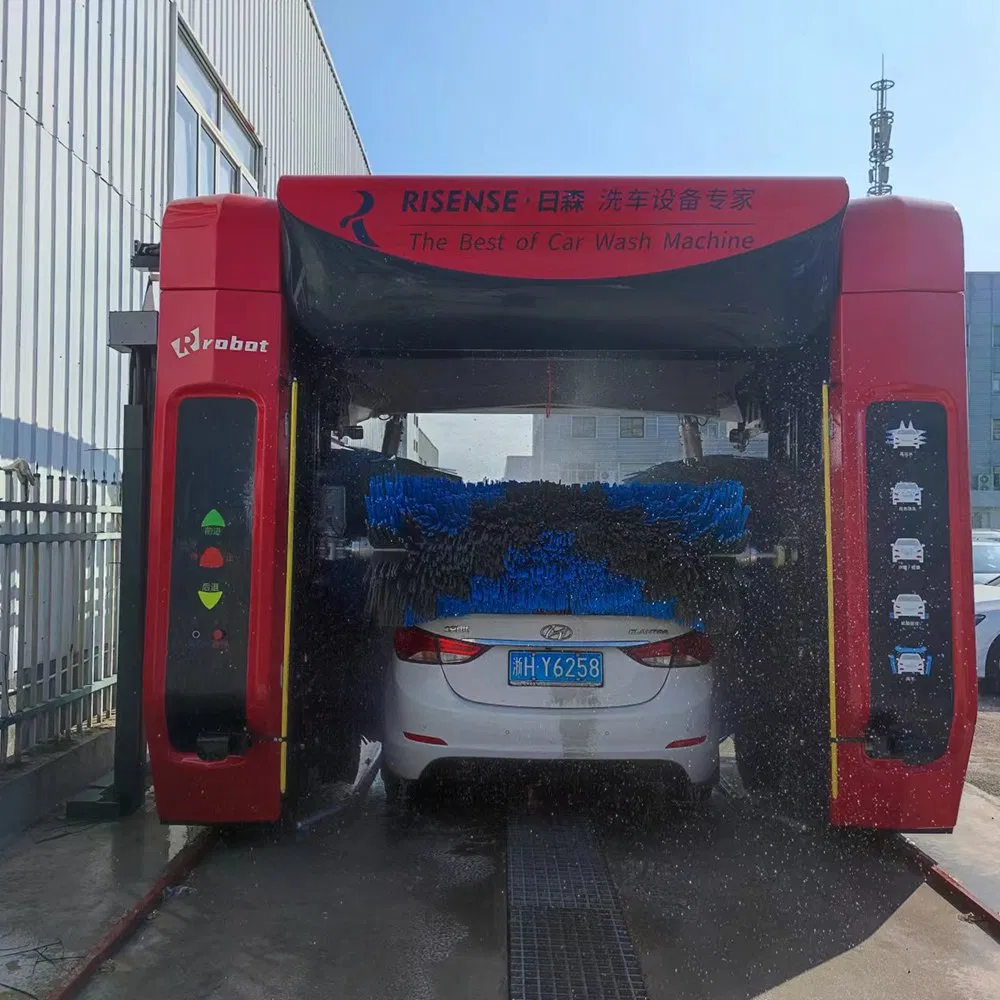

Machine Detail 2
⚙️

Technical Specifications

Technical Data Item Specifications
Dimensions Overall Dimension 2.50m * 3.96m * 3.05m
Installation Size 11m * 4.3m * 3.3m
Requirements Voltage AC380V 50Hz, 20KVA
Water Source DN25 pipe, flow ≥ 80L/min
Air Source 0.75 ~ 0.9Mpa, flow ≥ 0.1m³/min
Performance Wash Speed 2'45" (1 rollover) - 7'20" (3 rollovers)
Car Size Limit 5.4m * 2.1m * 2.1m (Max 10 Seats)
Consumption Water 85L - 130L per car
Electricity 0.46 - 0.65 kwh per car
Chemicals Shampoo: 15ml | Wax: 20ml
🖼️

Detailed Gallery & Other Products

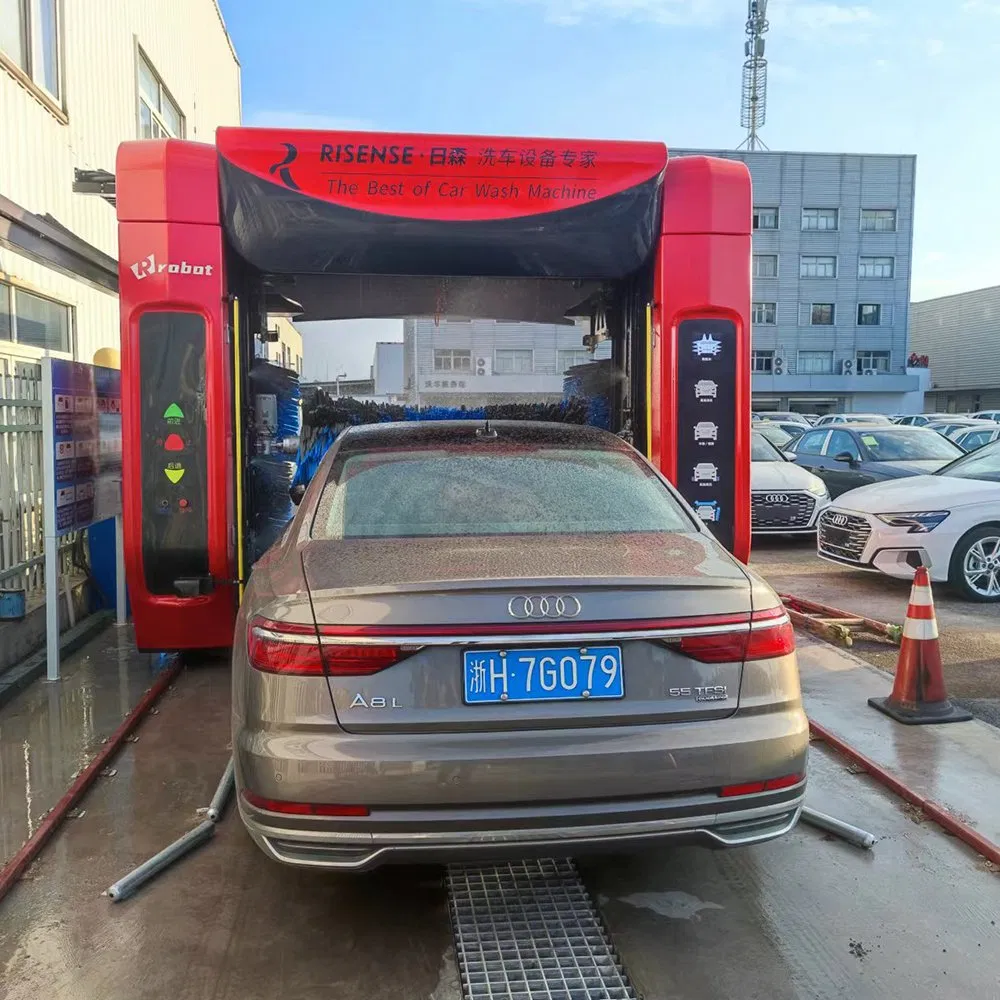

Detailed View 1
Detailed View 2

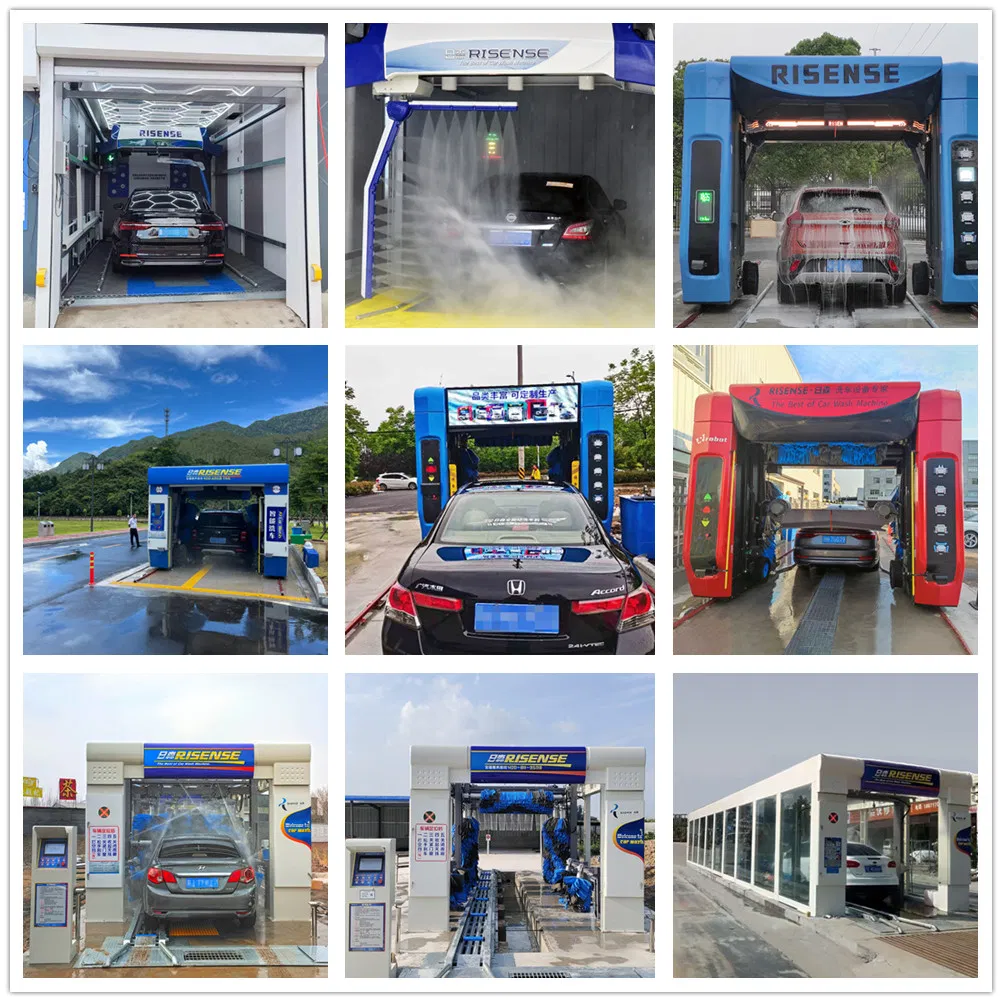

Product Range

Product Extension: We also manufacture Bus/Truck wash machines, Tunnel wash systems, Self-service units, Vacuum cleaners, and Wheel washers.

🛠️

Applications & After-Sales

Our automated solutions are ideal for:

Car Wash Centers Gas Stations Auto 4S Shops Repair Centers Parking Lots Community Service Centers Industrial Wash Downs

Support: We provide lifetime technical support. Our team handles installation, operator training, and maintenance education. Parts are provided free of charge if the machine is out of work during the first year (including critical parts).

Frequently Asked Questions

What types of vehicles can this rollover machine wash?
It is designed for cars, jeeps, and coaches with up to 10 seats, within the dimensions of 5.4m * 2.1m * 2.1m.
What is the average wash time per vehicle?
The speed depends on the wash cycle selected: 1 rollover takes about 2 minutes and 45 seconds, while a full 3-rollover cycle takes about 7 minutes and 20 seconds.
Is the machine frame protected against rust?
Yes, the machine features a hot-dip galvanized steel frame which ensures long-term durability and resistance to corrosion in wet environments.
What are the utility requirements for installation?
You will need an AC380V 50Hz power supply (20KVA), a water source with a flow rate ≥ 80L/min, and an air source of 0.75-0.9Mpa.
What kind of warranty and after-sales service do you provide?
We offer a lifetime warranty for the machine. Parts are replaced for free in the first year if they fail. We also provide on-site installation, training, and lifetime technical support via phone or online.
