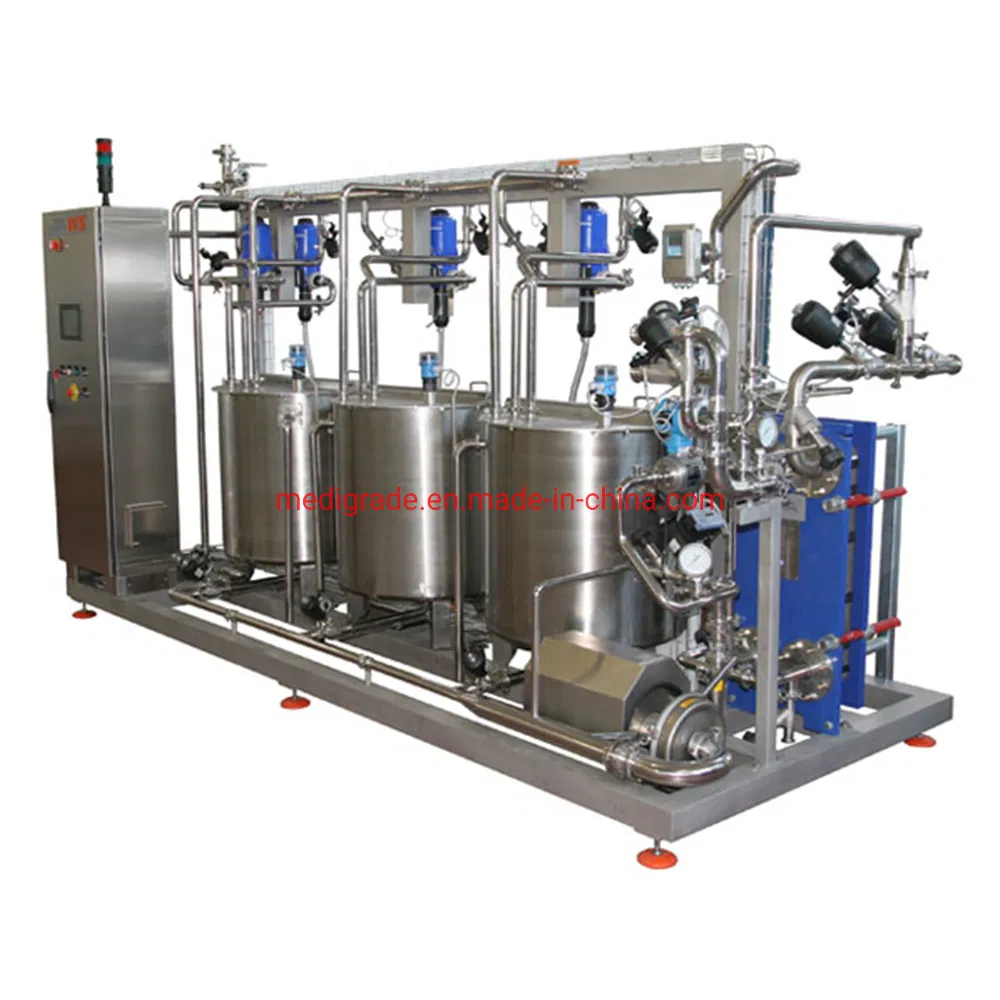

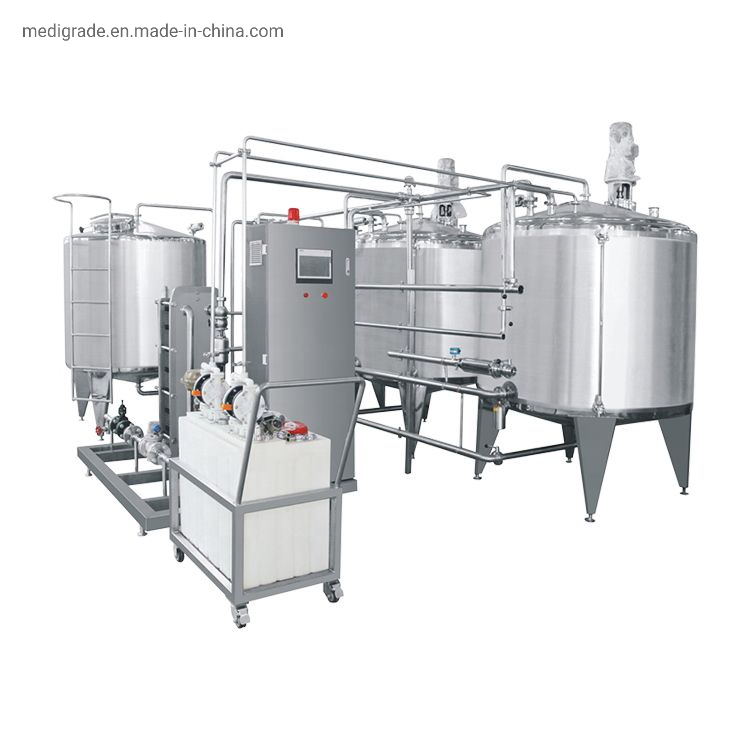

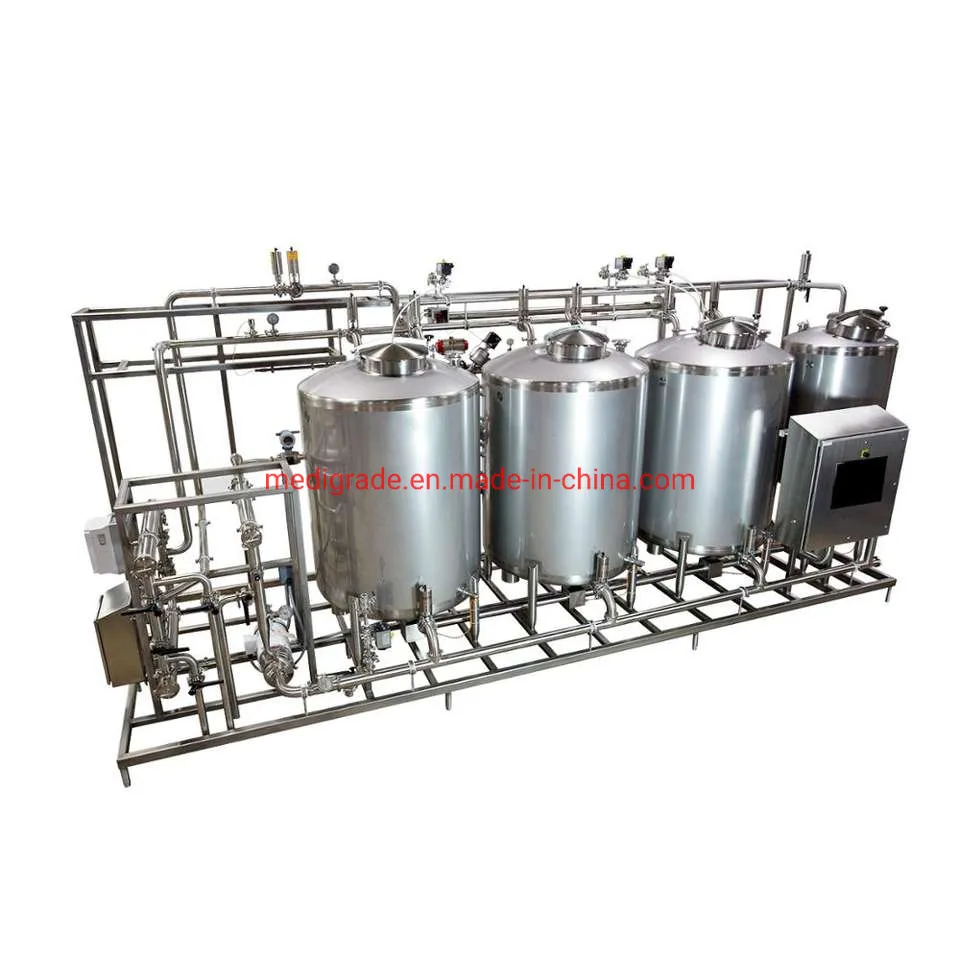

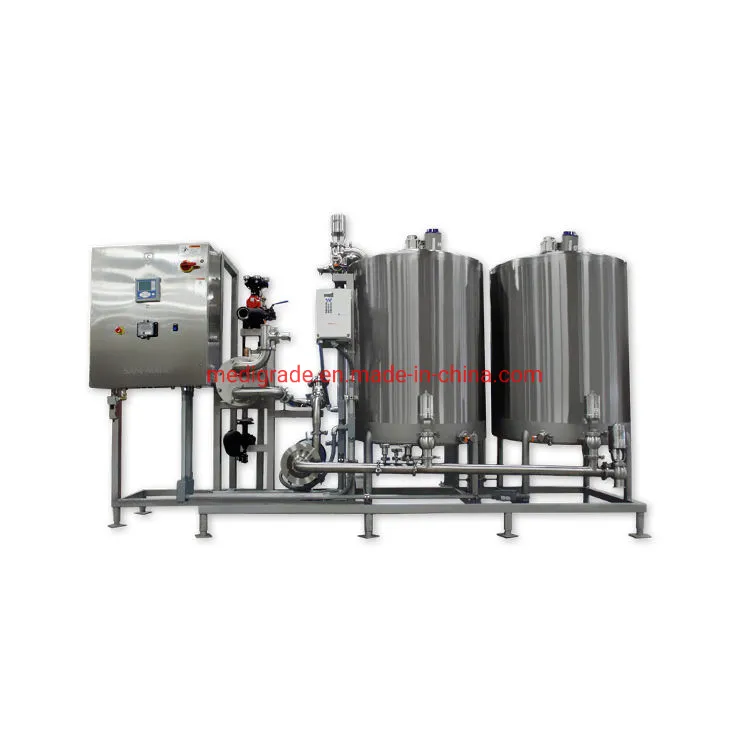

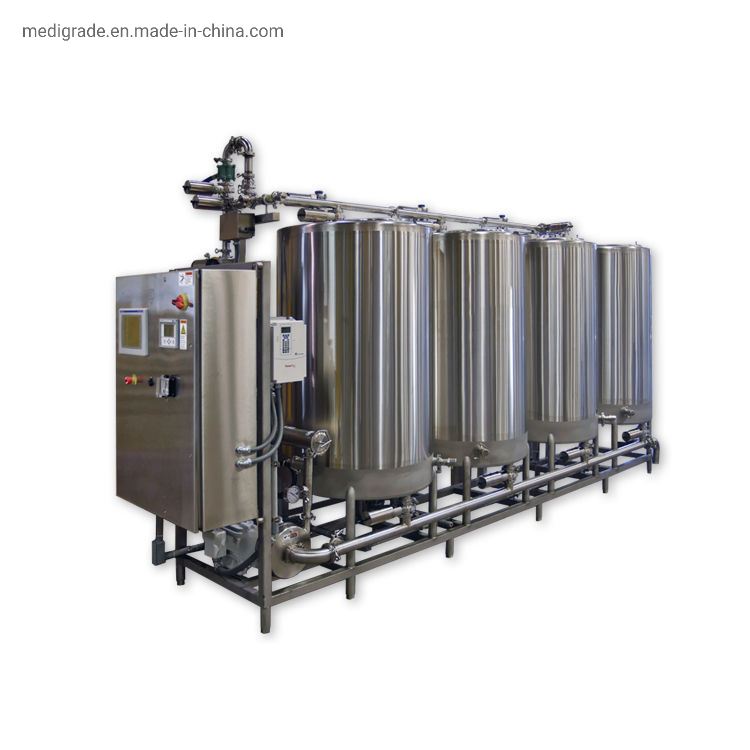

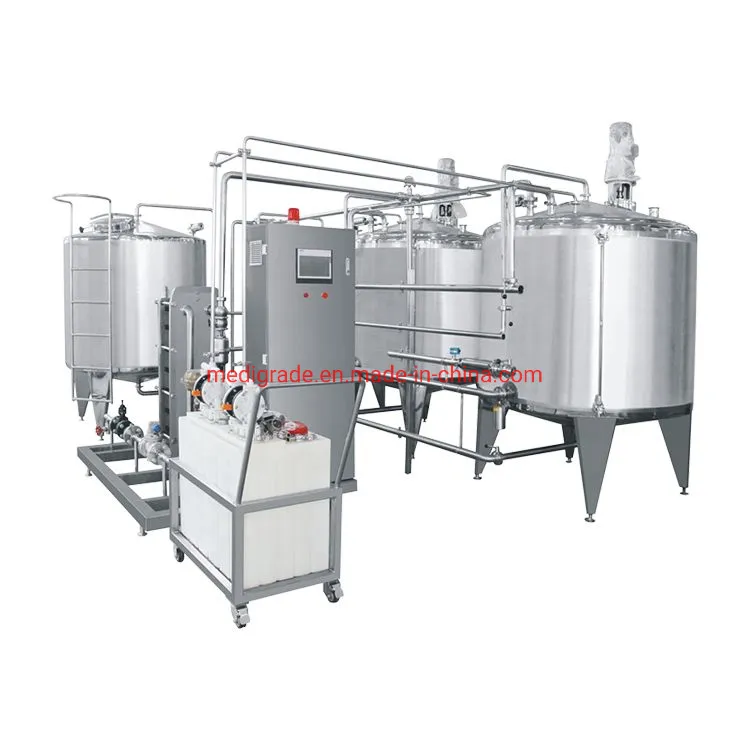

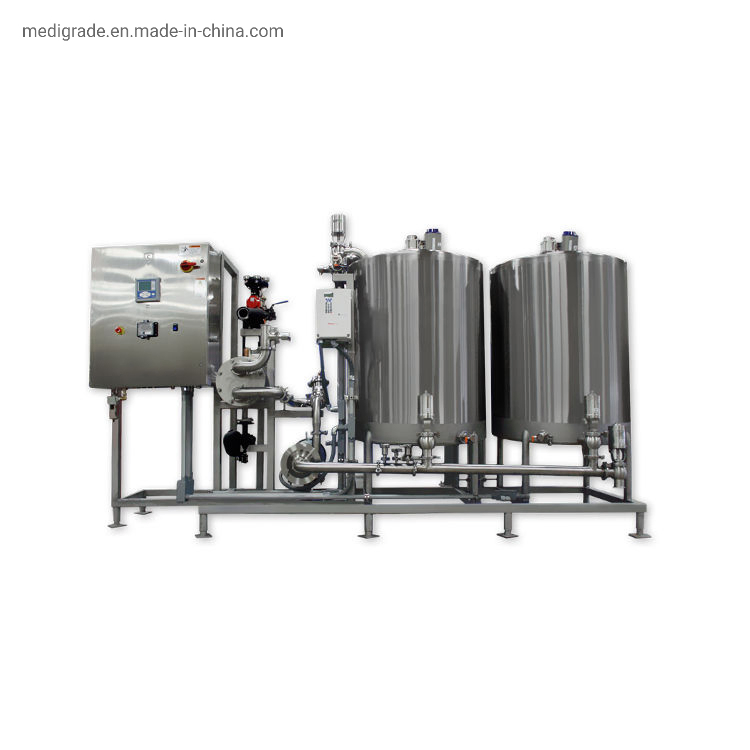

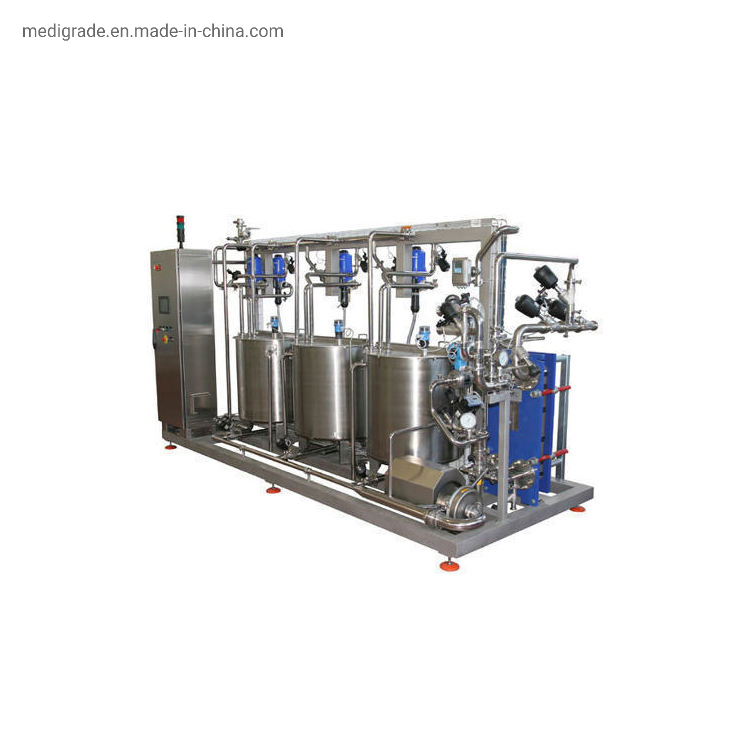

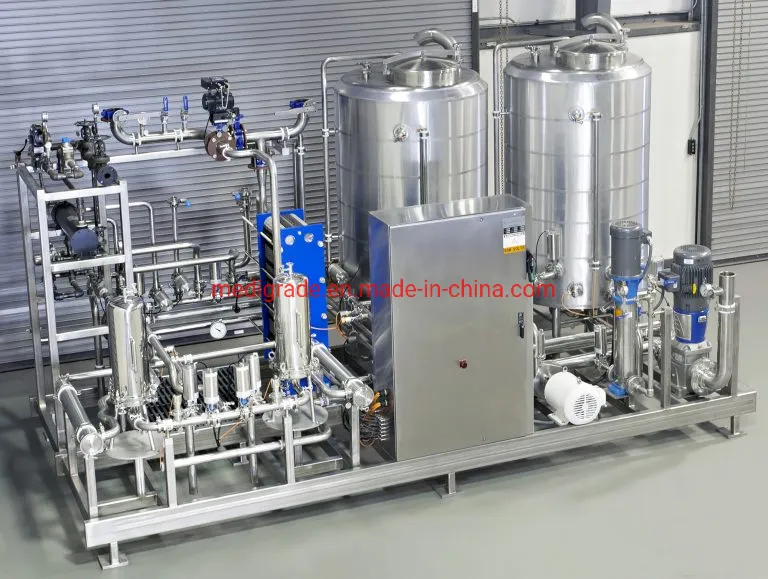

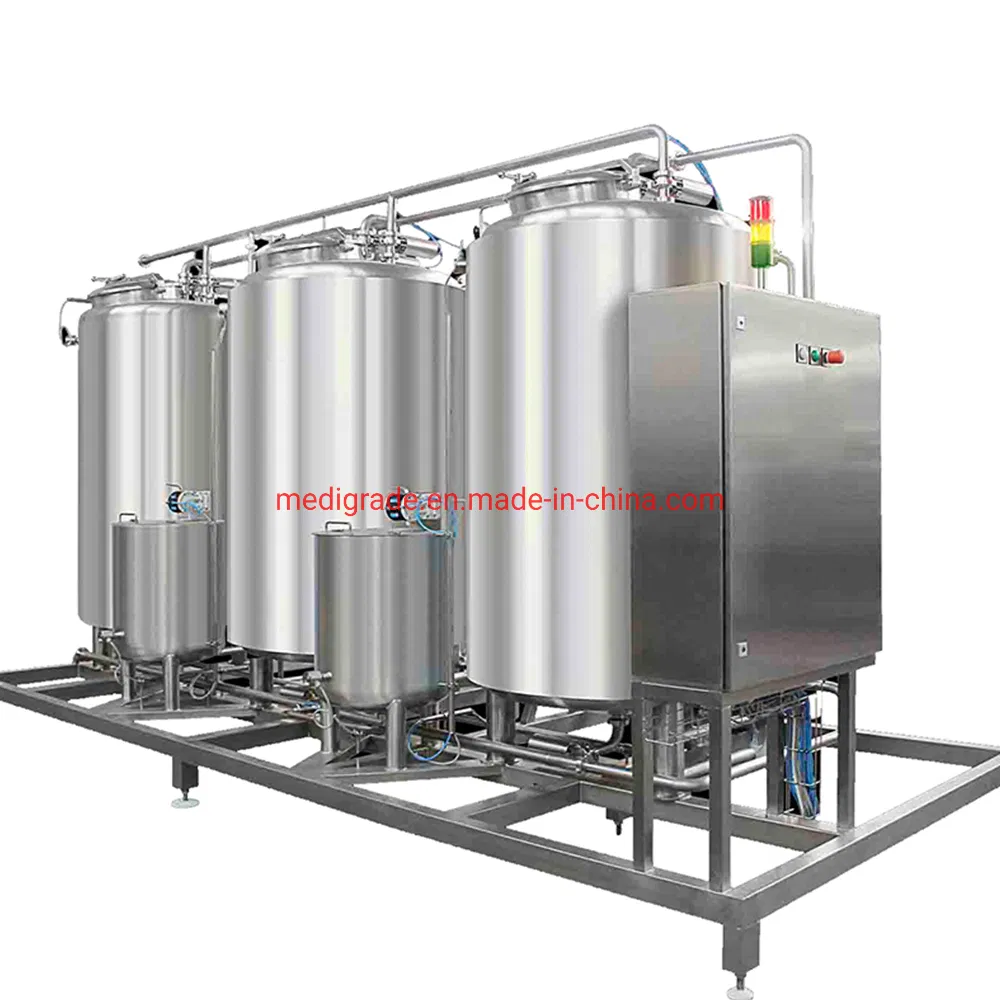

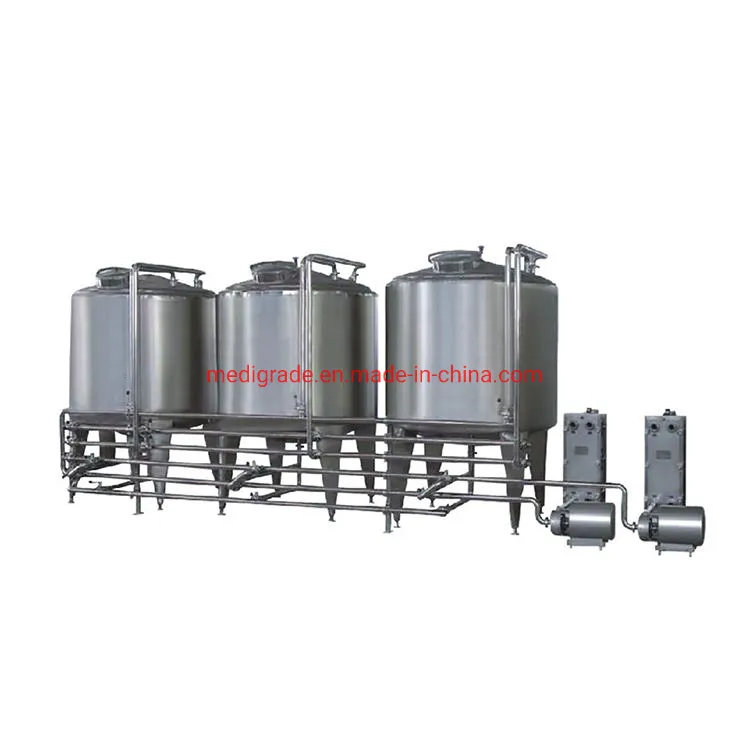

CIP (Cleaning In Place) System Overview
CIP system is divided into two categories: fixed type and movable type. The control mode of the CIP system can choose to be manual or automatic. It is designed to customize according to specific requirements. As an independent system, it achieves cleaning without disassembling production equipment parts, pipes, and valves.
Technical Characteristics
- Suitable for large, medium and small equipment cleaning.
- Compact structure, small occupied area, friendly installation and maintenance.
- Recycling design ensures detergent has a higher utilization ratio.
- Less wearing parts, resulting in a longer service life.
- Cleaning proceeds in a fully sealed environment to reduce secondary pollution.
- Manual or automatic control modes available for operational flexibility.
- Outside circulation system reduces energy consumption effectively.
- Options for Single-tank, Double-tank, and multi-tank configurations.
Technical Specifications
| Name |
CIP (Cleaning In Place) System |
| Material |
Stainless Steel 304 / 316L |
| Capacity |
Customized |
| Control System |
PLC |
| Dimension |
Customized (L*W*H) |
| Feature |
Single/Double/Multi-tank options |
| MOQ |
1 Set |
Frequently Asked Questions
Q1: What is the main advantage of a CIP system?
The system allows for thorough cleaning of the internal surfaces of pipes, vessels, and filters without disassembling the equipment, ensuring high hygiene standards and reduced labor.
Q2: Can the tank configuration be customized?
Yes, we offer flexible configurations including single-tank, double-tank, and multi-tank types to suit different production scales and cleaning requirements.
Q3: What materials are used for construction?
The equipment is primarily constructed from high-grade Stainless Steel 304 or 316L to ensure durability and compliance with pharmaceutical standards.
Q4: How is the system controlled?
The system utilizes a PLC (Programmable Logic Controller) and can be operated in either manual or fully automatic modes depending on your preference.
Q5: What is the warranty period for this equipment?
The CIP system comes with a comprehensive warranty of more than 2 years, along with 24-hour online technical support.
Q6: Does the system help in reducing energy consumption?
Yes, by utilizing an outside circulation system and efficient recycling of detergents, the system significantly reduces both water and energy consumption.
