150m Waterproof PTZ Pipe Inspection Crawler Robot Camera Equipment Manufacture

1 / 5

150m Waterproof PTZ Pipe Inspection Crawler Robot Camera Equipment Manufacture

Customization:	Available
Technology:	Wireless
Style:	Pan/Tilt

Send Inquiry

Product Description

Basic Specifications

Model NO.

X5-HMA

Type

CCTV Camera

Sensor

CMOS

Kind

Autofocus Lens

Certification

CE, FCC, RoHS, ISO9001: 2000

Feature

Waterproof, High Definition, Mini Size, Vandal-proof

Effective Distance

≧30m

Sensor Size

1/3 inch

Waterproof Grade

IP68 (10 Meters)

Pipeline Diameter

250-650mm

Lens Material

Anti-Scratch Sapphire Glass

Production Capacity

1000 Sets Per Month

Product Overview

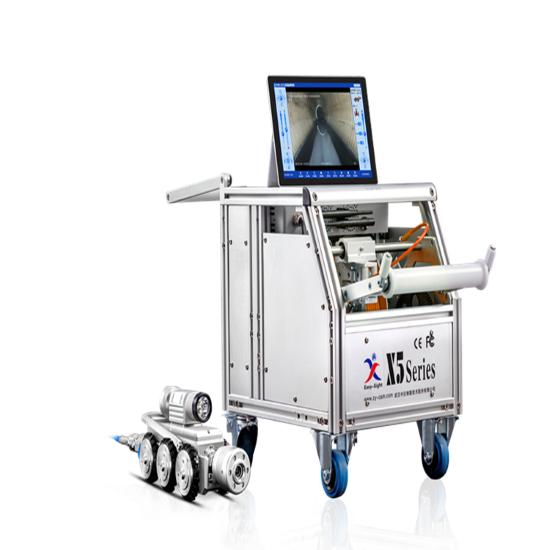

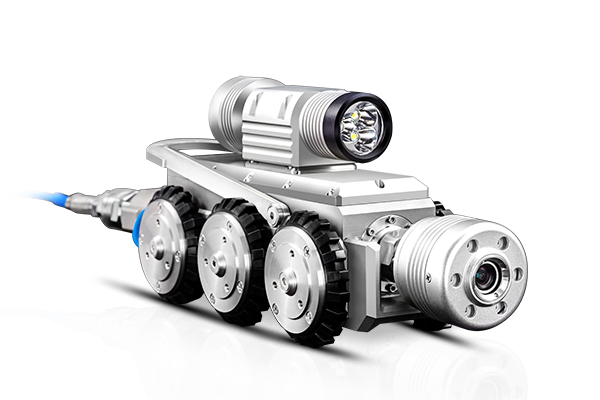

CCTV Underwater Pipe Inspection Crawler Robot (X5-HMA)

This pipeline CCTV inspection robot is a high-tech solution designed for urban drainage networks. It leverages industrial personal computer (IPC) systems, utilizing a tablet or laptop interface for intuitive control and data acquisition.

Key Advantages

1 High Definition

HD light source and camera for crystal clear detection and digital transmission.

2 Quick & Efficient

Fast assembly on-site with wireless data transmission options to save labor.

3 Stable Performance

IP68 waterproof and explosion-proof design ensures reliability in harsh environments.

4 Smart Control

Real-time status display including pressure, tilt angle, and travel distance.

Technical Parameters

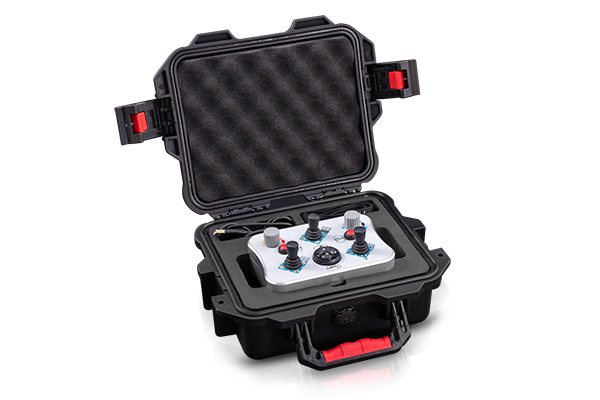

Main Controller	- Supports Tablet (8G+128G) with touch screen and acquisition software. - WiFi or Internet cable connection. - Controls: Movement, speed, rotation, zoom, focus, and electrical lift. - Real-time display: Date, distance, project info, cavity pressure, and tilt warning.
Electric Cable Reel	- IP63 rated, dust and splash proof. - Standard 150m cable (customizable), 4-core with Kevlar reinforcement (300kg tensile). - Automatic retrieve with electromagnetic clutch. - High precision meter counter (1mm accuracy).

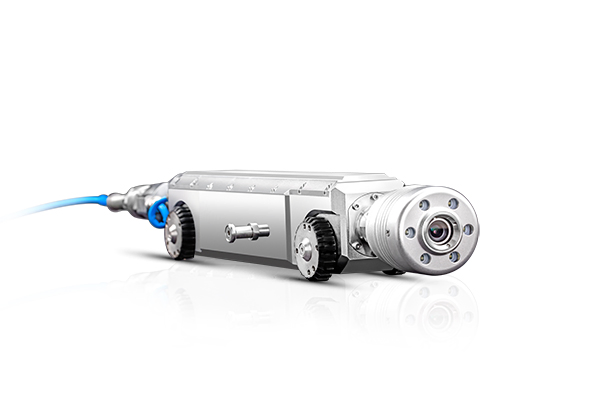

Crawler	- IP68 rated, operational in 10m water depth. - Suitable for pipe diameters: 150mm - 300mm (Up to 600mm with elevator). - Speed up to 15m/min; Gradeability up to 45°. - Material: Brass, Stainless Steel, Aluminum Alloy.
HD Camera	- Color 1/3" CMOS, 2 Million Pixels (1920*1080). - Automatic focusing with 6x3W highlight LED source. - Compatible with rotary camera units.

Exhibition & Certification

Packing & Service

Quality Guarantee
12-month warranty from arrival date with lifelong maintenance support.

Technical Support
Detailed operational manuals and training videos in English are provided.

Global Readiness
Professional team with zero communication barriers and OEM service support.

Frequently Asked Questions

What kind of packaging is used for shipping?

We use standard plywood packing cases. The machine is wrapped in foam to prevent shaking and enclosed in a thick plastic bag for waterproofing.

Is the equipment protected during international transport?

Yes, our packaging considers all damage factors. We use experienced shipping agents to ensure the parcel arrives in perfect condition.

How difficult is it to install and run the machine?

The machine is largely pre-installed before shipping. We provide detailed training videos and English manuals so most customers can learn to operate it independently.

What should I do if the machine encounters a fault?

Contact our support team immediately. We respond within 24 hours to provide technical guidance. Do not attempt unauthorized repairs.

What pipe diameters can this robot inspect?

The standard crawler is designed for 150mm to 300mm pipes, but with the optional elevator version, it can inspect pipes up to 600mm.

Can the camera work completely underwater?

Yes, the system is IP68 rated, meaning it is fully waterproof and can operate at depths of up to 10 meters.
