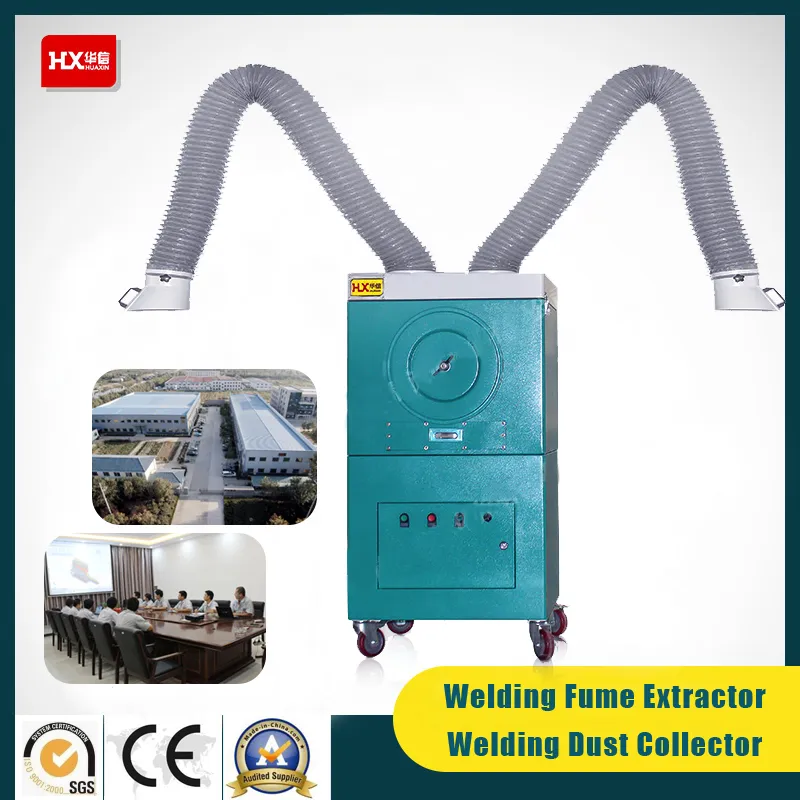

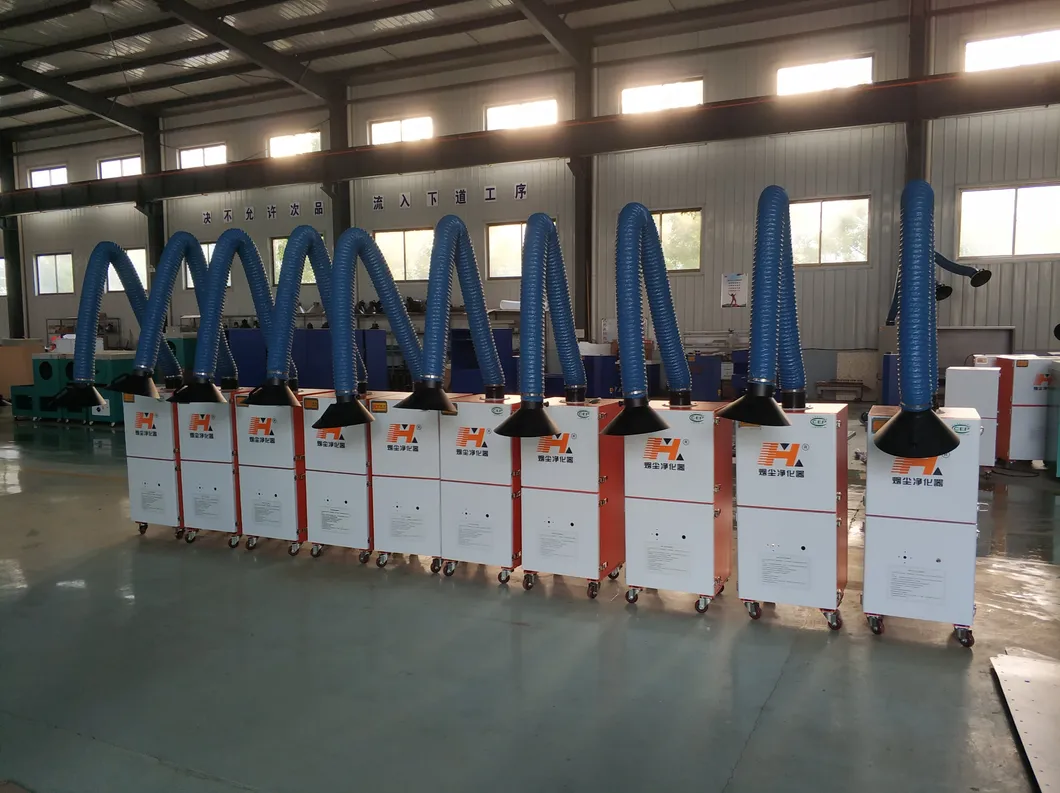

Portable/Mobile Welding Fume Extractor With Double Exhaust Extractor Arms
This unit is designed for the purification of smoke and dust generated during welding, polishing, cutting, and grinding processes. It is highly efficient for recycling rare metals and precious materials, purifying large amounts of suspended metallic particles from the air.
Operating Principle:
Equipped with a three-layer filter system:
- Flame Arresting: Sucked air passes through a flame arrester to block sparks. Larger particles descend into the dust bag via a gravity separator.
- Core Filtration: Smaller particles are captured on the surface of core filters.
- Active Carbon: Clean gas is further purified by active carbon to meet environmental standards before release.
Equipped with overload prevention circle to avoid motor damage and ensure steady performance.
Auto-pulse jet cleaning system: Rotating and back-flushing type to keep the filter core clean and maintain stable airflow.
High-efficiency filter core imported from America, capable of arresting 0.3μm particles (including wet particles).

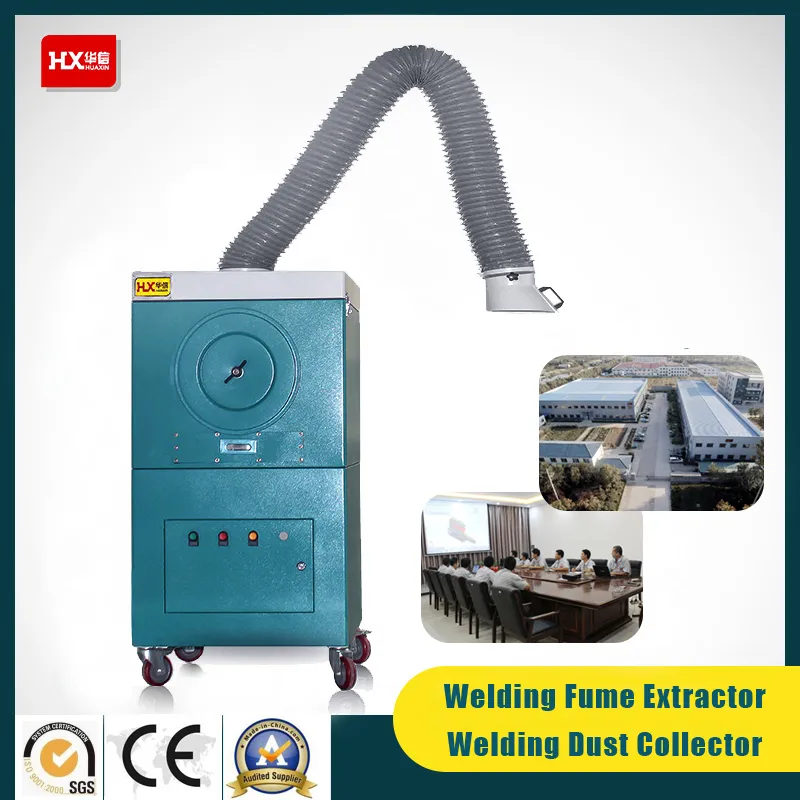

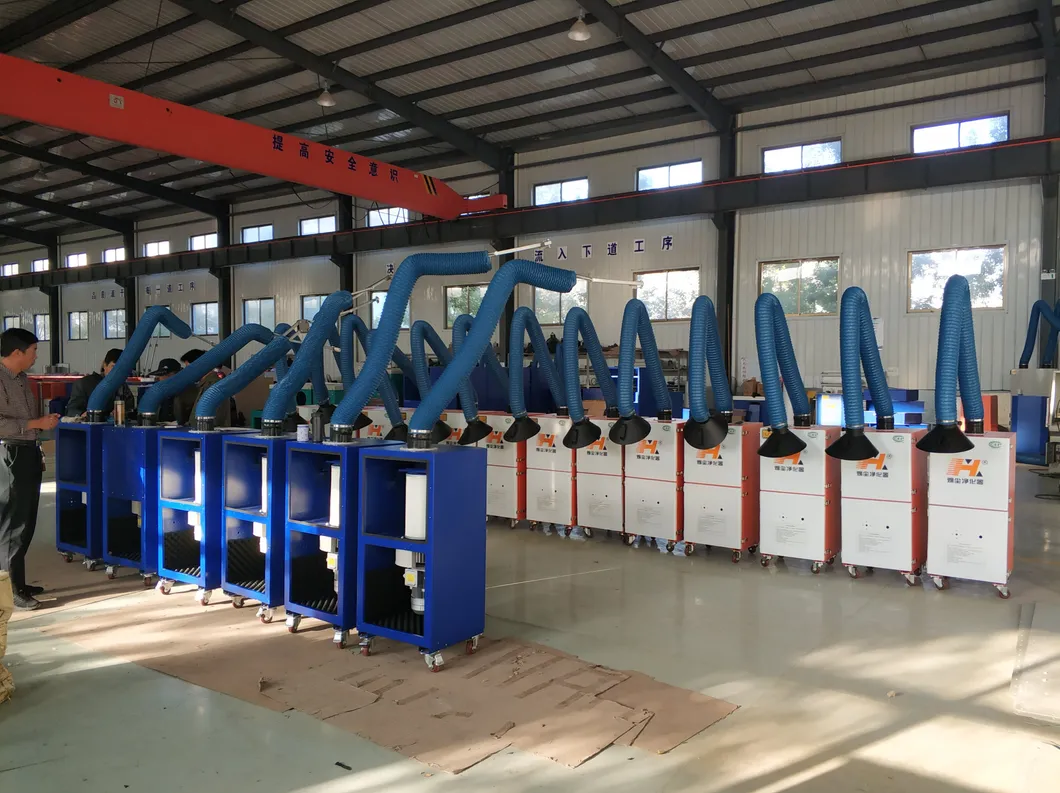

360-degree rotating all-direction sucking arms for precise fume collection at the source.
Three-layer filtration system protects against flame and large slag, extending facility lifespan.
Low noise operation through uniform guidance and dispersed grille outlet.
High mobility with all-direction caster wheels for free positioning.
Photoelectric controlled on/off for energy saving and high efficiency.
| Model |
Airflow (m³/h) |
Power (kW) |
Voltage (V) |
Filter Area (m²) |
Precision (%) |
Noise (dB) |
Size (mm) |
| HXYD-ZD18 | 1800 | 1.1 | 380V/50Hz/3P
415V/50Hz/3P | 15 | 99.99% | 68 | 650*670*1260 |
| HXYD-ZD22 | 2200 | 1.5 | 20 | 99.99% | 70 | 650*670*1260 |
| HXYD-ZD30 | 3000 | 2.2 | 20 | 99.99% | 72 | 650*670*1260 |
| HXYD-ZD40 | 4000 | 4.0 | 30 | 99.99% | 78 | 650*670*1300 |
| HXYD-ZD50 | 5000 | 5.5 | 40 | 99.99% | 85 | 850*936*1700 |
| Downdraft Table | 2500 | 3.0 | 20 | 99.00% | 74 | 1350*700*800 |
Note: ZD denotes 1 suction arm; ZS denotes 2 suction arms. Standard arm length is 2.2m-3m.
?
Frequently Asked Questions
What is the filtration efficiency of this extractor?
The unit provides a filtration accuracy of 99.9% for particles as small as 0.3μm, ensuring a safe working environment.
How does the automatic cleaning system work?
It features an Auto Pulse Jet cleaning system where the filter core automatically rotates and back-flushes to maintain a clean surface and stable airflow.
Is the unit protected against welding sparks?
Yes, it includes a fire-proof pre-filter net and a flame arrester at the inlet to block sparks and protect the core filters.
Can the suction arms be adjusted easily?
Absolutely. The extractor is equipped with 360-degree rotating all-direction sucking arms, allowing precise positioning at the fume source.
Is this machine easy to move within a workshop?
Yes, it is designed with all-direction caster wheels, making it highly mobile and easy to position wherever it is needed.
