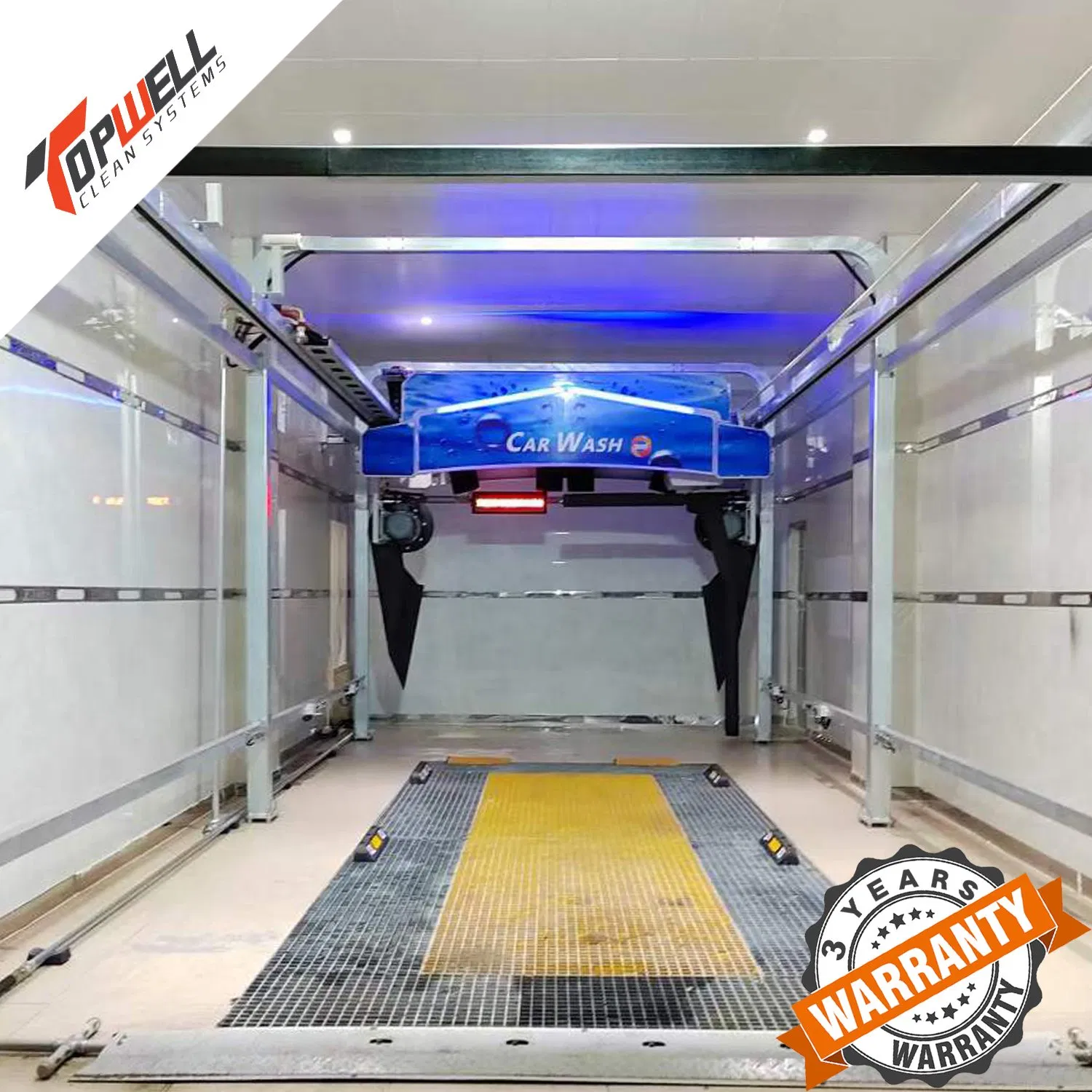

2024 Hot Sale Promotion Touch Free Automatic Car Wash Equipment

Customization:	Available
After-sales Service:	Online Support
Warranty:	3 Years

📊

Basic Information

Model NO.WS900

TypeMobile

ApplicationAutomotive Beauty Shop

FuelElectric

Cleaning ProcessCold Water Cleaning

CertificationCE

FeatureSudsing / Foaming

Installing Size8000x3700x3400 mm

Max Wash Size5500x2200x2100 mm

Dryer Quantity4PCS 5.5kw

Wash Capacity15-20 Cars/Hour

OriginChina

📝

Product Description

WS800 series adopts an advanced intelligent ultrasonic detection system, accurate measurement of car width and length, collection full-body cleaning, wax coating, and protective paint in the fine car washing equipment.

Equipped with a standard servo motor and frequency conversion motor to drive the horizontal, rotation before and back/forth operation, making the perfect mechanical structure and servo drive cooperate efficiently. The "L" type spray rod is made of 304 stainless steel to prevent rust and nozzle blockage. It not only sprays high-pressure water but also detergent under the same nozzle.

The dosing pump system features a 5-channel control for pre-soak foam, triple color foam, and Wax, meeting different wash needs and controlling costs accurately.

⚙️

Technical Parameters

Model Parameter	Specifications	Functional Configurations
Machine Size	3670L x 1330W x 1300H (mm)	Auto parking detection system
Max Car Wash Size	6000L x 2400W x 2100H (mm)	360° rotary cleaning function
Machine Total Power	45kw	4pcs 5.5kw top dryer system
Water Consumption	94L - 150L per car	Voice prompt system
Wash Capacity	3-5 minutes per car	Anti-collision & Safety alarm

🔄

Wash Programs

Program A: Full Fine Wash Undercarriage cleaning - Pre wash - Tri-color foam - HP flushing - Foam rinse - HP flushing - Coated wax - Strong drying

Program B: Quick Wash Undercarriage cleaning - Tri-color foam - HP flushing

Program C: Maintenance Wash Foam rinse - HP flushing - Coated wax - Strong drying

💎

Main Features

✓ Intelligent fully-auto operating systems

✓ Smart 360 technology for fast cleaning

✓ Innovative suspension system without rails

✓ Embedded fast drying system (4x5.5kw)

✓ Faulty self-checking & Digital security alarm

✓ One-key anti-frozen system for cold climates

📐

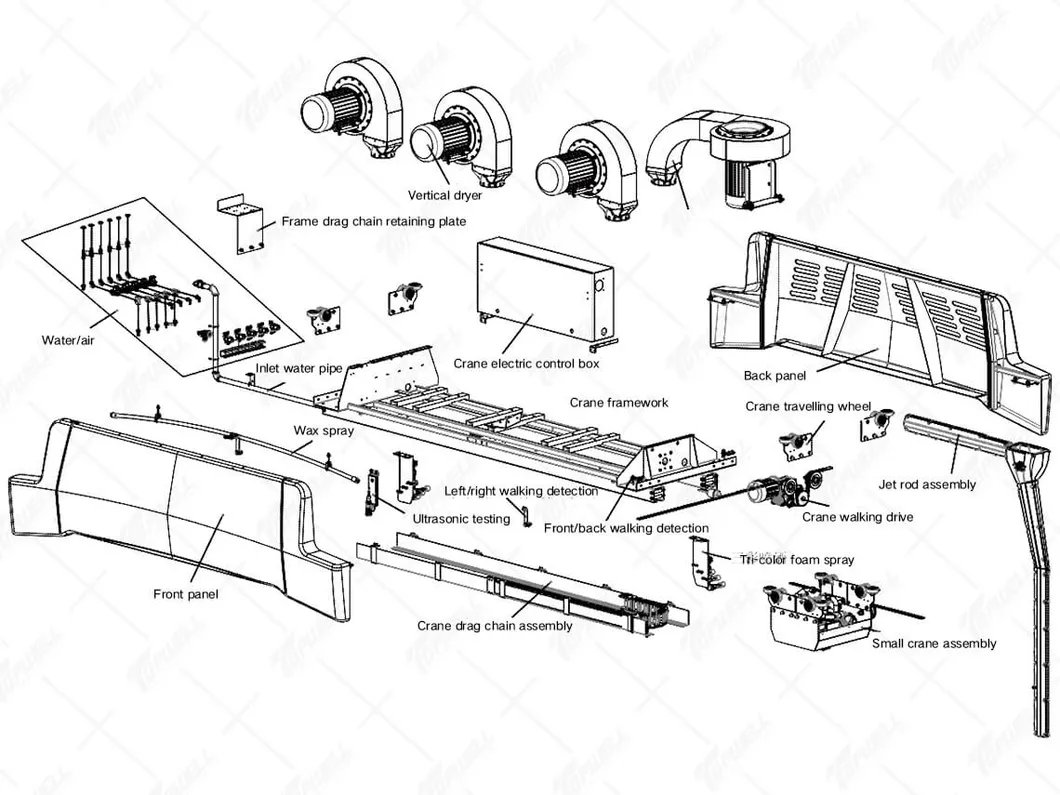

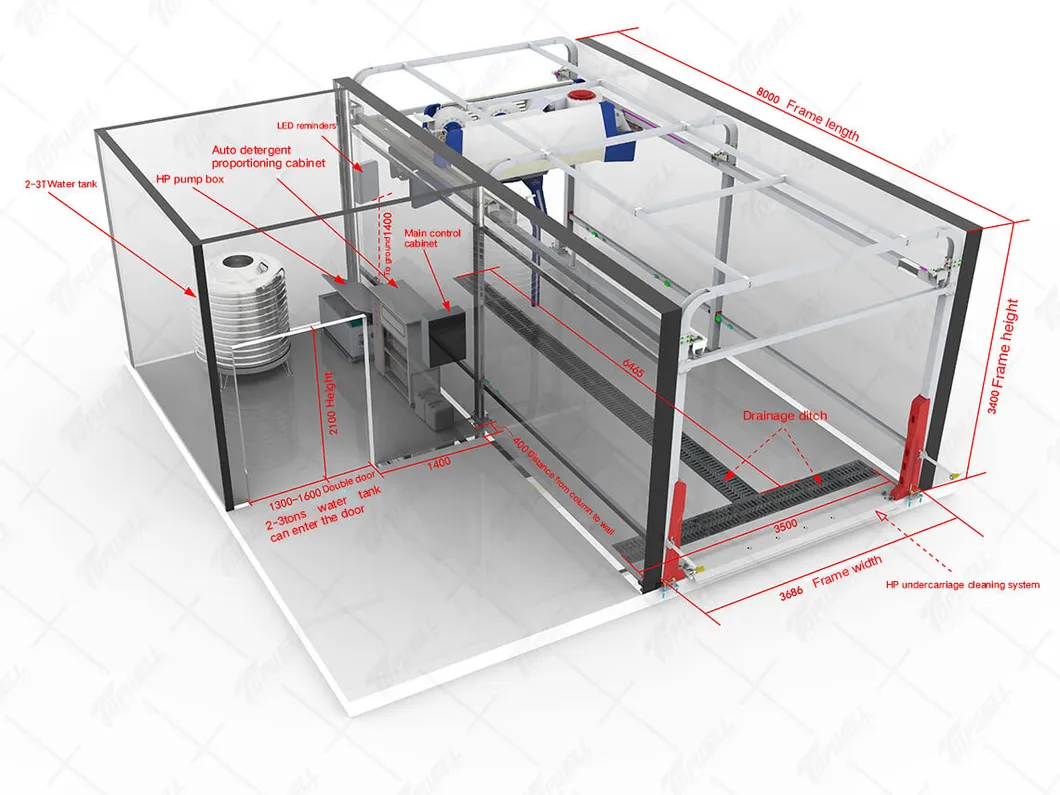

Framework & Dimensions

🔍

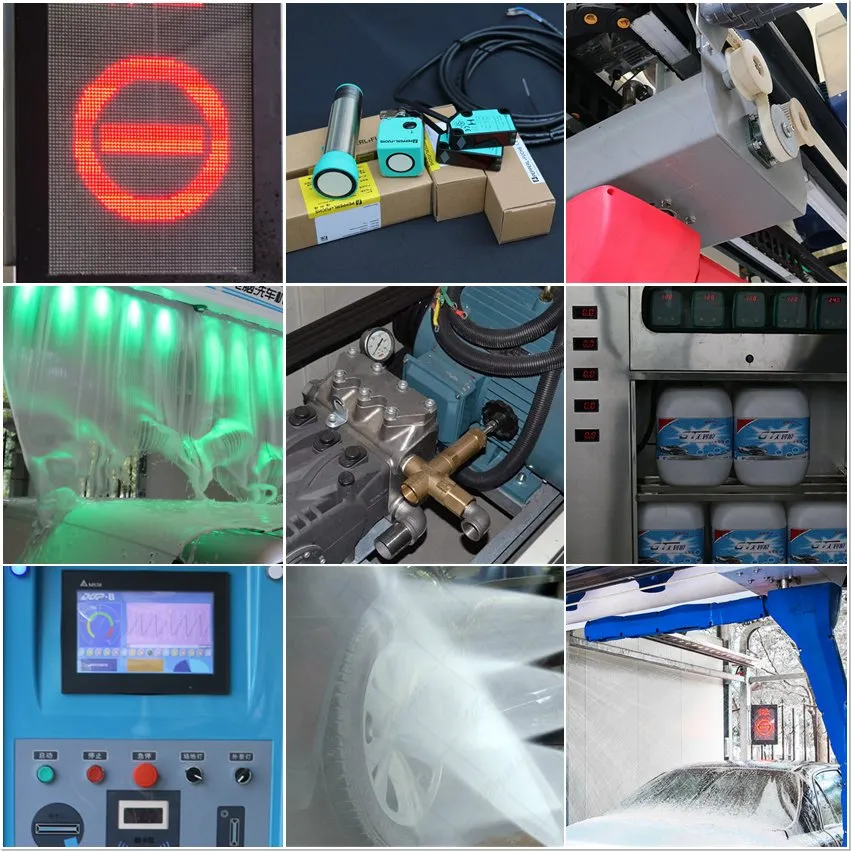

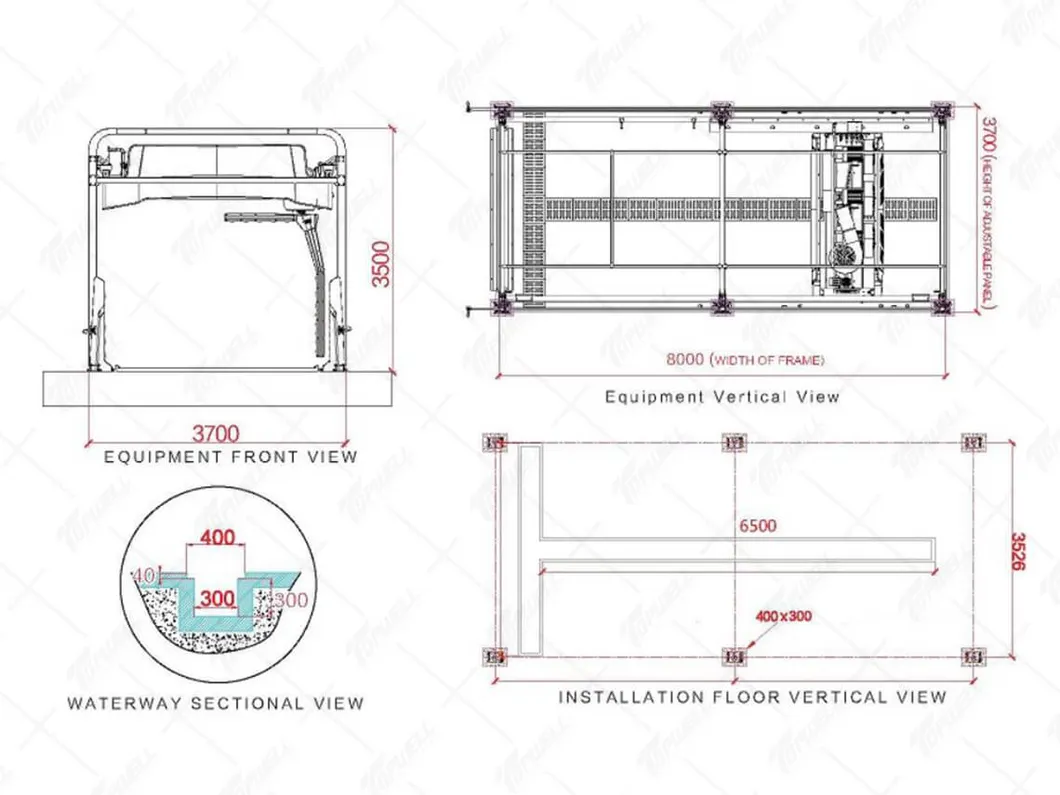

Technical Details & Foundation

🌍

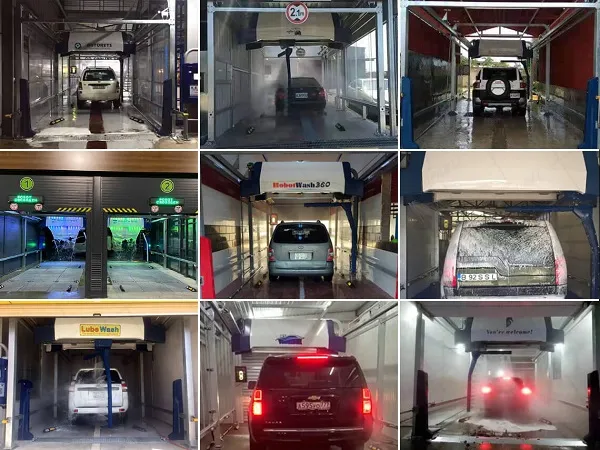

Client Case

❓

Frequently Asked Questions

1. How to solve the installation problem?

We provide detailed installation drawings and online guidance. The equipment is debugged in the factory before shipping, and each component is marked to match the drawings. At present, customers worldwide have successfully completed installations through these resources.

2. How long is the machine warranty?

Touchless car wash machines are guaranteed for 3 years. During the warranty period, we bear the cost of accessories, while the customer covers the international freight.

3. What is the lead time for production?

Standard 380V/50HZ Touchless types take approximately 10 working days. Non-standard voltage customizations may require an additional 10-15 working days.

4. Can I connect the machine to a payment system?

Yes, we can provide signal wires for the car washing machine in advance. You can connect local payment systems (coin, banknotes, or credit cards) by syncing the signals between the payment machine and the car washer.

5. If one part is broken, will it stop the whole machine?

No. You can manually turn off the specific function of the broken part on the touch screen. This allows other functions to operate normally during peak hours until the part is replaced at night.

6. Where is the best site to install a car wash?

Prime locations include areas with high traffic volume such as gas stations, highway intersections, large supermarkets, parking lots, and dense residential areas.
