Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
1 / 5
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel
Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel

Automatic Cleaning Function Equipment for Sandwich Panel Production for Aluminium Foam Core Sandwich Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
XLD-GSM001
Glue Type
Solvent-based / Water-based Adhesive
Machine Type
Automatic
Voltage
380V 3phase 50Hz
Power
10kw
Working Speed
12m/Min
Coating Amount
0-6000g/Min
Spray Width
Up to 2000mm
Flow Accuracy
≤ ± 3%
Core Components
Servo Motor, Precision Pump
Automatic Cleaning Equipment for Sandwich Panel Production

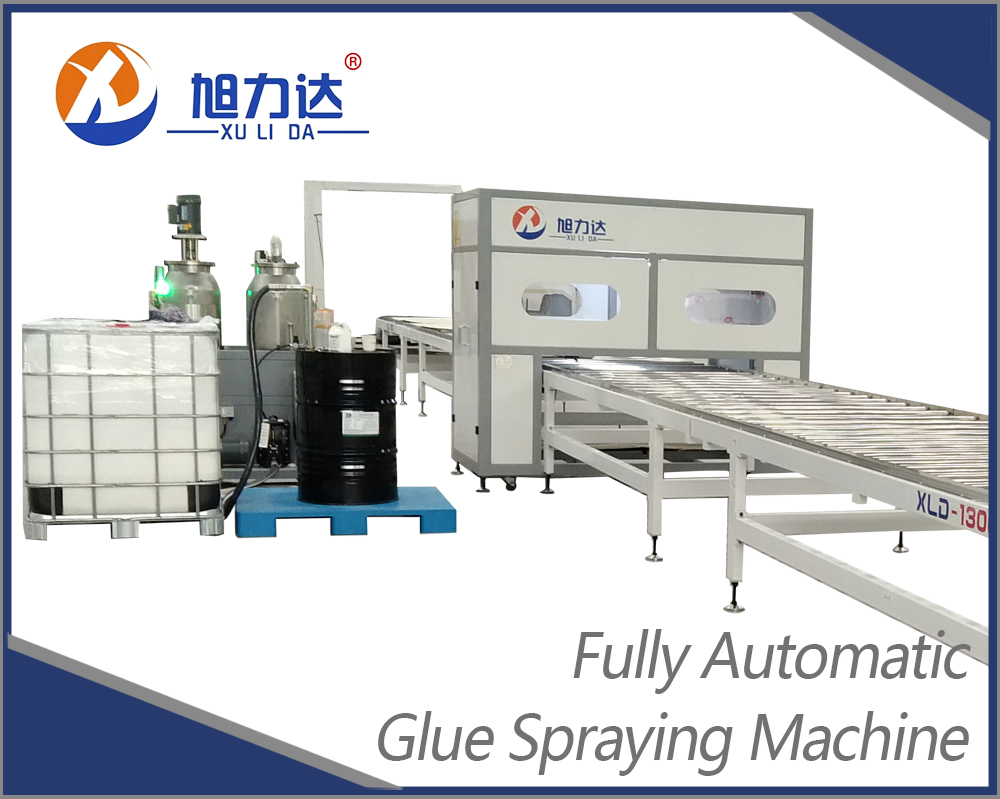

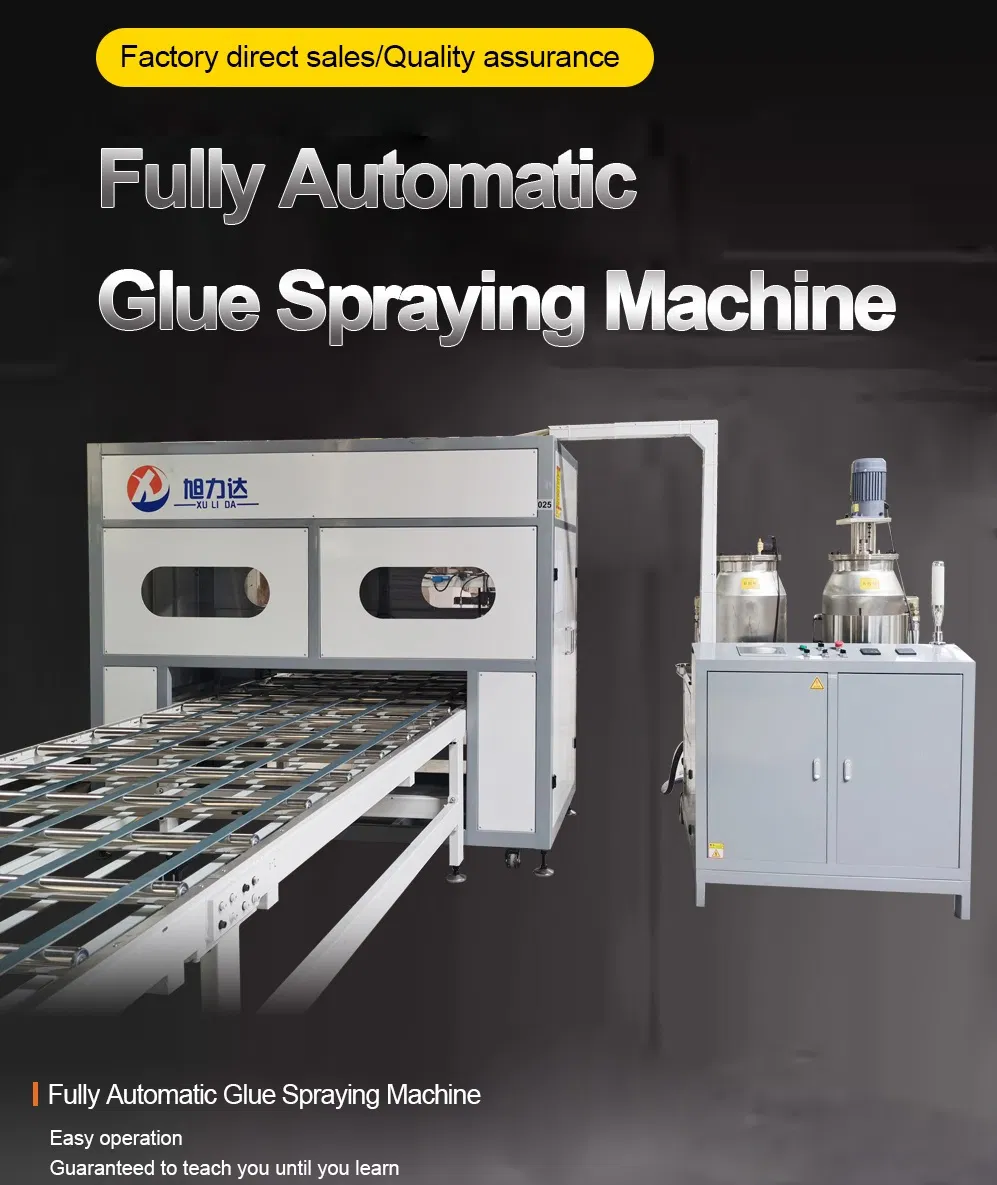

Automatic Glue Spraying Machine

This high-tech manufacturing equipment integrates R&D and manufacturing excellence for coating and composite panel production. The equipment performance stands at a leading level, filling technical gaps in automatic glue application for composite, sandwich, and honeycomb panels.

The main business includes various fully automatic glue spraying machines, flat pasting production lines, exterior wall insulation integrated board lines, and composite hot pressing production lines, all customizable to customer needs.

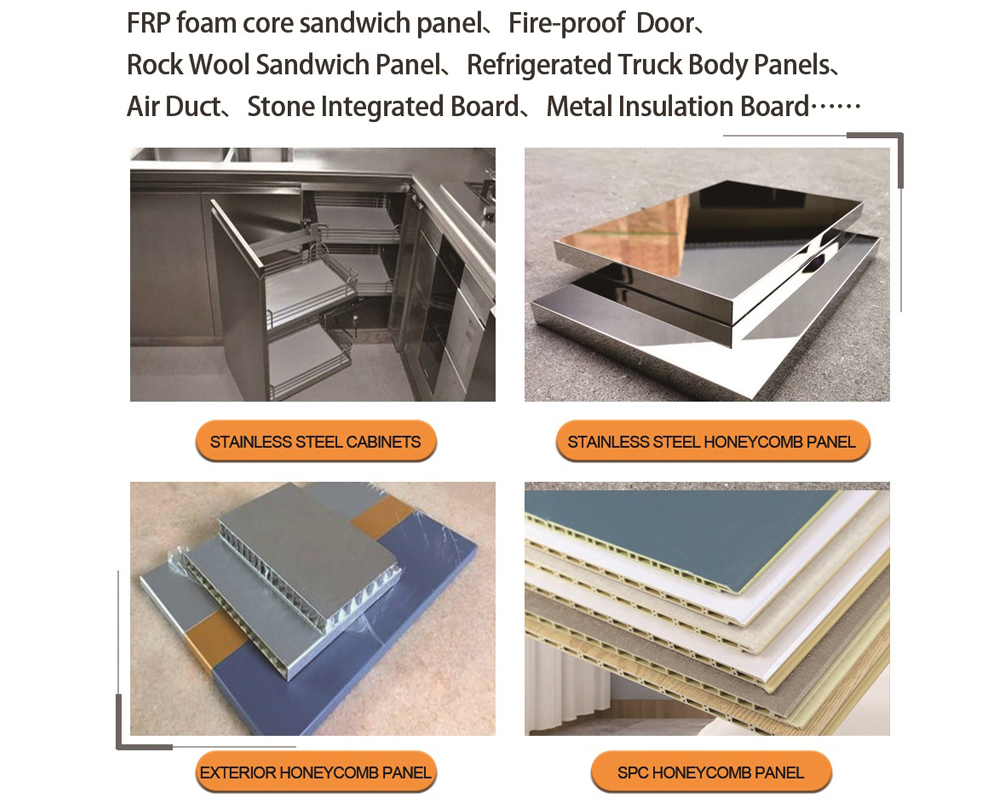

Applicable Products & Compounds
ItemProduct NameItemProduct NameItemProduct Name
1Integrated Ceiling20Calcium Silicate Board39Blackboard
2Integrated House21Purification Board40CRRC Floor
3Wallboard22Refrigerated Truck Panels41Sun Room Insulation
6Stainless Steel Honeycomb26Rock Wool Sandwich45Motor Home Panels
11Aluminium Foam Core29MgO Panels49SIPs
18Aluminum Honeycomb38Cement Board56PVC Sandwich Panels
Equipment Detail 1
Equipment Detail 2
Automatic Coating vs. Manual Scraping
CategoryAutomatic CoatingManual Scraping
Labor Single operator completes mixing & spraying Requires 3-4 people
Precision Edges controlled, no spillage, uniform coating Uneven application, edge contamination
Efficiency ~4600 sqm per 8 hours (8m/min) ~1000 sqm per 8 hours
Maintenance Automatic cleaning function, zero pollution No cleaning device, high waste, messy environment
Technical Parameters
Equipment Models
Model 1300 / 1600 / 2000
Flow Accuracy
≤ ± 3%
A/B Glue Ratio
Adjustable 1:1 to 5:1 (Precision ≤±2%)
Conveying Speed
Up to 12m/min (Adjustable)
Glue Viscosity
≤ 30000 mpa.s (at 24°C)

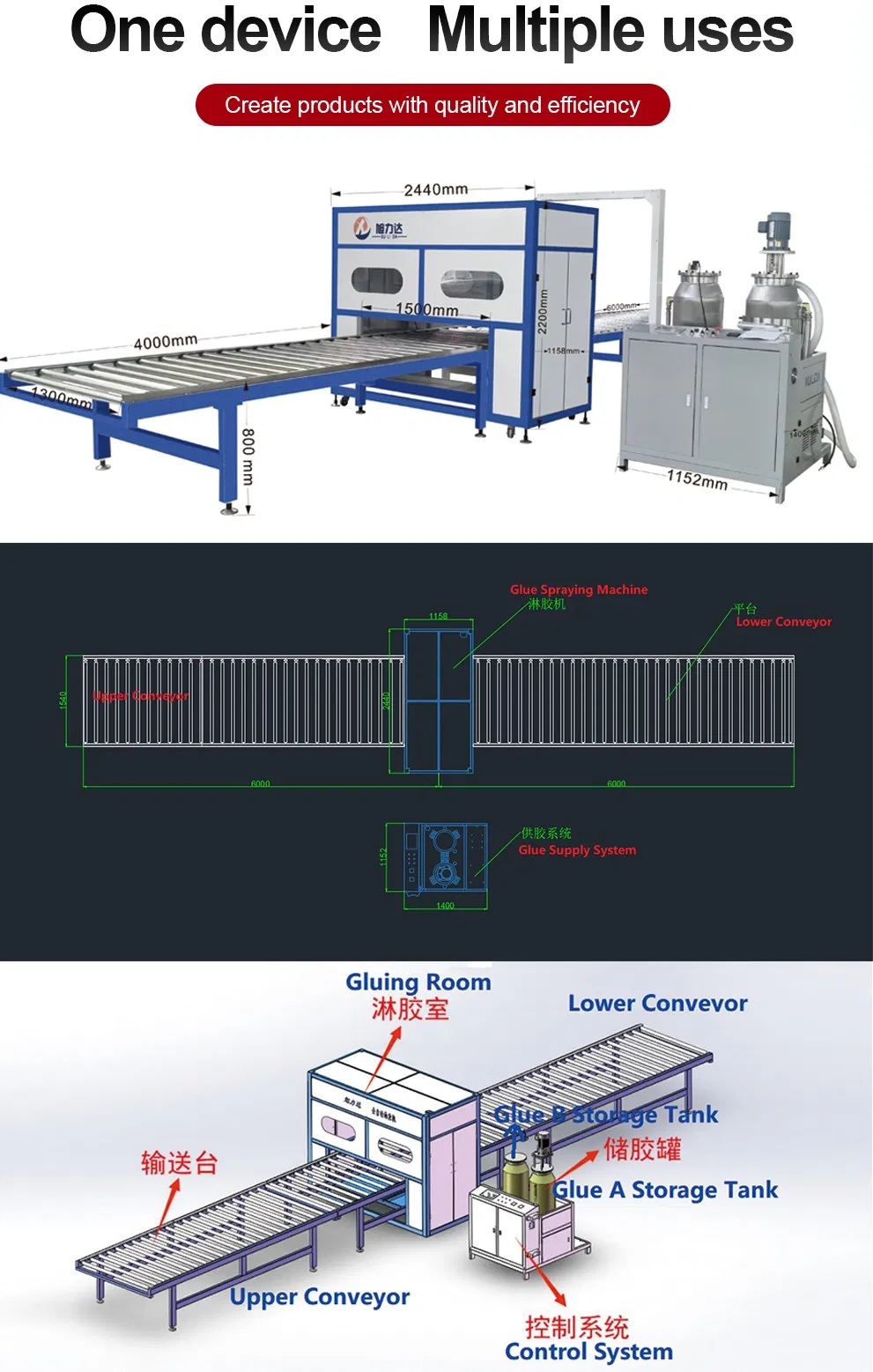

Technical Drawing 1

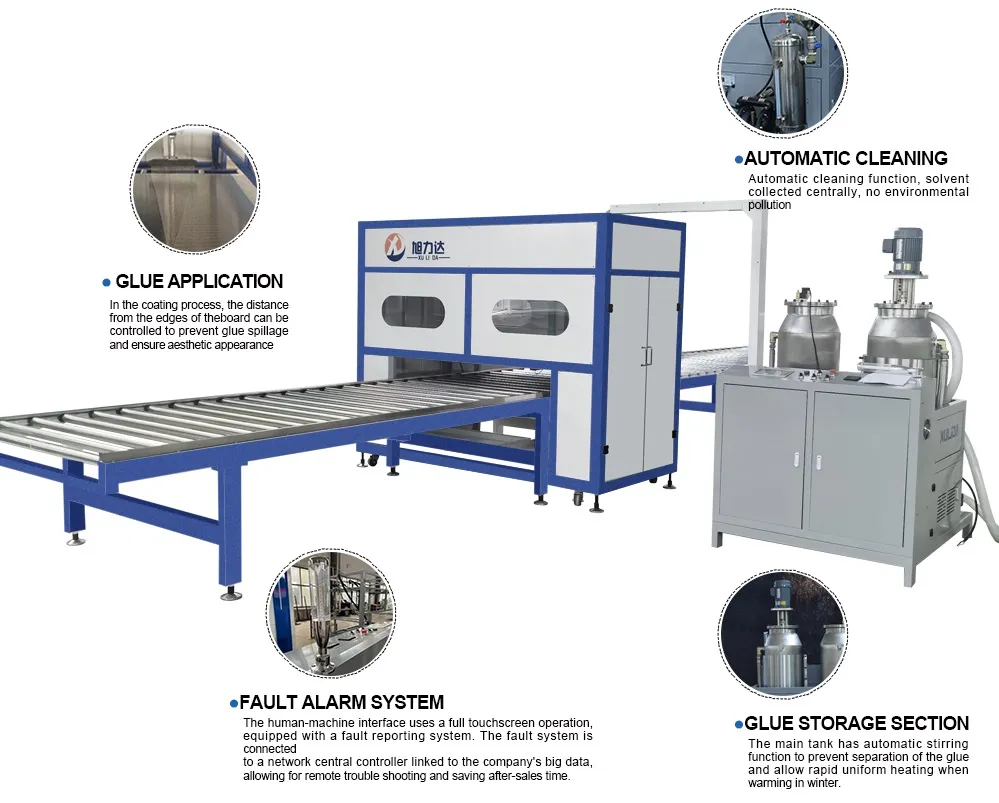

Technical Drawing 2

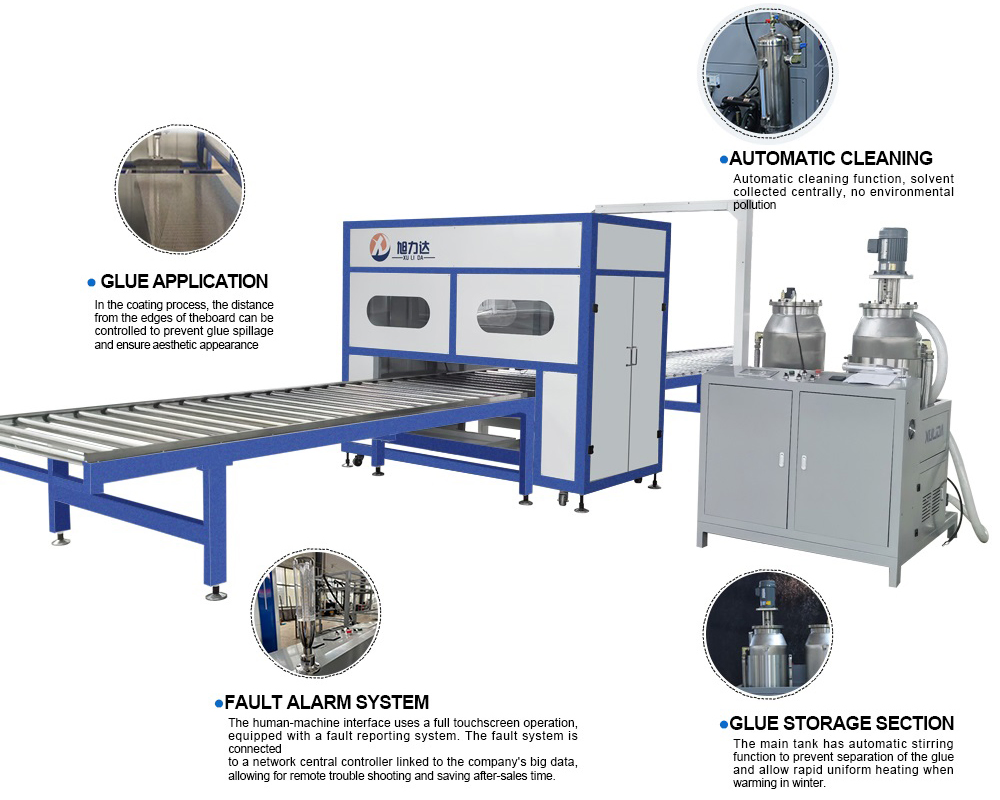

Key Functions & Features
1
Automatic Edge-Seeking: Automatically identifies boards and coats only effective areas.
2
Automatic Variable Speed: Adjusts conveyor speed based on board width for uniform coating.
3
Pulse Cleaning: Aviation-grade aluminum coating head with air-mist cleaning to prevent clogging.
4
Smart Control: Touchscreen interface with remote troubleshooting and fault reporting.
5
Precision Metering: Servo-driven pumps ensure stable glue output and long life.
System Interface

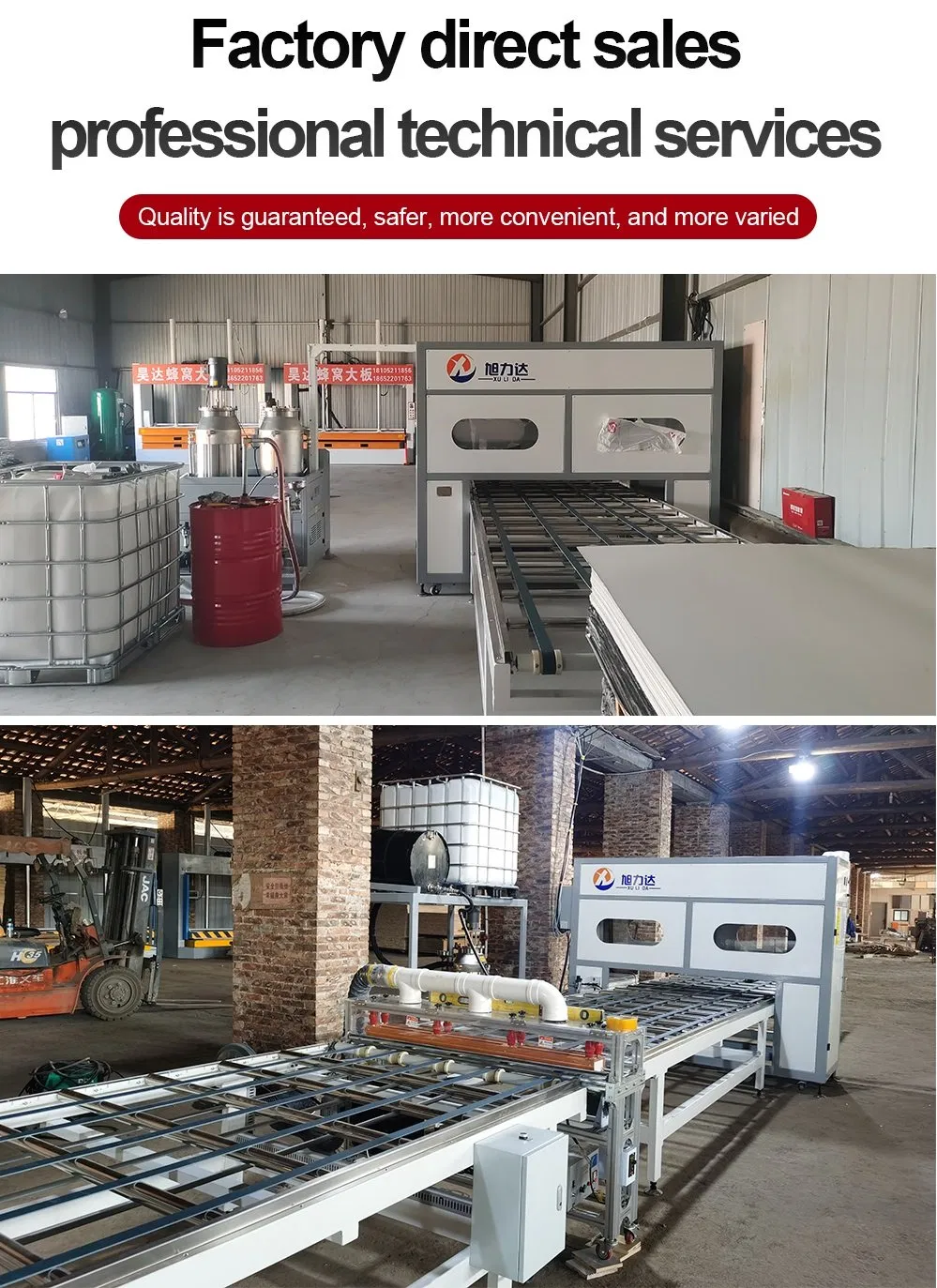

Spray Mechanism
Frequently Asked Questions
Q1: What are your terms for packaging the equipment?
Generally, we pack goods in containers using Standard Export Packages, specifically Plywood boxes to ensure safety during transit.
Q2: What are the standard payment terms?
We require T/T 30% as a deposit, with the remaining 70% paid before delivery. Photos of products and packages are provided before the balance is settled.
Q3: What is the typical delivery time for orders?
The specific delivery time depends on the items and quantity, but it generally ranges from 30 to 45 days after receiving the advance payment.
Q4: Can equipment be produced according to specific samples or drawings?
Yes, we can produce machines based on your technical drawings or samples, including the construction of custom molds and fixtures.
Q5: Is all equipment tested before it is shipped?
Absolutely. we conduct 100% rigorous testing on all goods before delivery to ensure performance and quality standards.
Q6: How do you maintain long-term business relationships?
We focus on maintaining superior quality and competitive pricing to ensure our customers benefit, treating every client with respect and professional integrity.
