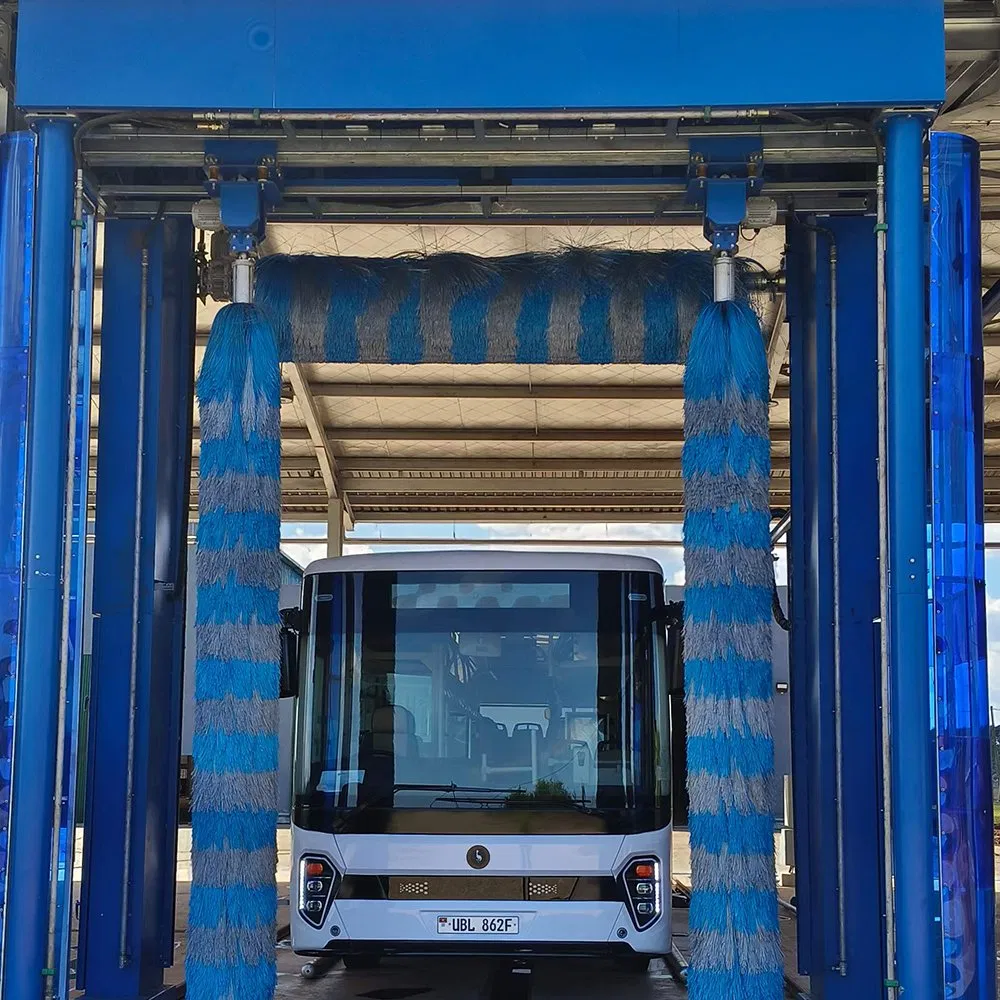

Full Automatic 3 Brushes Truck Wash System for Bus and Truck Washing

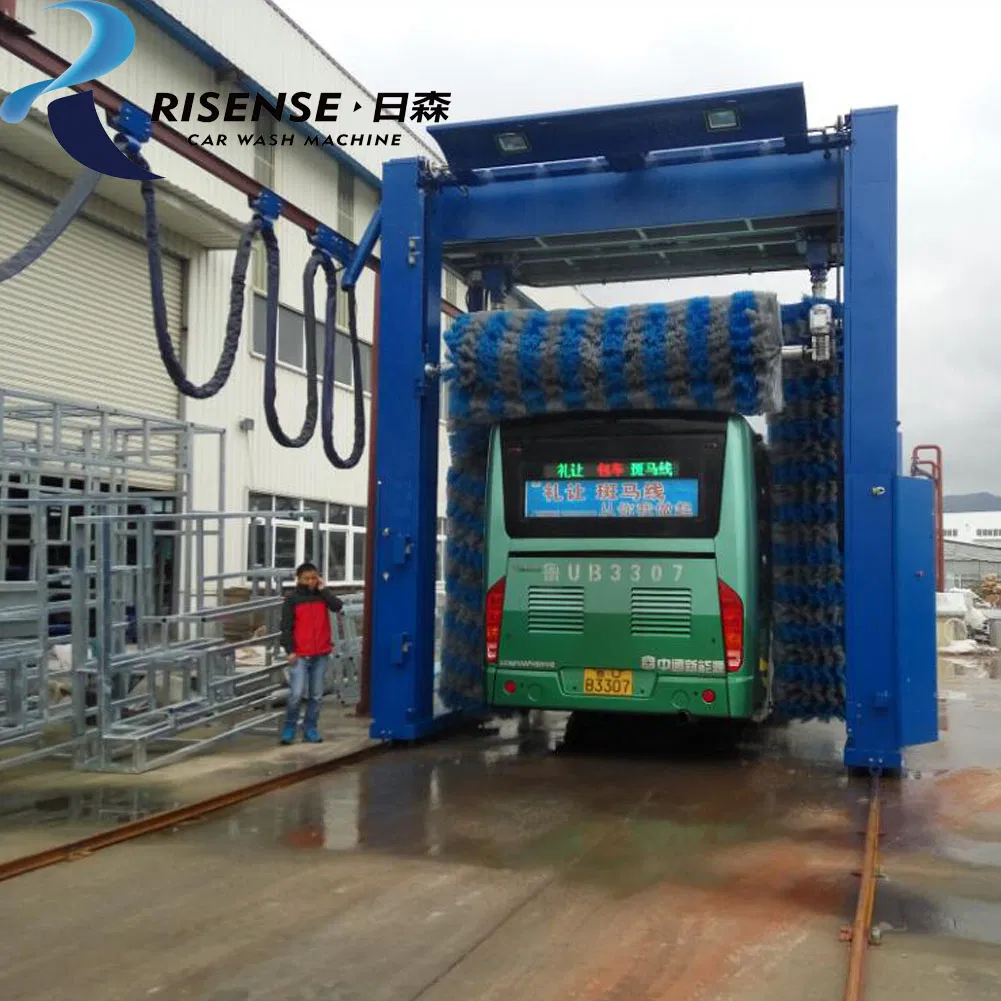

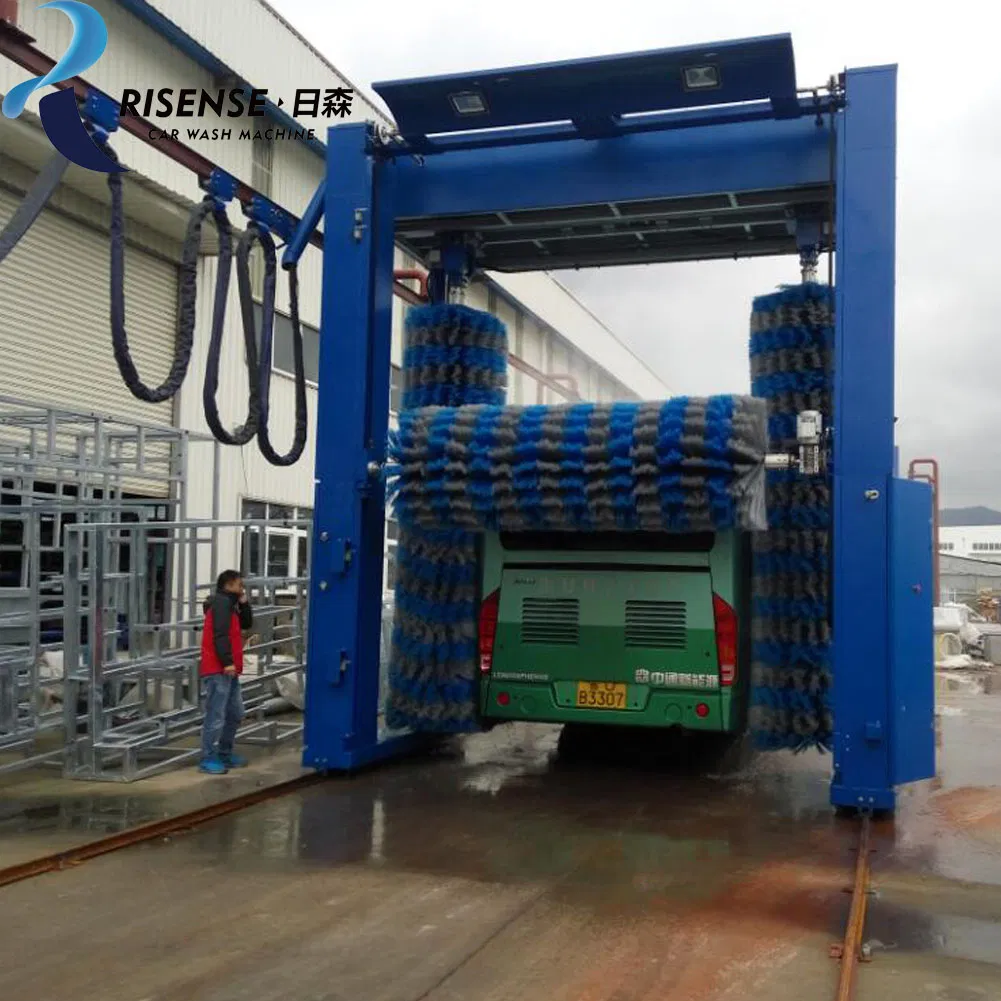

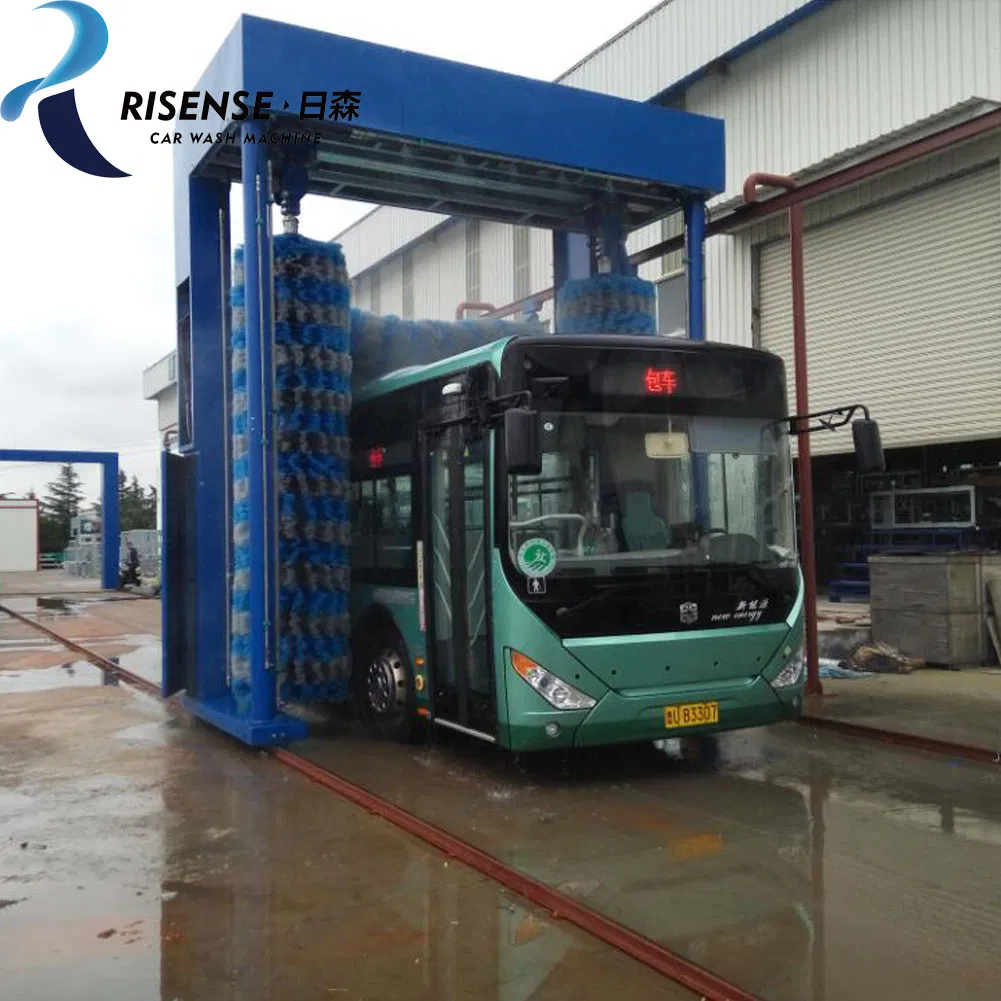

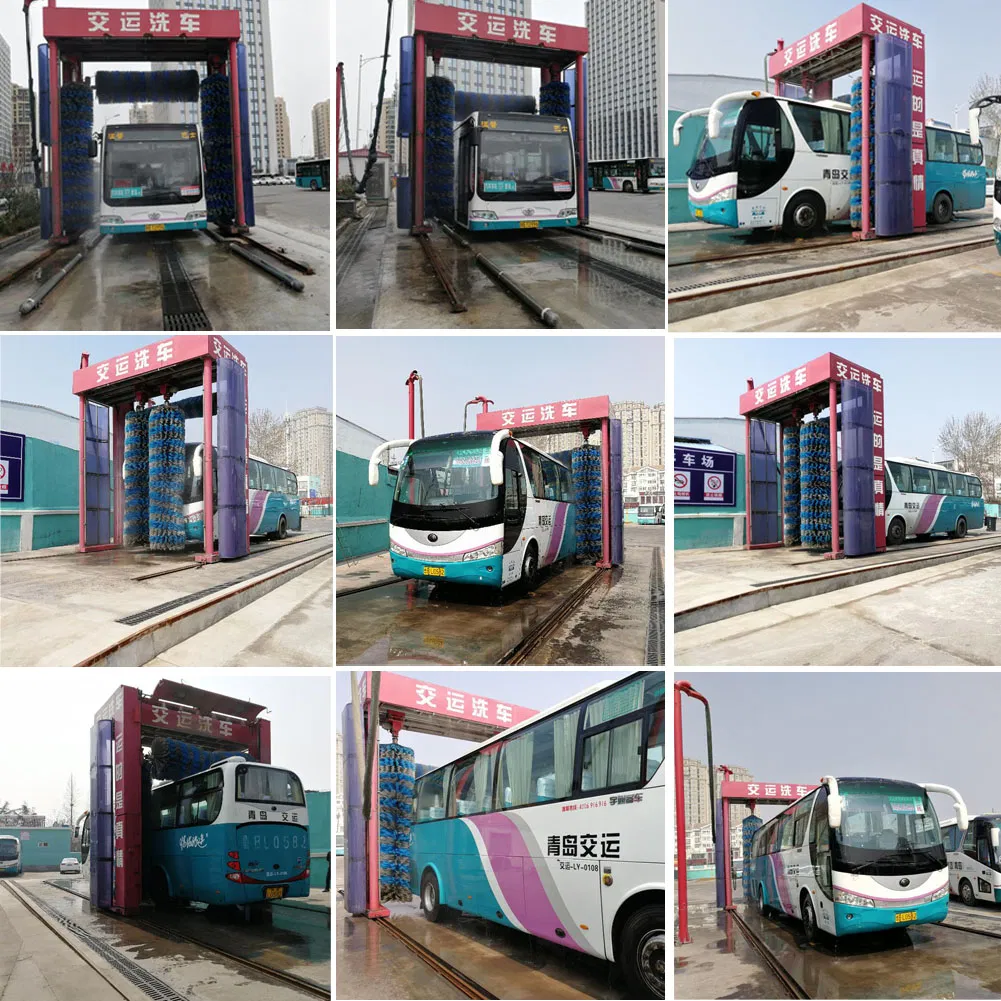

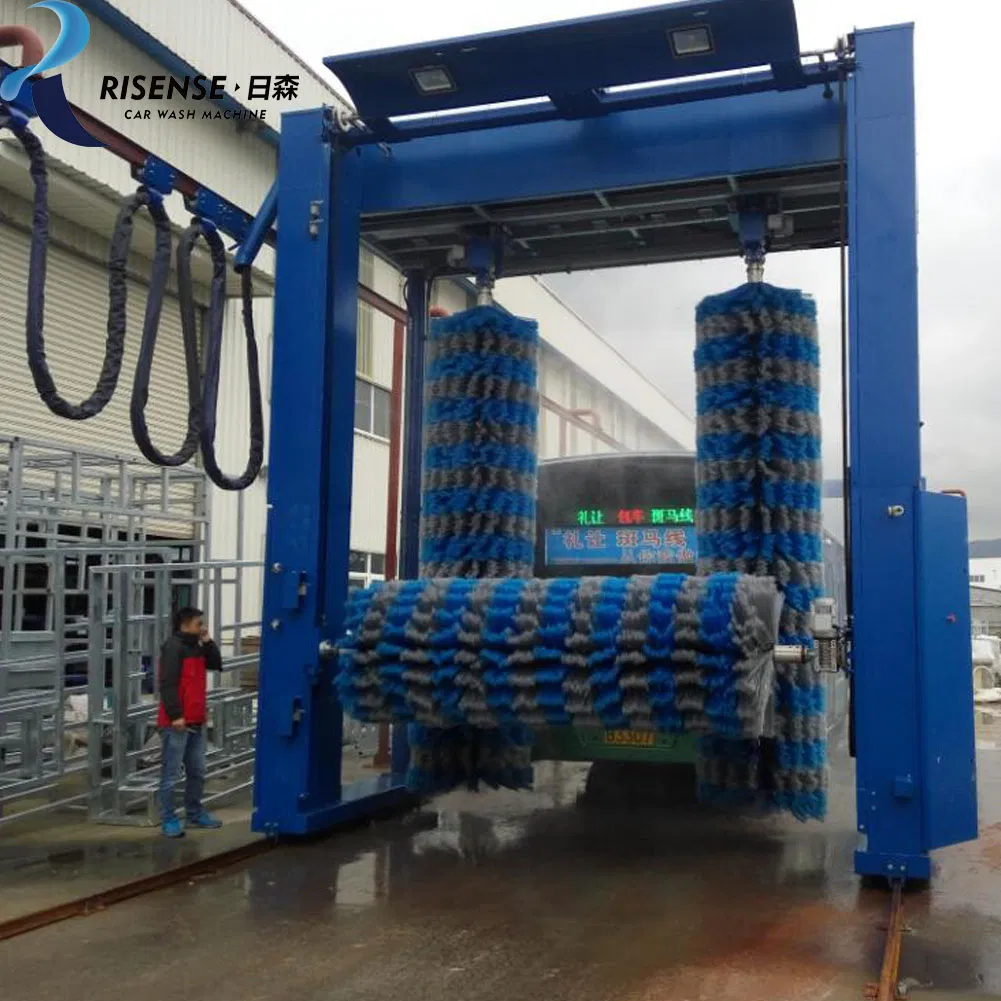

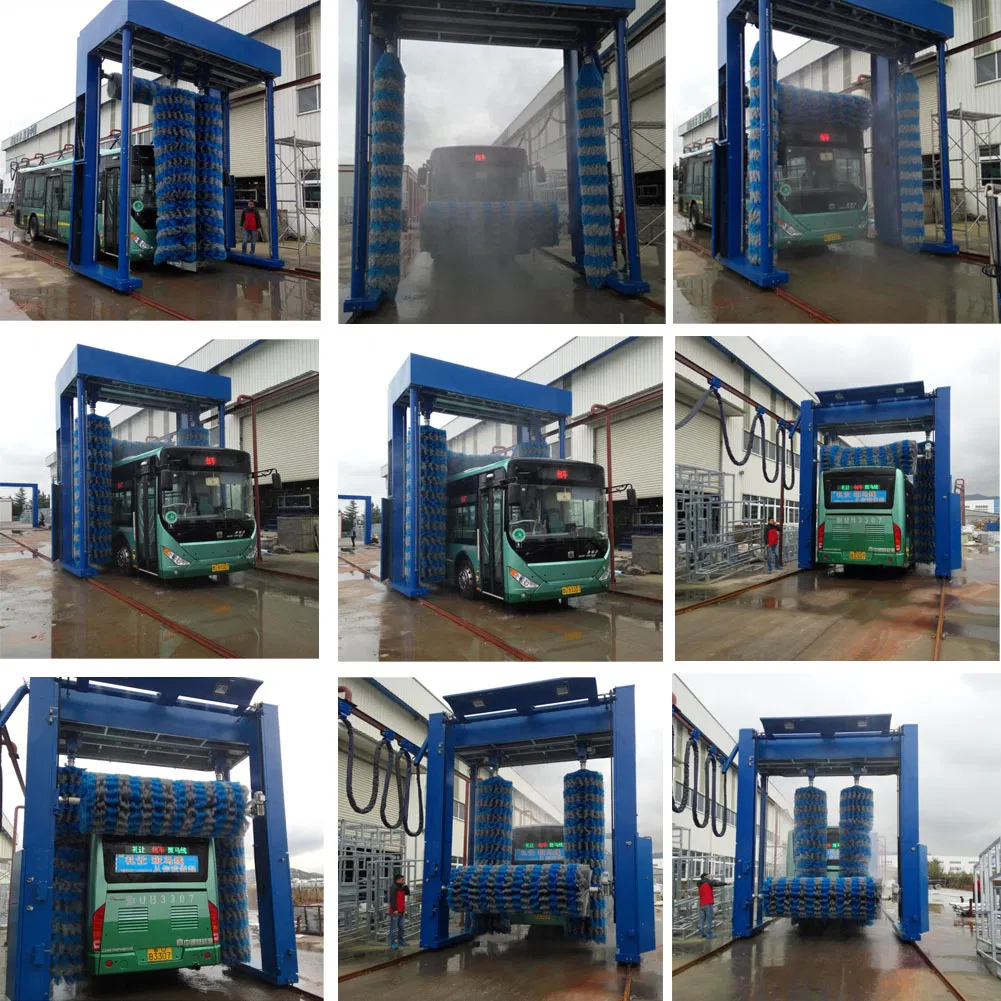

Bus wash equipment with 3 roll over brushes (CB-730) has two lateral brushes and one overhead brush. It is most often used for washing buses and trucks where the length does not exceed 18000mm, the height does not exceed 4200mm, and the width is 2700mm. During the washing process, the bus remains motionless, and the bus wash machine will move the brushes around the vehicle.
| Parameter | Specifications |
|---|---|
| Model | CB-730 |
| Dimension | L*W*H: 2880mm×5120mm×5900mm |
| Assembling Range | L≤24000mm×W 6800mm |
| Moving Range | L 1800-2400mm × W 6800mm |
| Voltage | AC three-phase four-wire system voltage AC380V50Hz |
| Water Supply | DN25mm water flow rate≥120L/min |
| Ground Flatness | Deviation≤10mm |
| Washing method | 1 rollover |
| Applicable Vehicles | Container truck, box truck, bus |
| Applicable Car Dimension | L≤18000mm×W 2700mm×H≤4200mm |
| Washing Time | 12-15 cars/h |

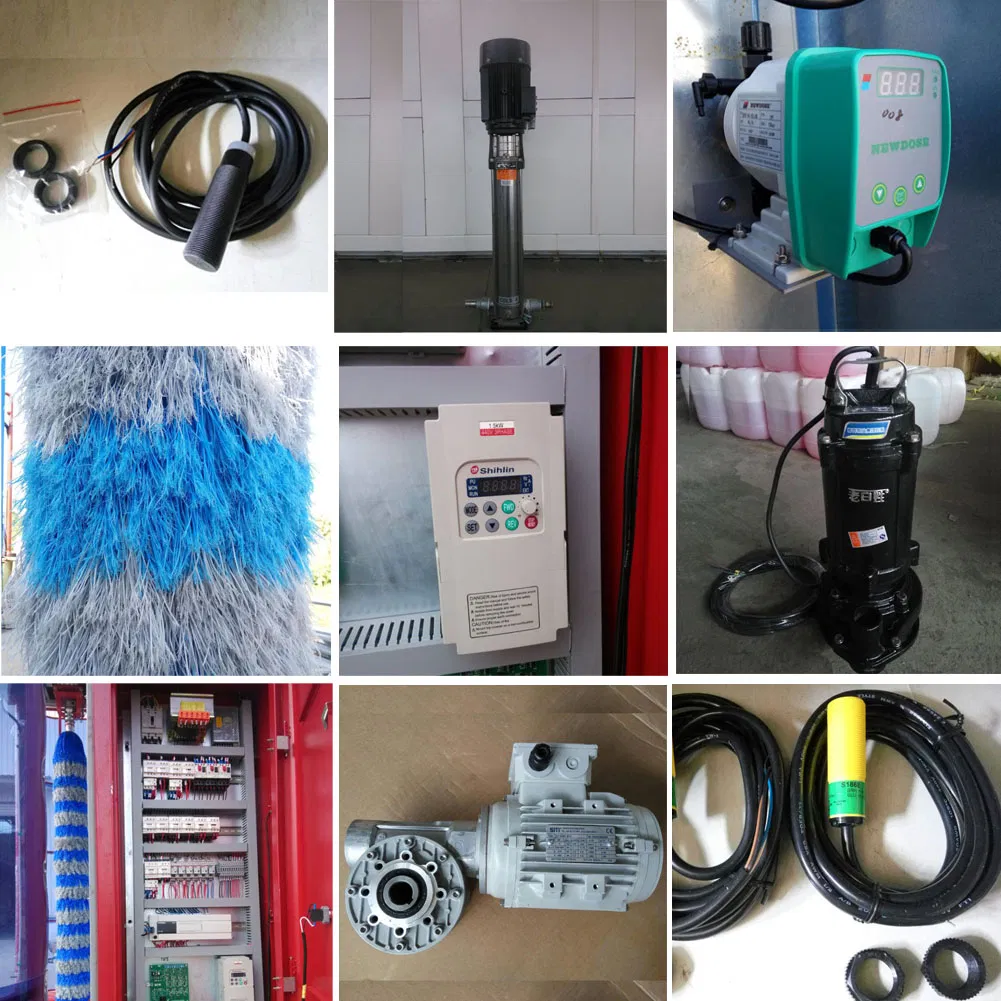

| Standard Devices |
|---|
| Lateral brush motor / Overhead brush motor |
| Water pump / Drive motor |
| Equipment data intellectualization |
| Self-diagnose system |
A professional car wash equipment manufacturer with extensive design and production experience. We supply equipment including tunnel systems, rollover systems, touchless systems, and high pressure wash systems. Based on time tested technology and combined with latest innovations, we offer complete and unique car washing systems.

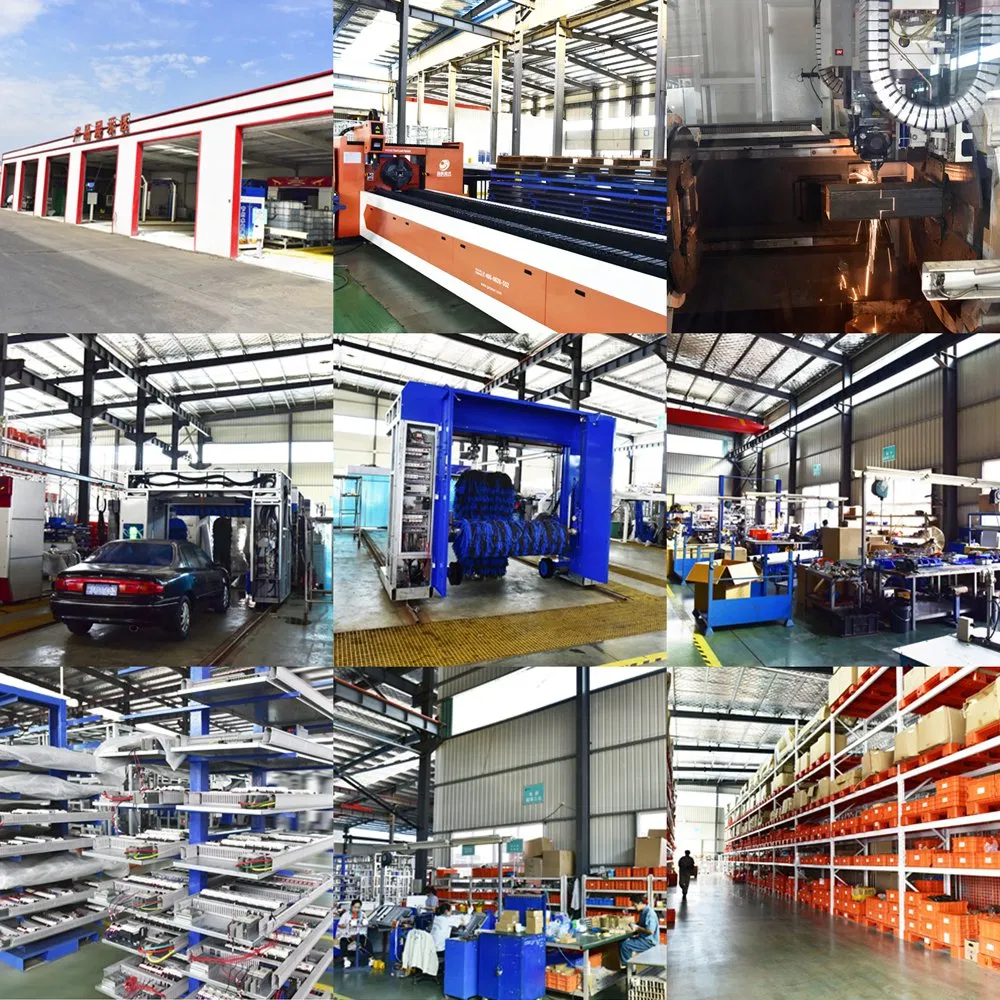

The frame of the car wash machine is made of high-quality steel plates. The frame is galvanized, and its corrosion resistance is 10-20 times higher than hot galvanized plates, effectively extending the service life of the equipment.
To date, these vehicle cleaning systems have been sold in more than 100 countries including Russia, the United States, Canada, Singapore, Saudi Arabia, Pakistan, and Spain. The company has obtained ISO9001 Quality System Certification, Europe CE Quality Certification, and ISO 14001 Environment Certification.
