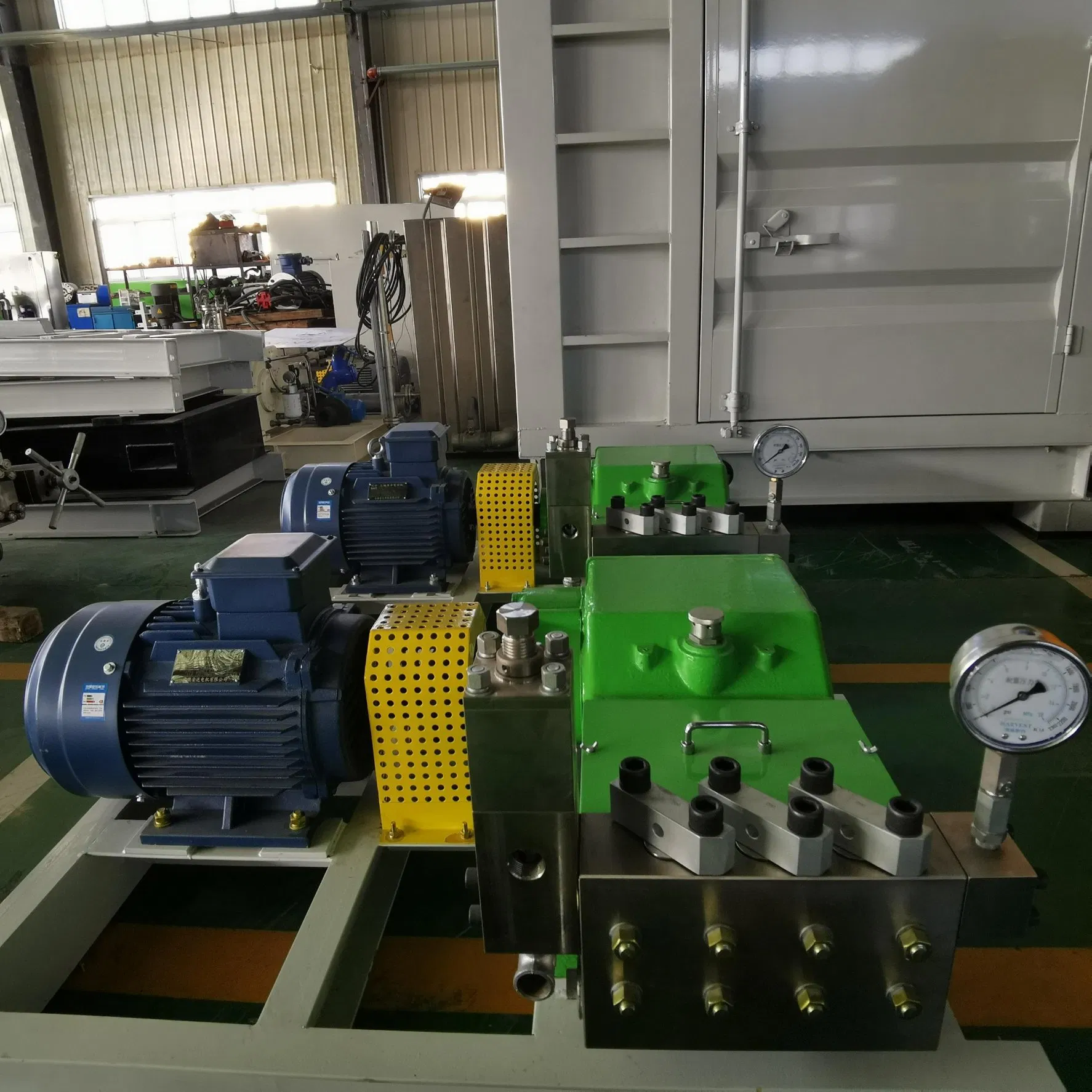

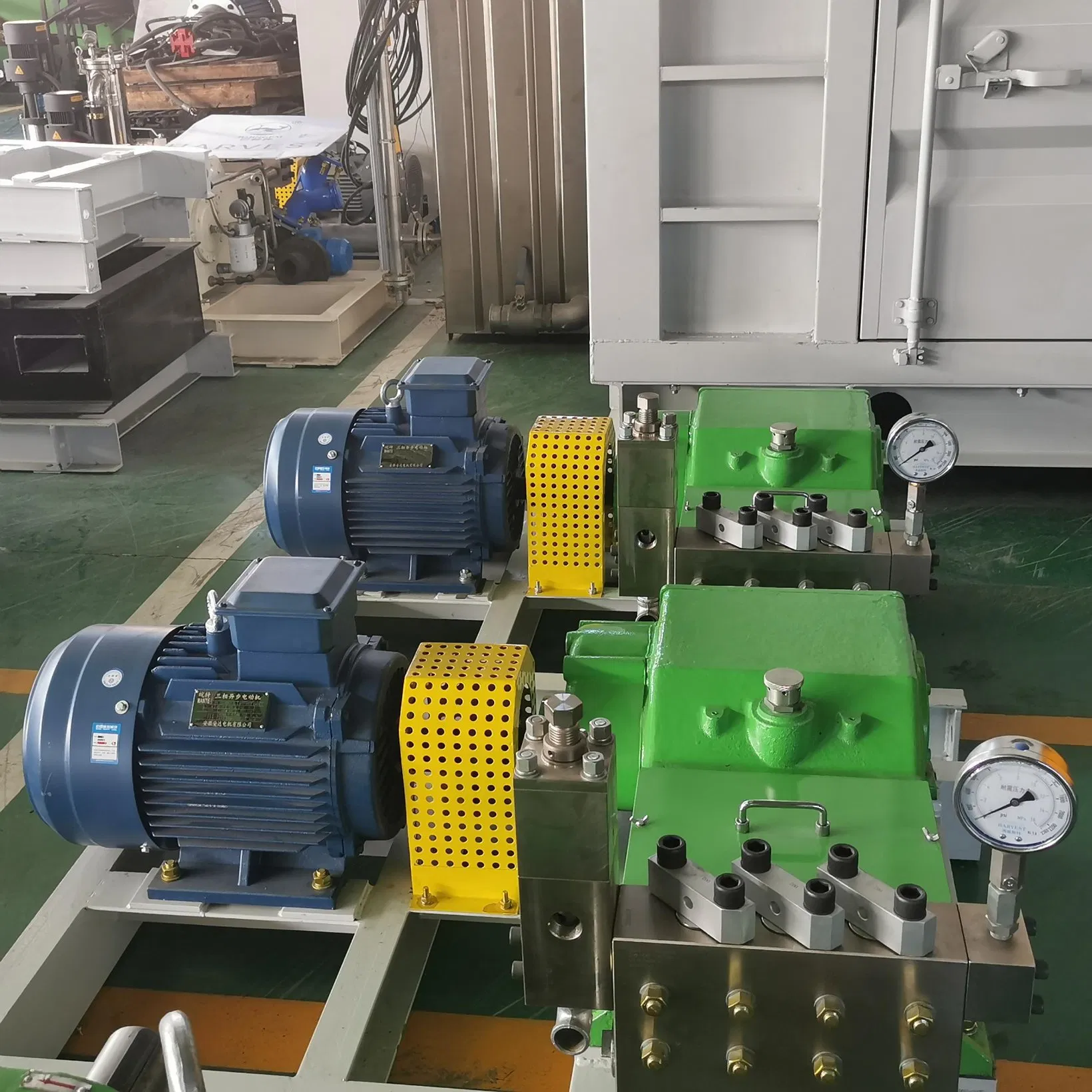

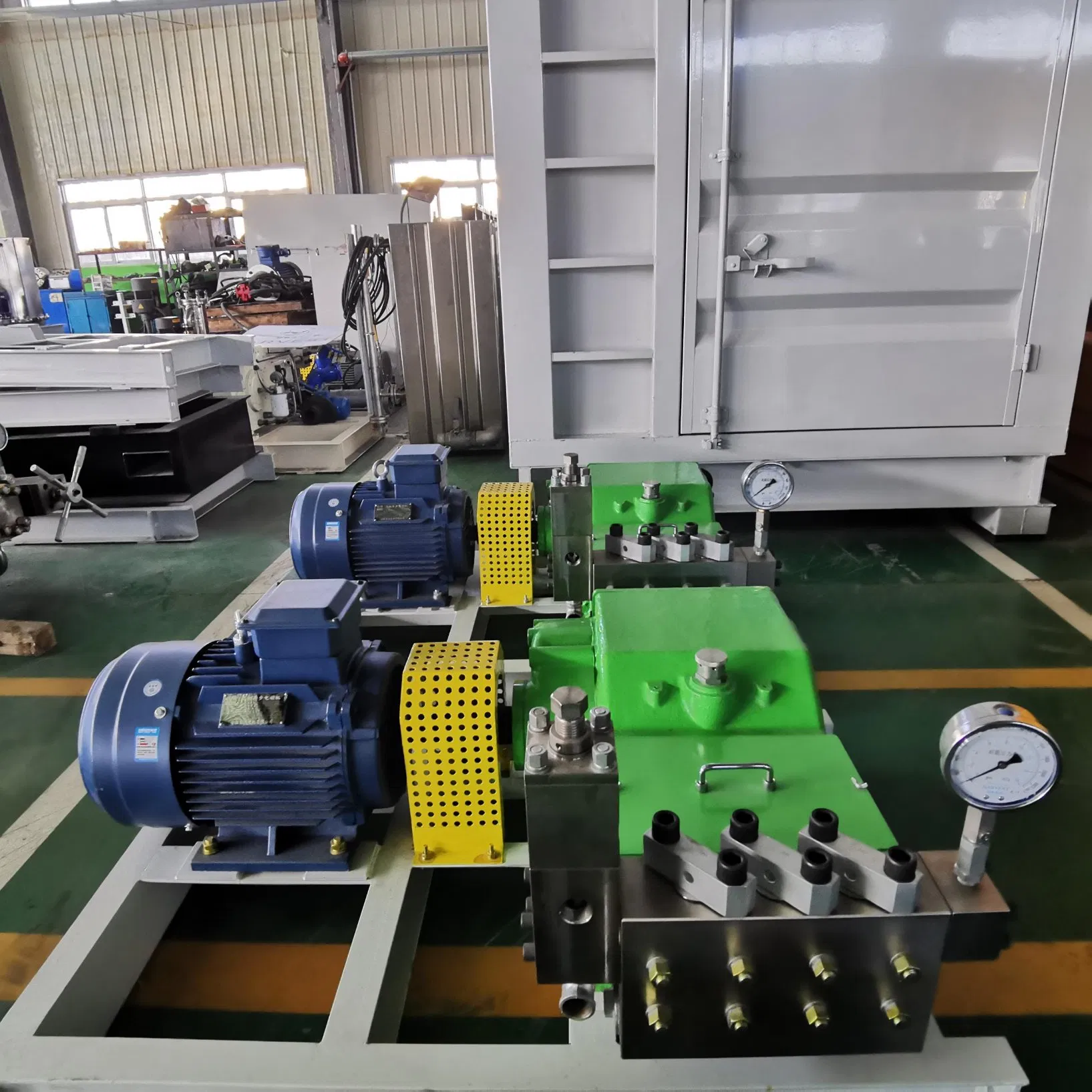

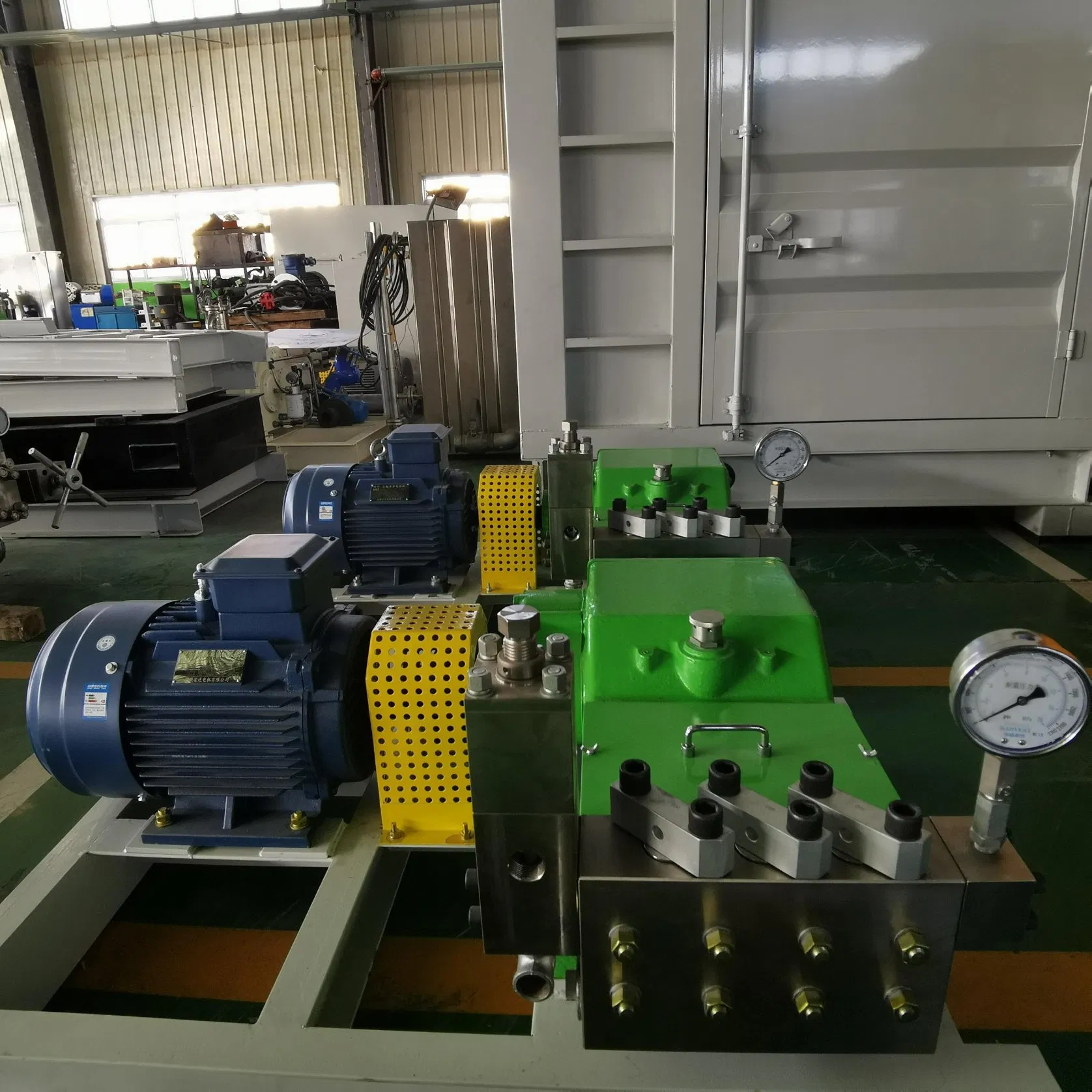

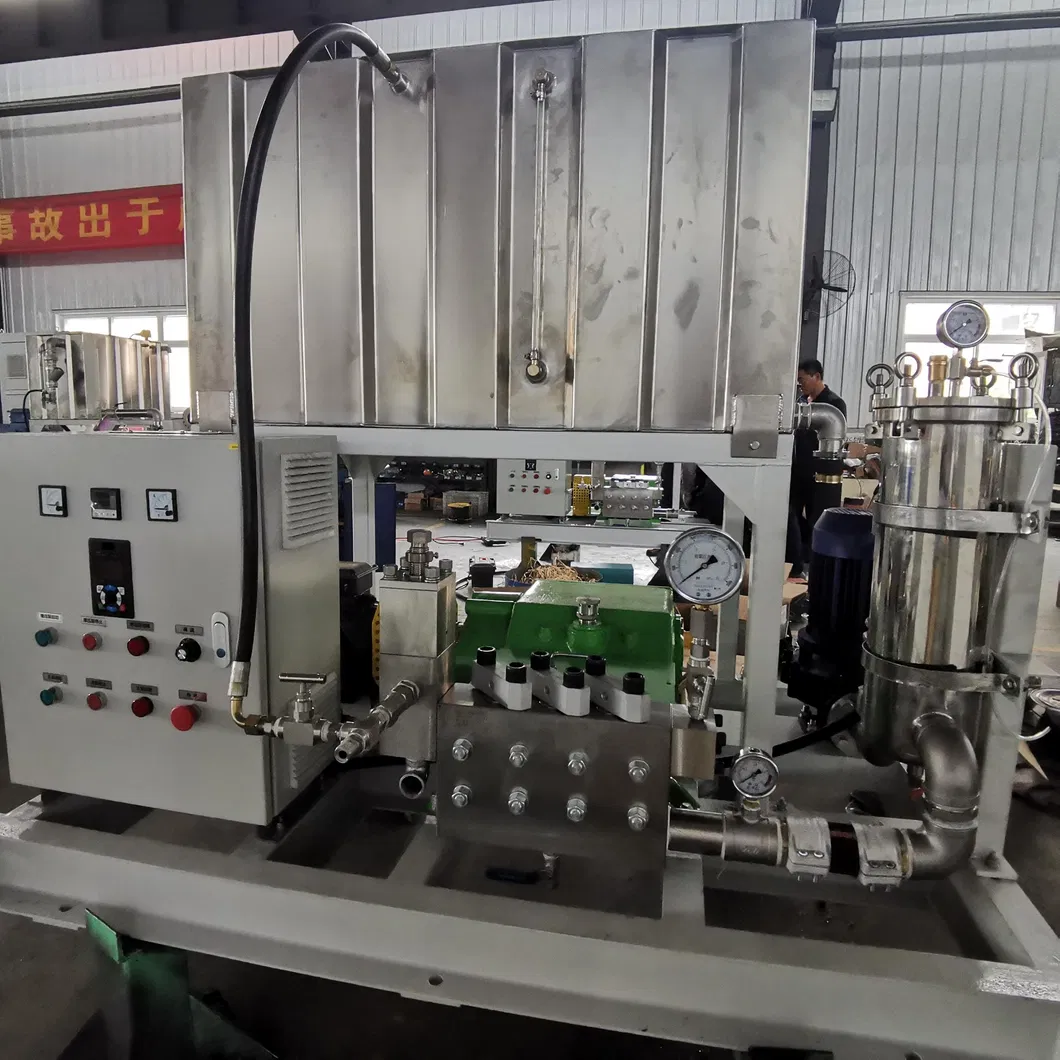

The 3D2F-S pump is a patented product with a maximum working pressure of 150MPa. The matching power at the power end reaches up to 110kW.

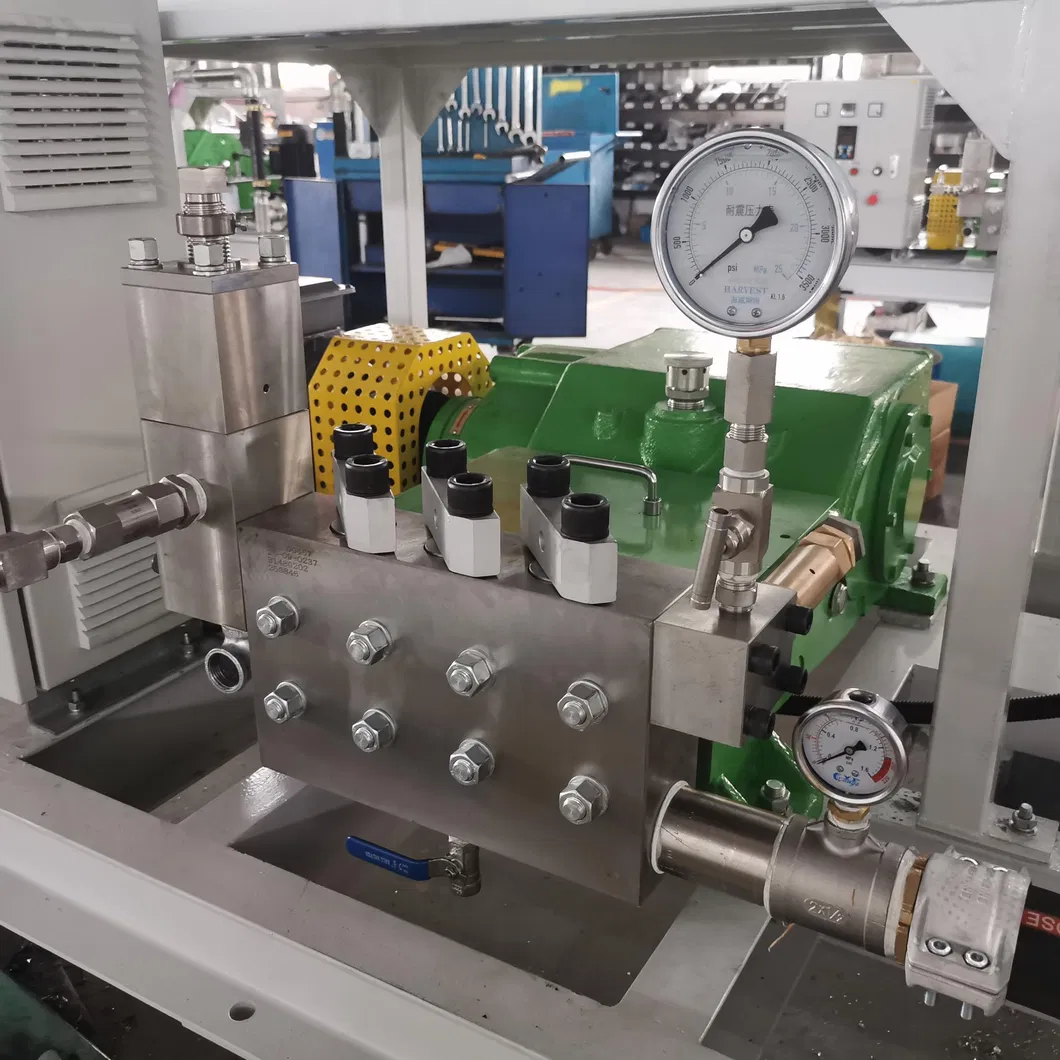

The liquid end features a split structure, a new plunger cooling circulation device, and a modular liquid inlet/outlet valve group, ensuring ease of use and maintenance.
Applications: Power plane heat exchangers, condenser cleaning, boiler descaling, and highway marking line removal. It efficiently transports clean water, emulsion, and high-pressure liquids.
| RPM (r/min) | 1480 | Plunger Stroke (mm) | 100 | ||
| Gear Ratio (i) | 4.45 | Pump NO. (r/min) | 332 | ||
| Power (kW) | 75 | 90 | 110 | Plunger Diameter (mm) | |
| Flow | m³/h | Pressure (MPa) | Dimension Info | ||
| L/min | 150 | 130 | 100 | ||
| 1.5 | 25 | 150 | - | - | 18 |
| 1.8 | 30 | 130 | 150 | - | 20 |
| 2.2 | 37 | 100 | 130 | 150 | 22 |
| Weight: Pump 542kg | Base 140kg | |||||
