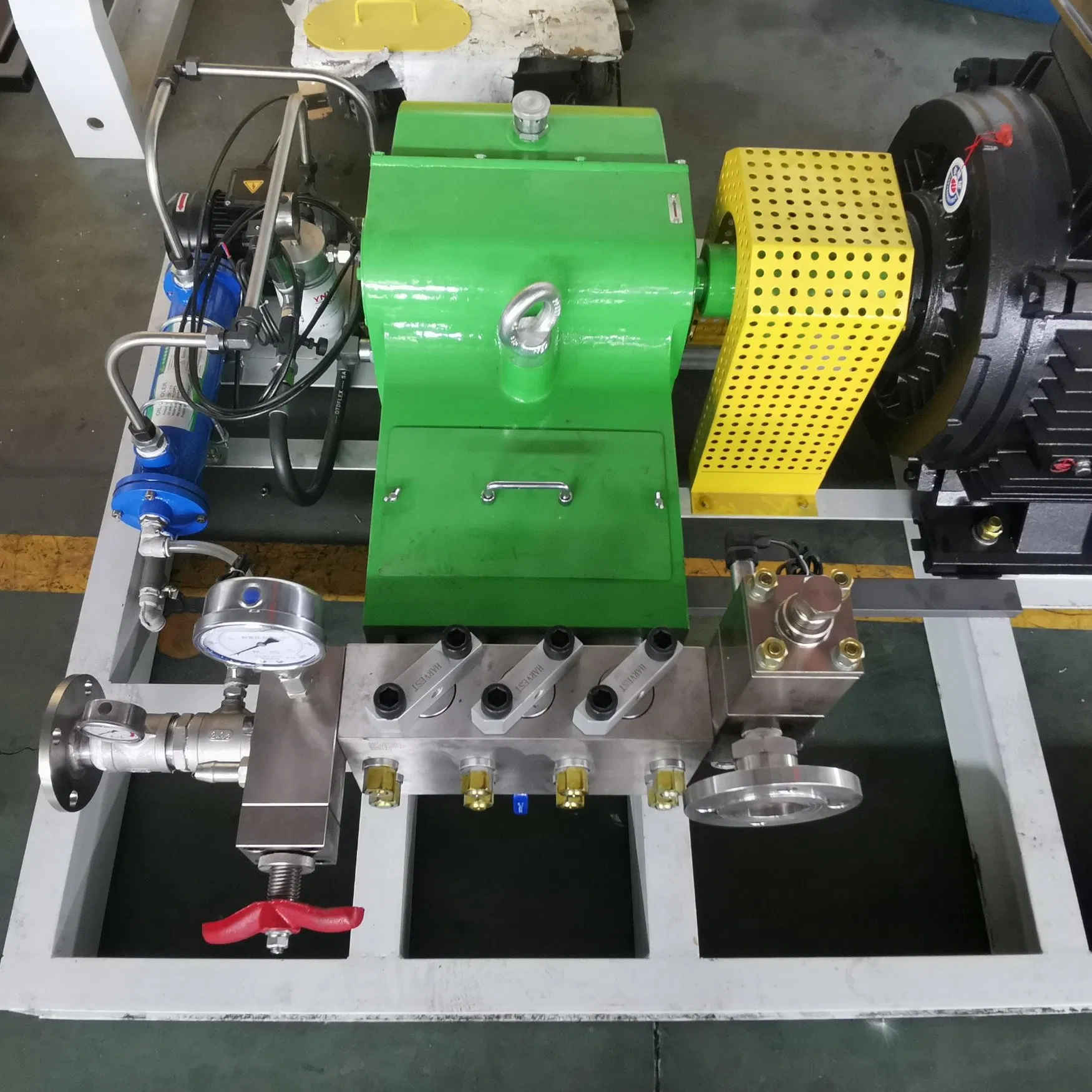

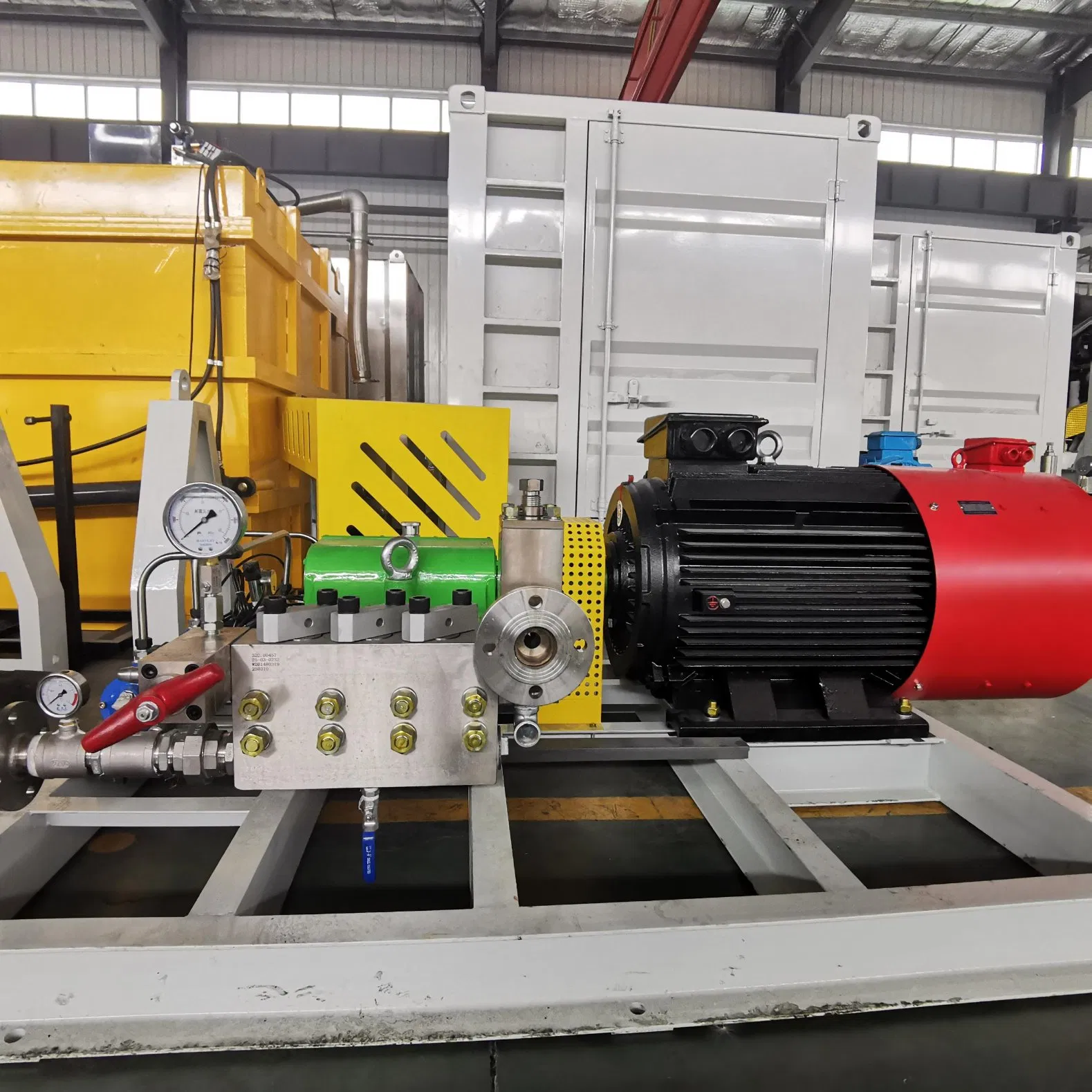

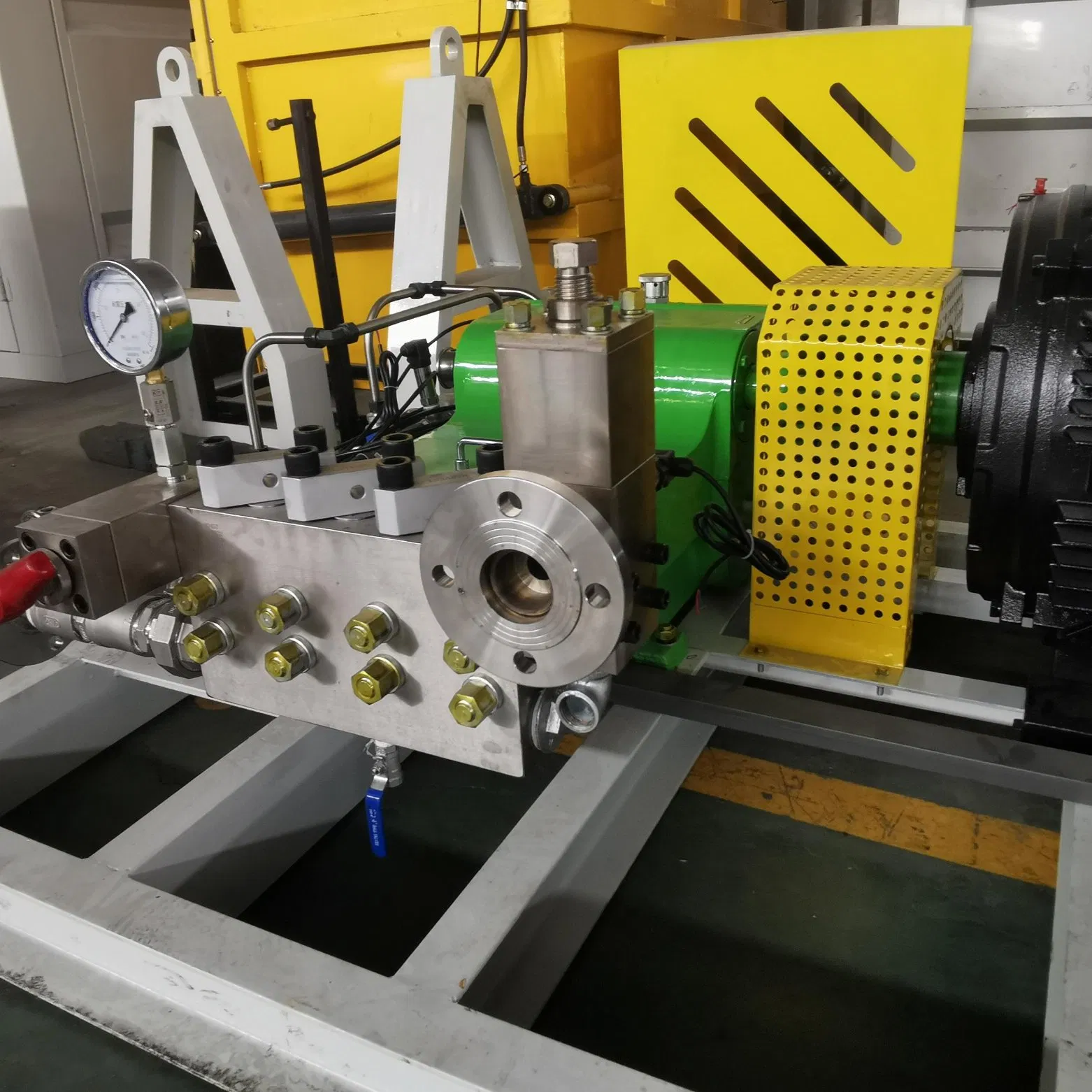

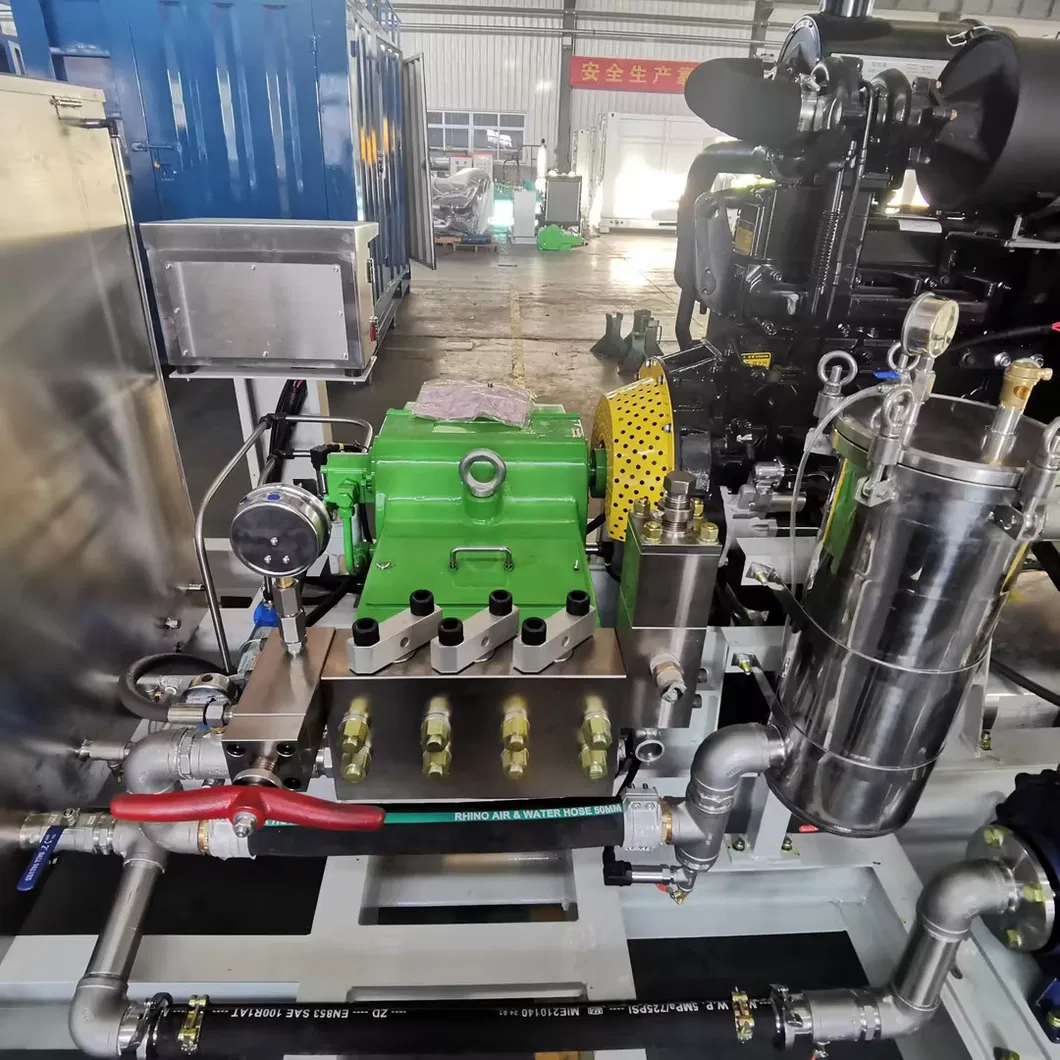

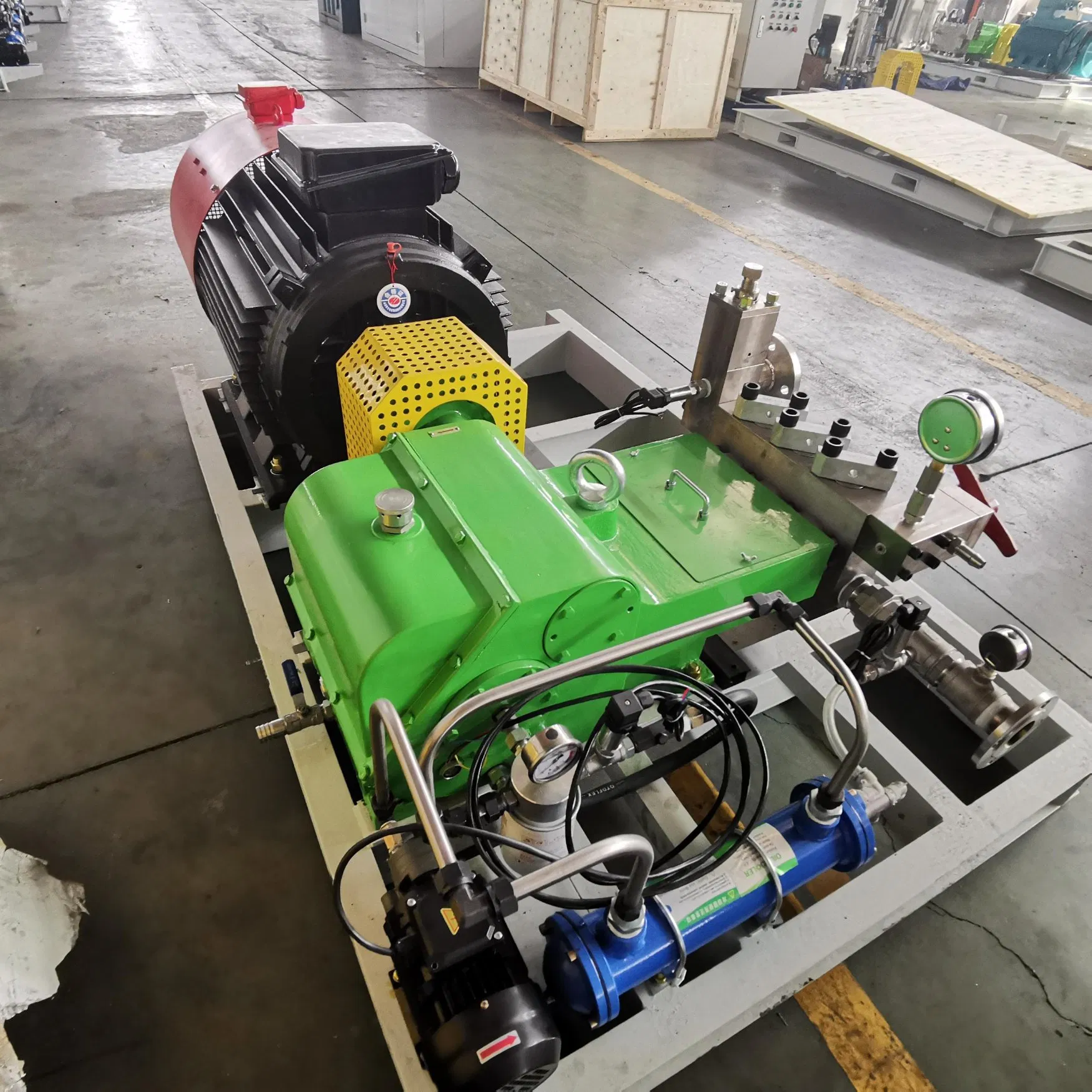

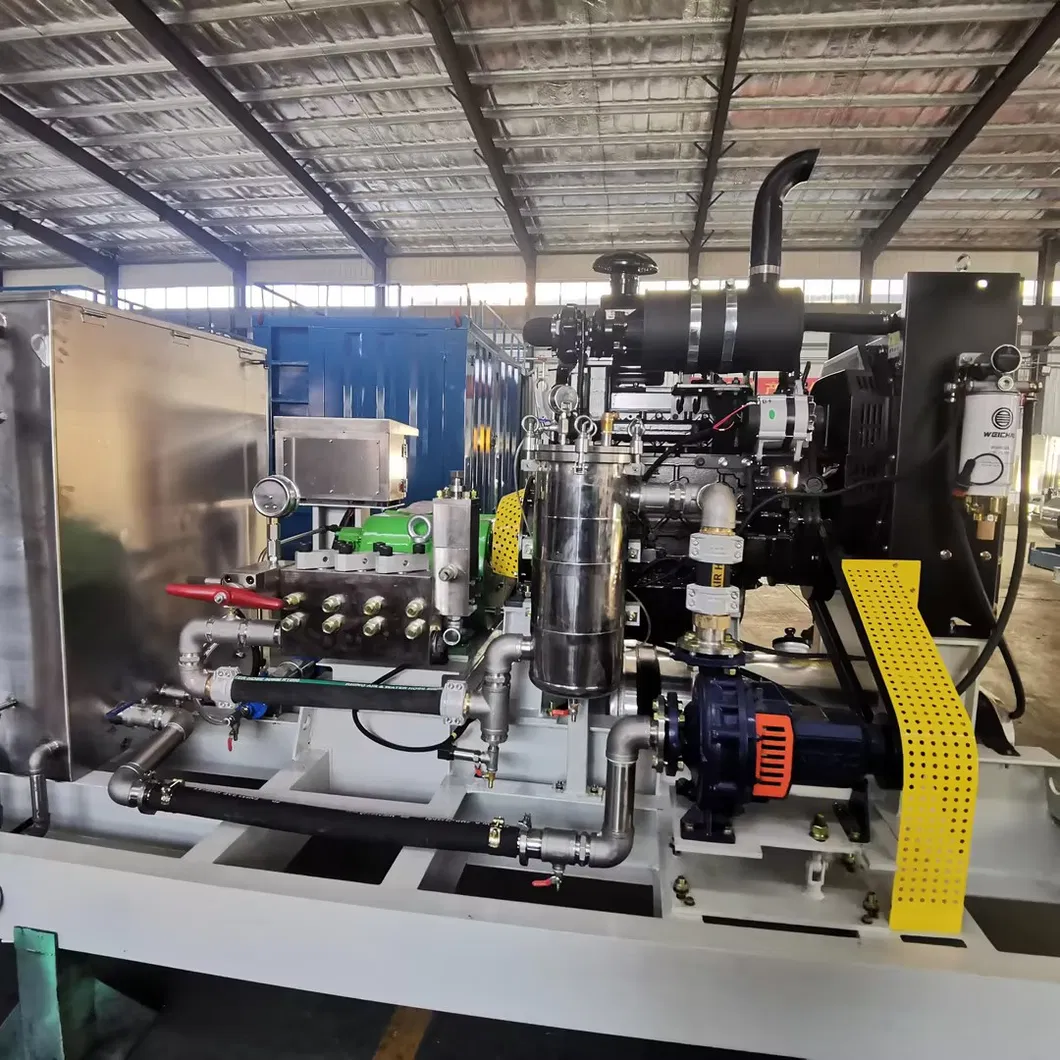

520bar 7250psi 270lpm High Flow High Pressure Water Jet System

Customization:	Available
After-sales Service:	24 Hours
Warranty:	1 Year

Basic Info

Model NO.3D2

StructureAxial Plunger Pump

Cylinder NumberMulti Cylinder

Drive ModeHydraulic Driven Reciprocating Pump

Pump Shaft PositionHorizontal

PowerHydraulic

ConditionNew

Pressure520bar

Flow270L/Min

Cleaning ProcessCold Water Cleaning

Medium TypeEmulsion, Water

Production Capacity1000 Sets/Year

Product Description

3D2-S series high-pressure plunger pump features a small volume and compact structure. The power end adopts splashing lubrication or forced lubrication, ensuring stable and reliable transmission with reduced friction coefficients. This design improves lubricity and maintains a low temperature at the power end, making it suitable for long-term continuous operation. It is ideal for high-pressure water jet applications including rock-breaking, coal-falling, metallurgical phosphorus removal, ship cleaning, rust removal, and various pressure tests for pipelines and drilling equipment. The series can transport water, emulsions, and other liquids with chemical properties similar to water at temperatures of 0-50°C.

Product Parameters

RPM (r/min)		1480						Plunger Diameter (mm)
Power (kW)		30	37	45	55	75	90
1.6 m³/h	27 L/min	50 MPa	-	-	-	-	-		18
2.0 m³/h	34 L/min	43 MPa	-	-	-	-	-	20
2.4 m³/h	40 L/min	37 MPa	46 MPa	-	-	-	-	22
2.9 m³/h	49 L/min	30 MPa	36 MPa	45 MPa	-	-	-	24
3.1 m³/h	52 L/min	28 MPa	35 MPa	42 MPa	52 MPa	-	-	25

Applications & Expertise

Our manufacturer is dedicated to the research, development, and production of high-pressure plunger pumps. With ISO9001:2015 certification and numerous patents, our products are widely used across various industrial sectors:

Road traffic sign line removal
Bridge cement demolition
Building aluminum formwork cleaning
Wall roughening and demolition
Coal seam water injection & fracturing
Metallurgical phosphorus removal
Ship cleaning and rust removal
Municipal sewer cleaning & dredging
Automobile factory grille cleaning
Oil field water injection
Chemical plant heat exchanger cleaning
Pipeline pressure testing

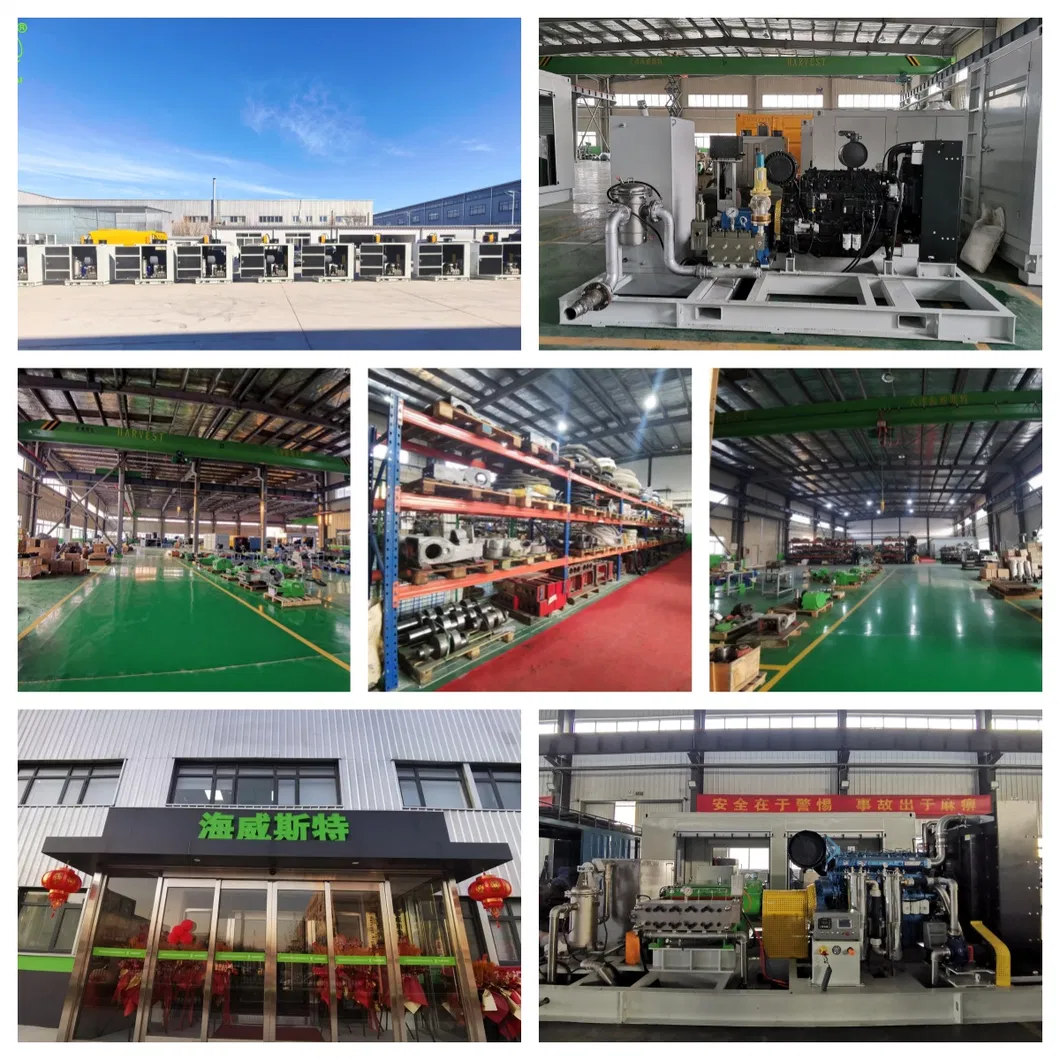

Certifications & Factory Details

FAQ

Q: How do I pay for my purchase order? A: We accept T/T, L/C at sight, Escrow, and Paypal.

Q: What is the minimum order quantity (MOQ)? A: Our MOQ is one set.

Q: What is the standard delivery time? A: It usually takes about 45 days to finish an order, though the exact time depends on the actual situation.

Q: Do you offer customized products? A: Yes, we provide OEM services. Your requirements for color, logo, design, and packaging are welcome.

Q: What is the warranty period? A: We provide a one-year warranty. If any quality problems occur, please feel free to contact us.

Q: What is the working principle of your pump? A: Our high-pressure plunger pumps utilize a high-pressure water jet flow to efficiently remove dirt and grease.
